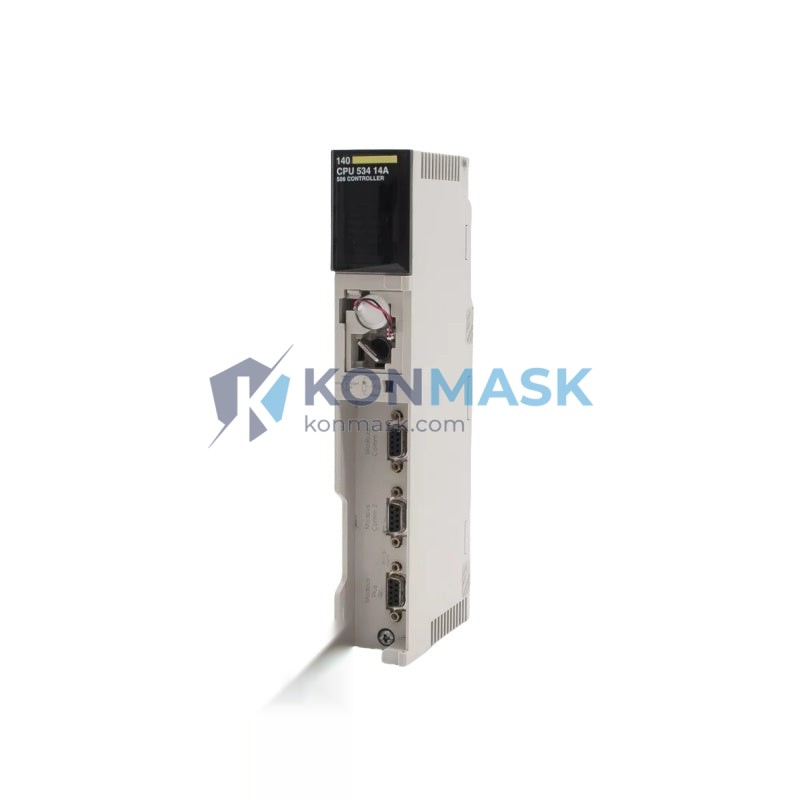

Schneider Electric 140CPU53414A – High-Performance PLC CPU Module | Modicon Quantum Platform
Engineering Background: The Schneider Electric 140CPU53414A is a flagship CPU module within the Modicon Quantum automation platform — one of the most widely deployed process-control architectures in heavy industry, utilities, and critical infrastructure worldwide. Designed to IEC 61131-3 standards, this module delivers deterministic scan-cycle performance and robust fault-tolerance capabilities demanded by mission-critical applications.
Product Positioning: Targeted at procurement engineers and system integrators sourcing a proven, high-memory CPU for large-scale discrete and process automation projects. The 140CPU53414A occupies the upper tier of the Quantum CPU family, offering 512K words of user memory, dual-port Modbus Plus networking, and an integrated Ethernet port — making it the preferred choice for distributed control architectures requiring high-speed peer-to-peer communication.
Complete Technical Specifications
- Part Number / SKU: 140CPU53414A
- Manufacturer: Schneider Electric (Modicon)
- Platform / Series: Modicon Quantum
- Module Type: PLC Central Processing Unit (CPU)
- User Memory: 512K words (program + data)
- Executive Memory: Flash EEPROM (non-volatile)
- Processor: 32-bit RISC
- Scan Time: ~0.1 ms/K Boolean instructions
- Communication Ports: 2× Modbus Plus (MB+), 1× Modbus RS-232 (programming/HMI), 1× 10/100 Mbps Ethernet (Modbus TCP/IP)
- I/O Capacity: Up to 64,000 discrete I/O points; up to 4,096 analog channels
- Backplane Compatibility: Modicon Quantum 140 series backplanes (6, 10, 16 slot)
- Hot Standby Support: Yes — compatible with 140CHS series hot-standby modules
- Programming Software: Unity Pro / EcoStruxure Control Expert
- Languages Supported: LD, FBD, SFC, ST, IL (IEC 61131-3)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 5% to 95% non-condensing
- Power Consumption: 3.5 W (from backplane 5 VDC bus)
- Certifications: CE, UL, CSA, FM Class I Div 2
- Dimensions (H × W × D): 250 × 30 × 200 mm (single slot)
- Weight: Approx. 700 g
- Country of Origin: France
- HS Code: 8537.10
Proven Application Environments
- Oil & Gas: Pipeline SCADA, compressor station control, wellhead automation
- Power Generation & Utilities: Turbine governor control, substation automation, load management
- Water & Wastewater: Pump station sequencing, SCADA integration, chemical dosing control
- Automotive Manufacturing: Body-in-white assembly lines, paint shop conveyors, press control
- Pharmaceutical & Food Processing: Batch control (ISA-88), CIP/SIP sequences, clean-room automation
- Mining & Minerals: Conveyor drive control, crusher sequencing, ventilation management
Engineering Advantages
- Large Memory Headroom: 512K words accommodates complex ladder logic, function block libraries, and extensive data tables without segmentation constraints.
- Dual Modbus Plus Ports: Enables peer-to-peer token-passing network at 1 Mbps — ideal for distributed I/O drops and inter-PLC messaging without a dedicated network master.
- Integrated Ethernet (Modbus TCP/IP): Native 10/100 Mbps port eliminates the need for a separate NOE communication module in standard Modbus TCP architectures.
- Hot Standby Ready: Seamless failover to redundant CPU with bumpless transfer — critical for continuous-process industries where downtime is not acceptable.
- EcoStruxure / Unity Pro Compatibility: Full support for modern IEC 61131-3 programming environments, structured text libraries, and online change capabilities.
- Proven Field Longevity: Modicon Quantum platform has 20+ years of installed base; spare parts and technical documentation remain widely available.
System Architecture & Signal Flow
The 140CPU53414A occupies a single slot in any Modicon Quantum backplane. On power-up, the CPU executes a self-diagnostic routine, loads the user program from Flash EEPROM, and begins the deterministic scan cycle: Input Scan → Program Execution → Output Update → Communication Service. Modbus Plus traffic is handled by an onboard co-processor, ensuring communication overhead does not impact PLC scan time. Ethernet Modbus TCP/IP requests are serviced asynchronously between scan cycles. Remote I/O drops connect via the CRP (Remote I/O Head) modules on dedicated RIO coaxial cable or via distributed Ethernet I/O using NOM/NOE modules.
Sourcing & Quality Verification
- Source: Konmask.com sources 140CPU53414A units from authorized distributors, certified refurbishers, and decommissioned OEM installations with full traceability documentation.
- Inspection Protocol: Each unit undergoes visual inspection (PCB, connectors, firmware label), functional power-on test, and Modbus Plus / Ethernet port verification prior to shipment.
- Firmware: Firmware version confirmed and documented on request. Downgrade/upgrade support available via Unity Pro / Control Expert.
- Packaging: Anti-static bag + foam-lined carton. ESD-safe handling throughout fulfillment.
- Warranty: 90-day functional warranty. Extended warranty available on request.
Procurement Process
- Submit RFQ — Email [email protected] or call +0086 19859288691 with your required quantity and delivery timeline.
- Receive Quote — Pricing, lead time, and stock confirmation returned within 1 business day.
- Place Order — Purchase order accepted via email; payment via T/T bank transfer, PayPal, or credit card.
- Inspection & Dispatch — Unit tested, documented, and shipped via DHL / FedEx / UPS with tracking number provided.
- After-Sales Support — Technical support available for integration questions, firmware queries, and warranty claims.
Technical FAQ
Q: Is the 140CPU53414A compatible with Unity Pro XL and EcoStruxure Control Expert?
A: Yes. The module is fully supported by both Unity Pro XL (legacy) and EcoStruxure Control Expert (current). Online program upload/download and online change are supported.
Q: Can this CPU operate in a Hot Standby configuration?
A: Yes. Pair with a 140CHS21000 Hot Standby module and a second 140CPU53414A for a fully redundant primary/standby architecture with bumpless transfer.
Q: What is the difference between 140CPU53414A and 140CPU53414B?
A: The “B” suffix denotes a minor hardware revision with no functional difference for most applications. Both revisions are programmatically identical and interchangeable in the field.
Q: Does the unit ship with a memory card?
A: The 140CPU53414A has onboard Flash EEPROM for program storage. An external PCMCIA memory card (140MMS43128) is optional for extended data logging or program backup.
Q: What is the lead time for in-stock units?
A: In-stock units ship within 1–3 business days. For bulk orders or units requiring pre-shipment testing reports, allow 5–7 business days.
