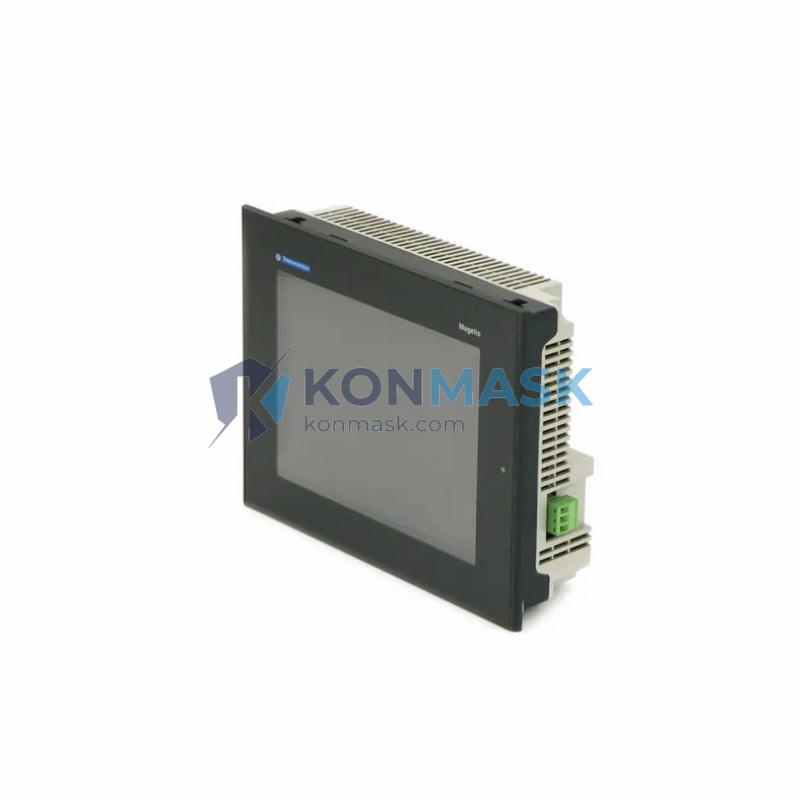

Schneider Electric XBTORT7340 HMI Touchscreen Panel | Replacement, Equivalent & Selection Guide
The Schneider Electric XBTORT7340 is an advanced industrial HMI (Human-Machine Interface) touchscreen panel from the Magelis series, designed for demanding automation environments. This guide covers technical specifications, compatible replacements, equivalent models, and selection advice to help engineers and procurement teams make informed decisions.
Technical Specifications
- Part Number: XBTORT7340
- Brand: Schneider Electric
- Series: Magelis XBTORT
- Display Type: TFT Color Touchscreen
- Display Size: 7.5-inch (approximate, XBTORT series)
- Resolution: 640 × 480 (VGA)
- Operating System: Windows CE / Embedded
- Communication Ports: RS-232, RS-485, Ethernet (RJ45), USB
- Power Supply: 24 V DC
- Operating Temperature: 0 °C to +50 °C
- Protection Rating: IP65 (front panel)
- Weight: Approx. 800 g
- Certifications: CE, UL
- Country of Origin: France / China (varies by batch)
Compatible Replacement & Equivalent Models
If the XBTORT7340 is discontinued or unavailable, the following models offer compatible or equivalent functionality:
- Schneider Electric HMIGTO4310 – Magelis GTO series, 7.5″ TFT, direct functional replacement
- Schneider Electric HMIGTO5310 – 10.4″ upgrade option with enhanced display
- Schneider Electric XBTGT5330 – Magelis XBTGT series, compatible communication protocols
- Schneider Electric XBTGT7340 – Same form factor, updated firmware platform
- Siemens KTP700 Basic – Cross-brand equivalent for Siemens-based systems
- Weintek MT8071iE – Cost-effective third-party alternative with multi-protocol support
Note: Always verify communication protocol, power supply, and mounting dimensions before substituting. Contact support@konmask.com for compatibility verification.
Why Choose the Original XBTORT7340
- ✅ Native Vijeo Designer compatibility – seamless integration with Schneider’s engineering software
- ✅ Proven reliability in harsh industrial environments (IP65 rated)
- ✅ Multi-protocol support – Modbus, Uni-Telway, Ethernet/IP, and more
- ✅ Plug-and-play replacement for existing Magelis XBTORT installations
- ✅ OEM-grade quality with full Schneider Electric traceability
Typical Applications
- Machine tool control panels and CNC operator interfaces
- Water treatment and HVAC monitoring systems
- Packaging and conveyor line HMI stations
- Energy management and power distribution control
- Building automation and process visualization
- Oil & gas field operator terminals
System Compatibility
The XBTORT7340 is compatible with the following PLCs and control systems:
- Schneider Electric: Modicon M340, M580, Premium, Quantum, Twido series
- Protocols: Modbus RTU/TCP, Uni-Telway, Ethernet/IP, CANopen, PROFIBUS DP
- Software: Vijeo Designer 6.x and above
- Third-party PLCs: Compatible via Modbus RTU/TCP with Siemens S7, Mitsubishi FX/Q, Omron CJ/CS series (driver configuration required)
Selection Guide
Use this guide to determine if the XBTORT7340 is the right choice for your application:
- Need a direct drop-in replacement? → XBTORT7340 or HMIGTO4310
- Upgrading to a larger display? → HMIGTO5310 (10.4″) or HMIGTO6310 (12.1″)
- Budget-sensitive project? → Weintek MT8071iE or Kinco MT4434TE
- Siemens TIA Portal environment? → Siemens KTP700 Basic or KTP900 Basic
- Require ATEX/hazardous area rating? → Consult Konmask for certified variants
- Outdoor or high-brightness application? → Specify sunlight-readable display option
Quality Assurance & Sourcing
At Konmask.com, all XBTORT7340 units are:
- Sourced directly from authorized distributors or verified secondary market channels
- Inspected and tested before shipment (power-on test, port verification)
- Supplied with original packaging and documentation where available
- Backed by our 30-day return policy and 12-month warranty on new units
- Traceable via serial number and batch records
How to Order
- Add the XBTORT7340 to your cart and proceed to checkout
- For bulk orders (>5 units), email support@konmask.com for a volume quote
- Specify your required firmware version or Vijeo Designer compatibility if applicable
- International shipping available – DHL, FedEx, UPS with full customs documentation
- Lead time: In-stock units ship within 1–3 business days; sourced units 5–15 business days
Replacement & Compatibility FAQ
Q: Is the XBTORT7340 still in production?
A: The XBTORT series has been superseded by the Magelis GTO/GTU series. Konmask stocks both new and refurbished units. Contact us to confirm current availability.
Q: Can I use Vijeo Designer projects from XBTORT7340 on HMIGTO4310?
A: Yes, with minor migration steps in Vijeo Designer. The project conversion wizard handles most mappings automatically.
Q: What is the difference between XBTORT7340 and XBTGT7340?
A: The XBTGT series offers an updated hardware platform with faster processor and expanded memory, while maintaining backward protocol compatibility.
Q: Do you supply refurbished units?
A: Yes. All refurbished units are tested, cleaned, and supplied with a 6-month warranty. Please specify “refurbished” when inquiring.
Q: Can you help verify compatibility with my existing system?
A: Absolutely. Send your PLC model, communication protocol, and current HMI project details to support@konmask.com and our engineers will advise.
