Discrete I/O Automation Solution — Schneider Electric 170ADI35000 | Modicon Momentum
Where This Product Is Used

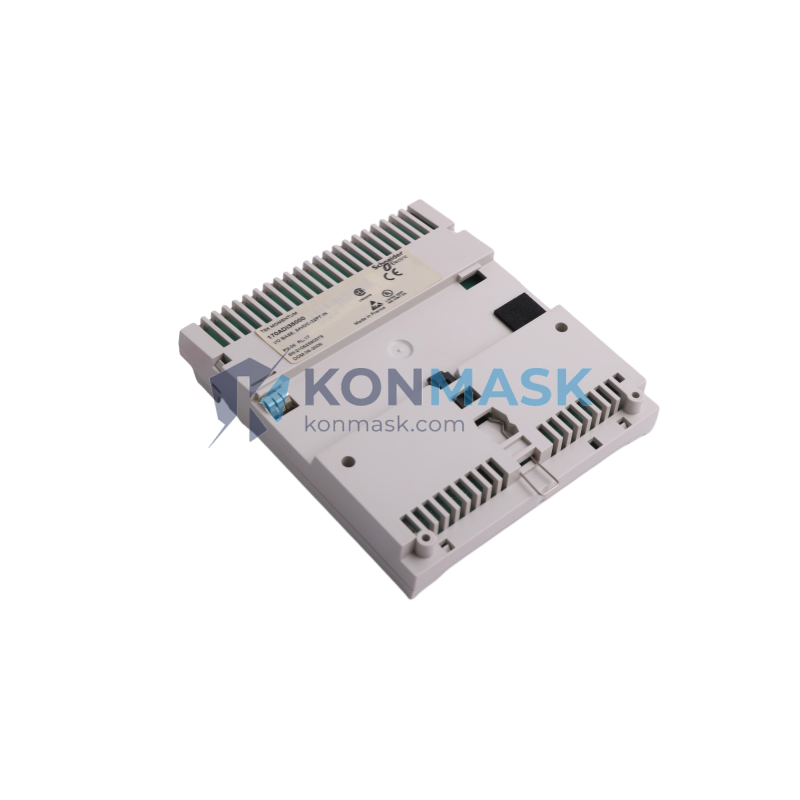

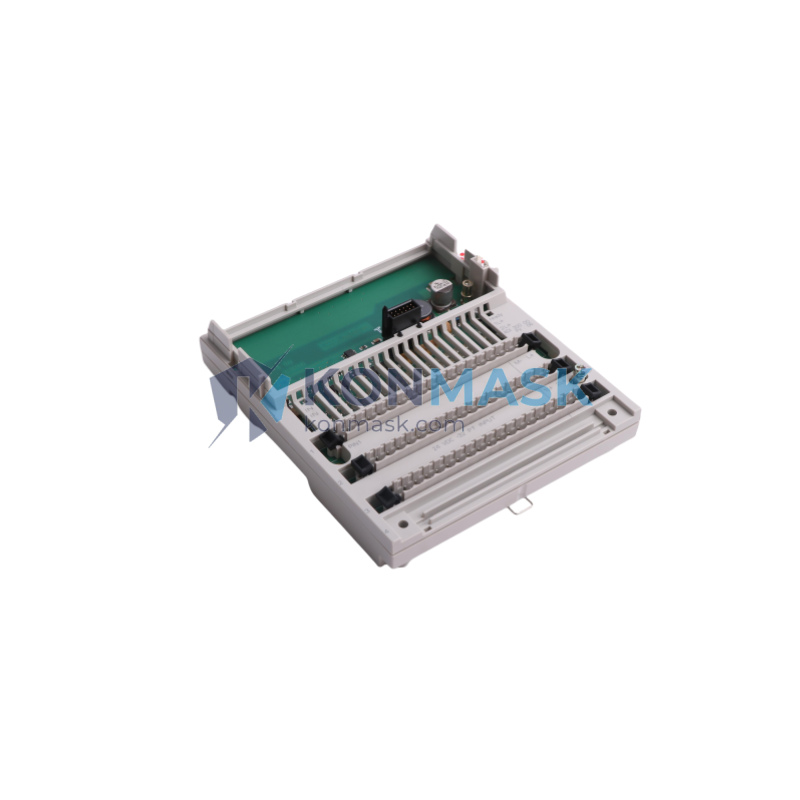

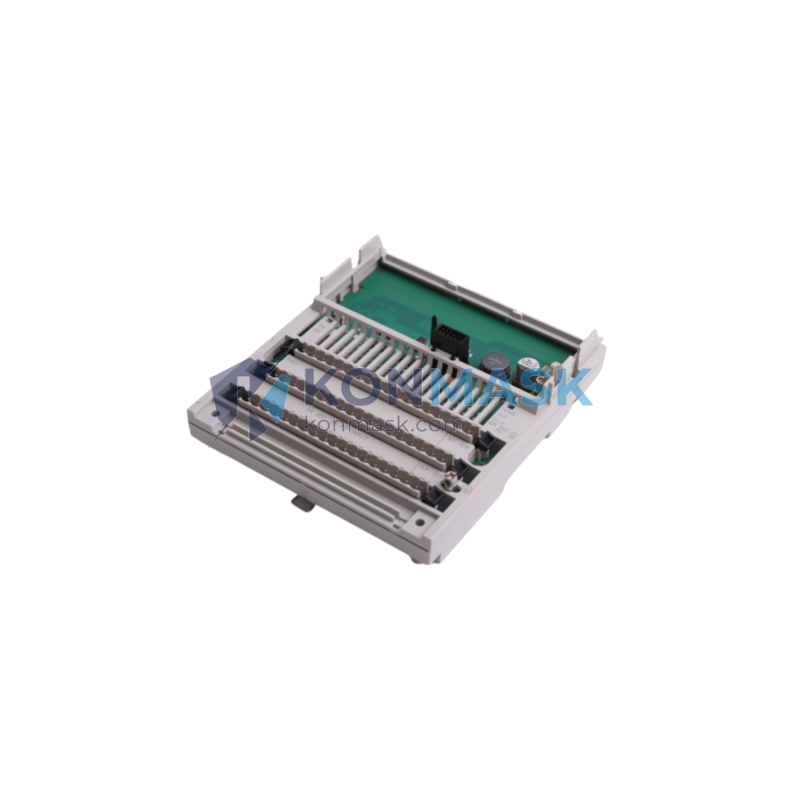

The Schneider Electric 170ADI35000 is a 32-point 24 VDC discrete input module engineered for the Modicon Momentum distributed I/O platform. It is deployed across demanding industrial environments where reliable digital signal acquisition is critical:
- Automotive Assembly Lines — Monitoring proximity sensors, limit switches, and part-present detectors on conveyor and robotic cells.
- Water & Wastewater Treatment — Reading valve position feedback, flow switch states, and pump run/fault signals in SCADA-integrated systems.
- Food & Beverage Processing — Capturing pushbutton, selector switch, and safety interlock inputs in hygienic production environments.
- Oil & Gas Facilities — Interfacing field instruments and emergency shutdown (ESD) logic in distributed control architectures.
- Building Automation & HVAC — Aggregating discrete status signals from dampers, fans, and occupancy sensors into a central PLC.
- Material Handling & Logistics — Tracking pallet presence, door interlocks, and conveyor end-of-travel signals in warehouse automation.
Technical Specifications
| Part Number (SKU) | 170ADI35000 |
| Brand | Schneider Electric |
| Series | Modicon Momentum |
| Module Type | Discrete Input Module |
| Number of Inputs | 32 Points |
| Input Voltage | 24 VDC |
| Input Logic | Sink / Source (IEC Type 1 & Type 3) |
| Communication Bus | Modicon Momentum Backplane (Adapter-based) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Degree of Protection | IP20 |
| Weight | 220 g |
| Country of Origin | France |
| Certifications | CE, UL, cUL, CSA |
Why Engineers Specify This Model
- High-Density I/O — 32 discrete inputs in a single compact module reduces panel footprint and wiring complexity versus multiple lower-density alternatives.
- Modicon Momentum Ecosystem — Pairs directly with Momentum communication adapters (Ethernet, Modbus, Profibus, DeviceNet) without additional gateways.
- Dual Sink/Source Compatibility — Accepts both NPN and PNP field devices, eliminating the need for separate module variants per sensor type.
- LED Status Indication — Per-channel LED diagnostics enable rapid field troubleshooting without a laptop or programming tool.
- Proven Longevity — The Momentum platform has decades of installed base; spare parts and replacements remain readily available for brownfield maintenance.
- DIN-Rail & Panel Mount — Flexible mounting options suit both new panel builds and retrofit installations.
Complete System Bill of Materials
To build a fully operational Modicon Momentum I/O node, the following components are typically required alongside the 170ADI35000:
- Communication Adapter — e.g., 170ENT11001 (Ethernet TCP/IP), 170ANR12090 (Modbus Plus), 170PNT11020 (Profibus DP)
- Power Supply — 24 VDC field-side power supply rated for total I/O current draw
- Terminal Block / Wiring Base — Compatible Momentum I/O base (included or ordered separately per configuration)
- Field Wiring Accessories — Shielded cable, ferrules, and DIN-rail terminal blocks per IEC 60947-7-1
- Programming Software — Schneider Electric Unity Pro / EcoStruxure Control Expert for configuration and diagnostics
Compliance & Industry Standards
- CE Marking — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- UL 508 — Industrial Control Equipment (USA)
- CSA C22.2 No. 142 — Process Control Equipment (Canada)
- IEC 61131-2 — Programmable Controllers: Equipment Requirements & Tests
- RoHS Compliant — Restriction of Hazardous Substances Directive 2011/65/EU
Quality Assurance & Sourcing
Every 170ADI35000 unit offered through Konmask.com undergoes the following verification process before dispatch:
- Visual inspection for physical damage, label integrity, and correct part marking
- Functional power-on test where applicable
- Cross-reference against Schneider Electric official part number database
- Secure anti-static packaging with humidity indicator card
- Traceability documentation available upon request (batch/lot records)
We source from authorized distributors, OEM surplus, and verified industrial resellers. Counterfeit-free guarantee backed by our sourcing policy.
How to Source This Part
- In Stock: Add to cart and proceed to checkout — ships within 1–3 business days.
- Bulk / Project Quantity: Contact us for volume pricing and lead-time commitment.
- Urgent Requirement: Email [email protected] or call +0086 19859288691 for expedited sourcing.
- Cross-Reference / Substitution: Our engineers can advise on compatible alternatives if this exact part number is unavailable.
Application-Specific FAQ
Q: Is the 170ADI35000 compatible with all Modicon Momentum communication adapters?
A: Yes. The I/O module connects to any Momentum adapter via the standard backplane interface, regardless of the fieldbus protocol (Ethernet, Modbus, Profibus, DeviceNet, etc.).
Q: Can I mix 170ADI35000 with output modules on the same Momentum node?
A: The Momentum architecture uses a single I/O module per adapter. For mixed I/O, use multiple adapters or consider the Momentum distributed I/O drop topology.
Q: What is the maximum cable length for field wiring to this module?
A: Schneider Electric recommends a maximum of 300 m for 24 VDC discrete inputs when using shielded cable and proper grounding practices per IEC 60204-1.
Q: Does this module support hot-swap replacement?
A: Hot-swap capability depends on the communication adapter and system configuration. Consult your Unity Pro / Control Expert project settings and Schneider Electric documentation before performing live replacement.
Q: What warranty does Konmask.com provide?
A: We offer a 90-day functional warranty on all modules. Extended warranty and service contracts are available — contact us for details.
