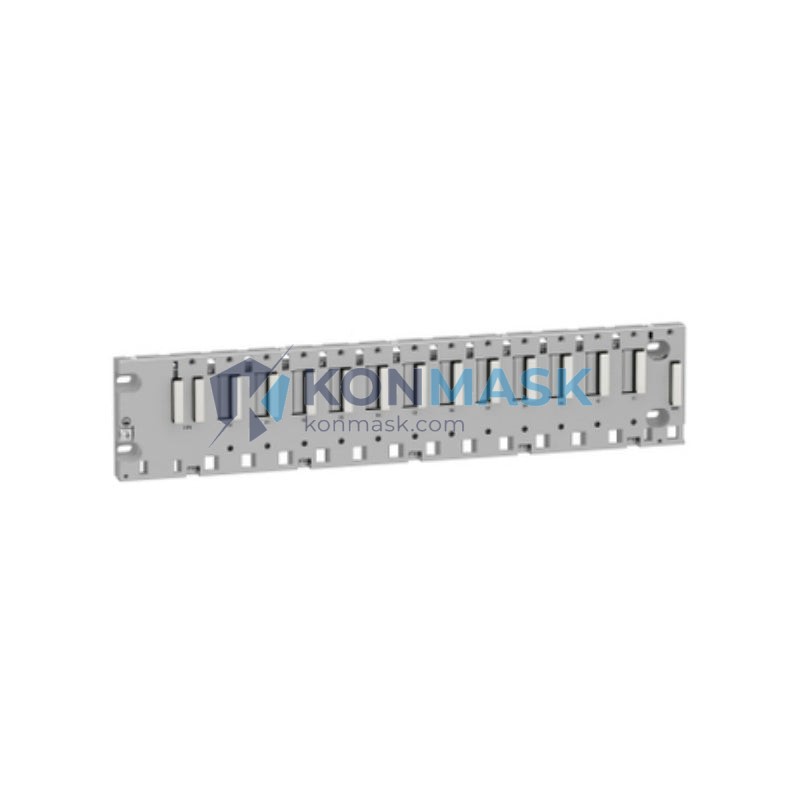

Schneider Electric BMEXBP0800 8-Slot Ethernet Backplane – Modicon M580 ePAC Series
Imagine a critical production line halted because the PLC backplane can no longer sustain real-time Ethernet communication between I/O modules and the CPU. Every minute of downtime translates directly into lost output, missed delivery windows, and costly emergency maintenance calls. The Schneider Electric BMEXBP0800 eliminates this risk by providing a purpose-built, 8-slot Ethernet backplane engineered for the demands of modern industrial automation — ensuring seamless, deterministic data exchange across your entire control architecture.
Within the Modicon M580 ePAC (Ethernet Programmable Automation Controller) ecosystem, the BMEXBP0800 occupies a foundational role. As an 8-slot local rack backplane with an integrated Ethernet switch, it enables direct module-to-module communication over a dedicated backplane Ethernet bus — a design philosophy that sets the M580 platform apart from legacy PAC architectures. Globally, the Modicon M580 series is deployed across oil & gas, water treatment, power distribution, and advanced manufacturing facilities, making the BMEXBP0800 one of the most strategically important rack components in Schneider Electric’s automation portfolio.
Technical Specifications
- Part Number: BMEXBP0800
- Series: Modicon M580 ePAC
- Rack Slots: 8 slots (local rack)
- Backplane Bus: Integrated Ethernet switch (100 Mbps)
- Compatible CPUs: Modicon M580 CPU modules (BME P58 xxxx series)
- Power Supply Slots: Dedicated power supply slot (not counted in 8 I/O slots)
- Mounting: DIN rail or panel mounting
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 10% to 95% non-condensing
- Protection Rating: IP20
- Standards Compliance: IEC 61131-2, CE, UL, cUL
- Weight: Approx. 500 g
Key Features & Benefits
- Integrated Ethernet Backplane Switch: Eliminates the need for external switches between modules, reducing wiring complexity and improving signal integrity.
- 8 Flexible I/O Slots: Accommodates a wide range of M580-compatible I/O, communication, and specialty modules for scalable system design.
- High-Availability Architecture Support: Compatible with Hot Standby CPU configurations, enabling redundant control for mission-critical applications.
- Deterministic Communication: Ethernet-based backplane ensures predictable, low-latency data exchange critical for process control loops.
- Simplified System Topology: Native Ethernet integration reduces overall panel footprint and simplifies network architecture documentation.
- Long Product Lifecycle: Part of Schneider Electric’s long-term supported M580 platform, ensuring spare parts availability and firmware continuity.
Industry & Equipment Applications
- Oil & Gas: Pipeline monitoring, compressor control, SCADA integration
- Water & Wastewater: Pump station automation, treatment plant process control
- Power Distribution: Substation automation, energy management systems
- Automotive Manufacturing: Assembly line control, robotic cell integration
- Food & Beverage: Batch processing, CIP (Clean-in-Place) control systems
- Mining & Minerals: Conveyor control, crusher automation
System Integration & Compatible Parts
The BMEXBP0800 is designed to work within the broader Modicon M580 ecosystem. Key compatible components include:
- CPU Modules: BMEP581020, BMEP582020, BMEP583040, BMEP584040, BMEH582040, BMEH584040 (Hot Standby)
- Power Supplies: BMXCPS2000, BMXCPS3500, BMXCPS4002 series
- I/O Modules: BMX DDI / DDO / DAI / DAO / AHI / AHO series
- Communication Modules: BMENOC0301 (EtherNet/IP), BMENOC0311 (Modbus TCP)
- Expansion Racks: BMEXBP0400 (4-slot), BMEXBP1200 (12-slot) for system scaling
Our Quality Assurance Process
At Konmask.com, every unit of the BMEXBP0800 undergoes a rigorous multi-stage verification process before shipment:
- Source Verification: All units are sourced from authorized distributors or directly from Schneider Electric’s certified supply chain.
- Visual & Physical Inspection: Each module is inspected for label authenticity, connector integrity, and absence of physical damage.
- Functional Testing: Where applicable, modules are bench-tested to confirm power-on and communication readiness.
- Secure Packaging: Anti-static packaging with moisture barrier bags and shock-absorbing foam inserts for safe international transit.
- Documentation: Certificate of conformity and test reports available upon request.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page with your required quantity and delivery timeline.
- Our technical sales team will respond within 24 business hours with availability confirmation and a formal quotation.
- Upon PO receipt, we process and ship with full tracking information provided.
- Lead time: In-stock items ship within 3–5 business days; sourced items typically 7–15 business days.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation Components — PLC, DCS, HMI, drives, and more from leading global brands.
- ✅ Global B2B Supply — Serving engineering firms, system integrators, and OEMs across 30+ countries.
- ✅ Technical Expertise — Our team includes experienced automation engineers who understand your application requirements.
- ✅ Competitive Pricing — Direct sourcing relationships enable us to offer market-competitive pricing on genuine parts.
- ✅ Reliable After-Sales Support — Dedicated account managers and post-sale technical assistance.
Frequently Asked Questions
Q: Is the BMEXBP0800 compatible with older Modicon Quantum or Premium racks?
A: No. The BMEXBP0800 is exclusively designed for the Modicon M580 ePAC platform and is not backward compatible with Quantum or Premium series racks.
Q: Can I use the BMEXBP0800 as a remote rack?
A: The BMEXBP0800 is a local rack backplane. For remote I/O expansion, Schneider Electric offers dedicated remote rack solutions such as the BMEXBP0400 with appropriate head-end adapters.
Q: Does the BMEXBP0800 support Hot Standby redundancy?
A: Yes. When paired with compatible Hot Standby CPU modules (e.g., BMEH582040 or BMEH584040), the BMEXBP0800 supports high-availability redundant control architectures.
Q: What is the maximum number of slots available in the M580 local rack family?
A: The M580 local rack family includes 4-slot (BMEXBP0400), 8-slot (BMEXBP0800), and 12-slot (BMEXBP1200) configurations to suit different system sizes.
Q: How do I verify the authenticity of the BMEXBP0800 I receive?
A: Genuine units feature Schneider Electric holographic labels, traceable serial numbers, and can be verified via Schneider Electric’s product authentication portal. Konmask.com provides documentation upon request.
