Schneider Electric HMIPUH6A0701 Panel PC Universal | Replacement, Equivalent & Selection Guide

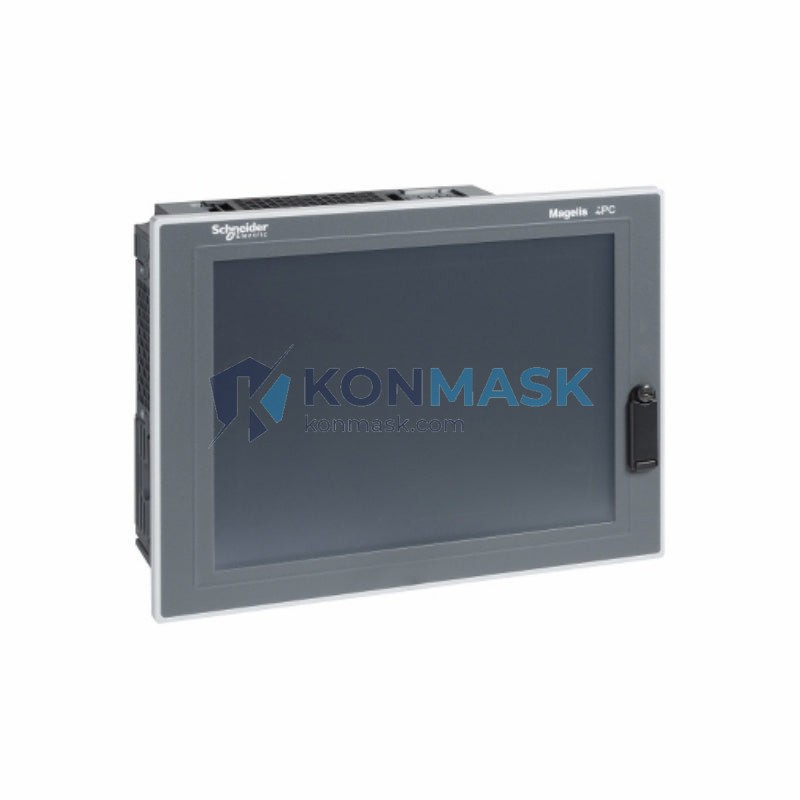

The Schneider Electric HMIPUH6A0701 is a high-performance Panel PC Universal from the Magelis series, designed for demanding industrial HMI applications. This page provides full technical specifications, compatible replacement models, equivalent alternatives, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | HMIPUH6A0701 |
| Brand | Schneider Electric |
| Series | Magelis Panel PC Universal |
| Product Type | Industrial Panel PC / HMI |
| Display Size | 7-inch (nominal) |
| Resolution | WVGA (800 × 480) |
| Processor | Intel Atom / ARM (series-dependent) |
| Operating System | Windows Embedded / CE (series-dependent) |
| Communication | Ethernet, USB, Serial (RS-232/485) |
| Protection Rating | IP65 (front panel) |
| Power Supply | 24 VDC |
| Weight | ~11.2 kg (packaged) |
| Mounting | Panel mount |
| Certifications | CE, UL |
Note: Always verify specifications against the official Schneider Electric datasheet before final design-in.
Compatible Replacement & Equivalent Models
If the HMIPUH6A0701 is discontinued, long lead-time, or outside budget, the following models offer compatible or equivalent functionality:
| Model | Brand | Display | OS | Notes |
|---|---|---|---|---|
| HMIPUH6D0701 | Schneider Electric | 7″ | Windows Embedded | Direct series variant – higher spec |
| HMIPUH7A0701 | Schneider Electric | 7″ | Windows Embedded | Upgraded CPU variant |
| HMIG3U | Schneider Electric | — | CE | Magelis GTO series alternative |
| 6AV2124-0GC01-0AX0 | Siemens | 7″ | Windows CE | SIMATIC HMI TP700 – cross-brand equivalent |
| 2711P-T7C22D9P | Allen-Bradley | 7″ | Windows CE | PanelView Plus 7 – cross-brand equivalent |
Contact us to confirm electrical and mechanical compatibility before ordering a replacement.
Why Choose the Original Model
- Seamless integration with existing Schneider Electric PLC and SCADA architectures (EcoStruxure, Modicon M340/M580)
- Validated firmware and driver support from Schneider Electric
- Identical form factor – no panel cutout modification required
- Long-term spare parts availability through authorized channels
- Warranty and technical support backed by Schneider Electric global network
Typical Applications
- Machine tool control and CNC operator interfaces
- Water and wastewater treatment plant HMI stations
- Building automation and energy management systems
- Food & beverage processing line control panels
- Oil & gas field operator workstations
- Pharmaceutical batch process monitoring
System Compatibility
The HMIPUH6A0701 is compatible with the following Schneider Electric platforms and third-party systems via standard protocols:
- Schneider Electric PLCs: Modicon M340, M580, Premium, Quantum
- SCADA/Software: Vijeo Designer, EcoStruxure Operator Terminal Expert
- Protocols: Modbus TCP/IP, Modbus RTU, EtherNet/IP, CANopen, Profibus DP
- Third-party PLCs: Compatible via OPC-UA or serial gateway adapters
Selection Guide
Use the following criteria to confirm the HMIPUH6A0701 is the right choice, or to select an appropriate alternative:
| Requirement | Recommended Action |
|---|---|
| Same panel cutout, same PLC brand | Order HMIPUH6A0701 (direct replacement) |
| Same cutout, higher performance needed | Evaluate HMIPUH6D0701 or HMIPUH7A0701 |
| Different PLC brand (Siemens/AB) | Consider cross-brand equivalent with protocol gateway |
| Budget-sensitive project | Contact Konmask for refurbished / surplus stock options |
| Obsolete / EOL unit | Request compatibility assessment from our engineering team |
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Pre-shipment inspection: visual, functional power-on test, and label verification
- Anti-static packaging with humidity indicator cards
- Traceability documentation available on request (COO, test report)
- Konmask.com is an independent distributor – not an official Schneider Electric partner. Always verify critical specs with the OEM datasheet.
How to Order
- Confirm the part number: HMIPUH6A0701
- Specify quantity and required delivery timeline
- Request a quote via [email protected] or add to cart directly
- Provide your shipping address and preferred freight method (DHL / FedEx / sea freight)
- Payment: T/T, PayPal, or credit card accepted
Replacement & Compatibility FAQ
Q: Is the HMIPUH6A0701 still in production?
A: Please contact us for current availability and lead time. We maintain access to new, surplus, and refurbished stock.
Q: Can I use a Siemens TP700 as a direct replacement?
A: Mechanically similar, but software and protocol configuration will differ. A gateway or reprogramming is required.
Q: Does Konmask provide a warranty?
A: Yes – we offer a 90-day functional warranty on all tested units. Extended warranty available on request.
Q: Can you supply the Vijeo Designer project file?
A: We do not supply OEM software licenses. Please contact Schneider Electric for software support.
Q: What is the lead time?
A: In-stock units ship within 3–5 business days. Out-of-stock items typically 2–6 weeks depending on sourcing.
