Genuine Schneider Electric XBTGK5330 10.4″ Graphic Control Panel | Magelis GK Series – Verified Source

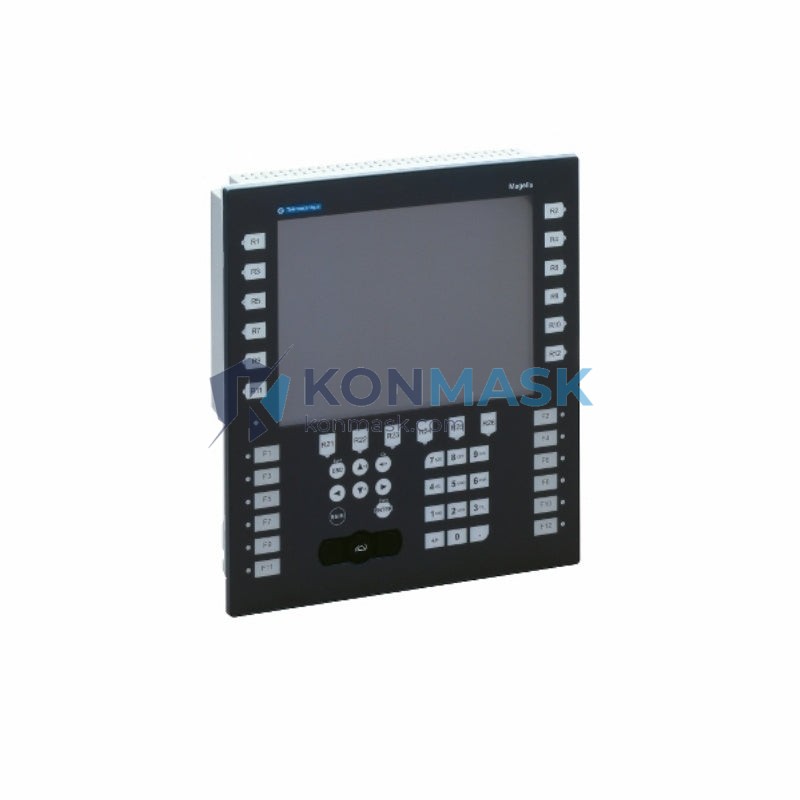

The Schneider Electric XBTGK5330 is a high-performance 10.4-inch color TFT touchscreen HMI from the Magelis GK Series, engineered for demanding industrial automation environments. At Konmask.com, every unit is sourced through verified supply channels and undergoes multi-point quality inspection before dispatch — giving B2B buyers the confidence they need when specifying critical control hardware.
Technical Specifications
- Part Number / SKU: XBTGK5330
- Brand: Schneider Electric
- Series: Magelis GK
- Display: 10.4″ TFT Color LCD Touchscreen
- Resolution: 640 × 480 (VGA)
- Processor: 400 MHz ARM9
- Memory: 64 MB RAM / 128 MB Flash
- Communication Ports: Ethernet (RJ45), Serial (RS-232/RS-485), USB Host & Device
- Operating System: Windows CE 6.0
- Power Supply: 24 VDC (±20%)
- Power Consumption: ≤ 25 W
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: −20 °C to +70 °C
- Protection Rating: IP65 (front panel)
- Dimensions (W × H × D): 310 × 240 × 60 mm (approx.)
- Weight: ~3.4 kg
- Certifications: CE, UL, cUL
- Country of Origin: France / EU
Our 4-Step Quality Verification Process
- Step 1 — Source Authentication: Units are procured exclusively from authorized distributors or verified OEM surplus channels. Counterfeit-risk screening is applied at intake.
- Step 2 — Physical Inspection: Each unit is inspected for label integrity, firmware version, connector condition, and packaging authenticity.
- Step 3 — Functional Power-On Test: Where applicable, units are powered on to confirm display, communication port response, and boot sequence.
- Step 4 — Documentation & Traceability: Lot number, serial number, and sourcing records are logged. Full traceability documentation available on request.
Key Features & Benefits
- Large 10.4″ TFT display for clear visualization of process data and alarms
- Multi-protocol communication supports seamless integration with Modbus, CANopen, EtherNet/IP, and Schneider Uni-Telway networks
- IP65 front-panel protection — suitable for dusty and wet industrial environments
- Windows CE 6.0 platform with Vijeo Designer software compatibility for rapid application development
- USB host port enables easy data logging, recipe management, and firmware updates
- Compact panel-mount design minimizes cabinet footprint
- Wide operating temperature range supports use in harsh factory floor conditions
Typical Applications
- Machine tool control and CNC operator interfaces
- Water treatment and utilities SCADA visualization
- Packaging line HMI stations
- Building automation and HVAC control panels
- Food & beverage processing lines
- Oil & gas field monitoring terminals
- Pharmaceutical batch control systems
Compatible System Components
- PLCs: Schneider Modicon M340, M580, Premium, Quantum series
- Software: Vijeo Designer 6.x / 6.2+
- Communication Modules: TSXSCP114, TSXSCP111 (RS-485 adapters)
- Power Supply: Schneider ABL8 series 24 VDC PSU
- Mounting Accessories: XBTZG935 panel gasket kit, XBTZG9001 mounting clamps
- Third-Party PLCs: Compatible via Modbus RTU/TCP and EtherNet/IP drivers
Global Sourcing & Shipping Capabilities
- Stock Location: China (Mainland) — ships worldwide
- Lead Time: In-stock units ship within 1–3 business days; sourced units within 7–15 business days
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, sea freight for bulk orders
- Export Compliance: HS Code 8537.10 — standard industrial control panel classification
- Customs Documentation: Commercial invoice, packing list, and certificate of origin provided
- Bulk / OEM Orders: Contact us for volume pricing and dedicated logistics coordination
Certifications & Compliance Statement
The Schneider Electric XBTGK5330 carries CE (European Conformity), UL, and cUL certifications. All units supplied by Konmask.com are genuine Schneider Electric products. We do not sell refurbished, remanufactured, or third-party-cloned units. Certification documentation and original Schneider Electric labeling are intact on every unit shipped.
How to Order
- Online: Add to cart and complete checkout — we accept T/T bank transfer, PayPal, and major credit cards
- Email RFQ: Send your BOM or part number list to [email protected] for a formal quotation within 24 hours
- Phone / WhatsApp: +0086 19859288691 — available Mon–Sat, 09:00–18:00 CST
- Minimum Order Quantity: 1 unit (no MOQ for standard orders)
- Lead Time Confirmation: Provided at order confirmation; expedited options available
Authenticity & Trust FAQ
Q: How do I know the unit is genuine Schneider Electric?
A: Every XBTGK5330 we ship carries intact Schneider Electric factory labels, original serial numbers, and is sourced from traceable supply channels. We provide sourcing documentation on request.
Q: Do you offer a warranty?
A: Yes — we offer a 90-day functional warranty on all units. If a unit fails under normal operating conditions within 90 days, we will replace or refund it.
Q: Can I return the product if it doesn’t match my requirements?
A: We accept returns within 14 days of receipt for unused, uninstalled units in original packaging. Please contact [email protected] to initiate a return.
Q: Do you provide technical support for integration?
A: Our team has hands-on experience with Schneider Magelis HMI configuration. We can assist with Vijeo Designer setup guidance and communication parameter configuration at no extra charge.
Q: Are bulk / project quantities available?
A: Yes. We regularly fulfill project orders of 10–500+ units. Contact us for volume pricing, staggered delivery schedules, and dedicated account management.
