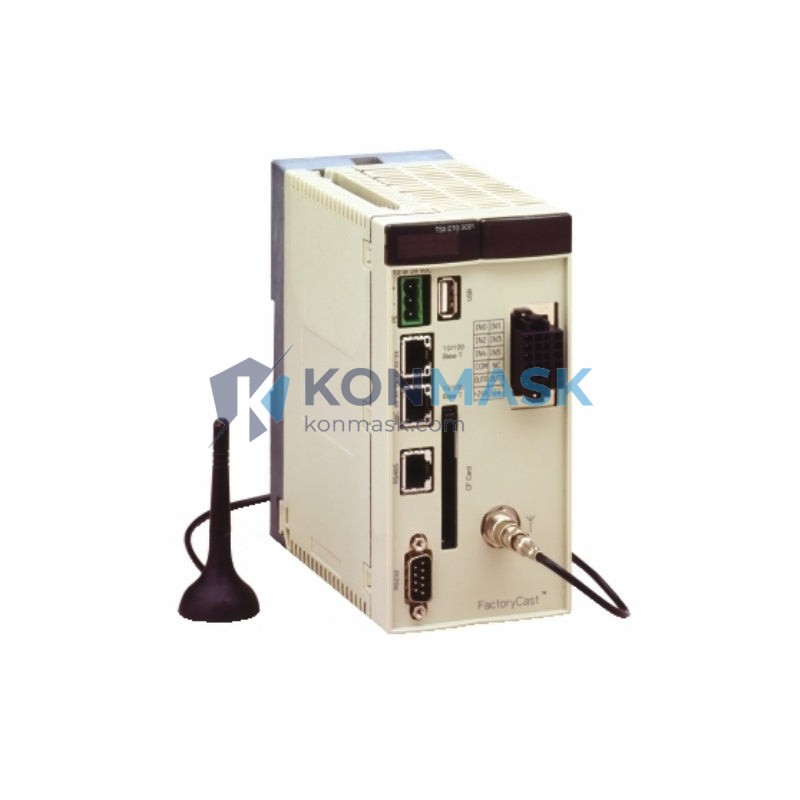

Factory Network & SCADA Connectivity Solution — Schneider Electric TSXETG3000 | Modicon Premium Series
Where This Product Is Used
The Schneider Electric TSXETG3000 is an Ethernet TCP/IP communication module designed for the Modicon Premium PLC platform. It is widely deployed in environments where reliable, high-speed Ethernet connectivity between PLCs, SCADA systems, MES platforms, and enterprise networks is critical.
- Automotive Assembly Lines — Real-time data exchange between Premium PLCs and plant-level MES for production tracking and quality control.
- Water & Wastewater Treatment Plants — Remote monitoring and control via SCADA over standard Ethernet infrastructure.
- Food & Beverage Processing — Integration of PLC-controlled filling, packaging, and conveyor systems into plant-wide Ethernet networks.
- Oil & Gas Facilities — Supervisory communication between field PLCs and control room HMI/SCADA over TCP/IP.
- Building Management Systems (BMS) — Connecting Premium PLCs to BACnet/IP or Modbus TCP-based building automation networks.
- Pharmaceutical Manufacturing — Audit-trail data logging and batch reporting via Ethernet to compliant MES/ERP systems.
Technical Specifications
| SKU / Part Number | TSXETG3000 |
| Brand | Schneider Electric |
| Series | Modicon Premium |
| Module Type | Ethernet TCP/IP Communication Module |
| Communication Protocol | Ethernet TCP/IP, Modbus TCP, UNI-TE |
| Network Interface | 10/100 Mbps RJ45 |
| Supported Services | FTP, HTTP, SMTP, SNMP, DHCP, NTP |
| Max Connections | Up to 16 simultaneous TCP connections |
| Backplane Bus | Modicon Premium rack-mount (X-bus) |
| Power Consumption | Supplied via Premium rack backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Weight | 260 g |
| Certifications | CE, UL, cUL |
| Programming Software | Unity Pro / PL7 Pro |
Why Engineers Specify This Model
- Native Modbus TCP Support — Seamlessly communicates with third-party devices, HMIs, and SCADA servers without additional gateways.
- Embedded Web Server — Built-in HTTP server enables browser-based diagnostics and real-time variable monitoring without additional software.
- Email Alarm Notification (SMTP) — Configurable to send automated email alerts on process alarms, reducing response time in unmanned facilities.
- SNMP Network Management — Integrates into IT-managed network infrastructure for centralized monitoring and fault detection.
- Dual Protocol Stack — Supports both UNI-TE (Schneider native) and Modbus TCP simultaneously, protecting legacy system investments.
- Rack-Native Form Factor — Slots directly into the Modicon Premium rack with no external wiring or power supply required.
Complete System Bill of Materials
For a complete Modicon Premium Ethernet-connected control system, the following components are typically specified alongside the TSXETG3000:
- TSXP574634M — Modicon Premium CPU module (high-performance)
- TSXRKY8EX — Premium 8-slot rack extension
- TSXPSY2600M — 26W rack power supply module
- TSXDSY16T2 — 16-channel discrete output module
- TSXAEY414 — 4-channel analog input module
- TSXMRPC001M — PCMCIA memory card for program backup
- Managed Industrial Ethernet Switch (e.g., Schneider TCSESM063F2CU0)
Contact Konmask for bundle pricing and availability on complete BOM packages.
Compliance & Industry Standards
- CE Marking — Compliant with EU Low Voltage and EMC Directives
- UL / cUL Listed — Recognized for use in North American industrial installations
- IEC 61131-2 — Programmable controller hardware standard
- IEEE 802.3 — Ethernet standard compliance
- Modbus TCP/IP Specification — Modbus.org conformant implementation
- RoHS Compliant — Restriction of Hazardous Substances Directive
Quality Assurance & Sourcing
Konmask sources the TSXETG3000 through verified industrial distribution channels. Every unit undergoes the following before shipment:
- Visual inspection for physical damage, label integrity, and connector condition
- Verification of firmware version and factory seal where applicable
- Cross-reference of serial number against manufacturer records
- Anti-static packaging with humidity indicator card
- Documentation package: datasheet, declaration of conformity, and packing list
We do not sell counterfeit, refurbished-as-new, or grey-market product. All units are traceable to authorized supply chains.
How to Source This Part
- Add to Cart — Place your order directly on Konmask.com with secure checkout.
- Request a Quote — For volume orders (>5 units) or BOM packages, email [email protected] for a formal quotation within 24 hours.
- Lead Time — In-stock units ship within 1–3 business days. Out-of-stock items: contact us for ETA.
- Export & Cross-Border — We support international shipping with full commercial invoice and HS code documentation (HS: 8537.10).
- Payment — T/T bank transfer, PayPal, and major credit cards accepted.
Application-Specific FAQ
- Q: Can the TSXETG3000 communicate with non-Schneider PLCs or third-party SCADA?
- A: Yes. Via Modbus TCP, the TSXETG3000 is interoperable with any Modbus TCP-compliant device, including Siemens, Allen-Bradley HMIs, Wonderware, and Ignition SCADA platforms.
- Q: Does this module support redundant Ethernet networks?
- A: The TSXETG3000 has a single RJ45 port. For redundant Ethernet topologies, Schneider recommends pairing with a managed switch supporting RSTP or using the TSXETY5103 for dual-port configurations.
- Q: Is Unity Pro required, or can PL7 Pro be used for configuration?
- A: Both Unity Pro and PL7 Pro support the TSXETG3000. Unity Pro is recommended for new projects; PL7 Pro is supported for legacy Premium installations.
- Q: What is the maximum number of Modbus TCP client connections?
- A: The module supports up to 16 simultaneous TCP connections, which can be allocated between Modbus TCP clients, UNI-TE peers, and web browser sessions.
- Q: Can I use this module for remote access over the internet?
- A: The module supports standard TCP/IP routing. For secure remote access, Schneider recommends placing it behind an industrial firewall or VPN gateway. Direct internet exposure is not advised without network security measures.
