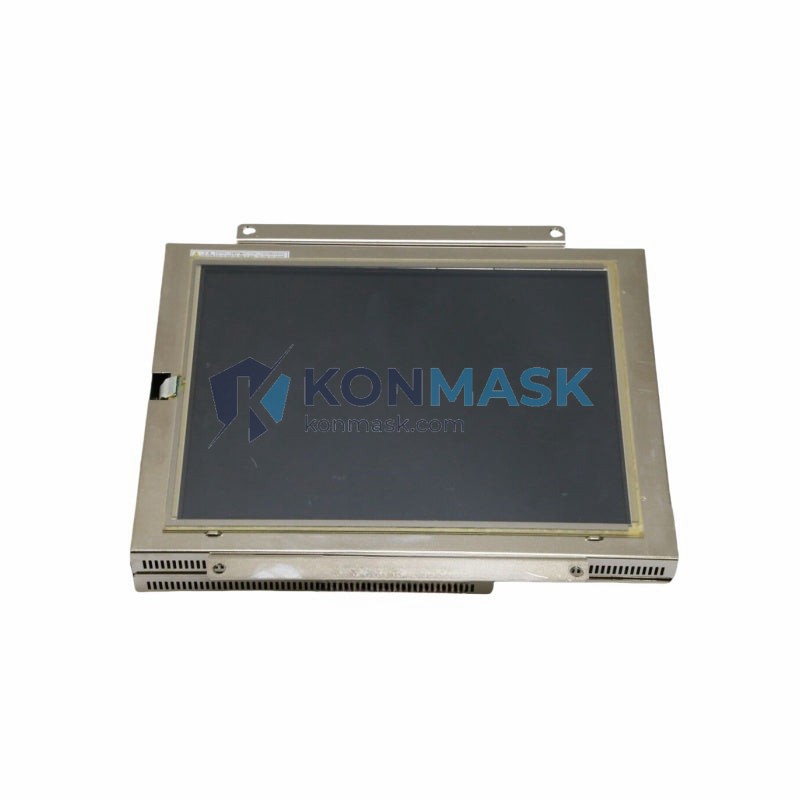

Schneider Electric UF7811-2-DV1-24V – Operator Panel | Modicon Quantum Platform
Engineering Background: In a high-availability process control environment — whether it’s a water treatment facility, a power substation, or a continuous manufacturing line — the operator interface is the critical bridge between the control system and the human engineer. When an operator panel fails or becomes unavailable, technicians lose direct visibility into PLC status, alarm acknowledgment becomes impossible, and unplanned downtime cascades rapidly. The Schneider Electric UF7811-2-DV1-24V is engineered to eliminate that risk, providing a robust, dedicated operator interface purpose-built for the Modicon Quantum automation platform.
Product Positioning: The UF7811-2-DV1-24V is a 24VDC-powered operator panel designed for direct integration with Schneider Electric’s Modicon Quantum PLC series — one of the most widely deployed large-scale process automation platforms in global industry. Operating across sectors from oil & gas to utilities and discrete manufacturing, this panel delivers reliable local HMI functionality with a compact keypad-based interface, making it the preferred choice for engineers who require dependable, low-latency operator interaction without the complexity of a full graphical touchscreen terminal.
Complete Technical Specifications
- Part Number / SKU: UF7811-2-DV1-24V
- Manufacturer: Schneider Electric
- Series / Platform: Modicon Quantum
- Product Type: Operator Panel (HMI)
- Supply Voltage: 24V DC
- Interface Type: Keypad Operator Panel
- Compatible PLC Platform: Modicon Quantum Series
- Mounting: Panel / Cabinet Mount
- Operating Environment: Industrial
- Weight (shipping): 5,300 g (approx.)
Note: All specifications are sourced from official Schneider Electric documentation. Contact us to confirm compatibility with your specific system revision.
Proven Application Environments
- Oil & Gas: Wellhead control panels, pipeline SCADA local HMI stations
- Power Generation & Utilities: Substation automation, turbine control local operator stations
- Water & Wastewater Treatment: Pump station control, dosing system operator interfaces
- Discrete Manufacturing: Assembly line PLC operator terminals, machine control panels
- Chemical & Petrochemical: Reactor control local HMI, batch process operator stations
- Building Automation: HVAC and BMS local control panels
Engineering Advantages
- Native Modicon Quantum Integration: Designed and validated by Schneider Electric for seamless communication with Quantum PLC racks — no third-party compatibility risk.
- 24VDC Operation: Standard industrial supply voltage ensures compatibility with existing panel power infrastructure and eliminates the need for additional power conversion.
- Compact Keypad Interface: Provides direct, tactile operator control — ideal for environments where touchscreen panels are impractical due to gloves, vibration, or contamination.
- High Reliability Design: Built to Schneider Electric’s industrial-grade standards for continuous operation in demanding environments.
- Reduced Downtime Risk: Direct replacement availability through Konmask.com ensures fast sourcing for MRO and emergency procurement scenarios.
System Architecture & Signal Flow
The UF7811-2-DV1-24V connects directly to the Modicon Quantum PLC backplane or communication bus, providing a local operator interface layer within the control architecture. The panel receives status data from the Quantum CPU and allows operators to input commands, acknowledge alarms, and monitor process variables without requiring a separate SCADA workstation. This local HMI layer is critical for maintaining operational control during network outages or SCADA system maintenance windows.
Typical system integration: Modicon Quantum CPU Rack → Communication Bus → UF7811-2-DV1-24V Operator Panel → Operator Input/Display
Compatible system components include Modicon Quantum CPU modules (140CPU series), Quantum I/O modules, and Quantum communication adapters. Consult your system architecture documentation or contact our technical team for specific wiring and configuration guidance.
Sourcing & Quality Verification
At Konmask.com, every Schneider Electric UF7811-2-DV1-24V unit undergoes a structured verification process before shipment:
- Part Number Verification: Physical label and firmware/hardware revision cross-checked against Schneider Electric official part records.
- Visual & Mechanical Inspection: Connector integrity, keypad function, housing condition, and label legibility inspected.
- Functional Pre-check: Power-on test and basic communication verification where applicable.
- Traceability Documentation: Certificate of conformity and sourcing documentation available upon request.
- Secure Packaging: Anti-static and shock-resistant packaging for international freight.
Procurement Process
- Submit Inquiry: Contact us via the form on this page or email support@konmask.com with your required quantity and delivery timeline.
- Receive Quotation: Our technical sales team will respond within 24 hours with pricing, lead time, and availability confirmation.
- Order Confirmation: Review and confirm the proforma invoice. Payment terms available for qualified buyers.
- Quality Inspection & Dispatch: Unit inspected, documented, and dispatched with full shipping tracking.
- After-Sales Support: Technical support available post-delivery for integration assistance.
Technical FAQ
- Q: Is the UF7811-2-DV1-24V compatible with all Modicon Quantum CPU revisions?
- A: The UF7811-2-DV1-24V is designed for the Modicon Quantum platform. Compatibility may vary by CPU firmware revision. We recommend confirming your CPU model and firmware version with our technical team before ordering.
- Q: What is the supply voltage tolerance for the 24VDC input?
- A: Standard industrial 24VDC panels typically operate within ±10–20% tolerance. Refer to the official Schneider Electric datasheet for exact voltage range specifications for this model.
- Q: Can this panel be used as a standalone HMI without a Modicon Quantum PLC?
- A: No. The UF7811-2-DV1-24V is purpose-built for the Modicon Quantum platform and requires a compatible Quantum PLC system for operation.
- Q: Do you provide the original Schneider Electric datasheet with the unit?
- A: Yes. Official documentation and sourcing certificates are available upon request. Contact support@konmask.com.
- Q: What is the typical lead time for international orders?
- A: Lead time depends on stock availability and destination. Standard international shipments typically take 5–15 business days. Express options are available.
Why Choose Konmask.com?
- Specialized in industrial automation components for B2B procurement engineers worldwide
- Rigorous quality verification on every unit — not just box-forwarding
- Technical team with hands-on automation engineering background
- Fast response to RFQ — typically within 24 hours
- Secure international shipping with full tracking and documentation
- Long-term sourcing partnership for MRO and project procurement
