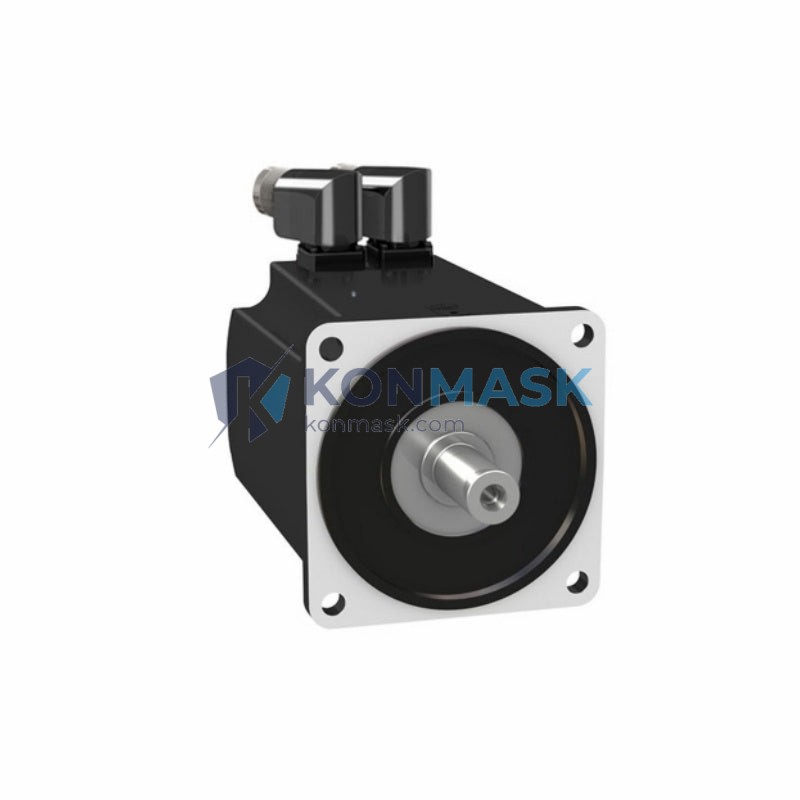

Schneider Electric BMH1403P06F2A High-Torque Servo Motor – Lexium BMH Series
In high-demand industrial environments — CNC machining centers, packaging lines, and robotic assembly cells — a single underperforming servo motor can cascade into unplanned downtime, rejected product batches, and costly production halts. The precision, torque density, and thermal stability of the drive motor are not optional features; they are the backbone of every motion axis. Without a reliable, spec-matched servo motor, even the most sophisticated PLC or drive system cannot deliver the positioning accuracy and dynamic response that modern manufacturing demands.
The Schneider Electric BMH1403P06F2A belongs to the Lexium BMH series — Schneider Electric’s flagship line of high-performance brushless AC servo motors engineered for demanding motion control applications. Within the BMH family, the BMH1403P06F2A occupies a mid-to-high torque segment, combining a compact frame size with a robust power-to-weight ratio. Globally, the Lexium BMH series is deployed across automotive, food & beverage, semiconductor, and logistics automation sectors, making it one of the most widely recognized servo motor platforms in the industrial automation market.
Technical Specifications
- Part Number / SKU: BMH1403P06F2A
- Brand: Schneider Electric
- Series: Lexium BMH
- Motor Type: Brushless AC Servo Motor
- Frame Size: 140 mm (Size 3)
- Shaft Type: Smooth shaft with key (F2A suffix)
- Feedback: Incremental encoder (standard)
- Protection Rating: IP54 (standard)
- Weight: 5.3 kg
- Compatible Drive: Lexium 32 / Lexium 62 servo drives
Note: All specifications are based on Schneider Electric official datasheet. Contact us to confirm exact parameters for your application.
Key Features & Benefits
- High Torque Density: Delivers substantial continuous and peak torque within a compact 140 mm frame, enabling high-force applications without oversized motor housings.
- Smooth Shaft with Key (F2A): The F2A shaft configuration ensures secure mechanical coupling to gearboxes, pulleys, and couplings — critical for high-cycle, high-load axes.
- Low Cogging & Smooth Rotation: Optimized stator winding design minimizes torque ripple, ensuring precise velocity control at both low and high speeds.
- Thermal Robustness: Class F insulation and efficient heat dissipation allow sustained operation in thermally demanding environments.
- Plug-and-Play with Lexium Ecosystem: Native compatibility with Lexium 32 and Lexium 62 drives eliminates complex parameter tuning and reduces commissioning time.
- IP54 Protection: Suitable for environments with dust and splash exposure, common in food processing and light manufacturing.
Industry & Equipment Applications
- CNC Machine Tools: Feed axis and spindle orientation drives requiring high stiffness and positioning repeatability.
- Packaging Machinery: High-speed pick-and-place, form-fill-seal, and labeling machines demanding precise velocity profiles.
- Robotic Arms & Gantries: Joint actuators in Cartesian and SCARA robots where torque-to-inertia ratio is critical.
- Printing & Converting: Register control and tension management in web-fed printing and slitting lines.
- Semiconductor & Electronics Assembly: Ultra-precise positioning stages for PCB handling and component placement.
- Logistics & Warehousing: Conveyor drive axes and automated sorting systems.
System Integration & Compatible Parts
The BMH1403P06F2A is designed to integrate seamlessly within the Schneider Electric Lexium motion control ecosystem. Recommended compatible components include:
- Servo Drives: Lexium 32A, Lexium 32M, Lexium 62 (matched by power rating)
- Motion Controllers: Modicon M262, Modicon M241 with motion library
- Cables: Lexium BMH power and encoder cables (shielded, motor-specific connectors)
- Gearboxes: Lexium PGD / PGE planetary gearboxes (140 mm flange compatible)
- Safety Modules: TeSys island safety relays for STO (Safe Torque Off) integration
Contact our technical team to verify compatibility with your existing drive and controller configuration.
Our Quality Assurance Process
At Konmask.com, every unit of the Schneider Electric BMH1403P06F2A undergoes a rigorous multi-stage verification process before shipment:
- Authenticity Verification: Cross-referenced against Schneider Electric official part databases and packaging authentication features.
- Visual & Mechanical Inspection: Shaft runout, connector integrity, encoder housing, and nameplate data are inspected against OEM specifications.
- Documentation Package: Each unit ships with original manufacturer documentation, test records, and a Konmask inspection certificate.
- Secure Packaging: Anti-static, shock-absorbing packaging with humidity indicators for safe international transit.
How to Order
- Submit an inquiry via the Contact Us form or email support@konmask.com with your required quantity and delivery timeline.
- Our technical sales team will confirm stock availability, lead time, and provide a formal quotation within 24 business hours.
- Upon PO confirmation, we arrange quality inspection, documentation, and international shipping via DHL, FedEx, or sea freight.
- Track your shipment with real-time updates until delivery.
Phone / WhatsApp: +0086 19859288691 | Email: support@konmask.com
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: Focused exclusively on PLC, DCS, servo, and drive components — not a generalist marketplace.
- ✅ Verified Authentic Parts: Every product is sourced from authorized channels with full traceability.
- ✅ Global B2B Export Experience: Serving engineering teams, MRO buyers, and system integrators across 40+ countries.
- ✅ Technical Pre-Sales Support: Our engineers help you confirm compatibility before you commit to a purchase.
- ✅ Flexible MOQ & Fast Quotation: Single-unit inquiries welcome. Bulk pricing available for OEM and project orders.
- ✅ Secure International Shipping: Customs documentation, export compliance, and insurance handled end-to-end.
Frequently Asked Questions
- Q: Is the BMH1403P06F2A compatible with Lexium 32 drives?
- A: Yes. The BMH1403P06F2A is natively compatible with the Lexium 32 series drives. Ensure the drive power rating matches the motor’s continuous and peak current requirements. Contact us for a compatibility confirmation.
- Q: What does the “F2A” suffix mean in BMH1403P06F2A?
- A: The “F2A” suffix designates the shaft configuration — specifically a smooth shaft with a key slot, suitable for direct coupling to gearboxes or pulleys. Different suffix codes indicate different shaft types (e.g., plain shaft, with brake, etc.).
- Q: Can you supply the matching encoder cable and power cable?
- A: Yes. We can supply the complete Lexium BMH cable set (motor power cable and encoder feedback cable) matched to your drive model and cable length requirement. Please specify when submitting your inquiry.
- Q: What is the lead time for the BMH1403P06F2A?
- A: Lead time depends on current stock levels. In-stock units typically ship within 3–5 business days. For out-of-stock items, standard lead time is 4–8 weeks. Contact us for real-time availability.
- Q: Do you provide a warranty on this servo motor?
- A: Yes. All units sold through Konmask.com carry a 12-month warranty against manufacturing defects, backed by our quality inspection certificate. Terms and conditions apply.
