Schneider GV2-ME22C 20-25A Motor Protection Circuit Breaker | Replacement, Equivalent & Selection Guide

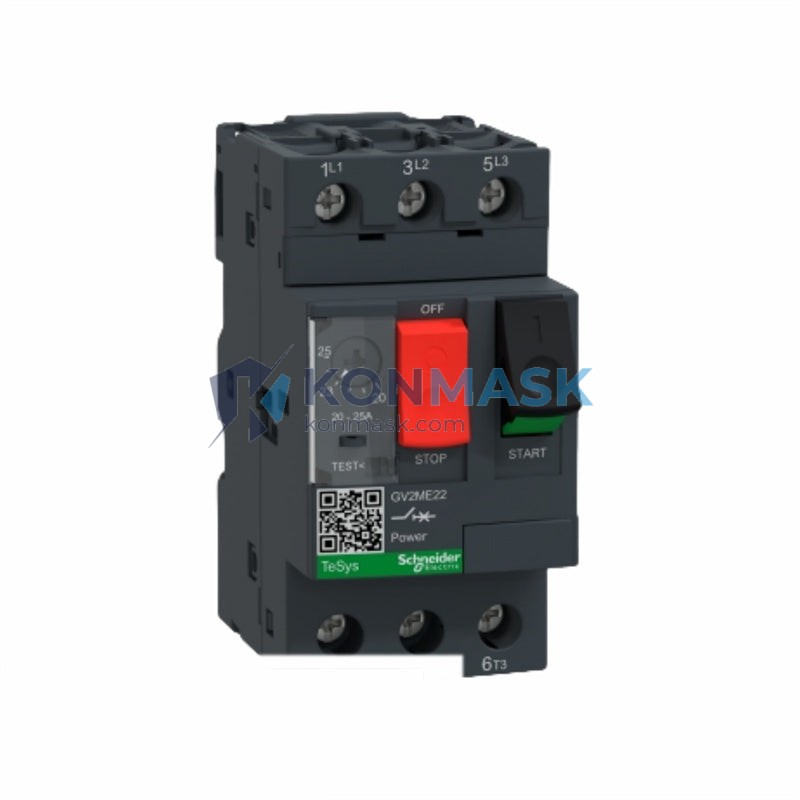

The Schneider Electric GV2-ME22C is a compact motor protection circuit breaker from the TeSys GV2-ME series, rated for 20–25 A with integrated thermal-magnetic protection. Designed for direct-on-line motor starters, it combines overload and short-circuit protection in a single device — eliminating the need for separate fuses and reducing panel space. At Konmask.com, we supply genuine GV2-ME22C units with full traceability for industrial automation and OEM applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | GV2-ME22C |
| Brand | Schneider Electric |
| Series | TeSys GV2-ME |
| Current Setting Range | 20–25 A |
| Rated Operational Voltage (Ue) | 690 V AC (50/60 Hz) |
| Short-Circuit Breaking Capacity (Icu) | 100 kA @ 415 V AC |
| Poles | 3P |
| Trip Class | Class 10A |
| Mounting | DIN rail (EN 60715) / screw |
| Degree of Protection | IP 20 (terminal covers: IP 40) |
| Conforming Standards | IEC/EN 60947-4-1, UL 508 |
| Operating Temperature | -25 °C to +60 °C |
| Weight | ~260 g |
| Country of Origin | France / China (varies by batch) |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or cross-references for the GV2-ME22C. Always verify electrical ratings and mechanical dimensions before substitution:
| Brand | Model | Current Range | Breaking Capacity | Notes |
|---|---|---|---|---|
| Schneider Electric | GV2-ME22C (OEM) | 20–25 A | 100 kA | Original — recommended |
| Schneider Electric | GV2-P22 | 20–25 A | 100 kA | Screw-clamp terminal variant |
| Siemens | 3RV2021-4DA10 | 20–25 A | 100 kA | Functional equivalent; different footprint |
| ABB | MS116-25 | 20–25 A | 50 kA | Lower Icu; verify application suitability |
| Eaton (Moeller) | PKZM0-25 | 20–25 A | 100 kA | Compatible with Eaton CI-PKZ0 contactors |
| LS Electric | MMS-32H (22–32 A) | 22–32 A | 85 kA | Wider range; check motor FLA |
⚠ Disclaimer: Cross-reference data is provided for reference only. Konmask.com recommends consulting the original datasheet and your system engineer before substituting components in safety-critical applications.
Why Choose the Original GV2-ME22C
- Certified performance: IEC/EN 60947-4-1 and UL 508 listed — meets global compliance requirements.
- High breaking capacity: 100 kA @ 415 V AC — suitable for high-fault-current industrial environments.
- Plug-in accessory ecosystem: Compatible with GV2-AN11 auxiliary contacts, GV2-AF auxiliary power contacts, and GV2-AZ shunt trip coils without rewiring.
- Compact DIN-rail design: 45 mm wide — minimizes panel footprint in crowded enclosures.
- Tamper-resistant adjustment: Rotary current-setting dial with lockable cover for maintenance safety.
Typical Applications
- Direct-on-line (DOL) motor starters for pumps, fans, compressors, and conveyors
- Machine tool control panels and packaging machinery
- HVAC systems — air handling units and chiller motor protection
- Water treatment and wastewater pump stations
- Oil & gas auxiliary motor circuits
- Building automation and industrial process lines
System Compatibility
The GV2-ME22C is designed to work within the Schneider TeSys D / TeSys K motor starter ecosystem:
- Contactors: LC1-D25, LC1-D32, LC1-K09 to LC1-K38 series
- Auxiliary contacts: GV2-AN11 (1NO+1NC), GV2-AN20 (2NO)
- Shunt trip / undervoltage coil: GV2-AF (shunt), GV2-AV (undervoltage)
- Enclosures: Schneider NSYPLM / Spacial S3D series (verify cutout dimensions)
- Bus bar systems: Compatible with GV2-G busbar for multi-motor grouping
Selection Guide
Use the table below to select the correct GV2-ME variant based on your motor’s Full Load Amperage (FLA):
| Model | Current Range | Typical Motor Power (400 V, 3Φ) |
|---|---|---|
| GV2-ME06C | 1–1.6 A | 0.37 kW |
| GV2-ME10C | 4–6.3 A | 1.5 kW |
| GV2-ME14C | 6–10 A | 2.2 kW |
| GV2-ME16C | 9–14 A | 4 kW |
| GV2-ME21C | 17–23 A | 7.5 kW |
| GV2-ME22C | 20–25 A | 7.5–11 kW |
| GV2-ME32C | 24–32 A | 11–15 kW |
Selection tip: Set the current dial to 1.0–1.05× motor FLA. For star-delta starters, select based on the line current (FLA × 0.58).
Quality Assurance & Sourcing
- ✅ Genuine Schneider Electric product — sourced through authorized distribution channels
- ✅ Full batch traceability — date code, factory code, and serial number available on request
- ✅ Anti-counterfeit verification — holographic label and QR code authentication supported
- ✅ Export documentation — commercial invoice, packing list, and certificate of origin available
- ✅ Warranty: 12 months from date of shipment against manufacturing defects
How to Order
- SKU: GV2-ME22C
- MOQ: 1 piece (bulk pricing available for qty ≥ 10)
- Lead time: In-stock items ship within 1–3 business days; ex-stock orders confirmed at checkout
- Shipping: DHL Express / FedEx International Priority / sea freight for large orders
- Payment: T/T, PayPal, credit card, and trade assurance accepted
- 📧 RFQ / bulk inquiry: support@konmask.com | +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace GV2-ME22C with GV2-P22?
A: Yes. The GV2-P22 is the screw-clamp terminal version of the same device. Electrical ratings are identical; only the terminal type differs. Verify your wiring method before ordering.
Q: Is the GV2-ME22C compatible with TeSys D contactors?
A: Yes. It is designed to mount directly alongside LC1-D25 and LC1-D32 contactors using the GV2-MC01 mechanical interlock accessory.
Q: Can I use a Siemens 3RV2021-4DA10 as a drop-in replacement?
A: Electrically equivalent in current range and breaking capacity, but the physical footprint and accessory mounting differ. Panel cutout and wiring modifications may be required.
Q: What is the difference between GV2-ME21C and GV2-ME22C?
A: The GV2-ME21C covers 17–23 A; the GV2-ME22C covers 20–25 A. For motors with FLA between 20–23 A, either may apply — select based on the motor nameplate FLA and apply a 1.05× safety factor.
Q: Does Konmask.com offer technical support for selection?
A: Yes. Contact our engineering team with your motor nameplate data (kW, voltage, FLA, service factor) and we will recommend the correct model and accessories.
