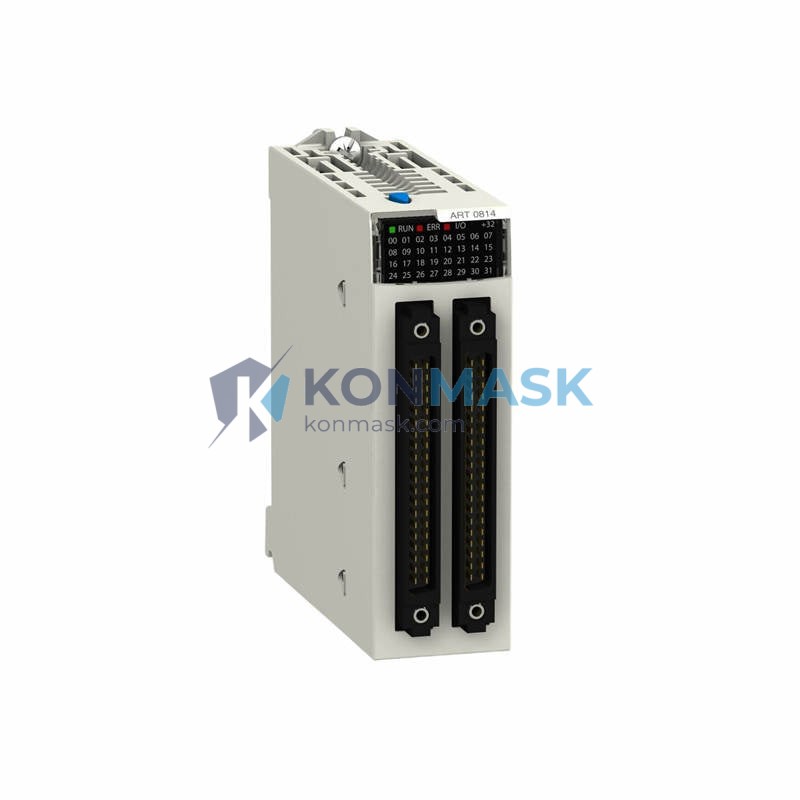

Genuine Schneider Electric BMXART0814 Isolated Analog Input Module | Modicon M340 Series – Verified Source
The Schneider Electric BMXART0814 is an 8-channel isolated analog input module designed for the Modicon M340 PAC platform. Sourced directly through authorized industrial distribution channels, every unit sold by Konmask.com undergoes a documented 4-step verification process before dispatch — giving B2B buyers the confidence they need for mission-critical automation projects.
Technical Specifications
- Part Number: BMXART0814
- Brand: Schneider Electric
- Series: Modicon M340
- Module Type: Isolated Analog Input
- Number of Channels: 8 (individually isolated)
- Input Signal Types: Voltage (±10 V, 0–10 V) / Current (0–20 mA, 4–20 mA)
- Resolution: 16-bit
- Isolation: Channel-to-channel and channel-to-bus isolation
- Power Consumption: 4.5 W (from backplane)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −25 °C to +70 °C
- Relative Humidity: 5–95% non-condensing
- Mounting: Modicon M340 backplane (BMX XBP series)
- Certifications: CE, UL, cUL, IEC 61131-2
- Weight: 180 g
Our 4-Step Quality Verification Process
Every BMXART0814 unit shipped from Konmask.com passes through the following documented checks:
- Step 1 — Source Traceability: We verify the supply chain origin and cross-reference batch documentation against Schneider Electric’s authorized distributor records.
- Step 2 — Physical Authenticity Inspection: Label integrity, holographic seals, housing markings, and connector condition are inspected against OEM reference standards.
- Step 3 — Functional Bench Test: Modules are powered up and channel I/O responses are validated using calibrated test equipment prior to packaging.
- Step 4 — Packaging & Documentation Review: Original or equivalent protective packaging is confirmed; datasheets and compliance documents are included with shipment.
Key Features & Benefits
- Full channel-to-channel isolation eliminates ground loop interference in noisy industrial environments
- 16-bit resolution delivers high-accuracy signal acquisition for process control applications
- Plug-and-play compatibility with all Modicon M340 backplane configurations
- Supports both voltage and current input modes — configurable per channel via Unity Pro / EcoStruxure Control Expert
- Compact form factor reduces panel space requirements without sacrificing I/O density
- Hot-swap capable (with appropriate backplane configuration) to minimize downtime
Typical Applications
- Process temperature and pressure monitoring in oil & gas and chemical plants
- Flow measurement and control in water treatment facilities
- Multi-zone HVAC and building automation systems
- Precision motion and tension control in printing and converting machinery
- Pharmaceutical batch process monitoring requiring isolated signal integrity
- Power generation and substation automation
Compatible System Components
- Backplanes: BMX XBP 0400 / 0800 / 1200 / 0800H / 1200H
- CPUs: BMX P34 1000 / 2000 / 2010 / 2020 / 20302
- Power Supplies: BMX CPS 2000 / 3500 / 3500H / 2010
- Programming Software: EcoStruxure Control Expert (formerly Unity Pro) v11.0+
- Related I/O Modules: BMXART0414, BMXAMO0410, BMXDDI1602, BMXDDO1602
Global Sourcing & Shipping Capabilities
- Stock Location: Mainland China (Fujian Province) with bonded warehouse access
- Lead Time: In-stock units ship within 1–3 business days; sourced units 5–15 business days
- Shipping Methods: DHL Express, FedEx International Priority, SF International, sea freight for bulk orders
- Export Documentation: Commercial invoice, packing list, certificate of origin available upon request
- Minimum Order Quantity: 1 unit (bulk pricing available for 5+ units)
- Served Markets: Southeast Asia, Middle East, Europe, North America, South America, Africa
Certifications & Compliance Statement
The BMXART0814 is manufactured by Schneider Electric and carries the following certifications:
- CE Marking — Compliant with EU Low Voltage Directive and EMC Directive
- UL / cUL Listed — Recognized for use in North American industrial installations
- IEC 61131-2 — Programmable controller equipment standard compliance
- RoHS Compliant — Restriction of Hazardous Substances Directive
Konmask.com does not manufacture or modify OEM hardware. All products are sold as-is from verified supply sources. Customers requiring factory-new sealed units with full OEM warranty should confirm availability at time of order.
How to Order
- Online: Add to cart directly on this page and proceed to checkout
- Email RFQ: Send your BOM or part list to support@konmask.com for bulk pricing
- Phone / WhatsApp: +0086 19859288691 (Mon–Sat, 09:00–18:00 CST)
- Payment Terms: T/T bank transfer, PayPal, credit card; net terms available for qualified accounts
- Pro Forma Invoice: Available upon request for procurement departments
Authenticity & Trust FAQ
Q: Are these units genuine Schneider Electric products?
A: Yes. All BMXART0814 units are sourced from authorized industrial distributors or verified secondary market channels. Each unit passes our 4-step verification process before shipment.
Q: Do you provide a warranty?
A: Konmask.com offers a 90-day functional warranty on all verified units. If a module fails under normal operating conditions within 90 days, we will replace or refund at our discretion.
Q: Can I request test reports or inspection photos?
A: Yes. Pre-shipment inspection photos and bench test records are available upon request for orders of 3+ units. Contact us before placing your order.
Q: What if I need a different Modicon M340 module?
A: We stock a wide range of Modicon M340 I/O, CPU, and power supply modules. Email your full BOM to support@konmask.com and we will respond with availability and pricing within 24 hours.
Q: Do you ship to my country?
A: We ship to over 80 countries worldwide. Contact us for freight quotes and customs documentation requirements specific to your destination.
