SCHNEIDER HMIGTO2300 Touch Screen | Replacement, Equivalent & Selection Guide

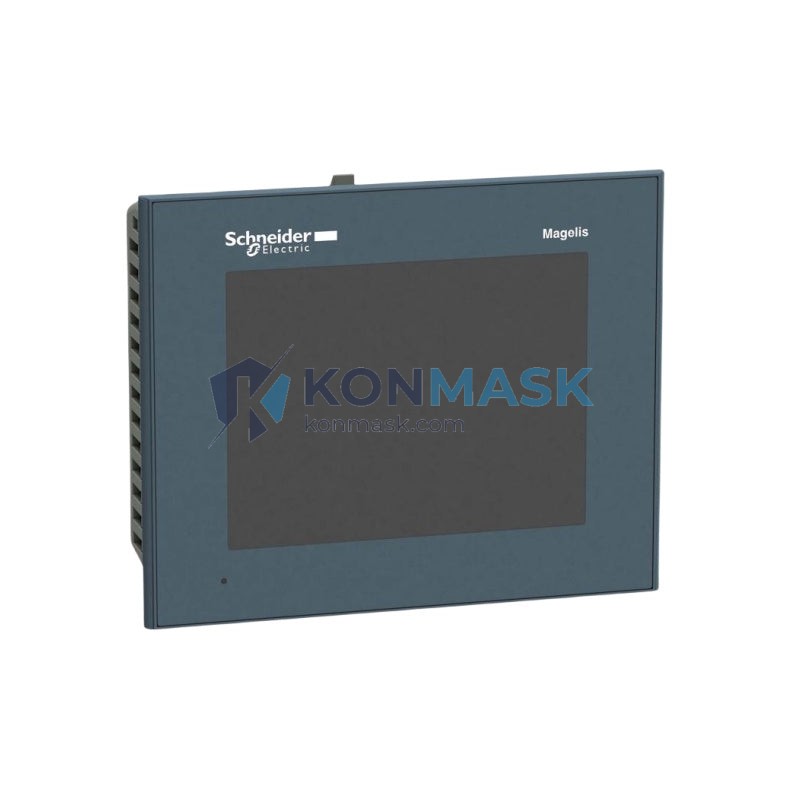

The Schneider Electric HMIGTO2300 is a compact 3.5″ color touch screen HMI (Human-Machine Interface) panel from the Magelis GTO series, designed for industrial automation environments. This page provides full technical specifications, compatible replacement models, equivalent alternatives, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
- Brand: Schneider Electric
- Part Number: HMIGTO2300
- Series: Magelis GTO
- Display Size: 3.5″ TFT Color LCD
- Resolution: 320 × 240 px (QVGA)
- Touch Type: Resistive Touch Screen
- Processor: 400 MHz ARM
- Memory: 64 MB RAM / 128 MB Flash
- Communication Ports: 1 × RS-232/485 (COM1), 1 × USB Host, 1 × USB Device, 1 × Ethernet (RJ45)
- Power Supply: 24 VDC (±20%)
- Power Consumption: ≤ 10 W
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: −20 °C to +70 °C
- Protection Rating: IP65 (front panel)
- Dimensions (W × H × D): 126 × 100 × 46 mm
- Panel Cutout: 118 × 92 mm
- Weight: Approx. 0.35 kg
- Software: Vijeo Designer (v4.7 or later)
- Certifications: CE, UL, cUL, RoHS
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as direct or functional replacements for the HMIGTO2300. Always verify communication protocol and panel cutout dimensions before substitution.
| Model | Brand | Display | Compatibility Notes |
|---|---|---|---|
| HMIGTO2310 | Schneider Electric | 3.5″ Color | Same series, adds SD card slot; direct upgrade |
| HMISTO705 | Schneider Electric | 3.5″ Color | Magelis STO series; similar footprint, different software |
| XBTGT1135 | Schneider Electric | 3.5″ Color | Legacy Magelis XBT GT; functional equivalent, older firmware |
| MT6050i | Weintek (Weinview) | 4.3″ Color | Cross-brand alternative; supports Modbus, Ethernet |
| TK6050iP | Weintek | 5″ Color | Larger screen alternative; multi-protocol support |
| GP2301-LG41-24V | Pro-face | 5.7″ Mono | Cross-brand; verify protocol compatibility |
| KTP400 Basic | Siemens | 4″ Color | Cross-brand; requires TIA Portal, different ecosystem |
Note: Cross-brand replacements require re-programming. Konmask recommends testing in a non-production environment before full deployment.
Why Choose the Original Model
- Seamless Integration: Native compatibility with Schneider Electric PLCs (Modicon M221, M241, M251, M340) and Vijeo Designer software — zero re-engineering required.
- Proven Reliability: IP65-rated front panel withstands dust, moisture, and industrial wash-down environments.
- Ecosystem Continuity: Existing HMI programs, tags, and alarm configurations transfer directly to upgraded GTO-series panels.
- Long-Term Support: Schneider Electric provides firmware updates, spare parts, and technical documentation through its global service network.
- Regulatory Compliance: CE, UL, and RoHS certified — meets requirements for EU machinery directive and North American markets.
Typical Applications
- Machine tool control panels and CNC operator interfaces
- Packaging line HMI stations
- Water treatment and pump station monitoring
- HVAC and building automation control
- Food & beverage processing equipment
- Conveyor and material handling systems
- Small-to-medium PLC cabinet operator panels
System Compatibility
The HMIGTO2300 is compatible with the following Schneider Electric PLC families via Vijeo Designer driver library:
- Modicon M221 / M241 / M251 / M262
- Modicon M340 / M580
- Modicon Premium & Quantum (via Ethernet)
- Zelio Logic (via RS-485 Modbus RTU)
- Third-party PLCs supporting Modbus RTU/TCP, EtherNet/IP, or PROFIBUS DP (with optional gateway)
Selection Guide
Use the criteria below to confirm the HMIGTO2300 is the right panel for your application, or to identify a suitable alternative:
| Requirement | HMIGTO2300 | Recommended Alternative |
|---|---|---|
| Display size ≤ 4″ | ✅ 3.5″ | — |
| Display size 5–7″ | ❌ | HMIGTO3510 / HMIGTO4310 |
| Ethernet required | ✅ Built-in RJ45 | — |
| SD card / data logging | ❌ | HMIGTO2310 (adds SD slot) |
| Schneider PLC ecosystem | ✅ Native | — |
| Third-party PLC (Siemens/Allen-Bradley) | ⚠️ Via gateway | Weintek MT6050i / Siemens KTP400 |
| Budget-sensitive project | ⚠️ Mid-range | HMISTO705 or Weintek MT6050i |
| Hazardous / ATEX zone | ❌ | Consult Schneider ATEX-rated HMI range |
Quality Assurance & Sourcing
- Genuine Units: All HMIGTO2300 panels sourced by Konmask.com are procured through authorized distribution channels or verified surplus stock with full traceability.
- Inspection: Each unit undergoes visual inspection, label verification, and functional power-on testing prior to shipment.
- Warranty: 12-month warranty against manufacturing defects. Extended warranty available on request.
- Counterfeit Prevention: We verify holographic labels, firmware version strings, and serial number formats against Schneider Electric’s authentication guidelines.
- Documentation: Datasheet, wiring diagram, and Vijeo Designer project template available upon request.
How to Order
- Confirm your required quantity and delivery timeline.
- Contact us via email or phone with your PO or inquiry — include the part number HMIGTO2300 and your shipping address.
- Receive a formal quotation within 1 business day.
- Payment accepted via T/T (bank transfer), PayPal, or trade assurance.
- Standard lead time: 3–7 business days (stock-dependent). Express shipping available.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can the HMIGTO2300 replace an XBTGT1135 directly?
A: Functionally yes — both are 3.5″ Schneider HMIs. However, you will need to convert the project file in Vijeo Designer as the XBTGT series uses a different runtime. Panel cutout dimensions are similar but verify before installation.
Q: Is the HMIGTO2300 compatible with Siemens S7-300 PLCs?
A: Not natively. A Modbus-to-Profibus gateway or a third-party driver is required. For Siemens ecosystems, the Siemens KTP400 Basic is a more straightforward choice.
Q: What software is required to program the HMIGTO2300?
A: Vijeo Designer v4.7 or later (free download from Schneider Electric’s website). The software runs on Windows 7/10/11.
Q: Can I use a Weintek MT6050i as a drop-in replacement?
A: The panel cutout dimensions differ, and the programming software (EasyBuilder Pro) is entirely different. It is a functional alternative but not a drop-in replacement — re-programming and possible panel modification are required.
Q: Do you supply the HMIGTO2310 as an upgrade option?
A: Yes. The HMIGTO2310 is the direct successor with an added SD card slot. Contact us for availability and pricing.
Q: What is the minimum order quantity?
A: No minimum order quantity. Single units are available. Volume discounts apply for orders of 5+ units.
