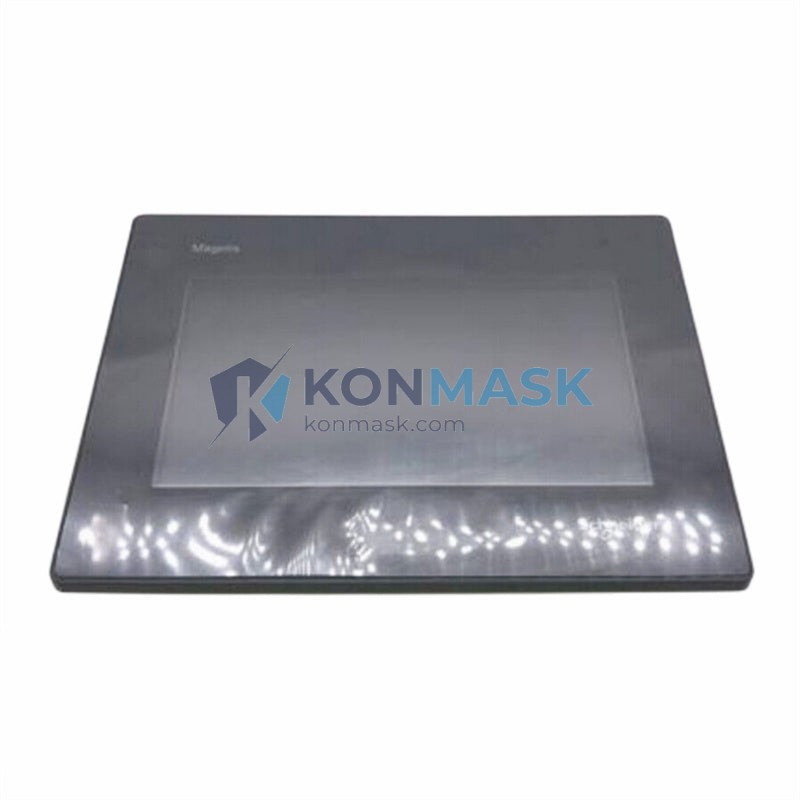

Schneider Electric HMIGXU3512 Industrial HMI Touchscreen Panel – Magelis GXU Series
When a production line loses its human-machine interface, operators are left blind — unable to monitor process variables, acknowledge alarms, or intervene before a critical fault cascades into unplanned downtime. In high-stakes environments such as water treatment plants, automotive assembly lines, and pharmaceutical batch processes, every minute of lost visibility translates directly into lost output, safety risk, and costly recovery. The Schneider Electric HMIGXU3512 eliminates that vulnerability by delivering a robust, always-on touchscreen interface that keeps operators in full command of their automation systems.
Within the Magelis GXU product family, the HMIGXU3512 occupies the mid-range performance tier — offering a balance of display size, processing capability, and multi-protocol connectivity that makes it the preferred choice for machine builders and system integrators who need a reliable panel PC without over-engineering the BOM. Backed by Schneider Electric’s global installed base of millions of HMI units, the GXU series is recognized across Europe, Asia-Pacific, and the Americas as a benchmark for industrial display reliability.
Technical Specifications
- Brand: Schneider Electric
- Part Number: HMIGXU3512
- Series: Magelis GXU
- Type: Industrial HMI Touchscreen Panel
- Touch Technology: Resistive touchscreen
- Operating System: Windows Embedded Compact 7
- Communication Ports: Ethernet, USB, Serial (RS-232/RS-485)
- Software: Compatible with Vijeo Designer configuration software
- Protection Rating: Front panel IP65 (dust and water resistant)
- Power Supply: 24 V DC
- Mounting: Panel cut-out, flush mount
Note: All specifications are sourced from official Schneider Electric documentation. Contact us to confirm the exact datasheet for your application.
Key Features & Benefits
- IP65 Front Panel Protection — Withstands dust ingress and water jets, suitable for wash-down and harsh factory environments.
- Multi-Protocol Connectivity — Native support for Modbus TCP/IP, EtherNet/IP, and serial protocols enables seamless integration with PLCs from Schneider Electric and third-party vendors.
- Vijeo Designer Compatibility — Drag-and-drop screen design, alarm management, and data logging reduce engineering time significantly.
- Windows Embedded Compact 7 OS — Provides a stable, real-time-capable platform with long-term software support.
- Rugged Industrial Construction — Designed for 24/7 continuous operation in temperature-variable and vibration-prone environments.
- Compact Footprint — Optimized panel cut-out dimensions minimize cabinet space requirements without sacrificing screen real estate.
Industry & Equipment Applications
- Manufacturing & Assembly: Machine tool control, conveyor monitoring, robotic cell supervision
- Water & Wastewater: Pump station control, SCADA terminal, dosing system interface
- Food & Beverage: Batch process control, CIP (clean-in-place) monitoring, recipe management
- Pharmaceutical: GMP-compliant process visualization, audit trail display
- Building Automation: HVAC control panels, energy management dashboards
- Oil & Gas: Wellhead monitoring, compressor station HMI
System Integration & Compatible Parts
The HMIGXU3512 is engineered to integrate natively within Schneider Electric’s EcoStruxure Machine architecture and is fully compatible with:
- Modicon M221, M241, M251, M262 PLCs
- Altivar ATV312 / ATV630 / ATV930 variable speed drives
- Lexium servo drives and motion controllers
- Third-party PLCs via Modbus RTU/TCP, EtherNet/IP, and PROFIBUS adapters
- Vijeo Designer 6.x configuration software (PC-side engineering tool)
Contact our technical team at [email protected] for compatibility verification with your specific control architecture.
Our Quality Assurance Process
Every unit sourced and supplied by Konmask.com undergoes a structured verification process before dispatch:
- Authenticity Check: Serial number and label verification against manufacturer records
- Visual Inspection: Enclosure integrity, connector condition, and screen surface assessment
- Functional Power-On Test: Boot sequence and display initialization confirmed where applicable
- Secure Packaging: Anti-static packaging with shock-absorbing foam inserts for international transit
- Documentation: Certificate of conformity and inspection report available on request
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email [email protected]
- Provide your required quantity, delivery timeline, and destination country
- Receive a formal quotation within 1 business day
- Confirm order and arrange payment via agreed terms (T/T, L/C, or other)
- Shipment dispatched with full tracking and export documentation
For urgent requirements or large-volume orders, call or WhatsApp: +0086 19859288691
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation Components — PLC modules, HMI panels, DCS components, and drives from leading global brands
- ✅ Verified Supply Chain — Direct relationships with authorized distributors and factory-certified sources
- ✅ Global Export Experience — Serving buyers in Southeast Asia, Middle East, Europe, and the Americas
- ✅ Technical Pre-Sales Support — Our engineers help you confirm compatibility before you commit
- ✅ Competitive Lead Times — In-stock items ship within 3–5 business days; sourced items within 2–4 weeks
- ✅ After-Sales Assistance — Commissioning guidance and warranty claim support included
Frequently Asked Questions
Q: Is the HMIGXU3512 a new or refurbished unit?
A: We supply both new (factory-sealed) and tested-used units depending on availability and your budget. The condition is clearly stated in your quotation.
Q: Can the HMIGXU3512 communicate with non-Schneider PLCs?
A: Yes. Via Modbus RTU/TCP and EtherNet/IP, it can interface with Siemens, Mitsubishi, Omron, Allen-Bradley, and other major PLC brands using Vijeo Designer driver libraries.
Q: What software is required to program this HMI?
A: Vijeo Designer (version 6.x or later) is the official configuration software. It runs on Windows PC and is available from Schneider Electric’s software portal.
Q: Do you provide a warranty?
A: Yes. New units carry the manufacturer’s standard warranty. Tested-used units come with a 90-day Konmask.com functional warranty. Details are provided in the quotation.
Q: Can you ship to my country?
A: We export worldwide. Contact us with your destination and we will advise on shipping options, lead times, and any applicable export documentation.
Q: What is the lead time for this part?
A: In-stock units ship within 3–5 business days. If sourcing is required, typical lead time is 2–4 weeks. We will confirm availability when you submit your RFQ.
