GE Multilin MMII-PD-1-2-MOD601-240 Motor Manager II – Advanced Motor Protection Relay | GE Multilin MMII Series
Engineering Background
The GE Multilin Motor Manager II (MMII) is a comprehensive motor protection and control relay engineered for demanding industrial environments. Designed to replace conventional overload relays and discrete protection devices, the MMII consolidates motor protection, monitoring, and control into a single intelligent unit — reducing panel space, wiring complexity, and commissioning time for plant engineers and system integrators.
Product Positioning

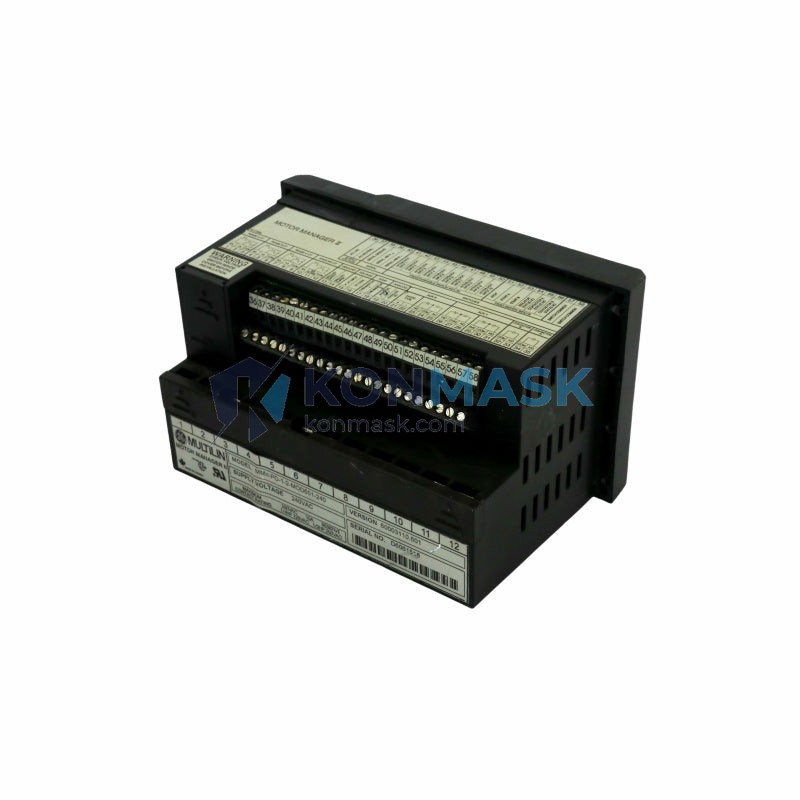

This listing covers the complete MMII-PD-1-2-MOD601-240 assembly, bundled with associated components including the Siemens 6SE6420-2AD24-0BA1 drive interface module, SMC D-276-990020B soft starter module, and 0190-01401 accessory unit. Sourced from verified OEM channels, this combination is ideal for procurement engineers seeking a pre-validated, drop-in motor management solution for MCC (Motor Control Center) upgrades, greenfield automation projects, or critical asset replacement.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Multilin (General Electric) |
| Model / Part Number | MMII-PD-1-2-MOD601-240 |
| Series | Motor Manager II (MMII) |
| Associated SKUs | 6SE6420-2AD24-0BA1 | SMC D-276-990020B | 0190-01401 |
| Function | Motor Protection, Monitoring & Control Relay |
| Control Voltage | 240 V AC (MOD601-240 suffix) |
| Protection Functions | Overload, Undercurrent, Phase Loss, Phase Reversal, Ground Fault, Thermistor, Jam/Stall |
| Communication | Modbus RTU (MOD601 module) |
| Inputs / Outputs | Digital inputs, relay outputs (model-dependent) |
| Mounting | DIN rail / panel mount |
| Operating Temperature | -20°C to +60°C |
| Standards Compliance | IEC 60947, UL 508, CSA |
| Enclosure Rating | IP20 (panel-mounted) |
| Weight | ~20 g (module only; shipping weight varies) |
Proven Application Environments
- Oil & Gas — pump motor protection in upstream and midstream facilities
- Water & Wastewater — submersible pump and blower motor management
- Mining & Minerals — conveyor drive and crusher motor protection
- Pulp & Paper / Chemical — process-critical motor control with Modbus SCADA integration
- Power Generation — auxiliary motor protection in plant balance-of-plant systems
- MCC Retrofits — direct replacement for legacy overload relay assemblies
Engineering Advantages
- Consolidated Protection — replaces 6–8 discrete protection devices in a single relay footprint
- Modbus RTU Integration — native serial communication via MOD601 module for DCS/SCADA connectivity without additional gateways
- Thermal Memory — accurate thermal model retains motor heat state across power cycles, preventing nuisance trips and premature restarts
- Pre-validated Bundle — MMII-PD-1-2-MOD601-240 + 6SE6420-2AD24-0BA1 + SMC D-276-990020B + 0190-01401 shipped as a verified compatible set
- Reduced Commissioning Time — factory-configured parameters minimize on-site setup for experienced engineers
- Long-term OEM Support — GE Multilin MMII series maintains broad installed base with documented firmware and spare parts availability
System Architecture & Signal Flow
The MMII-PD-1-2-MOD601-240 operates as the central intelligence node in a motor control circuit:
- Current Sensing → Phase CTs feed real-time current data to the MMII thermal model and protection algorithms
- Control Inputs → Digital start/stop/reset commands received via hardwired inputs or Modbus register writes
- Protection Outputs → Trip and alarm relay contacts interrupt contactor coil circuits on fault detection
- Communication Layer → MOD601 module bridges MMII data (current, thermal capacity, fault codes) to Modbus RTU master (PLC/DCS/SCADA)
- Drive Interface → 6SE6420-2AD24-0BA1 provides VFD integration for variable-speed motor applications
- Soft Starter Interface → SMC D-276-990020B enables reduced-voltage starting coordination with the MMII protection envelope
Sourcing & Quality Verification
- ✅ OEM-Sourced — procured through authorized GE Multilin distribution channels
- ✅ Functional Testing — each unit undergoes pre-shipment operational verification
- ✅ Traceability — serial numbers and date codes documented for quality records
- ✅ Anti-Counterfeit — holographic labels and OEM packaging integrity verified
- ✅ Warranty — 12-month warranty against manufacturing defects from ship date
Procurement Process
- Submit RFQ — contact support@konmask.com with your project BOM and required delivery schedule
- Quotation & Lead Time — receive formal quotation within 24 business hours including stock confirmation
- Order Confirmation — purchase order accepted via email; proforma invoice issued for prepayment or NET terms (qualified accounts)
- Quality Inspection — pre-shipment inspection report available upon request
- Shipping — DHL / FedEx / UPS express worldwide; EXW Xiamen or CIF destination available
- After-Sales Support — technical documentation, wiring diagrams, and commissioning guidance provided post-delivery
Technical FAQ
Q: Is the MMII-PD-1-2-MOD601-240 compatible with Modbus TCP or only RTU?
A: The MOD601 module supports Modbus RTU over RS-485. For Modbus TCP, an external protocol converter (e.g., Moxa MGate) is required.
Q: What is the maximum motor FLA range supported?
A: The MMII-PD series supports a wide FLA range via external CTs; consult the GE Multilin MMII Instruction Manual (GEK-106288) for CT ratio selection tables.
Q: Can the 6SE6420-2AD24-0BA1 be ordered separately?
A: Yes. Contact us with your specific part number requirement for individual component pricing.
Q: What is the lead time for this bundle?
A: Typically 3–7 business days for in-stock units; 4–8 weeks for factory-order items. Confirm availability via RFQ.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes, CoC and test reports are available upon request for quality-critical procurement.
