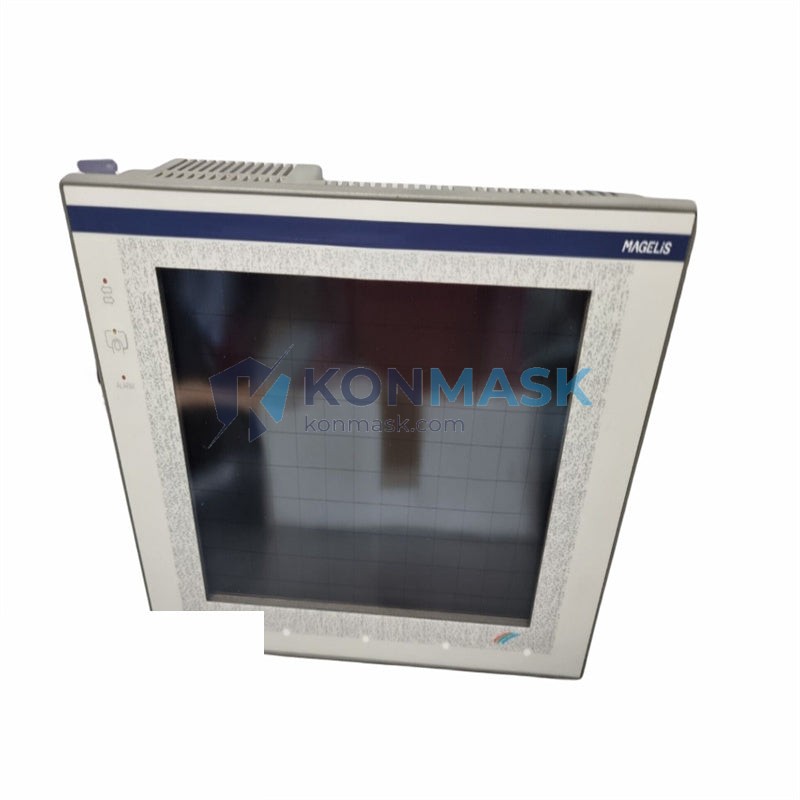

HMI & Machine Control Solution — SCHNEIDER XBTF034510 | Magelis Series
Where This Product Is Used
The SCHNEIDER XBTF034510 is a Magelis-series operator panel (HMI) deployed across a wide range of industrial automation environments where reliable human-machine interaction is critical:
- Manufacturing & Assembly Lines — Real-time process monitoring, alarm management, and operator input on discrete production lines.
- Water & Wastewater Treatment — Local control panels for pump stations, filtration systems, and SCADA-connected field terminals.
- Building Automation (BMS) — HVAC control, energy metering displays, and facility management touchpoints.
- Food & Beverage Processing — Hygienic-environment operator interfaces for batch control and recipe management.
- Oil, Gas & Chemical Plants — Rugged HMI terminals for hazardous-area adjacent control panels and skid-mounted systems.
- Machine Tool & OEM Equipment — Embedded operator panels for CNC machines, packaging lines, and custom automation skids.
- Power Distribution & Utilities — Substation and switchgear local HMI for status display and manual override.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Schneider Electric |
| Part Number | XBTF034510 |
| Series | Magelis XBT F |
| Product Type | Operator Panel / HMI Terminal |
| Display Type | Monochrome / Graphic LCD (refer to datasheet for exact resolution) |
| Communication Ports | Serial RS-232 / RS-485 (protocol-dependent configuration) |
| Power Supply | 24 V DC |
| Protection Rating | IP65 (front panel) |
| Operating Temperature | 0 °C to +50 °C |
| Weight | ~500 g |
| Certifications | CE, UL (verify current listing with Schneider Electric) |
| Compatible Software | Vijeo Designer |
Note: Always cross-reference with the official Schneider Electric XBTF034510 datasheet for the most current specifications before system design.
Why Engineers Specify This Model
- Proven Magelis Platform — The XBT F series has decades of field deployment across global industrial sites, with a well-established ecosystem of drivers, cables, and programming tools.
- Vijeo Designer Compatibility — Native support for Schneider’s Vijeo Designer IDE enables rapid screen development, alarm configuration, and PLC variable mapping without third-party middleware.
- IP65 Front-Panel Sealing — Suitable for panel-mount installation in environments with dust, coolant mist, or wash-down proximity.
- Wide Protocol Support — Communicates natively with Modicon M340, M580, Premium, and Quantum PLCs, as well as third-party devices via Modbus RTU/ASCII.
- Compact Form Factor — Optimized for space-constrained control cabinets without sacrificing display clarity or operator usability.
- Long Service Life & Spare Parts Availability — Schneider Electric maintains extended product support cycles; replacement units and accessories remain available through authorized channels.
Complete System Bill of Materials
For a fully operational XBTF034510-based HMI station, engineers typically specify the following complementary components:
- PLC / Controller — Modicon M340 (BMX P34 xxxx) or M580 (BME P58 xxxx) for seamless Ethernet/serial integration.
- Communication Cable — XBTZ9718 (RS-232 to Modicon Premium/Quantum) or equivalent XBT-series cable for target PLC.
- 24 V DC Power Supply — ABL8 series (e.g., ABL8REM24030) for panel power rail.
- Panel Cutout Hardware — Mounting clamps and gasket supplied with unit; verify cutout dimensions from installation guide.
- Programming PC & Software — Vijeo Designer (current version) on Windows-compatible workstation with USB-to-serial adapter if required.
- Surge Protection — TVSS/SPD on 24 V DC rail recommended for installations in electrically noisy environments.
Compliance & Industry Standards
- CE Marking — Compliant with EU Low Voltage Directive and EMC Directive for European market deployment.
- UL Listed — Evaluated to applicable UL standards for industrial control equipment (verify current UL file with Schneider Electric).
- IEC 61131 — Compatible with IEC 61131-3 PLC environments via standard communication drivers.
- RoHS Compliant — Manufactured in accordance with EU RoHS Directive restrictions on hazardous substances.
- IP65 (IEC 60529) — Front panel rated for dust-tight and low-pressure water jet protection.
Quality Assurance & Sourcing
Konmask.com specializes in industrial automation components for B2B buyers who require specification accuracy and supply reliability:
- Spec Verification — Every unit listing is cross-referenced against manufacturer documentation before publication.
- Traceable Supply Chain — Units sourced from authorized distributors or verified industrial surplus channels with documentation available on request.
- Pre-Shipment Inspection — Physical condition and label verification performed prior to dispatch.
- Packaging — Shipped in anti-static, impact-resistant packaging appropriate for sensitive electronics.
- Documentation Support — Datasheet, wiring diagram, and installation guide links provided upon order confirmation.
How to Source This Part
- Request a Quote — Contact support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Confirm Specifications — Our team will verify the part number, firmware revision requirements, and any accessory needs before invoicing.
- Place Order & Receive Documentation — Purchase order accepted via email; proforma invoice issued within 1 business day.
- Shipping & Logistics — Domestic (CN) and international shipping available; DHL, FedEx, and sea freight options on request.
- After-Sales Support — Technical questions on installation and commissioning answered by our engineering team post-delivery.
Application-Specific FAQ
Q: Is the XBTF034510 compatible with third-party PLCs (Siemens, Mitsubishi, Omron)?
A: The XBT F series supports a range of third-party drivers via Vijeo Designer. Compatibility depends on the specific PLC model and communication protocol. Contact us with your PLC model for a compatibility confirmation before ordering.
Q: Can this panel be used as a replacement for an older XBT series unit?
A: In many cases yes, subject to cutout dimensions and communication port compatibility. Provide your existing part number and we will advise on direct replacement or adaptation requirements.
Q: What is the lead time for the XBTF034510?
A: Lead time varies by stock availability. Contact us for a real-time stock check and confirmed delivery estimate.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a limited warranty on all units. Terms are provided with the order confirmation. Extended warranty options are available on request.
Q: Is programming/configuration support available?
A: We can provide Vijeo Designer project templates and wiring reference documents. On-site commissioning support can be arranged separately — contact us for details.
