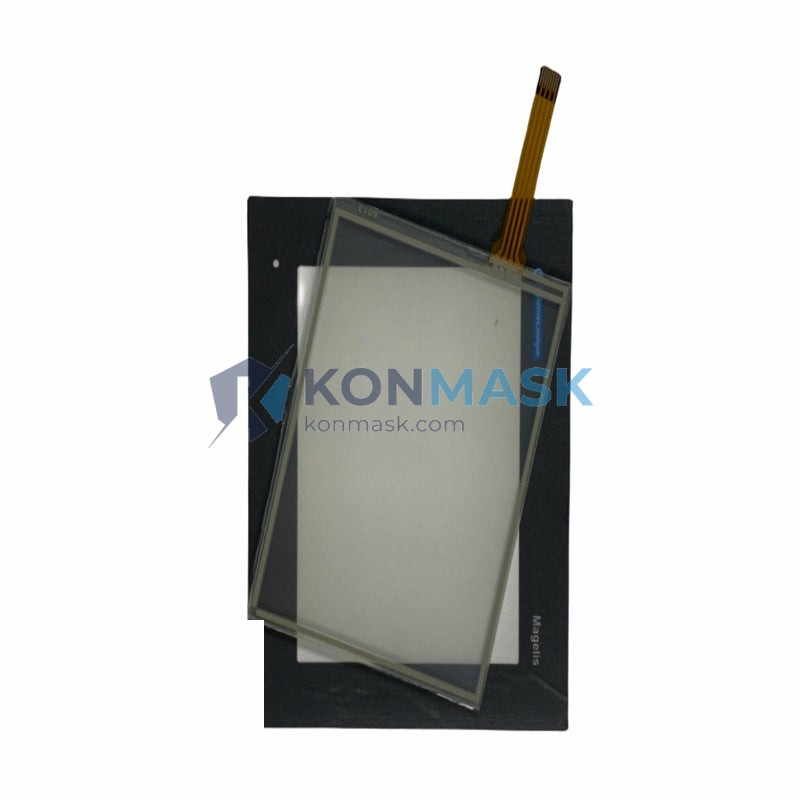

Schneider Electric XBTGT2220 – Advanced Magelis GTO HMI Touch Panel | Magelis GTO Series
Engineering Background
The XBTGT2220 is part of Schneider Electric’s Magelis GTO (Graphic Terminal Operator) series — a platform engineered for demanding industrial environments where reliable human-machine interaction is non-negotiable. Designed to integrate seamlessly with Modicon PLCs, Altivar drives, and third-party automation controllers, this terminal represents Schneider Electric’s commitment to open, scalable HMI architecture.
Product Positioning
Targeted at OEM machine builders, system integrators, and plant automation engineers, the XBTGT2220 delivers a compact yet capable HMI solution for mid-range control applications. Its resistive touch technology, robust enclosure rating, and broad communication protocol support make it the preferred choice for process visualization, operator control panels, and distributed SCADA edge nodes.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | XBTGT2220 |
| Brand / Manufacturer | Schneider Electric (Telemecanique) |
| Series | Magelis GTO |
| Display Type | TFT Color LCD, Resistive Touch |
| Display Size | 5.7 inch |
| Resolution | 320 × 240 px (QVGA) |
| Colors | 65,536 (16-bit) |
| Processor | 32-bit RISC |
| Memory – Application | 4 MB Flash |
| Memory – RAM | 16 MB SDRAM |
| Operating System | Embedded RTOS |
| Programming Software | Vijeo Designer (v4.7+) |
| Communication Ports | 1× RS-232C, 1× RS-485, 1× USB Host, 1× USB Device, 1× Ethernet 10/100 Mbps |
| Supported Protocols | Modbus RTU/TCP, Uni-Telway, FIPIO, CANopen, EtherNet/IP, Profibus DP (via gateway) |
| Power Supply | 24 VDC (±20%) |
| Power Consumption | ≤ 15 W |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +60 °C |
| Humidity | 10% to 85% RH (non-condensing) |
| Protection Rating | IP65 (front panel) |
| Vibration Resistance | IEC 60068-2-6 |
| Shock Resistance | IEC 60068-2-27 |
| Certifications | CE, UL, cUL, RoHS |
| Panel Cutout | 192 × 138 mm |
| Overall Dimensions (W×H×D) | 202 × 148 × 52 mm |
| Weight | Approx. 500 g |
| Mounting | Panel mount (front), 4-point clamp |
| Country of Origin | France / China (OEM) |
Proven Application Environments
- Discrete Manufacturing: Machine tool control, assembly line supervision, press and stamping operations
- Process Industries: Water treatment, HVAC control, chemical dosing systems
- Energy & Utilities: Substation HMI, generator control panels, UPS monitoring
- Building Automation: BMS operator terminals, elevator control interfaces
- OEM Machinery: Packaging machines, textile equipment, food processing lines
- Infrastructure: Pump stations, conveyor systems, material handling
Engineering Advantages
- IP65 Front Panel Sealing — Protects against dust ingress and water jets; suitable for wash-down environments
- Multi-Protocol Native Support — Eliminates gateway hardware for Modbus RTU/TCP and Uni-Telway networks
- Vijeo Designer Integration — Full-featured WYSIWYG development environment with alarm management, trending, recipe handling, and scripting
- Dual USB Ports — USB Host for data logging to flash drives; USB Device for direct PC programming without network dependency
- Ethernet Connectivity — Supports remote monitoring, VNC viewer access, and FTP file transfer natively
- Wide Input Voltage Tolerance — 24 VDC ±20% accommodates industrial power supply fluctuations without additional regulation
- RTOS Architecture — Deterministic real-time response ensures alarm and event processing reliability
System Architecture & Signal Flow
The XBTGT2220 operates as a master HMI node within a Schneider Electric automation architecture:
- PLC Layer: Connects to Modicon M340, M580, Premium, or Quantum PLCs via Ethernet/IP or Modbus TCP; legacy Modicon PLCs via Uni-Telway or Modbus RTU (RS-485)
- Drive Layer: Direct communication with Altivar 31/312/61/71 drives via Modbus RTU for speed reference, fault monitoring, and parameter adjustment
- SCADA Layer: Acts as a data concentrator node; supports VNC server for remote visualization from SCADA workstations
- Field Device Layer: I/O status visualization via PLC data mapping; no direct field I/O wiring to the HMI terminal
- Data Management: Internal recipe storage (Flash), alarm history logging, trend data export via USB or FTP
Sourcing & Quality Verification
- All XBTGT2220 units sourced through verified industrial automation distributors and authorized Schneider Electric channel partners
- Each unit undergoes incoming inspection: visual check, power-on self-test (POST), communication port verification, and display calibration check
- Firmware version documented and matched against Schneider Electric release notes prior to shipment
- Original packaging, serial number label, and CE/UL markings verified for authenticity
- Traceability records maintained per batch for warranty and RMA support
Procurement Process
- Step 1 – Inquiry: Submit your project requirements via [email protected] or WhatsApp +0086 19859288691
- Step 2 – Quotation: Receive a formal quotation with lead time, quantity availability, and shipping options within 24 hours
- Step 3 – Order Confirmation: Confirm PO; payment via T/T, PayPal, or platform checkout
- Step 4 – Quality Inspection: Pre-shipment inspection report provided upon request
- Step 5 – Shipment: DHL / FedEx / UPS express or sea freight; tracking number provided within 48 hours of dispatch
- Step 6 – After-Sales: 12-month warranty; technical support for commissioning and Vijeo Designer configuration
Technical FAQ
Q: Is the XBTGT2220 compatible with third-party PLCs (Siemens, Mitsubishi, Omron)?
A: Yes. Via Modbus RTU/TCP protocol, the XBTGT2220 can communicate with any PLC that supports Modbus. For proprietary protocols (S7, MELSEC, FINS), a protocol converter or gateway is required. Vijeo Designer includes drivers for many third-party controllers.
Q: What version of Vijeo Designer is required?
A: Vijeo Designer v4.7 or later is recommended. The software is available from Schneider Electric’s website. Konmask can provide configuration assistance for standard project templates.
Q: Can the display backlight be replaced in the field?
A: The XBTGT2220 uses an integrated TFT LCD module. Backlight replacement requires factory-level disassembly and is not recommended as a field repair. Konmask offers exchange/refurbishment service for units with backlight degradation.
Q: What is the typical lead time for stock units?
A: In-stock units ship within 2–3 business days. For bulk orders (>10 units), lead time is 5–10 business days depending on sourcing. Contact us for real-time stock confirmation.
Q: Does the unit support data logging to external storage?
A: Yes. The USB Host port supports FAT32-formatted USB flash drives for alarm history export, recipe backup, and trend data logging. FTP transfer via Ethernet is also supported.
