SEW-Eurodrive MC07B0011-5A3-4-00 Frequency Converter | Replacement, Equivalent & Selection Guide

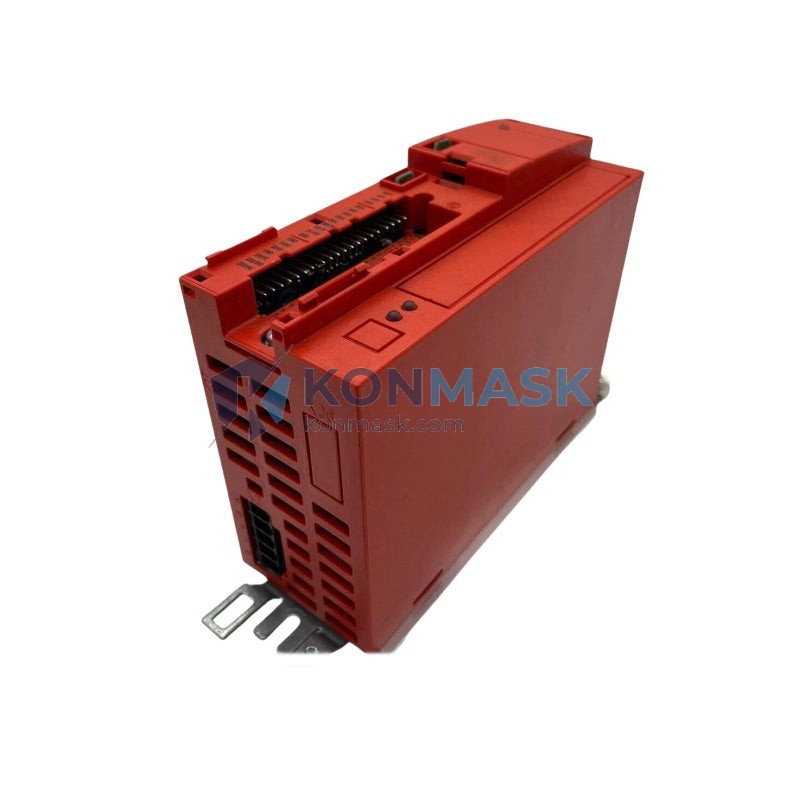

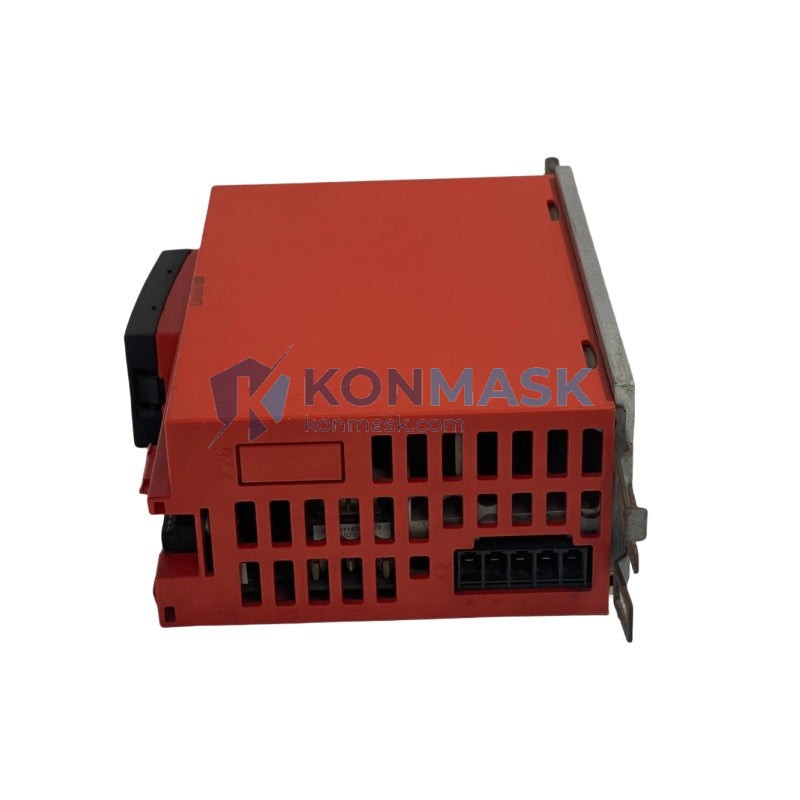

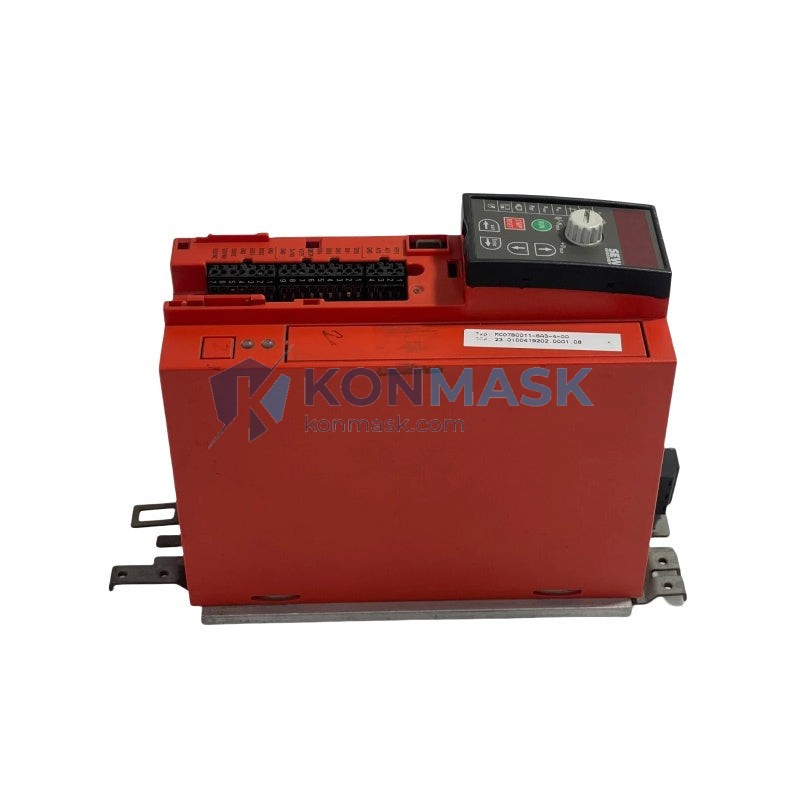

The SEW-Eurodrive MC07B0011-5A3-4-00 is a compact, high-performance 1.1 kW variable frequency drive (VFD) from the MOVITRAC® B series, designed for precise motor speed control in industrial automation. At Konmask.com, we supply genuine and compatible units with full traceability — ideal for OEM replacement, system upgrades, and new installations.
Technical Specifications
- Part Number: MC07B0011-5A3-4-00
- Brand: SEW-Eurodrive
- Series: MOVITRAC® B (MC07B)
- Rated Output Power: 1.1 kW (1.5 HP)
- Input Voltage: 3-phase, 380–500 V AC (±10%)
- Output Voltage: 3-phase, 0–500 V AC
- Output Current: 3.0 A (continuous)
- Input Frequency: 50/60 Hz
- Output Frequency Range: 0–150 Hz
- Control Mode: V/f control, sensorless vector control
- Protection Class: IP20 (UL Open Type)
- Ambient Temperature: 0°C to +40°C (operating)
- Weight: Approx. 1.8 kg
- Communication: RS-485 (SBus), optional fieldbus modules
- Braking: Built-in brake chopper
- Certifications: CE, UL, cUL
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or drop-in replacements for the MC07B0011-5A3-4-00. Always verify input voltage, output current, and control interface before substitution:
- SEW-Eurodrive MC07B0015-5A3-4-00 — Next power class (1.5 kW), same form factor; suitable when slight uprating is acceptable
- SEW-Eurodrive MC07B0011-5A3-4-S0 — Variant with STO (Safe Torque Off) safety function
- Siemens SINAMICS V20 6SL3210-5BE15-5UV0 — 1.5 kW, 3-phase 400 V; compatible for general V/f applications
- ABB ACS355-03E-03A3-4 — 1.1 kW, 3-phase 380–480 V; equivalent power class, different mounting
- Schneider Electric ATV312H075N4 — 0.75 kW (nearest lower class); verify load requirements
- Yaskawa GA500 CIPR-GA50B4003ABBA — 1.1 kW, 400 V class; modern equivalent with advanced features
Note: Cross-brand replacements may require parameter re-configuration and wiring adaptation. Contact our engineers for a compatibility assessment.
Why Choose the Original MC07B0011-5A3-4-00
- Seamless Integration: Plug-and-play replacement within existing SEW MOVITRAC® B installations — no re-engineering required
- Proven Reliability: SEW-Eurodrive’s MOVITRAC® B series is field-proven across millions of installations worldwide
- Native SBus Communication: Direct integration with SEW MOVI-PLC® and third-party PLCs via RS-485
- Compact Footprint: Space-saving design for panel-mount applications
- Full Warranty & Support: Genuine units supplied with manufacturer traceability and Konmask after-sales support
Typical Applications
- Conveyor belt speed control in logistics and packaging lines
- Pump and fan variable-speed drives in HVAC and water treatment
- Textile and printing machine motor control
- Food & beverage processing equipment
- Material handling and automated warehouse systems
- CNC auxiliary axis drives and machine tool spindles
System Compatibility
- Motor Types: Standard 3-phase asynchronous (induction) motors; compatible with IE2/IE3 efficiency class motors
- PLC Integration: Siemens S7-300/400/1200/1500, Allen-Bradley CompactLogix, Mitsubishi MELSEC, Omron NJ/NX via RS-485 or optional PROFIBUS/PROFINET/EtherNet-IP modules
- HMI: Compatible with SEW MOVITOOLS® MotionStudio for parameterization and diagnostics
- Fieldbus Options: PROFIBUS-DP, DeviceNet, CANopen, EtherCAT (via optional interface modules)
- Braking Resistors: External braking resistors supported for high-inertia loads
Selection Guide
Use the following criteria to confirm the MC07B0011-5A3-4-00 is the right drive for your application:
- Motor Power: Select a drive rated ≥ motor nameplate kW. This unit suits motors up to 1.1 kW.
- Supply Voltage: Confirm 3-phase 380–500 V AC supply availability. For single-phase supply, select the MC07B …-2B3-4 variant.
- Load Type: For constant-torque loads (conveyors, compressors), use rated current. For variable-torque loads (fans, pumps), derating may allow a smaller unit.
- Environment: IP20 is suitable for clean, enclosed control panels. For harsh environments, consider an IP55-rated enclosure or the MC07B with external IP55 housing.
- Safety Requirements: If STO (Safe Torque Off, SIL2/PLd) is required, specify the -S0 suffix variant.
- Communication Protocol: Standard unit includes SBus (RS-485). Specify fieldbus module suffix for PROFIBUS, EtherNet/IP, etc.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or directly from SEW-Eurodrive
- Each unit undergoes incoming inspection: visual check, label verification, and functional power-on test
- Traceability documentation (batch number, origin) available on request
- Anti-counterfeit verification available for critical OEM applications
- Konmask.com is an industrial automation component specialist serving global B2B buyers since 2020
How to Order
- Step 1: Confirm part number: MC07B0011-5A3-4-00
- Step 2: Specify quantity and required delivery timeline
- Step 3: Contact us via the form below or email [email protected]
- Step 4: Receive quotation within 24 hours (business days)
- Step 5: Confirm order — we handle export documentation, customs HS code declaration, and international shipping
Bulk orders and long-term supply agreements welcome. OEM and system integrator pricing available on request.
Replacement & Compatibility FAQ
Q: Can I replace MC07B0011-5A3-4-00 with a higher-power MC07B model?
A: Yes, uprating to the next power class (e.g., 1.5 kW) is generally safe provided the motor and wiring are rated accordingly. No mechanical changes are required.
Q: Is the MC07B0011-5A3-4-00 compatible with single-phase input?
A: No. This variant requires 3-phase 380–500 V input. For single-phase applications, select the MC07B …-2B3-4 series.
Q: Can I use a Siemens or ABB drive as a direct replacement?
A: Electrically possible in most cases, but parameter mapping, I/O wiring, and communication configuration will differ. Our engineers can provide a cross-reference checklist.
Q: What is the lead time for the MC07B0011-5A3-4-00?
A: In-stock units ship within 3–5 business days. For out-of-stock situations, typical lead time is 4–8 weeks from SEW-Eurodrive. Contact us for current availability.
Q: Do you provide a warranty?
A: Yes. All genuine SEW-Eurodrive units carry the manufacturer’s standard warranty. Konmask.com additionally provides a 12-month exchange warranty on verified genuine stock.
