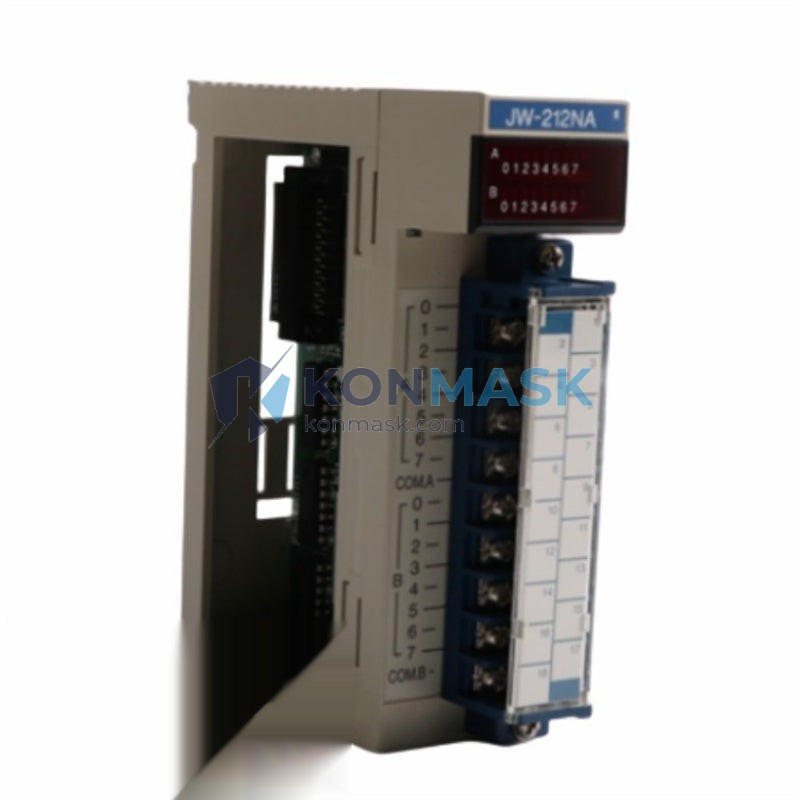

SHARP JW-212NA – 12-Point DC Input Module | JW Series PLC Platform
Engineering Background
The SHARP JW Series PLC platform was engineered for demanding industrial automation environments where signal integrity, compact footprint, and deterministic scan-cycle performance are non-negotiable. The JW-212NA is a 12-point DC input expansion module designed to extend the I/O capacity of JW Series CPU units, enabling engineers to interface directly with field-level sensors, proximity switches, and discrete DC signal sources without additional signal conditioning hardware.
Product Positioning
Targeted at procurement engineers and system integrators maintaining or expanding legacy JW Series control architectures, the JW-212NA delivers a direct, OEM-equivalent replacement path. Its compact DIN-rail form factor and standard JW backplane interface make it a drop-in solution for both greenfield panel builds and brownfield retrofit projects across manufacturing, material handling, and process control sectors.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JW-212NA |
| Manufacturer | SHARP Corporation |
| Series / Platform | JW Series PLC |
| Module Type | DC Digital Input |
| Number of Input Points | 12 points |
| Input Voltage Range | DC 12V / 24V (sink/source compatible) |
| Input Current | Approx. 7 mA per point (at 24 VDC) |
| ON Voltage Threshold | ≥ 10.2 VDC |
| OFF Voltage Threshold | ≤ 3.0 VDC |
| Input Impedance | Approx. 3.3 kΩ |
| Response Time | ≤ 10 ms (ON/OFF) |
| Isolation Method | Photocoupler (optical isolation) |
| Connector Type | Removable screw terminal block |
| Mounting | DIN rail / direct panel mount via JW backplane |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 10% to 90% RH (non-condensing) |
| Weight | Approx. 180 g |
| Compliance | CE, RoHS |
Proven Application Environments
- Discrete Manufacturing: Machine tool interlocking, spindle-start permissive signals, and door-interlock monitoring on CNC and transfer-line equipment.
- Material Handling: Conveyor position sensing via inductive proximity switches, pallet-present detection, and end-of-travel limit inputs.
- Process Control Panels: Pump-run feedback, valve-open confirmation, and motor-overload trip inputs in water treatment and chemical dosing systems.
- Building Automation: HVAC damper-position feedback and fire-suppression interlock inputs in legacy BAS panels retaining JW Series controllers.
- Brownfield Retrofit: Direct replacement for failed or end-of-life JW-212NA modules in existing JW Series racks without CPU firmware changes.
Engineering Advantages
- Optical Isolation: Photocoupler isolation on all 12 input channels eliminates ground-loop interference and protects the CPU backplane from field-side transients up to the module’s rated isolation voltage.
- Dual-Voltage Compatibility: Accepts both 12 VDC and 24 VDC field signals, reducing the need for separate input modules when mixed-voltage sensor networks are present in the same panel.
- Removable Terminal Block: Screw-terminal wiring block detaches from the module body, allowing pre-wiring of the terminal block before module installation and simplifying hot-swap maintenance procedures.
- Compact Form Factor: Slim JW-series module width minimises rack space consumption, critical in retrofit applications where backplane slots are at a premium.
- Deterministic Response: ≤10 ms ON/OFF response time ensures reliable capture of high-frequency discrete events within the JW CPU scan cycle.
System Architecture & Signal Flow
The JW-212NA slots directly into any available I/O slot on a JW Series expansion rack or base unit. Field-side DC signals are wired to the removable screw terminal block. Each input channel passes through a current-limiting resistor network before reaching the photocoupler, which provides galvanic isolation between the field wiring and the JW backplane logic bus. The CPU reads input states via the backplane during each scan cycle; no additional configuration jumpers or DIP-switch settings are required for standard 24 VDC operation. For 12 VDC field signals, verify CPU parameter settings per the JW Series hardware manual to confirm input threshold compatibility.
Sourcing & Quality Verification
- All JW-212NA units sourced by Konmask.com are procured through verified industrial distribution channels with full traceability to authorised SHARP distributors or certified secondary-market suppliers.
- Each unit undergoes incoming inspection including visual examination of PCB, terminal block, and label integrity; functional power-on verification where test fixtures are available; and cross-reference of date codes and lot markings against known-good reference units.
- Counterfeit-risk screening is applied to all SHARP JW Series modules per Konmask internal QC protocol QC-JW-001.
- Units are shipped in anti-static packaging with individual serial/lot documentation available on request.
Procurement Process
- Confirm Compatibility: Verify your JW Series CPU model and rack type against the JW-212NA compatibility matrix (available on request). Confirm field-side voltage (12 VDC or 24 VDC) and required I/O point count.
- Request a Quote: Contact [email protected] for volume pricing, lead-time confirmation, and availability of factory-new vs. tested-surplus stock.
- Place Order: Orders accepted via the Konmask.com storefront, purchase order (NET terms available for qualified accounts), or direct bank transfer for international buyers.
- Shipping & Documentation: Standard shipment includes commercial invoice, packing list, and CE/RoHS declaration. Export documentation (HS Code 8538.90) and country-of-origin certificates available on request.
- After-Sales Support: Technical support for installation and integration queries available via email or phone during business hours (UTC+8).
Technical FAQ
Q: Can the JW-212NA be used with a JW-21CU CPU unit?
A: Yes. The JW-212NA is compatible with JW-21CU and other JW Series CPU units that support standard I/O expansion. Confirm slot addressing in your CPU configuration to avoid I/O map conflicts.
Q: What is the maximum cable length for field wiring to the input terminals?
A: SHARP recommends a maximum of 200 m for shielded cable runs to minimise noise pickup. For unshielded cable in high-EMI environments, limit runs to 50 m and ensure proper cable segregation from power wiring.
Q: Is the JW-212NA compatible with NPN (sink) and PNP (source) sensors?
A: The JW-212NA supports both NPN (current sink) and PNP (current source) wiring configurations. Refer to the terminal wiring diagram in the JW Series I/O Module Hardware Manual for the correct common-terminal connection for each sensor type.
Q: What happens if an input channel receives a voltage above the rated maximum?
A: The photocoupler and input resistor network provide a degree of over-voltage protection, but sustained voltages significantly above the rated input range may damage the input circuit. Always verify field-side voltage levels before connecting to the module.
Q: Are spare terminal blocks available separately?
A: Konmask.com can source spare JW Series terminal blocks on request. Contact [email protected] with your requirement.
