SHARP JW-214SA Output Module | Replacement, Equivalent & Selection Guide

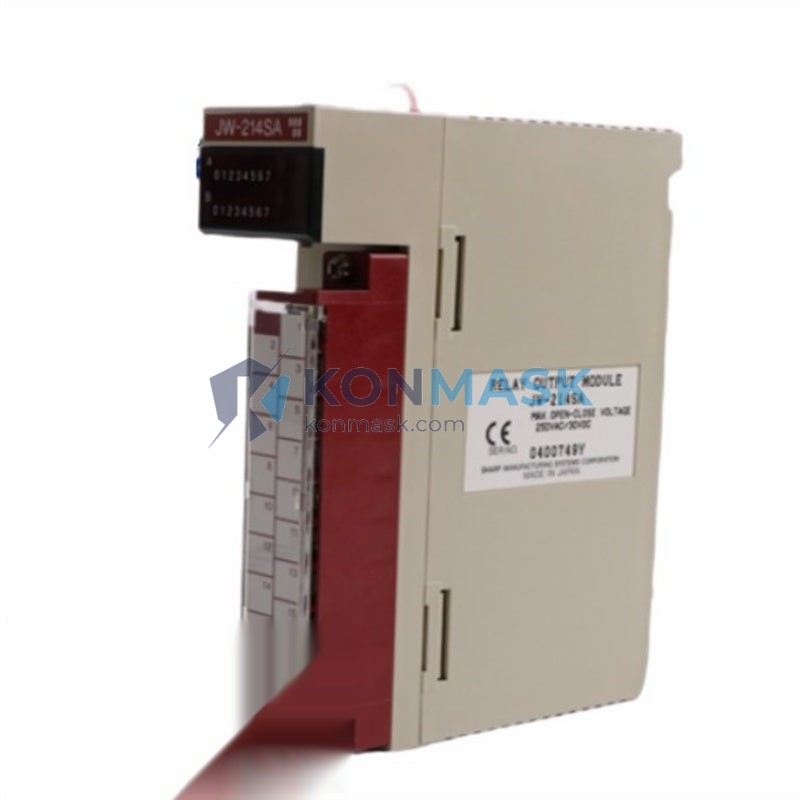

The SHARP JW-214SA is a discrete output module designed for the SHARP JW series PLC platform. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident selection decisions.
Technical Specifications
- Model: JW-214SA
- Manufacturer: SHARP Corporation
- Module Type: Output Module
- Series: SHARP JW Series PLC
- Output Type: Relay / Transistor (confirm with datasheet)
- Number of Output Points: 14 points (typical for JW-214SA)
- Rated Voltage: 24V DC / 100–240V AC (load side)
- Output Current: Per point per datasheet specification
- Isolation: Photocoupler isolation
- Weight: 180 g
- Compatible Backplane: SHARP JW series base units
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -20°C to 75°C
Note: Always verify specifications against the official SHARP JW-214SA datasheet before final selection.
Compatible Replacement & Equivalent Models
If the JW-214SA is discontinued or unavailable, the following models may serve as functional equivalents depending on your system configuration:
- SHARP JW-214T – Transistor output variant in the same JW series; verify output type compatibility
- SHARP JW-214R – Relay output variant; suitable for AC load applications
- SHARP JW-216SA – Higher point-count output module for expanded I/O requirements
- Third-party equivalents – Contact Konmask.com for cross-reference analysis; we source OEM and compatible alternatives
Important: Confirm connector pinout, output type (relay vs. transistor), and backplane slot compatibility before substituting any module.
Why Choose the Original Model
- Guaranteed compatibility with existing SHARP JW series PLC racks and programming environments
- Proven reliability in industrial environments with validated MTBF ratings
- No firmware or configuration changes required when replacing like-for-like
- OEM traceability – original part numbers ensure audit compliance and warranty coverage
- Reduced commissioning risk – drop-in replacement with zero re-engineering
Typical Applications
- Factory automation and discrete manufacturing lines
- Machine tool control and CNC auxiliary I/O
- Conveyor and material handling systems
- Packaging and labeling equipment
- Building automation and HVAC control panels
- Legacy SHARP JW PLC system maintenance and expansion
System Compatibility
The JW-214SA is designed for use within the SHARP JW Series PLC ecosystem. Verify compatibility with the following before ordering:
- CPU Unit: SHARP JW-20CU, JW-32CU, JW-50CU, or equivalent JW series CPUs
- Base Unit / Rack: Confirm slot type and expansion rack compatibility
- Power Supply: Ensure rack power budget accommodates additional output module load
- Programming Software: SHARP JW-50H or compatible ladder logic environment
Selection Guide
Use the following criteria to confirm the JW-214SA is the right module for your application:
- Step 1 – Output Type: Determine whether your load requires relay (AC/DC) or transistor (DC only) output
- Step 2 – Point Count: Confirm 14 output points meets your I/O requirements; consider JW-216SA for higher density
- Step 3 – Load Voltage & Current: Match module ratings to your actuator, solenoid, or indicator specifications
- Step 4 – Slot Availability: Verify available slots in your existing JW rack configuration
- Step 5 – Replacement vs. Upgrade: If replacing a failed module, use the same part number; if expanding, evaluate higher-density alternatives
Quality Assurance & Sourcing
- All modules sourced through Konmask.com are inspected prior to dispatch
- We supply new, refurbished, and surplus stock with clear condition labeling
- Traceability documentation available upon request for MRO and OEM procurement
- Anti-static packaging and secure shipping for all PLC modules
- Lead time and stock availability confirmed at time of order
How to Order
- Confirm your required quantity and delivery timeline
- Add the JW-214SA to your cart or contact us for bulk/project pricing
- Provide your PO number or project reference for B2B orders
- Receive order confirmation with estimated ship date within 1 business day
- Track your shipment via the link provided in your dispatch notification
For urgent requirements or technical pre-sales questions, contact us directly:
- Email: support@konmask.com
- Phone/WhatsApp: +0086 19859288691
Replacement & Compatibility FAQ
Q: Is the JW-214SA still in production?
A: SHARP has discontinued many JW series modules. Konmask.com maintains surplus and refurbished stock. Contact us to confirm current availability.
Q: Can I use a JW-214T instead of the JW-214SA?
A: The JW-214T uses transistor outputs vs. the JW-214SA’s relay/SA-type outputs. They are not always interchangeable — verify your load type and wiring before substituting.
Q: Do you provide a warranty on used/refurbished modules?
A: Yes. All refurbished units carry a 90-day functional warranty. New old stock (NOS) units are sold as-is with inspection certification.
Q: Can you cross-reference to a third-party equivalent?
A: Yes. Send us your application details and we will recommend the most cost-effective compatible alternative.
Q: What is the lead time for the JW-214SA?
A: Lead time varies by stock level. In-stock units ship within 1–3 business days. Out-of-stock items are sourced within 2–4 weeks typically.
