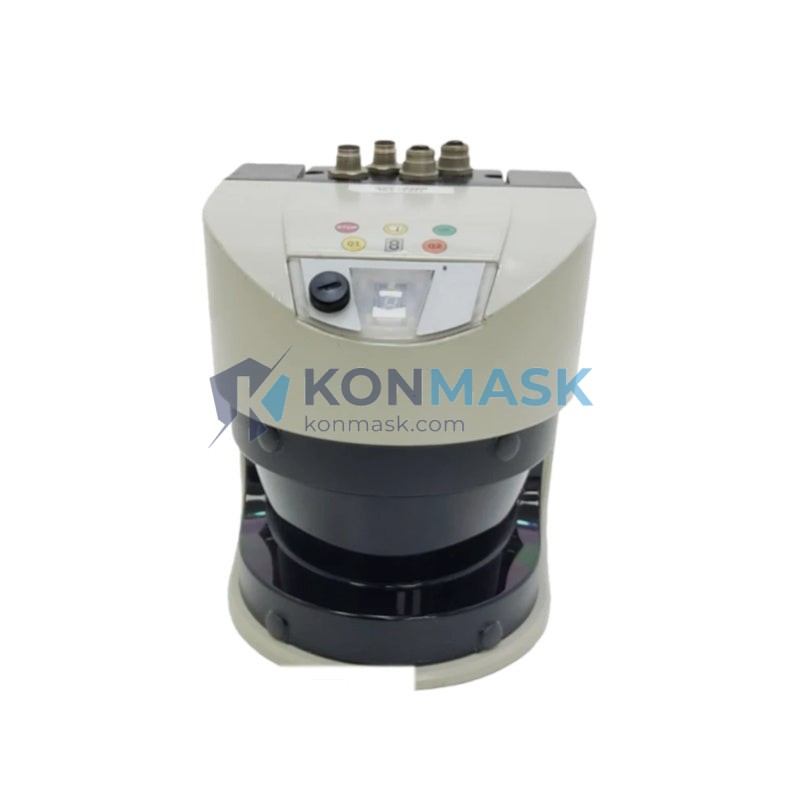

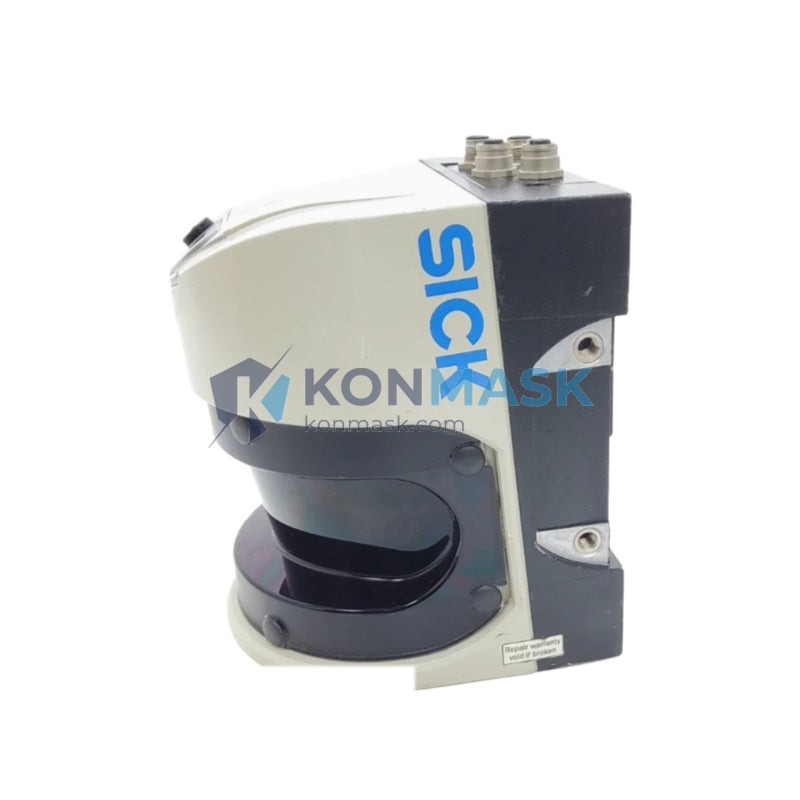

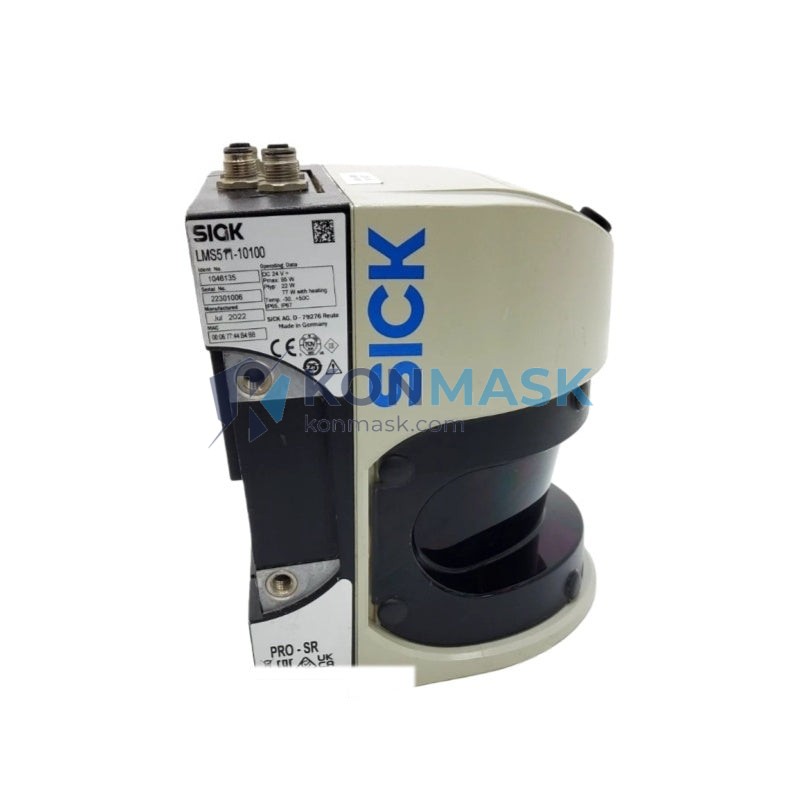

SICK LMS511-10100 Long-Range 2D LiDAR Scanning Sensor – LMS5xx Series
Imagine an automated guided vehicle navigating a busy warehouse at full speed — without a reliable 2D LiDAR sensor, it cannot distinguish a stationary pallet from a moving worker. The result: collisions, downtime, and costly liability. The SICK LMS511-10100 (ID. No. 1046135) eliminates this risk with millimeter-level precision scanning, making it the backbone of safe, intelligent industrial automation.
Within SICK’s renowned LMS5xx Series, the LMS511-10100 occupies the high-performance tier — engineered for demanding outdoor and indoor environments where range, angular resolution, and environmental robustness must coexist. Trusted by system integrators and OEMs across logistics, port automation, mobile robotics, and smart manufacturing worldwide, this sensor has become a global benchmark in 2D laser measurement technology.
Technical Specifications
- Part Number / SKU: LMS511-10100 | ID. No. 1046135
- Series: SICK LMS5xx
- Scanning Angle: 190°
- Angular Resolution: 0.1667° / 0.25° / 0.3333° / 0.5° / 1° (selectable)
- Scanning Frequency: 25 Hz / 50 Hz (selectable)
- Operating Range: Up to 80 m (depending on remission)
- Light Source: Infrared laser, 905 nm wavelength
- Laser Class: 1 (IEC 60825-1)
- Interface: Ethernet (TCP/IP), RS-422
- Protection Rating: IP67
- Operating Temperature: -30 °C to +50 °C
- Supply Voltage: 10.8 V DC to 30 V DC
- Weight: Approx. 3.7 kg
- Housing Material: Die-cast zinc
- Outputs: 2 × switching outputs (configurable)
Key Features & Benefits
- Ultra-wide 190° scan field — covers blind spots that narrower sensors miss, reducing the need for multiple sensor installations.
- 80-meter detection range — suitable for large-scale outdoor environments including ports, yards, and warehouses.
- IP67-rated rugged housing — withstands dust, water jets, and harsh industrial conditions without performance degradation.
- Selectable angular resolution down to 0.1667° — delivers fine-grained point cloud data for precise object profiling.
- Dual interface (Ethernet + RS-422) — flexible integration into both modern IP-based systems and legacy serial architectures.
- Wide operating temperature range (-30 °C to +50 °C) — reliable in cold storage, outdoor logistics, and high-heat factory floors.
- SOPAS ET software compatible — simplifies configuration, diagnostics, and remote monitoring.
Industry & Equipment Applications
- AGV / AMR Navigation: Real-time obstacle detection and path planning for autonomous mobile robots in warehouses and factories.
- Port & Crane Automation: Container positioning, anti-collision systems, and load profiling on ship-to-shore cranes.
- Logistics & Conveyor Systems: Package dimensioning, gap detection, and flow monitoring on high-speed conveyor lines.
- Perimeter Security: Outdoor area monitoring and intrusion detection for industrial facilities.
- Mobile Machinery: Collision avoidance on forklifts, reach stackers, and automated stacking systems.
- Smart Manufacturing: Machine guarding, presence detection, and process monitoring on production lines.
System Integration & Compatible Parts
The LMS511-10100 integrates seamlessly with SICK’s broader automation ecosystem. Compatible and commonly paired components include:
- SICK LMS5xx Series accessories: mounting brackets, connection cables (M12 connectors), and protective covers.
- SICK SOPAS Engineering Tool — for sensor configuration and diagnostics via Ethernet.
- PLC Integration: Compatible with Siemens S7, Allen-Bradley ControlLogix, Mitsubishi MELSEC, and other major PLC platforms via Ethernet/IP or Profinet adapters.
- ROS / ROS2 Drivers: Open-source SICK scan drivers available for robotics middleware integration.
- Commonly used alongside SICK safety laser scanners (e.g., S3000, microScan3) for layered safety architectures.
Our Quality Assurance Process
At Konmask.com, every SICK LMS511-10100 unit we supply undergoes a rigorous multi-stage verification process:
- Source Verification: Units are sourced from authorized distributors and verified OEM channels — no gray-market or counterfeit stock.
- Visual & Physical Inspection: Housing integrity, connector condition, label authenticity, and serial number validation.
- Functional Pre-check: Power-on test and communication interface verification before dispatch.
- Documentation: Each unit ships with original datasheet, CE/FCC compliance documentation, and traceability records.
- Secure Packaging: Anti-static, shock-absorbing packaging to protect precision optics during international transit.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email [email protected].
- Provide your required quantity, delivery timeline, and destination country.
- Receive a formal quotation with lead time, shipping options, and payment terms within 24 business hours.
- Confirm order and complete payment — we accept T/T, L/C, and other B2B payment methods.
- Track your shipment with full documentation (commercial invoice, packing list, COO, etc.).
Why Choose Konmask.com?
- ✅ Specialized in industrial automation components — SICK, Siemens, Mitsubishi, Omron, Keyence, and more.
- ✅ B2B-focused — serving system integrators, OEMs, MRO teams, and engineering firms globally.
- ✅ Fast response — RFQ replies within 24 hours, urgent orders prioritized.
- ✅ Competitive pricing — direct sourcing relationships enable cost-effective procurement.
- ✅ Export expertise — experienced in international logistics, customs documentation, and compliance.
- ✅ After-sales support — technical consultation and warranty coordination available.
Frequently Asked Questions
Q: What is the difference between LMS511-10100 and LMS511-10150?
A: The LMS511-10100 (ID. No. 1046135) is the standard Ethernet + RS-422 variant. The LMS511-10150 adds additional I/O configurations. Both share the same core scanning engine and 190° / 80m specifications.
Q: Is the LMS511-10100 suitable for outdoor use?
A: Yes. Its IP67 rating and -30 °C to +50 °C operating range make it well-suited for outdoor logistics, port automation, and yard management applications.
Q: Can this sensor be integrated with ROS-based robotic systems?
A: Yes. SICK provides open-source ROS and ROS2 drivers (sick_scan_xd) that support the LMS5xx series, enabling straightforward integration with autonomous mobile robot platforms.
Q: What is the lead time for the SICK LMS511-10100?
A: Lead time varies by stock availability. Please submit an RFQ and we will confirm availability and estimated delivery within 24 business hours.
Q: Do you provide a warranty for this product?
A: Yes. All units come with a standard warranty. Extended warranty and on-site support options are available — please discuss your requirements when submitting your inquiry.
