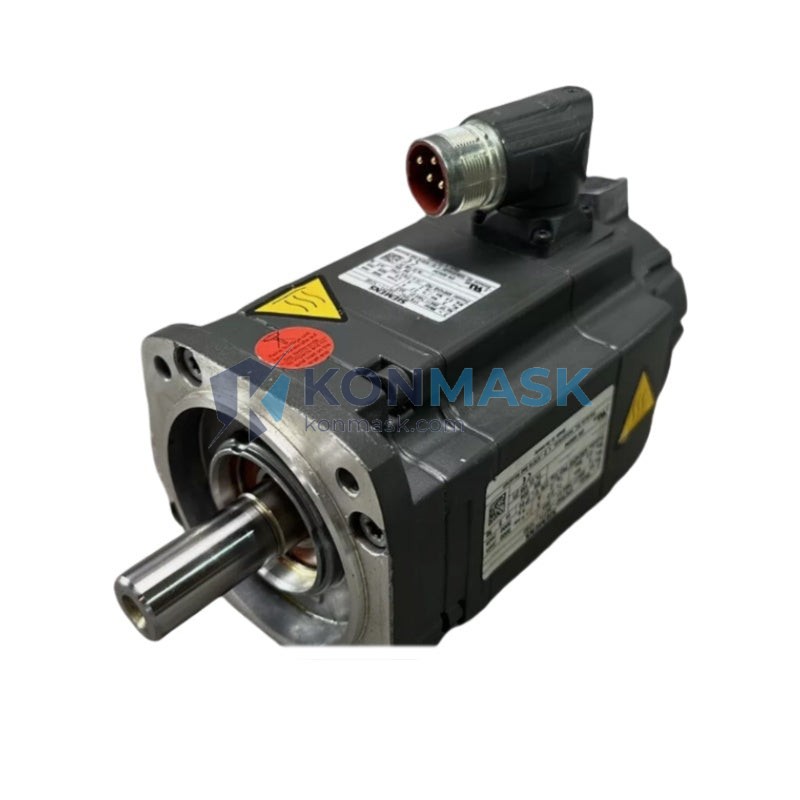

SIEMENS 1FK7042-2AF71-1CG0 AC Servo Motor – SIMOTICS S-1FK7 Series
When a servo motor fails on the production line, the consequences are immediate and costly: conveyor systems halt, robotic arms freeze mid-cycle, CNC machining centers go offline, and every minute of downtime translates directly into lost revenue and missed delivery commitments. In precision-driven industries — automotive assembly, semiconductor fabrication, packaging, and printing — there is no acceptable substitute for the exact replacement part. The SIEMENS 1FK7042-2AF71-1CG0 is not merely a component; it is the heartbeat of motion control systems that cannot afford to stop.
The 1FK7042-2AF71-1CG0 belongs to Siemens’ flagship SIMOTICS S-1FK7 compact servo motor series — one of the most widely deployed servo platforms in global industrial automation. Engineered for high dynamic response, compact installation envelopes, and seamless integration with SINAMICS S120 and S210 drive systems, this model occupies a critical mid-range position in the 1FK7 lineup: delivering robust torque density in a frame size optimized for space-constrained machine designs. Its global installed base spans hundreds of thousands of machines across Europe, Asia, and the Americas, making it one of the most sourced servo motor part numbers in the aftermarket.
Technical Specifications
- Part Number / SKU: 1FK7042-2AF71-1CG0
- Manufacturer: Siemens AG
- Series: SIMOTICS S-1FK7 (Compact Servo Motor)
- Motor Type: Permanent Magnet Synchronous AC Servo Motor
- Shaft Type: Smooth shaft with featherkey (as indicated by order code suffix)
- Encoder: Absolute encoder (DRIVE-CLiQ interface compatible)
- Cooling Method: Natural convection (self-cooled)
- Protection Rating: IP65 (standard)
- Insulation Class: F (155°C)
- Holding Brake: Integrated (as per -1CG0 suffix)
- Weight: Approx. 8.2 kg
- Compatible Drive Systems: SINAMICS S120, SINAMICS S210
- Country of Origin: Germany / EU
Note: Detailed electrical parameters (rated torque, speed, power) are available upon request or in the Siemens SIMOTICS S-1FK7 product catalog. We do not publish unverified specifications.
Key Features & Benefits
- High Torque Density: Compact frame size with optimized magnetic circuit design delivers maximum torque-to-volume ratio, enabling machine builders to reduce cabinet footprint without sacrificing performance.
- DRIVE-CLiQ Ready: Native DRIVE-CLiQ encoder interface enables plug-and-play commissioning with SINAMICS drives — no manual parameter entry, automatic motor identification, and real-time diagnostics.
- Integrated Holding Brake: The -1CG0 suffix confirms a factory-integrated holding brake, essential for vertical axis applications and safety-critical positioning tasks.
- Absolute Encoder: Eliminates the need for homing routines after power-up, reducing machine cycle time and improving operational efficiency.
- IP65 Sealing: Robust protection against dust ingress and water jets, suitable for wash-down environments and harsh factory floors.
- Long Service Life: Siemens-grade bearing systems and thermal management ensure extended MTBF in continuous-duty applications.
- Global Spare Parts Availability: As a high-volume 1FK7 variant, replacement parts and compatible accessories are readily available worldwide.
Industry & Equipment Applications
- Machine Tools & CNC: Feed axis drives, spindle orientation, tool changers
- Packaging Machinery: Form-fill-seal machines, cartoners, palletizers
- Robotics & Handling: Articulated robot joints, SCARA arms, gantry systems
- Printing & Converting: Web tension control, register drives, slitter-rewinders
- Semiconductor & Electronics: Pick-and-place, wafer handling, PCB drilling
- Automotive Assembly: Welding positioners, press feeders, transfer lines
- Textile Machinery: Warp beam drives, yarn tensioning systems
- Food & Beverage: Filling lines, conveyor indexing, dosing systems
System Integration & Compatible Parts
The 1FK7042-2AF71-1CG0 is designed for seamless integration within the Siemens SINAMICS/SIMOTICS ecosystem. Commonly paired components include:
- Drive Units: SINAMICS S120 Motor Modules (booksize/chassis), SINAMICS S210 single-axis drives
- Power Supplies: SINAMICS S120 Active Line Modules, Smart Line Modules
- Cables: Siemens MOTION-CONNECT 500/800 power and signal cables (pre-assembled)
- Controllers: SIMATIC S7-1500T, S7-300/400 with PROFIBUS/PROFINET motion control
- Gearboxes: Stöber, Neugart, or Siemens-compatible planetary gearheads (IEC B5 flange)
Contact our technical team to verify compatibility with your existing drive configuration before ordering.
Our Quality Assurance Process
At Konmask.com, every SIEMENS servo motor we supply undergoes a rigorous multi-stage verification process before shipment:
- Source Verification: Products are sourced exclusively from authorized distributors, certified resellers, or directly from OEM surplus channels with full traceability documentation.
- Visual & Physical Inspection: Each unit is inspected for label authenticity, nameplate data accuracy, connector integrity, shaft condition, and packaging quality.
- Documentation Check: We verify serial numbers against manufacturer databases where applicable and provide certificates of conformity upon request.
- Functional Testing: Where facilities permit, motors are bench-tested for encoder signal integrity and winding resistance before dispatch.
- Secure Packaging: Anti-static, moisture-resistant packaging with shock-absorbing foam inserts protects units during international transit.
How to Order
- Submit an Inquiry: Use the contact form on this page or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quote: Our team will respond within 24 business hours with pricing, lead time, and availability confirmation.
- Order Confirmation: Upon agreement, we issue a proforma invoice. Payment terms are discussed based on order volume and customer profile.
- Shipment & Tracking: We ship via DHL, FedEx, UPS, or freight forwarder. Full tracking information is provided upon dispatch.
- After-Sales Support: Our technical team remains available post-delivery for commissioning guidance and warranty claims.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: We focus exclusively on PLC, DCS, servo, and drive components — not a generalist marketplace.
- ✅ Global B2B Supply: Serving OEMs, system integrators, and MRO buyers across 50+ countries.
- ✅ Fast Response: Dedicated account managers respond to RFQs within 24 hours.
- ✅ Competitive Pricing: Direct sourcing relationships enable us to offer market-competitive pricing on hard-to-find parts.
- ✅ Verified Authenticity: We stand behind every part we sell with full traceability and quality documentation.
- ✅ Flexible Logistics: EXW, FOB, CIF, and DDP terms available. We handle export documentation for cross-border shipments.
Frequently Asked Questions
Q: Is the SIEMENS 1FK7042-2AF71-1CG0 a new or refurbished unit?
A: We supply both new (original factory-sealed) and professionally refurbished units depending on availability. The condition is clearly stated in your quotation. All refurbished units are tested and carry a warranty.
Q: What is the lead time for this part?
A: Lead time varies by stock availability. In-stock units typically ship within 3–5 business days. For out-of-stock items, lead time is 2–6 weeks depending on sourcing. Contact us for real-time availability.
Q: Can you provide a datasheet or technical documentation?
A: Yes. We can provide the Siemens SIMOTICS S-1FK7 product manual and the specific motor data sheet upon request. Contact support@konmask.com.
Q: Is this motor compatible with my existing SINAMICS S120 system?
A: The 1FK7042-2AF71-1CG0 is designed for SINAMICS S120 and S210 drive systems with DRIVE-CLiQ. Please share your drive configuration details and we will confirm compatibility.
Q: Do you offer warranty on this product?
A: Yes. New units carry the standard Siemens manufacturer warranty. Refurbished units carry a Konmask.com 12-month functional warranty. Terms are detailed in our sales agreement.
Q: Can you ship to my country?
A: We ship globally. Export documentation, customs declarations, and freight forwarding support are available for all international orders.
