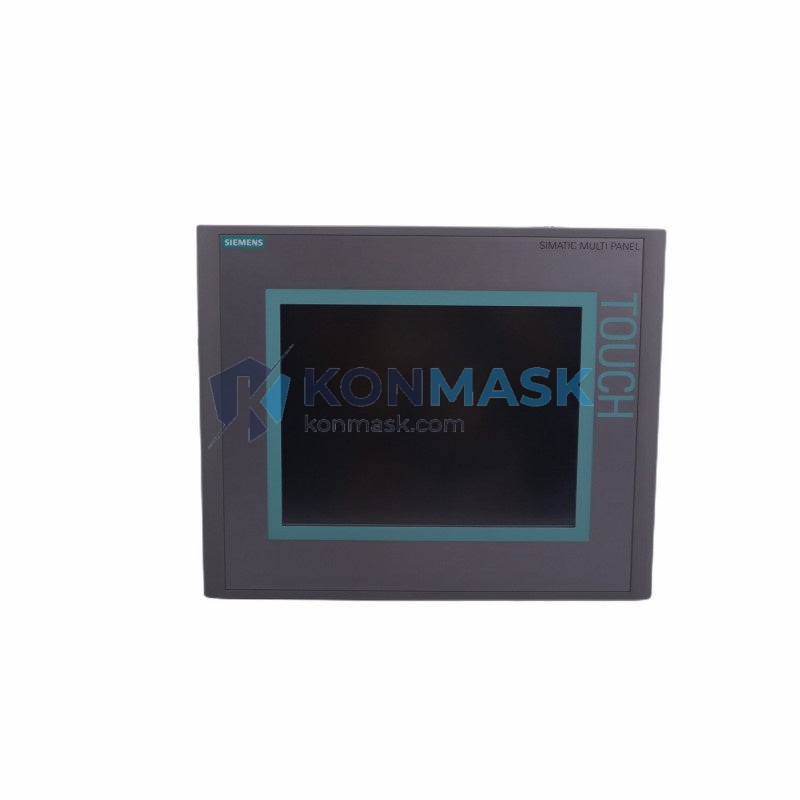

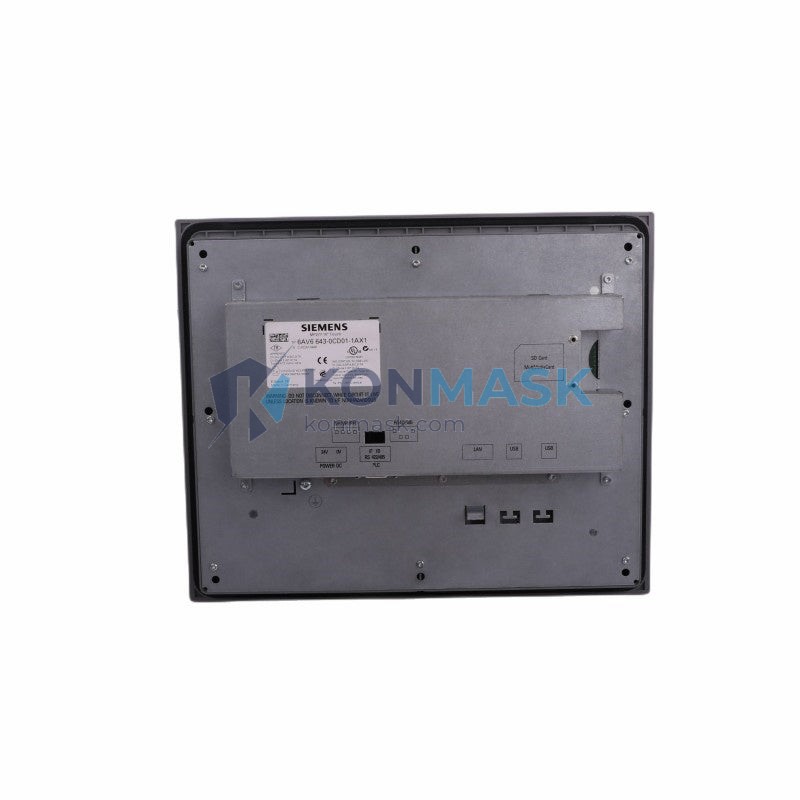

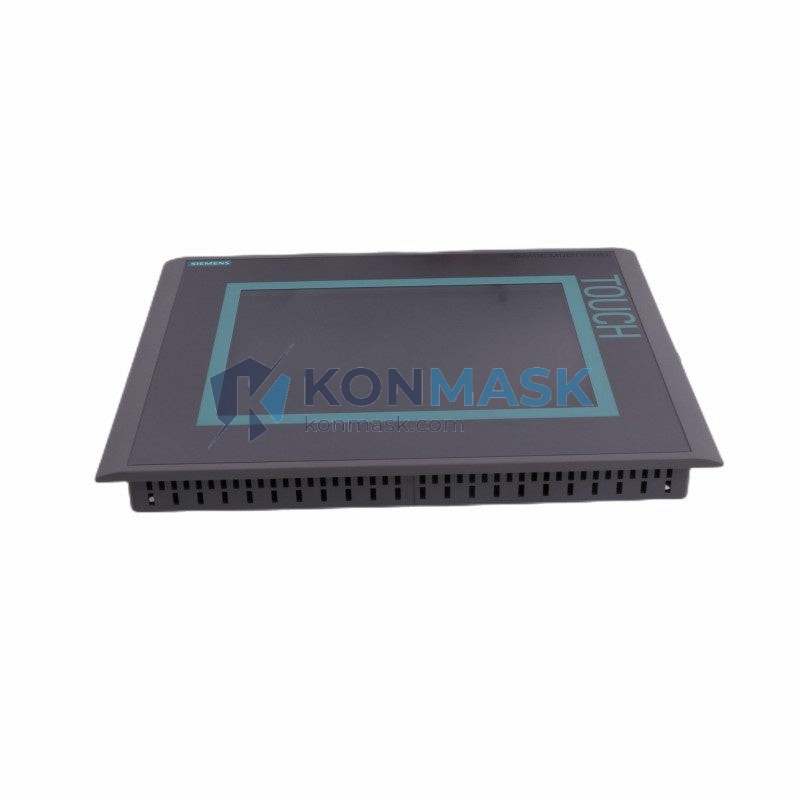

Genuine SIEMENS 6AV6643-0CD01-1AX1 MP277 Multi Panel Touch 10″ | SIMATIC HMI Series – Verified Source
Konmask.com is a dedicated industrial automation components supplier specializing in genuine SIEMENS SIMATIC HMI panels. The 6AV6643-0CD01-1AX1 MP277 is a high-performance 10-inch multi-touch panel designed for demanding industrial environments. Every unit we supply is sourced through verified channels and undergoes our rigorous 4-step quality verification process before dispatch.
Technical Specifications
- Part Number: 6AV6643-0CD01-1AX1
- Series: SIMATIC MP277 (Multi Panel)
- Display: 10.4″ TFT color display, 640 × 480 px (VGA)
- Touch Type: Resistive touch screen (multi-touch capable)
- Processor: 400 MHz
- RAM: 64 MB
- Flash Memory: 64 MB internal
- Operating System: Windows CE 6.0
- Interfaces: 2× USB, 1× PROFIBUS DP, 1× MPI/PROFIBUS DP, 1× Ethernet (RJ45), 1× RS-422/485
- Communication Protocols: PROFIBUS, MPI, PROFINET, Modbus TCP/RTU
- Power Supply: 24 V DC (18–30 V DC)
- Power Consumption: Approx. 18 W
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: −20 °C to +60 °C
- Protection Rating: IP65 (front panel)
- Dimensions (W × H × D): 310 × 230 × 55 mm
- Weight: Approx. 2.55 kg
- Certifications: CE, UL, cULus
- Configuration Software: WinCC flexible 2008 SP3 or higher
Our 4-Step Quality Verification Process
Every SIEMENS unit shipped from Konmask.com passes through the following verification stages:
- Step 1 — Source Authentication: Units are procured exclusively from authorized distributors, certified resellers, or verified OEM surplus channels. No grey-market or unverified third-party sources.
- Step 2 — Physical Inspection: Each panel is inspected for label integrity, serial number consistency, housing condition, and connector pin alignment. Counterfeit indicators are cross-checked against SIEMENS authenticity guidelines.
- Step 3 — Functional Power-On Test: Where applicable, units undergo a power-on boot test to confirm display output, interface responsiveness, and firmware version validity.
- Step 4 — Documentation & Traceability: A sourcing record is maintained for every unit, including supplier invoice, inspection checklist, and shipping manifest. Available upon request for B2B buyers.
Key Features & Benefits
- Large 10.4″ resistive touch display — ideal for gloved-hand operation in industrial environments
- Multi-protocol support (PROFIBUS, MPI, PROFINET, Modbus) — integrates seamlessly into existing SIMATIC architectures
- Windows CE 6.0 OS — stable, field-proven platform with broad WinCC flexible compatibility
- IP65 front-panel protection — suitable for dusty, humid, or wash-down production areas
- Compact panel-mount design — fits standard cutouts for easy retrofit or new installation
- Dual USB ports — supports external storage, barcode scanners, and peripheral devices
- Wide 24 V DC input range — compatible with standard industrial power rails
Typical Applications
- Machine tool HMI stations (CNC, milling, turning centers)
- Packaging line operator panels
- Water & wastewater treatment SCADA interfaces
- Automotive assembly line control terminals
- Food & beverage processing visualization
- Building automation and HVAC control systems
- Energy management and substation monitoring
Compatible System Components
- PLCs: SIMATIC S7-300, S7-400, S7-1200, S7-1500 (via PROFINET/MPI)
- Engineering Software: WinCC flexible 2008 SP3+, TIA Portal (via migration)
- Communication Modules: CP 343-1, CP 443-1, PN/DP coupler modules
- Power Supplies: SITOP PSU100S 24V, SITOP PSU200M series
- Memory Cards: SIMATIC SD card (up to 2 GB) for project backup
- Mounting: Standard panel cutout 290 × 210 mm, panel thickness 2–6 mm
Global Sourcing & Shipping Capabilities
- Stock Location: Mainland China warehouse with bonded export capability
- Lead Time: In-stock units ship within 1–3 business days; sourced units 5–15 business days
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, sea freight (LCL/FCL) for bulk orders
- Export Documentation: Commercial invoice, packing list, certificate of origin, and customs HS code declaration provided as standard
- Regions Served: Asia-Pacific, Europe, Middle East, North America, South America, Africa
- Bulk & B2B Orders: Volume pricing available — contact us for a formal quotation
Certifications & Compliance Statement
The SIEMENS 6AV6643-0CD01-1AX1 MP277 carries the following certifications as issued by SIEMENS AG:
- CE Marking — Compliant with EU Machinery Directive and EMC Directive
- UL / cULus Listed — Recognized for North American safety standards
- RoHS Compliant — Restriction of Hazardous Substances (EU Directive 2011/65/EU)
- ATEX / IECEx: Not rated for hazardous area use in standard configuration
Konmask.com is an independent reseller and is not an authorized SIEMENS distributor. All brand names, trademarks, and part numbers are the property of their respective owners and are used for identification purposes only.
How to Order
- Add to Cart — Select quantity and click “Add to Cart” for immediate checkout.
- Request a Quote — For bulk orders (5+ units) or special pricing, email support@konmask.com with your required quantity and delivery timeline.
- Confirm Stock Availability — Contact us via WhatsApp/WeChat at +0086 19859288691 for real-time stock confirmation before placing large orders.
- Payment — We accept T/T (bank transfer), PayPal, and major credit cards. Pro-forma invoice available upon request.
- Shipping Confirmation — Tracking number and export documents provided within 24 hours of dispatch.
Authenticity & Trust FAQ
Q: Are these units genuine SIEMENS products?
A: Yes. All units are sourced from verified supply chains. We maintain full traceability documentation and can provide sourcing records upon request for B2B buyers.
Q: Do you offer a warranty?
A: We offer a 90-day functional warranty on all units. If a unit fails under normal operating conditions within 90 days, we will replace or refund at our discretion.
Q: Can I return a unit if it doesn’t match my requirements?
A: Yes. We accept returns within 14 days of delivery for unused, uninstalled units in original packaging. Please contact us before initiating a return.
Q: Do you provide test reports or inspection certificates?
A: Yes, upon request for orders of 3+ units. Please specify this requirement at the time of ordering.
Q: What if I need a different MP277 variant or a related SIMATIC HMI model?
A: We stock a wide range of SIMATIC HMI panels. Contact us with your part number and we will confirm availability and pricing within 24 hours.
Q: Is Konmask.com an authorized SIEMENS distributor?
A: No. Konmask.com is an independent industrial components reseller. We source genuine products through verified secondary market channels and do not claim authorized distributor status.
