Industrial HMI & SCADA Visualization Solution – Siemens 6AV7892-0AB32-0AC0 | SIMATIC HMI IPC477E
Where This Product Is Used

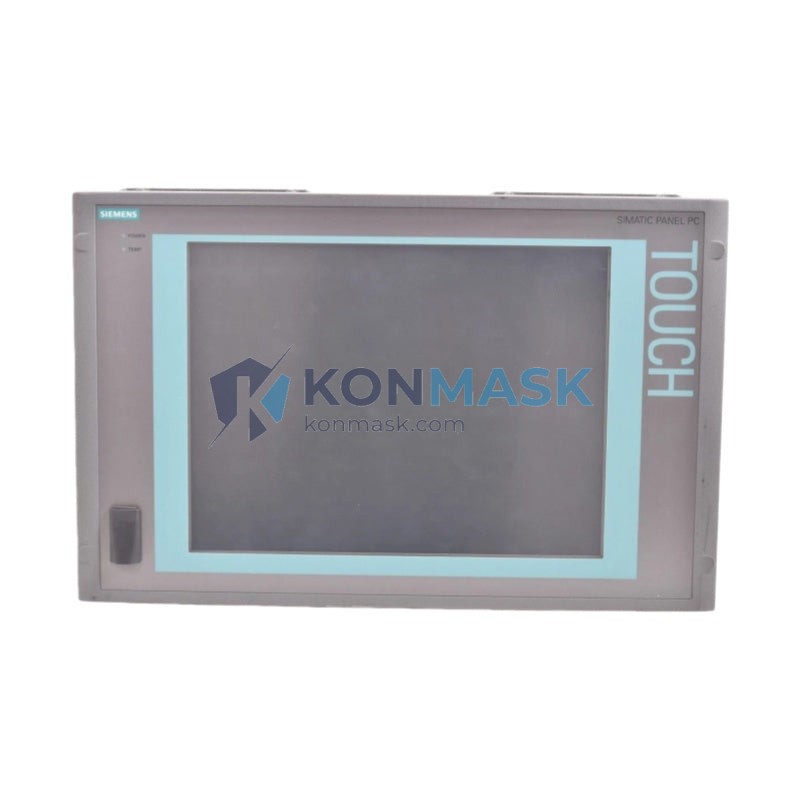

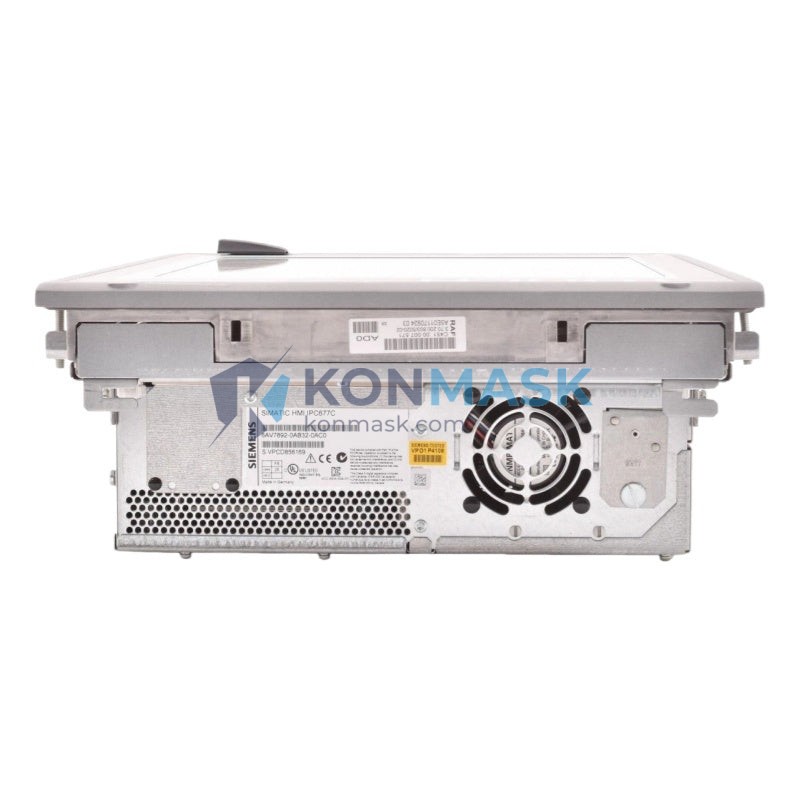

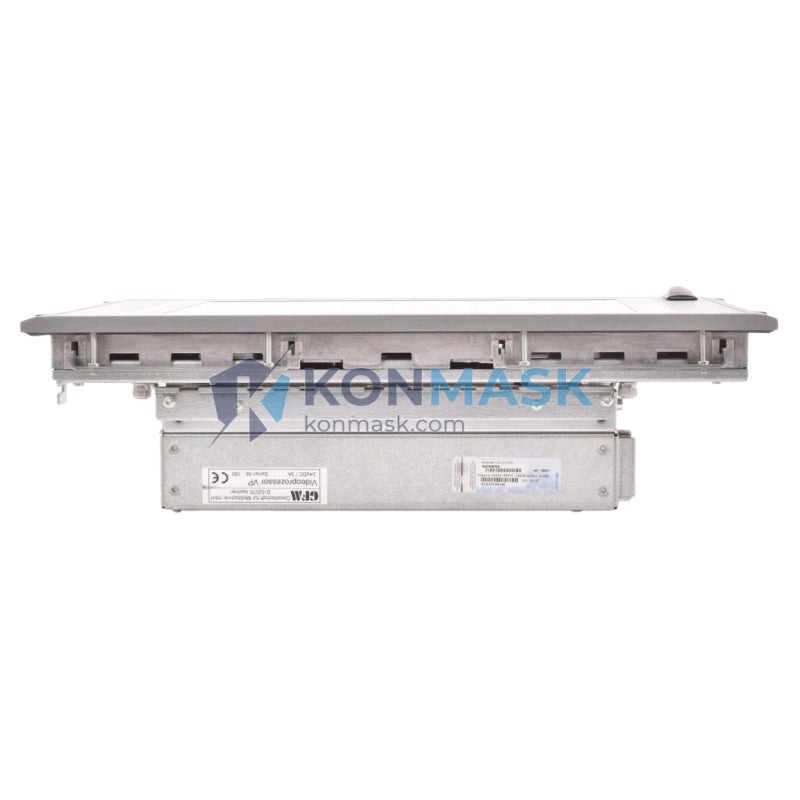

The Siemens 6AV7892-0AB32-0AC0 is a panel-mount industrial PC designed for demanding HMI and SCADA visualization tasks across a wide range of industries:
- Automotive Manufacturing: Line-side operator panels for robotic welding cells, conveyor control, and quality inspection stations.
- Chemical & Pharmaceutical Plants: Process visualization and batch control in hygienic or hazardous-area adjacent environments.
- Water & Wastewater Treatment: SCADA front-end terminals for pump stations, filtration systems, and remote monitoring.
- Food & Beverage Production: Recipe management and production line HMI in washdown-adjacent control rooms.
- Power Generation & Utilities: Substation automation and energy management visualization panels.
- Machine Tool & OEM Equipment: Embedded operator interface for CNC machines, packaging lines, and printing presses.
Technical Specifications
| Part Number | 6AV7892-0AB32-0AC0 |
| Series | SIMATIC HMI IPC477E |
| Display | 15″ TFT Widescreen, 1024 × 768 px |
| Touch | Resistive single-touch |
| Processor | Intel® Celeron® J1900, 2.0 GHz quad-core |
| RAM | 4 GB DDR3L |
| Storage | CFast 2.0 slot (OS pre-installed) |
| Operating System | Windows Embedded Standard 7 (WES7) / Windows 10 IoT Enterprise |
| Interfaces | 2× USB 3.0, 2× USB 2.0, 2× RJ45 Ethernet (10/100/1000 Mbps), 1× DVI-I, 1× RS-232 |
| Supply Voltage | 24 V DC (18–30 V DC) |
| Power Consumption | Approx. 65 W |
| Protection Rating | IP65 (front panel) |
| Operating Temperature | 0 °C to +50 °C |
| Mounting | Panel cut-out, portrait or landscape |
| Weight | Approx. 17 kg |
| Certifications | CE, UL, cUL, ATEX Zone 2 (option) |
Why Engineers Specify This Model
- Proven SIMATIC Ecosystem Integration: Native compatibility with SIMATIC WinCC, WinCC flexible, and TIA Portal V13+ for zero-compromise engineering.
- IP65 Front Panel: Dust-tight and jet-water resistant — suitable for harsh industrial environments without additional enclosure upgrades.
- Fanless Thermal Design Option: Reduces mechanical wear and maintenance intervals in continuous-operation facilities.
- Dual Ethernet Ports: Supports network segmentation between plant floor (PROFINET) and office/MES networks simultaneously.
- Long-Term Availability: Siemens SIMATIC IPC477E is a platform with extended product lifecycle support, reducing obsolescence risk for OEMs.
- Flexible OS Support: Runs WES7 or Windows 10 IoT Enterprise, supporting legacy SCADA software and modern IIoT applications.
Complete System Bill of Materials
For a complete IPC477E-based HMI station, engineers typically specify:
- 6AV7892-0AB32-0AC0 — SIMATIC HMI IPC477E 15″ Touch Panel (this unit)
- 6AV7892-0DE10-0AA0 — CFast card with WES7 or Win10 IoT image
- 6ES7972-0CB20-0XA0 — PROFIBUS connector (if PROFIBUS integration required)
- 6GK1901-1BB10-2AE0 — IE FC RJ45 Plug 180 for PROFINET cabling
- 6EP1334-3BA10 — SITOP PSU100S 24 V / 10 A power supply
- 6AV2181-8XP00-0AX0 — Panel mounting clamps set
- Siemens SIMATIC WinCC Runtime Professional license (sold separately)
Compliance & Industry Standards
- CE Marking: EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
- UL / cUL Listed: UL 508 (Industrial Control Equipment)
- ATEX: Zone 2 configuration available (consult factory)
- RoHS: Compliant with EU Directive 2011/65/EU
- IEC 61131-2: Compatible with PLC I/O interface standards
- PROFINET: Conformance Class B certified
Quality Assurance & Sourcing
Konmask.com sources the Siemens 6AV7892-0AB32-0AC0 through verified industrial distribution channels. Every unit undergoes:
- Visual inspection and label verification against Siemens factory markings
- Functional power-on test prior to dispatch
- Anti-static packaging with humidity indicator cards
- Traceability documentation available upon request
We do not supply counterfeit, refurbished-as-new, or grey-market product. All units are accompanied by a Konmask quality inspection report.
How to Source This Part
- In-Stock Orders: Add to cart and check out — ships within 1–3 business days from our warehouse.
- Bulk / Project Quotes: Email support@konmask.com with your BOM and required delivery date for a project price.
- Lead-Time Items: If stock is temporarily unavailable, we can source from Siemens authorized channels — typical lead time 4–8 weeks.
- Export & Cross-Border: We ship globally. Contact us for export documentation, HS code 8537.10, and customs invoice support.
Application-Specific FAQ
Q: Is the 6AV7892-0AB32-0AC0 compatible with TIA Portal V17?
A: Yes. The IPC477E supports SIMATIC WinCC Runtime Professional V17 and later. Ensure your CFast card image matches your target OS.
Q: Can this panel connect directly to a Siemens S7-1500 PLC via PROFINET?
A: Yes. The dual RJ45 ports support PROFINET IO controller/device roles. Configure via TIA Portal network view.
Q: What is the difference between 6AV7892-0AB32-0AC0 and 6AV7892-0AB10-0AC0?
A: The -0AB32 variant includes 4 GB RAM and a higher-performance CFast configuration versus the entry-level -0AB10. Confirm your WinCC project requirements before selecting.
Q: Is a UPS or battery backup required?
A: Siemens recommends an uninterruptible power supply for applications where abrupt power loss could corrupt the CFast OS image. The SITOP UPS1600 is a common pairing.
Q: Does Konmask provide installation or commissioning support?
A: We provide pre-sales technical consultation and documentation. On-site commissioning is available through our partner network — contact us for details.
