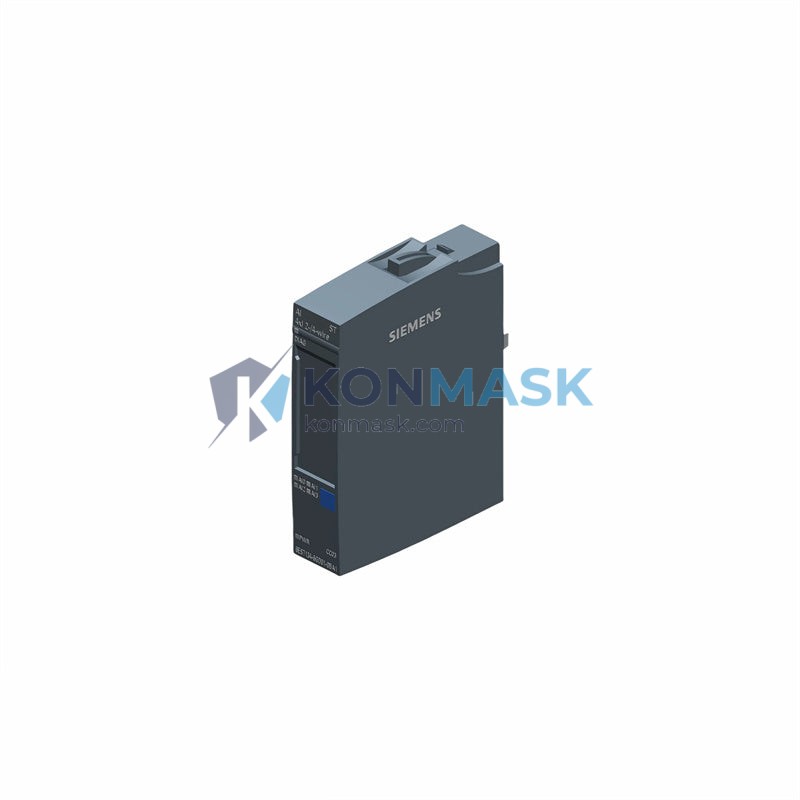

SIEMENS 6DL4340-0BA00 / 6DL2300-1DX01-0BA1 – High-Availability Analog Input Module | SIMATIC ET 200SP HA
The SIEMENS 6DL4340-0BA00 (alternate order number: 6DL2300-1DX01-0BA1) is a high-availability analog input module engineered for the SIMATIC ET 200SP HA distributed I/O platform. Designed to meet the demanding signal acquisition requirements of continuous-process industries — including oil & gas, chemical, power generation, and water treatment — this module delivers precise, redundant analog measurement with deterministic response times and seamless integration into SIMATIC PCS 7 and TIA Portal architectures.
At Konmask.com, we source this module directly from authorized distribution channels and verified secondary-market suppliers, ensuring every unit ships with traceable provenance and pre-shipment functional verification.
Complete Technical Specifications
- Order Number (Primary): 6DL4340-0BA00
- Order Number (Alternate): 6DL2300-1DX01-0BA1
- Platform: SIMATIC ET 200SP HA (High Availability)
- Module Type: Analog Input (AI)
- Signal Types Supported: Voltage (±10 V, 0–10 V), Current (0–20 mA, 4–20 mA), Thermocouple (TC), RTD / Resistance
- Number of Channels: 8 channels (configurable per channel)
- Resolution: 16-bit (including sign bit)
- Conversion Time: Configurable; minimum cycle time dependent on active channels and filter settings
- Isolation: Galvanic isolation between channels and backplane bus
- Supply Voltage: 24 V DC (via ET 200SP HA backplane)
- Operating Temperature: 0 °C to +60 °C (horizontal installation)
- Storage Temperature: −40 °C to +70 °C
- Degree of Protection: IP20
- Dimensions (W × H × D): Refer to SIEMENS datasheet for exact footprint
- Weight: Approx. 1,140 g (as configured)
- Certifications: CE, UL, cULus, ATEX (zone-dependent configuration)
- Firmware: Updateable via SIMATIC engineering tools
- HS Code: 8537.10
Proven Application Environments
- Oil & Gas: Wellhead pressure/temperature monitoring, pipeline SCADA integration, compressor station control
- Chemical & Petrochemical: Reactor temperature profiling, flow measurement, level transmitter interfacing
- Power Generation: Turbine control systems, boiler instrumentation, grid-tie monitoring
- Water & Wastewater: Pump station telemetry, dosing control, effluent quality monitoring
- Pharmaceutical: GMP-compliant process monitoring, clean-room environmental sensing
- Mining & Minerals: Conveyor load monitoring, crusher vibration sensing, slurry flow measurement
Engineering Advantages
- High-Availability Architecture: Designed for redundant ET 200SP HA configurations — supports hot-swap replacement without process interruption
- Per-Channel Configurability: Each channel independently configurable for signal type, range, and filter — eliminates need for separate signal conditioners
- Diagnostic Transparency: Integrated channel-level diagnostics (wire break, overrange, underrange, short circuit) reported directly to the controller
- HART Passthrough: Supports HART communication on current input channels for smart field device parameterization
- Noise Immunity: Hardware filtering and software averaging options for high-EMI industrial environments
- Seamless Engineering: Native integration with SIMATIC PCS 7 v9.x, TIA Portal V17+, and STEP 7 Classic
System Architecture & Signal Flow
The 6DL4340-0BA00 mounts on the ET 200SP HA BaseUnit and communicates via the high-speed PROFINET IRT backplane. Field signals connect through the BaseUnit’s terminal block, providing a clean separation between field wiring and module electronics. In redundant configurations, two modules share a single BaseUnit — the active module processes signals while the standby module monitors continuously, enabling bumpless switchover in <1 ms upon fault detection. Engineering data (channel configuration, scaling, diagnostics) is stored in the module's non-volatile memory and automatically restored after replacement.
Sourcing & Quality Verification
- Source: Authorized SIEMENS distribution channels and verified surplus inventory
- Inspection: Each unit undergoes visual inspection, label verification, and functional power-on test prior to shipment
- Packaging: Original SIEMENS anti-static packaging where available; ESD-safe repackaging for surplus units
- Documentation: Certificate of conformity and test report available upon request
- Warranty: 12-month Konmask warranty covering manufacturing defects and functional failure
Procurement Process
- Submit your RFQ via the product page or email support@konmask.com
- Receive stock confirmation and lead-time quote within 24 business hours
- Review and approve proforma invoice
- Payment via T/T, PayPal, or approved credit terms
- Shipment via DHL / FedEx / UPS with full tracking; export documentation included
- Post-delivery technical support available via email or WhatsApp
Technical FAQ
Q: What is the difference between 6DL4340-0BA00 and 6DL2300-1DX01-0BA1?
A: These are two valid order numbers for the same module — 6DL4340-0BA00 is the standard catalog reference, while 6DL2300-1DX01-0BA1 reflects an alternate ordering convention used in certain regional catalogs. Both refer to identical hardware.
Q: Is this module compatible with SIMATIC PCS 7?
A: Yes. The ET 200SP HA platform is a primary I/O subsystem for PCS 7 v8.2 and later. Full GSD/GSDML files and PCS 7 library objects are available from SIEMENS Industry Online Support.
Q: Can I replace this module while the process is running?
A: In a redundant ET 200SP HA configuration, yes — hot-swap replacement is supported. In a non-redundant configuration, the channel will go offline during replacement.
Q: Do you provide the BaseUnit separately?
A: Yes. Compatible BaseUnits (e.g., BU-Type A0, A1) are available separately. Contact us with your full BOM for a consolidated quote.
Q: What is the lead time for this module?
A: In-stock units ship within 1–3 business days. For out-of-stock items, typical lead time is 2–6 weeks depending on sourcing channel.
