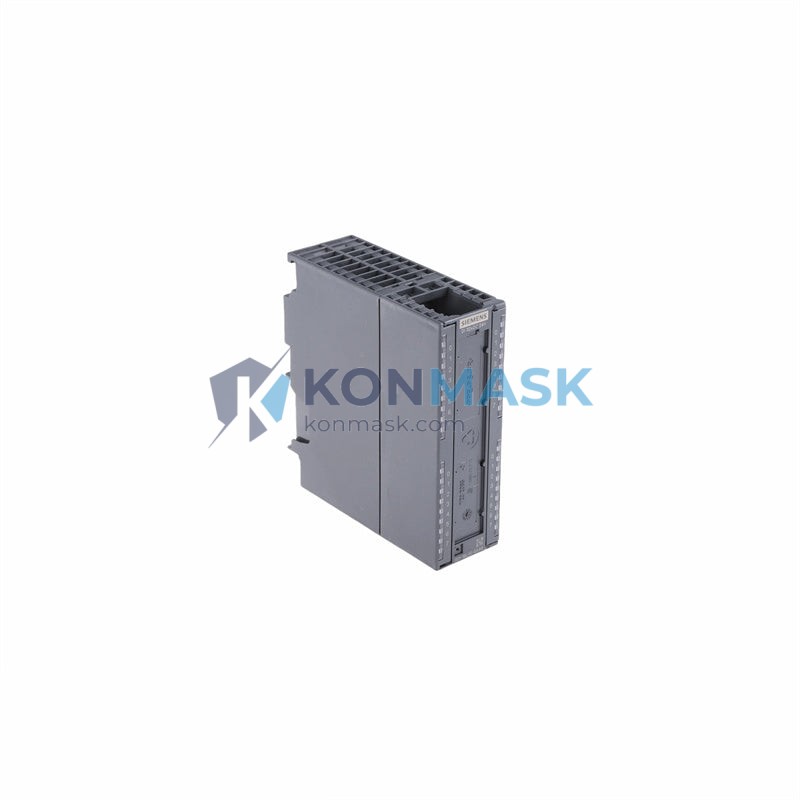

SIEMENS 6ES7 321-1BL00-0AA0 – 32-Point Digital Input Module | SIMATIC S7-300 SM 321 Platform
Engineering Background
The SIEMENS SIMATIC S7-300 series has been the backbone of industrial automation for over three decades, deployed across automotive assembly lines, chemical processing plants, power generation facilities, and discrete manufacturing cells worldwide. The SM 321 signal module family provides the critical interface layer between field-level sensors and the S7-300 CPU, enabling deterministic, high-integrity digital signal acquisition.
Product Positioning
The 6ES7 321-1BL00-0AA0 is a 32-channel DC 24V sourcing digital input module designed for high-density I/O applications where panel space is at a premium. With 32 inputs consolidated into a single module slot, it reduces backplane footprint by up to 50% compared to 16-point alternatives, while maintaining full compatibility with the S7-300 rack infrastructure. This module is the preferred choice for procurement engineers specifying high-channel-count control panels in process automation and machine-building projects.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Order Number (MLFB) | 6ES7 321-1BL00-0AA0 |
| Module Type | SM 321 Digital Input Module |
| Number of Inputs | 32 × DC 24V (sourcing / PNP) |
| Input Voltage (Rated) | DC 24V |
| Input Voltage Range | DC 20.4V – 28.8V |
| Signal “1” Level | DC 15V – 30V (min. 2.0 mA) |
| Signal “0” Level | DC −3V – +5V (max. 1.0 mA) |
| Input Current (per channel) | Typ. 7 mA @ DC 24V |
| Input Delay | Typ. 1.2 ms / 4.8 ms (programmable) |
| Galvanic Isolation | Yes – in groups of 16 (via optocoupler) |
| Backplane Bus Current Consumption | Max. 110 mA (DC 5V) |
| Power Dissipation | Max. 5.5 W |
| Connector Type | 40-pin front connector (not included) |
| Dimensions (W × H × D) | 40 mm × 125 mm × 120 mm |
| Weight | Approx. 240 g |
| Operating Temperature | 0°C – +60°C (horizontal), 0°C – +40°C (vertical) |
| Storage Temperature | −40°C – +70°C |
| Relative Humidity | 10% – 95% (non-condensing) |
| Degree of Protection | IP 20 |
| Certifications | CE, UL, cUL, FM, ATEX (Zone 2) |
| Compatible CPUs | S7-300: CPU 312 – CPU 319-3 PN/DP |
| Compatible Racks | UR1, UR2, ER1, ER2 |
| STEP 7 / TIA Portal | Fully supported (GSD/HW Config) |
Proven Application Environments
- Automotive Manufacturing: Body-in-white welding lines, transfer press monitoring, conveyor position sensing
- Chemical & Petrochemical: Valve position feedback, pump run/stop status, level switch acquisition in Zone 2 hazardous areas
- Power Generation & Utilities: Switchgear status monitoring, protection relay feedback, substation automation
- Food & Beverage: Filling line sensor arrays, packaging machine interlocks, CIP cycle monitoring
- Machine Building (OEM): High-density I/O panels for CNC machines, injection molding, and assembly automation
- Water & Wastewater: Pump station monitoring, flow switch arrays, remote I/O expansion
Engineering Advantages
- High Channel Density: 32 inputs per slot minimizes rack space and reduces wiring complexity in large-scale I/O panels
- Galvanic Isolation: Optocoupler isolation in groups of 16 protects the CPU backplane from field-side transients and ground loops
- Programmable Input Delay: Selectable 1.2 ms / 4.8 ms filter time via STEP 7 / TIA Portal hardware configuration — eliminates contact bounce without external hardware
- Wide Supply Tolerance: Accepts DC 20.4V – 28.8V, ensuring reliable operation across industrial 24V bus variations
- Diagnostic LED per Channel: Green LED per input channel enables rapid field-level fault isolation without a programming device
- Backward Compatibility: Drop-in replacement across all S7-300 CPU generations; no firmware update required
- ATEX Zone 2 Rated: Suitable for use in potentially explosive atmospheres with appropriate barriers
System Architecture & Signal Flow
The 6ES7 321-1BL00-0AA0 connects to the S7-300 backplane via the integrated bus connector. Field sensors (proximity switches, limit switches, push buttons, relay contacts) wire directly to the 40-pin front connector. Each input channel passes through an RC input filter and optocoupler isolation stage before presenting a logic-level signal to the backplane bus. The CPU reads all 32 channels in a single process image update cycle, ensuring deterministic scan-time performance.
Wiring topology: Sourcing (PNP) — sensor supplies current to module input terminal; module sinks to common ground (M terminal). Compatible with standard 2-wire and 3-wire PNP proximity sensors.
Front connector: Order separately — 6ES7 392-1AM00-0AA0 (40-pin screw terminal) or 6ES7 392-1BM01-0AA0 (40-pin spring terminal).
Sourcing & Quality Verification
- Origin: Genuine SIEMENS product, manufactured in Germany / authorized production facilities
- Traceability: Each unit carries SIEMENS factory serial number and date code on the module label
- Condition: New-in-box (NIB) and tested surplus stock available — condition specified at time of quotation
- Inspection: All units inspected for physical integrity, label authenticity, and firmware version prior to dispatch
- Documentation: SIEMENS product datasheet, EU Declaration of Conformity, and test report available upon request
- Warranty: 12-month Konmask warranty covering manufacturing defects; DOA replacement within 7 days
Procurement Process
- Submit RFQ: Contact [email protected] with required quantity, delivery timeline, and destination country
- Quotation: Formal quotation issued within 1 business day including unit price, lead time, and shipping options
- Order Confirmation: Purchase order accepted via email or Shopify checkout; proforma invoice issued for T/T wire transfer
- Quality Check & Dispatch: Units inspected, photographed, and packed; tracking number provided within 24 hours of dispatch
- Delivery: DHL Express / FedEx International Priority — typical transit 3–7 business days to most destinations
- After-Sales: Technical support available via email and WhatsApp (+0086 19859288691) for installation and commissioning queries
Technical FAQ
Q: Is the 6ES7 321-1BL00-0AA0 compatible with TIA Portal?
A: Yes. The module is fully supported in TIA Portal V13 and above via the hardware catalog. It also remains fully compatible with STEP 7 V5.x Classic.
Q: Can this module be used with an ET 200M distributed I/O station?
A: Yes. The SM 321 modules are compatible with the IM 153-x interface modules used in ET 200M stations, enabling use over PROFIBUS DP or PROFINET.
Q: What is the difference between 6ES7 321-1BL00-0AA0 and 6ES7 321-1BH02-0AA0?
A: The 1BL00 variant provides 32 inputs; the 1BH02 provides 16 inputs. Both operate at DC 24V with similar electrical characteristics. Choose 1BL00 for higher channel density per slot.
Q: Is a front connector included?
A: No. The 40-pin front connector must be ordered separately (see System Architecture section for part numbers).
Q: What diagnostic functions are available?
A: The module provides per-channel LED status indication. Advanced diagnostics (wire-break detection, short-circuit) are not available on this standard SM 321 variant — consider 6ES7 321-7BH01-0AB0 for diagnostic-capable inputs.
Q: Can I mix 24V DC and 120/230V AC inputs in the same rack?
A: Yes, different SM 321 variants support AC inputs. The 1BL00-0AA0 is DC 24V only. AC input modules (e.g., 6ES7 321-1EH01-0AA0) can be installed in adjacent slots.
