SIEMENS 6SX7010-0KC00 Control Expansion Board | Replacement, Equivalent & Selection Guide

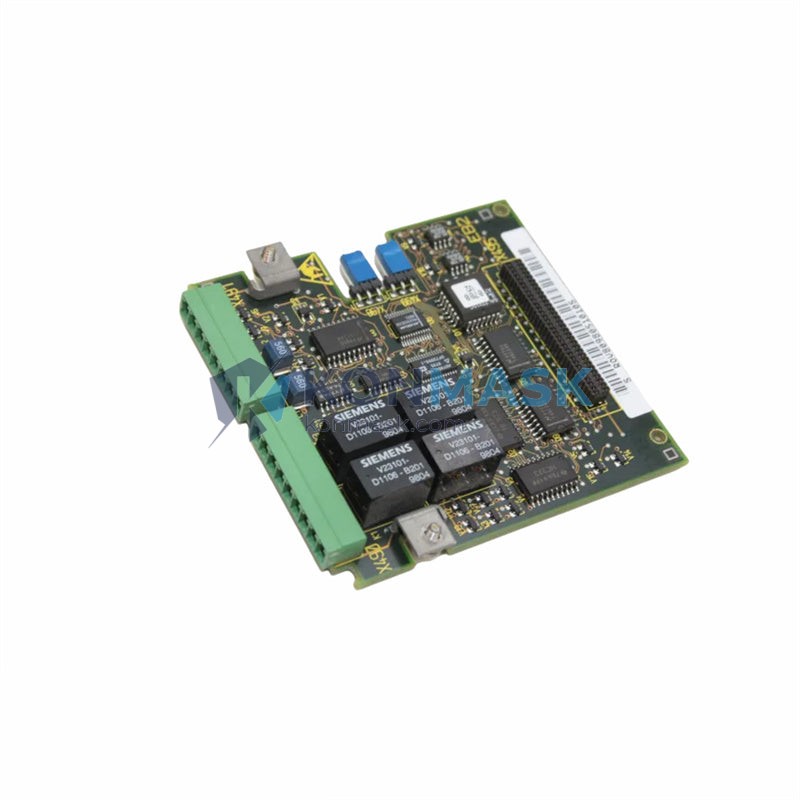

The SIEMENS 6SX7010-0KC00 (cross-reference: 6SE7090-0XX84-0KC0) is a Control Expansion Board designed for the SIEMENS MASTERDRIVES MC/VC drive platform. This board extends the control capabilities of the drive unit, enabling advanced closed-loop vector control, additional I/O interfacing, and enhanced communication functions for demanding industrial automation environments.
At Konmask.com, we supply this component as a genuine OEM part and verified equivalent, serving procurement engineers who require exact-fit replacements with full traceability and quality documentation.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | SIEMENS |
| Part Number | 6SX7010-0KC00 |
| Cross-Reference | 6SE7090-0XX84-0KC0 |
| Description | Control Expansion Board |
| Compatible Platform | SIEMENS MASTERDRIVES MC / VC Series |
| Function | Closed-loop vector control expansion, additional I/O, communication interface |
| Mounting | Internal board, plug-in to drive control unit |
| Weight (approx.) | 320 g |
| Country of Origin | Germany |
| Condition Available | New OEM / Tested Refurbished / Exchange |
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or directly interchangeable with the 6SX7010-0KC00 in MASTERDRIVES MC/VC applications:
- 6SE7090-0XX84-0KC0 — Direct cross-reference (same board, alternate ordering number)
- 6SX7010-0KC01 — Revised hardware version; verify firmware compatibility before substitution
- 6SE7090-0XX84-0AB0 — CU1 Control Unit board; applicable in select VC configurations
- Third-party compatible boards — consult Konmask engineering team for validated alternatives
Note: Always verify drive firmware version and hardware revision before installing a replacement board. Contact [email protected] for compatibility confirmation.
Why Choose the Original Model
- Exact firmware compatibility — OEM boards guarantee alignment with MASTERDRIVES CU/VC firmware revisions without re-parameterization risk
- Validated signal integrity — Factory-calibrated analog and digital I/O channels maintain drive performance specifications
- Warranty & traceability — Genuine parts carry full SIEMENS production traceability and are eligible for Siemens service support
- Reduced commissioning time — Drop-in replacement eliminates parameter migration effort in existing MASTERDRIVES installations
- Long-term availability — Konmask maintains stock of legacy MASTERDRIVES boards to support extended plant lifecycles
Typical Applications
- High-performance AC drive control in SIEMENS MASTERDRIVES MC/VC cabinets
- Closed-loop vector speed and torque control for motors in the 0.55 kW – 2300 kW range
- Retrofit and repair of existing MASTERDRIVES installations in steel, paper, and chemical plants
- Crane and hoist drive systems requiring precise torque regulation
- Extruder and winder drives with tension control requirements
- Pump and compressor drives in process industries
System Compatibility
| Drive Series | Compatible | Notes |
|---|---|---|
| SIEMENS MASTERDRIVES MC | ✅ Yes | Primary target platform |
| SIEMENS MASTERDRIVES VC | ✅ Yes | Verify CU board slot configuration |
| SIEMENS MASTERDRIVES FC | ⚠️ Partial | Consult hardware manual; slot compatibility varies |
| SINAMICS S120 | ❌ No | Different control architecture; not interchangeable |
| SINAMICS G120 | ❌ No | Compact drive platform; incompatible form factor |
Selection Guide
Use the following criteria to confirm the 6SX7010-0KC00 is the correct board for your application:
- Identify your drive type — Confirm the drive nameplate shows MASTERDRIVES MC or VC series
- Locate the existing board — Check the board label for part number 6SX7010-0KC00 or 6SE7090-0XX84-0KC0
- Check hardware revision — Note the revision letter (e.g., Rev. A, B) to ensure the replacement matches
- Verify firmware version — Access drive parameters P060/P070 to confirm firmware compatibility with the replacement board
- Confirm slot position — This board occupies the expansion slot in the CU (Control Unit) housing; verify slot availability
- Contact Konmask — Provide your drive serial number and existing board revision for final confirmation
Quality Assurance & Sourcing
- Source verification — All boards are sourced from authorized SIEMENS distributors or decommissioned OEM equipment with full chain-of-custody documentation
- Incoming inspection — Each unit undergoes visual inspection, component-level verification, and functional bench testing before dispatch
- Anti-counterfeit screening — Markings, PCB layout, and component dates are cross-checked against OEM reference samples
- Packaging — ESD-safe packaging with humidity indicator cards; shipped in reinforced cartons
- Documentation — Test reports, photos, and certificates of conformity available upon request
How to Order
- Add the 6SX7010-0KC00 to your cart and proceed to checkout, or
- Email [email protected] with your PO, required quantity, and delivery address
- For urgent requirements, call/WhatsApp: +0086 19859288691
- Bulk orders and long-term supply agreements are welcome — request a quote for volume pricing
- Export documentation (CO, packing list, commercial invoice) provided for international shipments
Replacement & Compatibility FAQ
Q: Is 6SX7010-0KC00 the same as 6SE7090-0XX84-0KC0?
A: Yes. These are two ordering numbers for the same physical board. SIEMENS uses both references in different documentation revisions. Either number can be used for procurement.
Q: Can I use a refurbished board in a production-critical drive?
A: Konmask-refurbished boards are fully tested and functionally equivalent to new. For safety-critical applications, we recommend requesting our test report and discussing your specific requirements with our engineering team.
Q: Do I need to re-parameterize the drive after replacing this board?
A: In most cases, replacing with an identical revision board requires no re-parameterization. If the hardware revision differs, a partial re-commissioning may be needed. Always back up drive parameters (P971) before replacement.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. For out-of-stock situations, typical lead time is 2–4 weeks. Contact us for real-time availability.
Q: Do you provide a warranty?
A: Yes. All parts supplied by Konmask carry a minimum 90-day warranty against defects. Extended warranty options are available for new OEM units.
