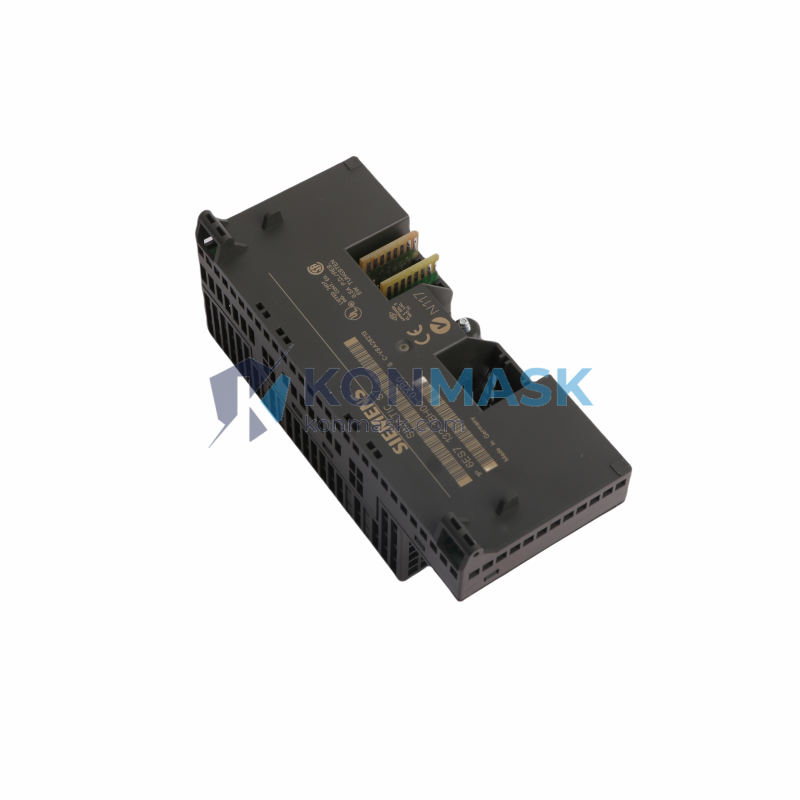

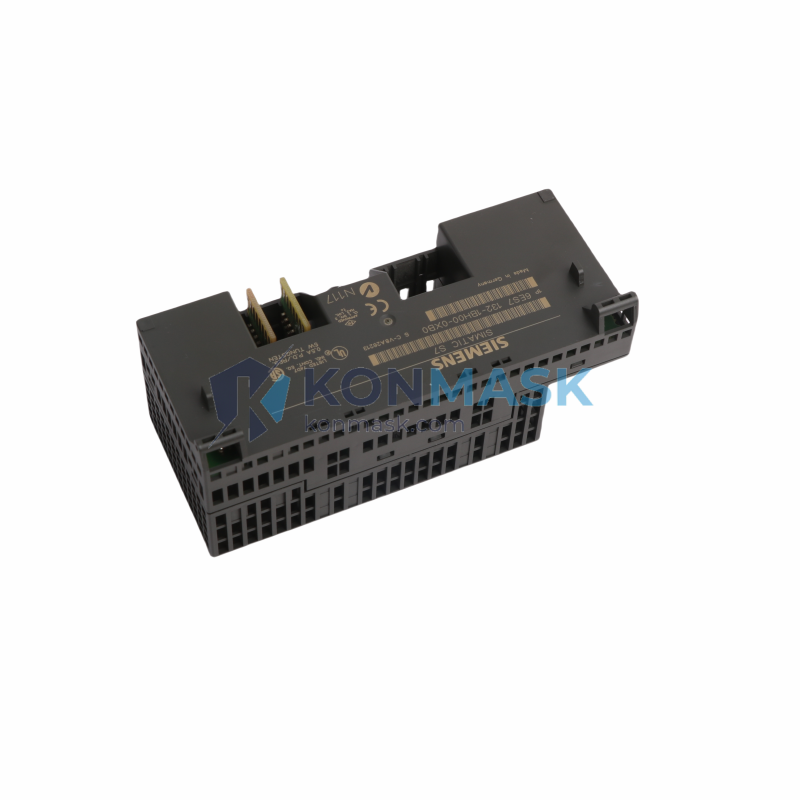

Siemens 6ES7132-1BH00-0XB0 – 16-Channel Digital Output Electronic Block | SIMATIC ET 200L
The Siemens 6ES7132-1BH00-0XB0 is a 16-channel digital output (DO) electronic block engineered for the SIMATIC ET 200L distributed I/O platform. Designed for compact, high-density automation installations, this module delivers reliable 24 VDC transistor switching at 0.5 A per channel — the preferred specification for procurement engineers deploying field-level I/O in space-constrained control cabinets and distributed automation architectures.
Konmask.com supplies this module as a verified OEM component, sourced through authorized industrial distribution channels, with full traceability documentation available on request. Every unit is inspected prior to dispatch and ships with original Siemens labeling and authenticity markings intact.
Complete Technical Specifications
- Part Number (MLFB): 6ES7132-1BH00-0XB0
- Product Family: SIMATIC ET 200L Electronic Block (EB)
- Module Type: Digital Output (DO)
- Number of Output Channels: 16
- Output Voltage: 24 VDC
- Output Current per Channel: 0.5 A
- Total Output Current (all channels): 4 A max
- Output Type: Transistor, sourcing (PNP)
- Short-Circuit Protection: Electronic, per channel
- Supply Voltage: 24 VDC via backplane bus
- Degree of Protection: IP20
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Weight: approx. 120 g
- Country of Origin: Germany
- Certifications: CE, UL, ATEX (per Siemens product documentation)
Proven Application Environments
- Automotive body-shop conveyor and transfer line control
- Pharmaceutical packaging and filling machine I/O
- Food & beverage bottling and labeling systems
- Textile and printing machine distributed control
- Building automation and HVAC actuator control
- Water treatment pump and valve sequencing
- Machine tool auxiliary function control (coolant, clamps, indicators)
Engineering Advantages
- High channel density: 16 DO channels in a compact ET 200L footprint — reduces cabinet space by up to 40% vs. discrete relay solutions.
- Electronic short-circuit protection per channel eliminates blown fuses and reduces unplanned downtime.
- PNP sourcing outputs are compatible with the majority of 24 VDC industrial sensors and actuators.
- Direct backplane integration with ET 200L terminal blocks — no additional wiring harness required.
- SIMATIC ecosystem compatibility ensures seamless integration with S7-300/400 CPUs and TIA Portal engineering workflows.
- Proven MTBF in continuous 24/7 industrial operation across global installations.
- Field-replaceable electronic block — swap without disturbing terminal block field wiring, minimizing maintenance downtime.
System Architecture & Signal Flow
The 6ES7132-1BH00-0XB0 operates as the output electronic block within the ET 200L modular I/O system. The ET 200L Terminal Block (TB) provides the field wiring interface, while this Electronic Block (EB) handles the logic-level interface to the PROFIBUS DP or direct S7 backplane.
Signal flow: PLC CPU → PROFIBUS DP / backplane → ET 200L EB (6ES7132-1BH00-0XB0) → Terminal Block → Field Actuators
The electronic block can be replaced without disturbing field wiring — a critical maintenance advantage in live production environments where downtime costs are high.
Sourcing & Quality Verification
- OEM Origin: Manufactured by Siemens AG, Germany. All units carry original Siemens labeling and holographic authenticity markings.
- Incoming Inspection: Visual check, label verification, and functional continuity test performed before dispatch.
- Documentation: Certificate of conformity, packing list, and optional third-party inspection report available on request.
- Storage: ESD-safe, climate-controlled warehouse. Units shipped in original or equivalent anti-static packaging.
- Warranty: 12-month Konmask supply warranty against manufacturing defects.
Procurement Process
- Confirm part number: Verify 6ES7132-1BH00-0XB0 against your BOM or Siemens TIA Portal hardware catalog.
- Request quote: Contact support@konmask.com for volume pricing, lead time, and availability.
- Submit PO: T/T in advance for new accounts; net terms available for qualified accounts.
- Shipping: DHL Express / FedEx International Priority standard. EXW Xiamen available for freight-forwarder arrangements.
- Receive & verify: Inspect packaging integrity and label authenticity on receipt. Full after-sales support provided.
Technical FAQ
Q: Is the 6ES7132-1BH00-0XB0 compatible with S7-300 CPUs directly?
A: This module is designed for the ET 200L distributed I/O system, which connects to S7-300/400 via PROFIBUS DP. It is not a direct S7-300 rack-mount module.
Q: Can the electronic block be hot-swapped?
A: The ET 200L design allows the electronic block to be replaced without removing field wiring from the terminal block, minimizing downtime during maintenance.
Q: What is the difference between the EB and TB in ET 200L?
A: The Terminal Block (TB) carries the field wiring and remains installed. The Electronic Block (EB — this unit) contains the I/O electronics and can be swapped independently.
Q: Do you supply the matching terminal block?
A: Yes. Contact us for the compatible ET 200L terminal block part number for 16-channel DO configuration.
Q: What certifications does this module carry?
A: CE, UL, and ATEX certifications per Siemens product documentation. Confirm specific certification requirements with the Siemens datasheet for your application.
