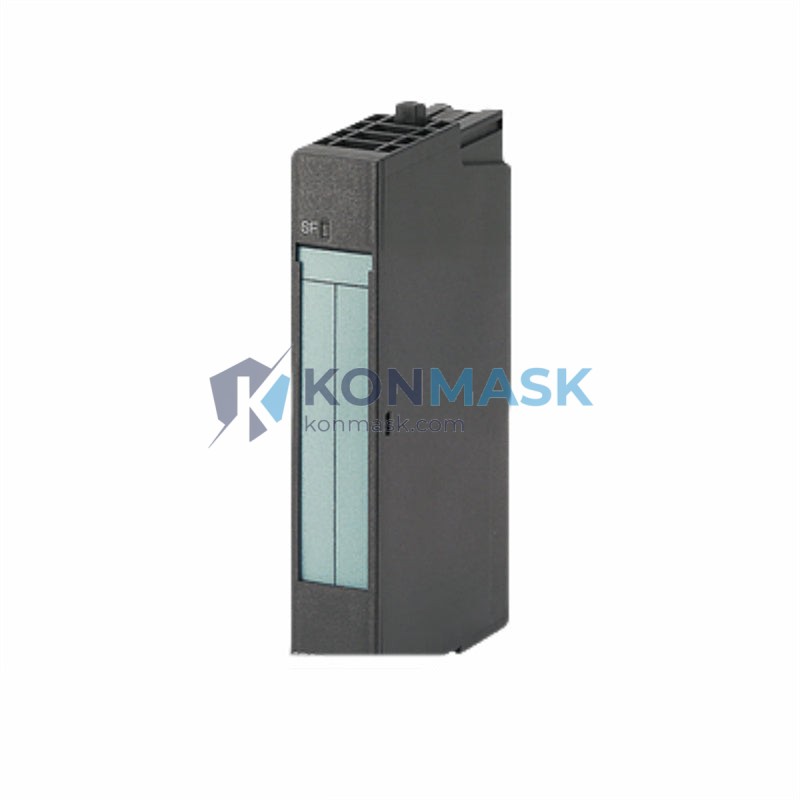

Siemens 6ES7132-4BB31-0AA0 – 2DO Digital Output Module | ET 200S Distributed I/O Platform
Engineering Background
The Siemens 6ES7132-4BB31-0AA0 is a 2-channel digital output (2DO) electronic module designed for the SIMATIC ET 200S distributed I/O system. Operating within the PROFIBUS-DP and PROFINET-based ET 200S architecture, this module delivers precise 24 VDC switching at up to 0.5 A per channel — engineered for demanding industrial automation environments where signal integrity and compact footprint are non-negotiable.
Product Positioning
Targeted at OEM machine builders, system integrators, and MRO procurement engineers, the 6ES7132-4BB31-0AA0 serves as a field-proven output interface for actuators, solenoid valves, indicator lamps, and relay coils in modular control cabinets. Its plug-in terminal module design enables hot-swap replacement without rewiring, minimizing planned and unplanned downtime.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | 6ES7132-4BB31-0AA0 |
| Product Family | SIMATIC ET 200S |
| Module Type | 2DO – 2-Channel Digital Output |
| Output Voltage | 24 VDC |
| Output Current (per channel) | 0.5 A |
| Number of Outputs | 2 |
| Output Signal Type | Transistor (sourcing, PNP) |
| Supply Voltage | 24 VDC (via terminal module) |
| Isolation | Electrically isolated from backplane bus |
| Diagnostic Functions | Short-circuit / overload detection |
| Backplane Bus Interface | ET 200S internal bus |
| Compatible Terminal Module | 6ES7193-4CA30-0AA0 / 6ES7193-4CA40-0AA0 |
| Dimensions (W × H × D) | 15 mm × 81 mm × 52 mm |
| Weight | approx. 50 g |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Degree of Protection | IP20 |
| Certifications | CE, UL, cULus, ATEX (Zone 2) |
| Country of Origin | Germany |
| MLFB / Order Number | 6ES7132-4BB31-0AA0 |
Proven Application Environments
- Automotive Assembly Lines – Controlling pneumatic actuators and end-of-line test fixtures via PROFIBUS-DP networks
- Packaging Machinery – Driving solenoid valves and reject mechanisms in high-cycle-rate OEM equipment
- Process Plants – Switching field devices in chemical, pharmaceutical, and food & beverage installations
- Material Handling – Conveyor diverters, gate controls, and status indicator lamps in warehouse automation
- MRO / Spare Parts – Direct drop-in replacement for existing ET 200S installations without reconfiguration
Engineering Advantages
- Hot-Swap Capability – Electronic module separates from terminal module; field wiring remains intact during replacement
- Integrated Diagnostics – Short-circuit and overload detection with channel-level fault reporting to the CPU
- Compact 15 mm Pitch – High channel density per DIN rail segment, optimizing cabinet space
- Broad Certification Coverage – CE, UL, cULus, and ATEX Zone 2 approval supports global machine export compliance
- Proven Reliability – Part of the SIMATIC ET 200S platform with millions of installed modules worldwide
System Architecture & Signal Flow
The 6ES7132-4BB31-0AA0 plugs into a compatible ET 200S terminal module (e.g., 6ES7193-4CA30-0AA0). The terminal module provides the 24 VDC load supply and field wiring connections. The electronic module interfaces with the ET 200S backplane bus, receiving output commands from the IM 151 interface module, which communicates upstream via PROFIBUS-DP or PROFINET to the SIMATIC S7-300/S7-400/S7-1500 CPU. Each output channel drives its load via a PNP transistor switch, with integrated protection against short-circuit and overload conditions reported as diagnostic alarms.
Sourcing & Quality Verification
- All units sourced through authorized industrial distribution channels or verified surplus with full traceability
- Pre-shipment inspection: visual, label authenticity, and functional continuity checks
- Original Siemens packaging and documentation supplied where available
- Batch and date-code records maintained for every shipment
- 30-day return policy on DOA units; warranty claims supported with full documentation
Procurement Process
- Confirm part number 6ES7132-4BB31-0AA0 against your BOM or existing installation
- Verify compatible terminal module (6ES7193-4CA30-0AA0 or 6ES7193-4CA40-0AA0) is in place
- Add to cart and complete checkout — or contact us for volume pricing and lead-time confirmation
- Receive order confirmation with tracking within 1 business day
- Expedited shipping available for urgent MRO requirements
Technical FAQ
Q: Is the 6ES7132-4BB31-0AA0 compatible with PROFINET-based ET 200S stations?
A: Yes. The electronic module is bus-agnostic; compatibility depends on the IM 151 interface module variant installed in the station.
Q: Can I replace the electronic module without removing field wiring?
A: Yes. The terminal module retains all field wiring. Only the electronic module is swapped, enabling hot-swap replacement in most configurations.
Q: What is the maximum load current per channel?
A: 0.5 A per channel at 24 VDC. Ensure load current does not exceed this rating to avoid triggering overload protection.
Q: Is this module suitable for ATEX Zone 2 hazardous areas?
A: Yes, with appropriate ATEX-certified enclosure and installation per IEC 60079 requirements.
Q: What is the difference between 6ES7132-4BB31-0AA0 and 6ES7132-4BB30-0AA0?
A: The -4BB31 revision incorporates updated firmware and minor hardware improvements over the -4BB30; both are functionally interchangeable in standard ET 200S applications.
