SIEMENS 6ES7193-4CA50-0AA0 TM-E15C26-A1 Universal Terminal Module | Replacement, Equivalent & Selection Guide

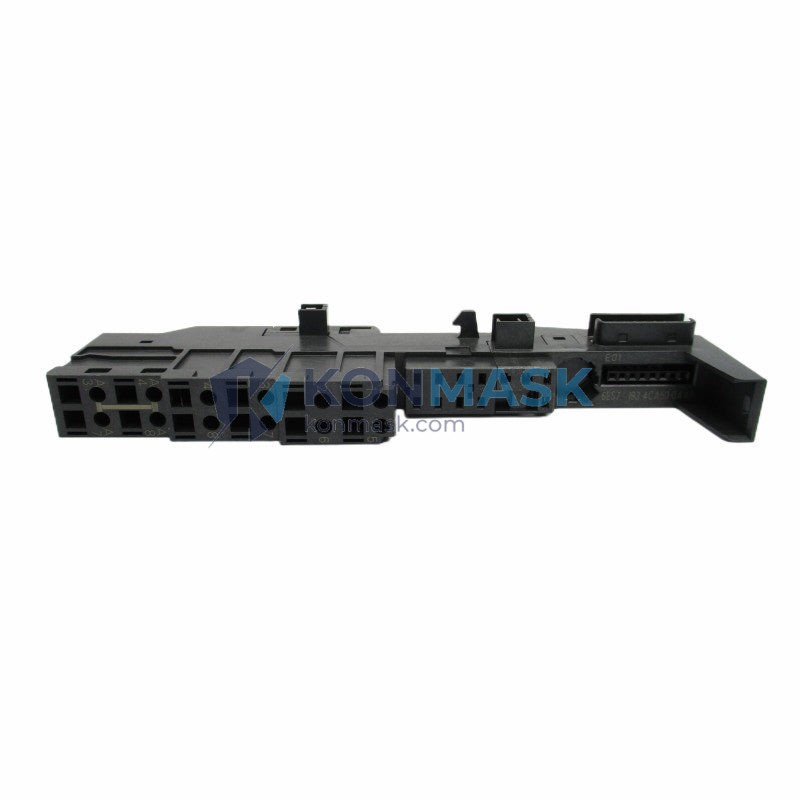

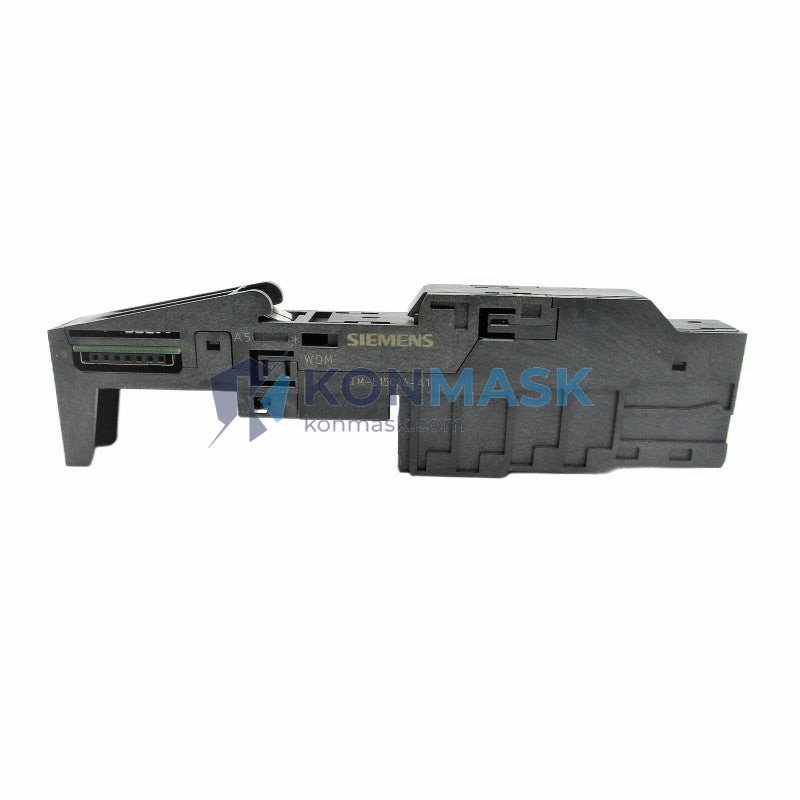

The SIEMENS 6ES7193-4CA50-0AA0 is a TM-E15C26-A1 Universal Terminal Module designed for the ET 200S distributed I/O system. This listing covers a 5-Pack configuration, ideal for panel builders and system integrators requiring multiple terminal positions in a single order. As a product selection advisor at Konmask.com, we provide verified sourcing, cross-reference data, and compatibility guidance to help you make the right procurement decision.
Technical Specifications
- Manufacturer: Siemens AG
- Part Number: 6ES7193-4CA50-0AA0
- Module Type: TM-E15C26-A1 Universal Terminal Module
- System: SIMATIC ET 200S
- Terminal Width: 15 mm
- Contact Type: Spring-loaded (26-pin)
- Mounting: DIN rail (35 mm)
- Protection Rating: IP20
- Operating Temperature: 0 °C to +60 °C
- Supply Voltage: 24 V DC (via backplane bus)
- Weight (per unit): approx. 120 g
- Pack Quantity: 5 units
- Compliance: CE, UL, cULus
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or drop-in replacements for the 6ES7193-4CA50-0AA0 in most ET 200S configurations. Always verify firmware and hardware revision compatibility before substitution.
- 6ES7193-4CA40-0AA0 — Previous revision (TM-E15C26-A1), functionally identical in most applications
- 6ES7193-4CA30-0AA0 — Earlier hardware revision; check backplane bus compatibility
- 6ES7193-4CB20-0AA0 — TM-E15C24-A1 variant; 24-pin contact, verify I/O module compatibility
- 6ES7193-4CD20-0AA0 — TM-E30C44-A1; wider 30 mm module for higher-density wiring
- Third-party equivalents: Phoenix Contact, Weidmüller, and Murrelektronik offer compatible terminal modules — contact us for cross-reference verification
Note: Konmask.com recommends using original Siemens parts for safety-critical applications. Third-party equivalents are suitable for non-SIL-rated installations only.
Why Choose the Original Model
- Guaranteed compatibility with all ET 200S electronic modules (EMs) rated for 15 mm terminal modules
- Spring-loaded contacts ensure vibration-resistant, maintenance-free wiring connections
- Hot-swap capability — replace electronic modules without rewiring field connections
- Siemens TIA Portal integration — fully recognized in hardware configuration without manual mapping
- Long-term availability — active product in Siemens lifecycle program as of 2026
- Traceable quality — each unit carries Siemens factory QC certification and batch traceability
Typical Applications
- Distributed I/O expansion in SIMATIC S7-300 / S7-400 / S7-1500 systems via PROFIBUS DP or PROFINET
- Machine tool control panels requiring modular, field-replaceable I/O wiring
- Conveyor and material handling automation with frequent module servicing
- Process industry cabinets (chemical, water treatment, food & beverage) with ET 200S IM 151 interface modules
- Automotive assembly line control with high-density digital I/O requirements
- Panel builders supplying OEM machinery for export markets (CE-compliant installations)
System Compatibility
- Interface Modules: IM 151-1 Standard, IM 151-1 FO, IM 151-3 PN, IM 151-7 CPU
- Electronic Modules: All 15 mm-width ET 200S digital and analog I/O modules
- Bus Systems: PROFIBUS DP (up to 12 Mbit/s), PROFINET IO
- Engineering Software: STEP 7 V5.x, TIA Portal V13 and above
- Power Modules: PM-E DC24V (6ES7138-4CA01-0AA0) and variants
- Not compatible with: ET 200SP, ET 200M, or ET 200eco terminal modules (different form factor)
Selection Guide
Use the following criteria to confirm the correct terminal module for your application:
- Module width: Confirm your electronic module requires a 15 mm terminal module (check EM datasheet)
- Contact type: TM-E15C26-A1 = 26-pin spring contact; TM-E15C24-A1 = 24-pin screw contact — match to your EM’s connector
- Revision suffix: -0AA0 is the standard commercial variant; -1AA0 denotes ATEX/Ex-rated versions for hazardous areas
- Quantity planning: Order 5-packs (this listing) for new panel builds; single units available for spares — contact us
- Lifecycle status: Verify via Siemens Industry Mall or contact Konmask.com for end-of-life risk assessment
Quality Assurance & Sourcing
- Source: Authorized distribution channels and verified surplus stock with full traceability
- Inspection: Each unit inspected for physical integrity, label authenticity, and date code consistency
- Packaging: Original Siemens anti-static packaging preserved where possible; repackaged units clearly labeled
- Warranty: 12-month warranty against manufacturing defects from Konmask.com
- Counterfeit prevention: All stock cross-checked against Siemens hologram and batch verification standards
- Export compliance: ECCN classification reviewed; export license obtained where required
How to Order
- Online: Add to cart directly from this page — 5-pack ships as a single SKU (6ES7193-4CA50-0AA0)
- Bulk / project orders: Contact support@konmask.com for volume pricing and lead time confirmation
- Custom kitting: We can bundle terminal modules with matching electronic modules and power modules — request a BOM quote
- Urgent requirements: Call +0086 19859288691 for same-day shipping availability check
- Payment: T/T, PayPal, credit card, and trade credit available for qualified accounts
Replacement & Compatibility FAQ
Q: Can I use 6ES7193-4CA40-0AA0 instead of 6ES7193-4CA50-0AA0?
A: In most cases yes — both are TM-E15C26-A1 modules with spring contacts. The -0AA0 suffix is identical across revisions for standard applications. Verify with your IM 151 firmware version if using SIL-rated configurations.
Q: Is this terminal module compatible with ET 200SP?
A: No. ET 200SP uses a completely different terminal module form factor (BaseUnit series). The 6ES7193-4CA50-0AA0 is exclusively for ET 200S.
Q: Can I replace the terminal module without rewiring?
A: Yes — the TM-E series supports hot-swap of the electronic module while the terminal module (and field wiring) remains in place. This is one of the key advantages of the ET 200S architecture.
Q: What is the difference between TM-E and TM-P terminal modules?
A: TM-E modules are for standard electronic I/O modules. TM-P modules are power terminal modules used to inject 24 V DC supply segments. They are not interchangeable.
Q: Do you supply single units or only 5-packs?
A: This listing is for a 5-pack. Single-unit orders are available — contact us at support@konmask.com for a custom quote.
