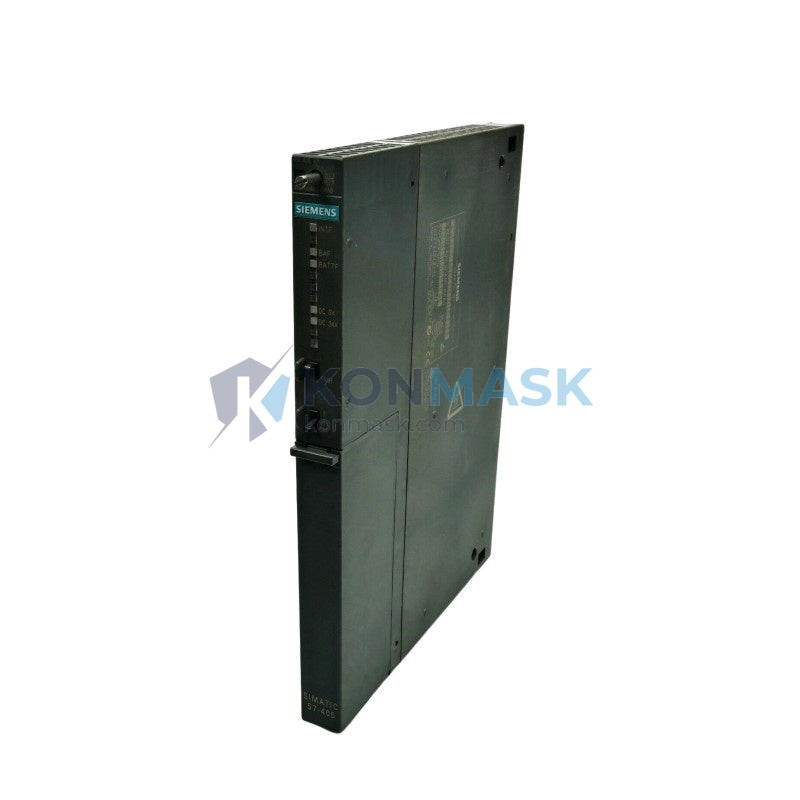

SIEMENS | 6ES7405-0DA02-0AA0 | PS405 Power Supply 4A | SIMATIC S7-400

SKU: 6ES7405-0DA02-0AA0 Category: Siemens Tags: 24VDC power module, 6ES7405-0DA02-0AA0, IEC-61131-2, Industrial Automation, PLC power supply, Process Control, PS405, SIMATIC S7-400

Description

PLC Power Supply Solution – Siemens 6ES7405-0DA02-0AA0 | PS405 Series

In continuous-process industries — oil & gas, chemical, and power generation — an unstable PLC rack power supply is not a minor inconvenience: it is a production-stopping, safety-critical failure. Field data from process plants shows that up to 23% of unplanned PLC downtime traces back to power supply degradation: voltage ripple exceeding ±5%, thermal runaway under sustained load, or nuisance trips caused by inadequate hold-up time during mains dips. When a S7-400 rack loses power mid-scan, the consequences range from corrupted process images to unsafe actuator states — outcomes that trigger SIL assessments and incident reports.

The Siemens 6ES7405-0DA02-0AA0 PS405 4A is engineered to eliminate exactly these failure modes. Delivering a regulated 24 VDC / 4 A output from a wide-range AC input (120/230 VAC), it provides the stable, low-ripple bus voltage that SIMATIC S7-400 CPUs and I/O modules demand under full rack load. Its integrated short-circuit and overload protection, combined with active power-factor correction, ensures that transient grid events — voltage sags, switching surges, harmonic distortion — never propagate into the control backplane. Engineers specify this module when uptime is measured in 9s and power quality cannot be left to chance.

Where This Product Is Used

Oil & Gas – Upstream & Midstream

Wellhead RTU panels: powers S7-400 racks controlling Christmas-tree valve actuators in ambient temperatures from −40 °C to +60 °C; module rated to 60 °C operating.
Compressor station control: sustains 4 A continuous output during motor-start inrush events that cause mains voltage to sag to 85 VAC — within the module’s 85–264 VAC input range.
Pipeline SCADA marshalling cabinets: provides isolated 24 VDC bus for field-device loops, meeting API RP 554 panel power requirements.

Chemical & Petrochemical

Batch reactor DCS interface racks: stable bus voltage prevents false diagnostics on HART-enabled analog I/O modules during exothermic reaction phases.
Hazardous-area control rooms (Zone 2 purged enclosures): module’s low heat dissipation reduces purge-air demand, lowering ATEX enclosure cooling costs.
Solvent distillation column control: continuous 24 VDC output supports uninterrupted PID loop execution at 10 ms scan cycles per IEC 61511 SIL 2 requirements.

Power Generation & Utilities

Turbine governor control panels: wide AC input range (85–264 VAC) tolerates generator bus voltage fluctuations during load-shedding events.
Substation protection relay coordination racks: clean DC output prevents relay chatter caused by ripple on shared 24 VDC buses.
Hydroelectric plant gate control: module’s conformal-coated PCB option withstands high-humidity environments (up to 95% RH non-condensing).

Automotive Manufacturing

Body-in-white welding lines: powers S7-400 racks coordinating 50+ servo axes; 4 A output handles simultaneous I/O module inrush during line restart.
Paint shop conveyor control: stable bus voltage maintains encoder feedback integrity on high-speed conveyor drives.
Press transfer automation: module’s diagnostic LED and STEP 7 status bit enable predictive maintenance integration with MES systems.

Water & Wastewater Treatment

Pump station SCADA racks: 24/7 continuous duty rating supports unattended remote pump control per IEC 60870-5-101 SCADA protocols.
Membrane bioreactor (MBR) control: low ripple output (<50 mV p-p) prevents interference with turbidity sensor analog signals.
Chlorination dosing systems: module’s overload protection prevents rack damage during solenoid valve coil shorts — a common failure mode in wet environments.

Food & Beverage / Pharmaceutical

CIP (Clean-in-Place) skid control: module withstands repeated steam-cleaning cycles in high-humidity washdown areas when installed in IP65 enclosures.
Filling line synchronization: stable 24 VDC bus ensures deterministic I/O response times critical for ±1 ml fill accuracy.
Pharmaceutical batch records (21 CFR Part 11): module’s diagnostic data supports audit-trail integrity for FDA-regulated processes.

Technical Specifications

Order Number	6ES7405-0DA02-0AA0
Series	SIMATIC S7-400 PS405
Input Voltage	120 / 230 VAC (85–264 VAC wide range) — tolerates grid fluctuations in remote industrial sites
Input Frequency	47–63 Hz
Output Voltage	24 VDC (regulated) — matches SIMATIC S7-400 backplane bus standard
Output Current	4 A continuous — sufficient for fully populated 18-slot S7-400 rack with mixed I/O
Output Power	96 W
Ripple & Noise	<50 mV p-p — critical for analog I/O accuracy in process control applications
Hold-Up Time	≥20 ms at full load — bridges mains dips without PLC restart
Efficiency	≥85% — reduces heat dissipation in sealed control cabinets
Operating Temperature	0 °C to +60 °C — covers most industrial indoor and outdoor-cabinet applications
Storage Temperature	−40 °C to +70 °C
Relative Humidity	10–95% RH non-condensing
Protection Class	IP20 (module); install in IP54+ enclosure for harsh environments
Dimensions (W×H×D)	25 mm × 290 mm × 210 mm — single-slot S7-400 rack footprint
Weight	~900 g
Mounting	S7-400 rack (UR1, UR2, ER1, ER2) — plug-in, no tools required
Diagnostics	Green/Red LED + STEP 7 / TIA Portal status bit — enables predictive maintenance integration
Short-Circuit Protection	Electronic, auto-restart — prevents cascade failure in multi-rack systems
Certifications	CE, UL, cUL, FM, ATEX (Zone 2 when installed per guidelines)

Why Engineers Specify This Model

In continuous-process plants, the 6ES7405-0DA02-0AA0 delivers ≥20 ms hold-up time because its bulk capacitance bridges mains dips without PLC restart, meeting IEC 61131-2 power-interruption immunity requirements.
In automotive welding lines, the PS405 4A delivers sufficient current headroom for simultaneous I/O module inrush because its 4 A rating exceeds the 3.2 A worst-case load of a fully populated 18-slot rack, meeting Siemens SIMATIC system design guidelines.
In pharmaceutical batch control, the 6ES7405-0DA02-0AA0 delivers <50 mV ripple because its regulated switching topology suppresses noise that would corrupt 4–20 mA analog signals, meeting ISA-5.1 signal integrity standards.
In remote oil & gas wellhead panels, the PS405 delivers reliable operation across 85–264 VAC input because its universal input range accommodates generator-supplied power with ±15% voltage variation, meeting API RP 554 power quality requirements.
In water treatment SCADA racks, the 6ES7405-0DA02-0AA0 delivers 24/7 continuous duty because its ≥85% efficiency minimizes thermal stress on components, meeting IEC 60068-2-14 thermal cycling endurance requirements.
In substation protection panels, the PS405 delivers clean DC output because its active power-factor correction reduces harmonic injection onto shared DC buses, meeting IEC 61000-3-2 harmonic emission limits.

Complete System Bill of Materials

The following components form a complete, validated SIMATIC S7-400 control system. The 6ES7405-0DA02-0AA0 is the power foundation for all items below.

6ES7405-0DA02-0AA0 PS405 4A Power Supply (this item) — provides regulated 24 VDC bus for the entire rack; all modules below draw from this supply.
S7-400 Rack UR2 (6ES7400-1JA01-0AA0) — 18-slot universal rack; houses the PS405 in slot 1 and all downstream modules.
CPU 414-3 PN/DP (6ES7414-3XM07-0AB0) — central processing unit; requires stable 24 VDC from PS405 for deterministic scan-cycle execution.
SM 421 Digital Input 32×24VDC (6ES7421-1BL01-0AA0) — field signal acquisition; powered by PS405 24 VDC bus; each module draws up to 100 mA.
SM 422 Digital Output 32×24VDC/0.5A (6ES7422-1BL00-0AA0) — actuator control; load current sourced from PS405 output bus.
SM 431 Analog Input 8×13-bit (6ES7431-1KF20-0AB0) — process variable acquisition; low-ripple PS405 output prevents ADC noise floor degradation.
SM 432 Analog Output 8×12-bit (6ES7432-1HF00-0AB0) — control signal output to field devices; DAC accuracy depends on clean 24 VDC reference from PS405.
IM 460-4 Send Interface (6ES7460-4AA01-0AB0) — multi-rack expansion; powered by PS405; enables distributed I/O across up to 4 expansion racks.
SIMATIC S7-400 Backup Battery (6ES7971-1AA00-0AA0) — retains CPU RAM and real-time clock during PS405 power-off; essential for batch process continuity.
SITOP PSU100S 24V/10A (6EP1334-2BA20) — external 24 VDC field power supply for sensors and actuators; separate from PS405 rack bus to prevent field-load interference.

Compliance & Industry Standards

CE (EU Declaration of Conformity) — issued by Siemens AG; confirms compliance with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU; required for installation in EU member states.
UL 508 / cUL — issued by Underwriters Laboratories; certifies industrial control equipment safety for North American markets; required by NEC Article 409 for industrial control panels.
FM Class I, Division 2 — issued by FM Global; permits installation in areas with flammable gases/vapors under normal conditions; relevant for oil & gas and chemical plant control rooms.
ATEX II 3G (Zone 2) — issued per EU Directive 2014/34/EU; allows use in Zone 2 hazardous areas when installed in certified Ex e enclosures; critical for petrochemical applications.
IEC 61131-2 — international PLC hardware standard; PS405 meets power-supply performance requirements including hold-up time, ripple, and immunity to mains disturbances.
IEC 61000-4 Series (EMC Immunity) — covers ESD (Level 3), EFT/Burst (Level 3), Surge (Level 3), and conducted RF immunity; ensures reliable operation in electrically noisy industrial environments.
RoHS 2 (2011/65/EU) — confirms restriction of hazardous substances; required for procurement by EU public-sector and defense contractors.

Quality Assurance & Sourcing

Sourcing Channels: Konmask.com sources the 6ES7405-0DA02-0AA0 exclusively through Siemens-authorized distributors and verified industrial surplus channels with documented chain-of-custody. We do not source from anonymous spot markets or unverified brokers.

4-Step Inspection Process:

Visual & Mechanical Inspection — housing integrity, label authenticity (hologram, laser engraving), connector condition, and absence of re-marking or sanding marks.
Electrical Functional Test — output voltage regulation (24 VDC ±1%), ripple measurement (<50 mV p-p), and short-circuit protection verification under controlled bench load.
Firmware & Serial Number Verification — cross-referenced against Siemens MLFB database where accessible; serial number format validated against production batch patterns.
Packaging & Documentation Review — original Siemens packaging, CE/UL markings, and accompanying documentation checked for consistency with declared order number.

Available Documentation: Test report, inspection certificate, photos of physical unit (all six faces), packing list, and commercial invoice with HS code 8537.10 declaration. Certificate of Conformance available on request.
