Industrial I/O Expansion Solution – Siemens 6ES7193-4CB30-0AA0 | SIMATIC ET 200S
Where This Product Is Used

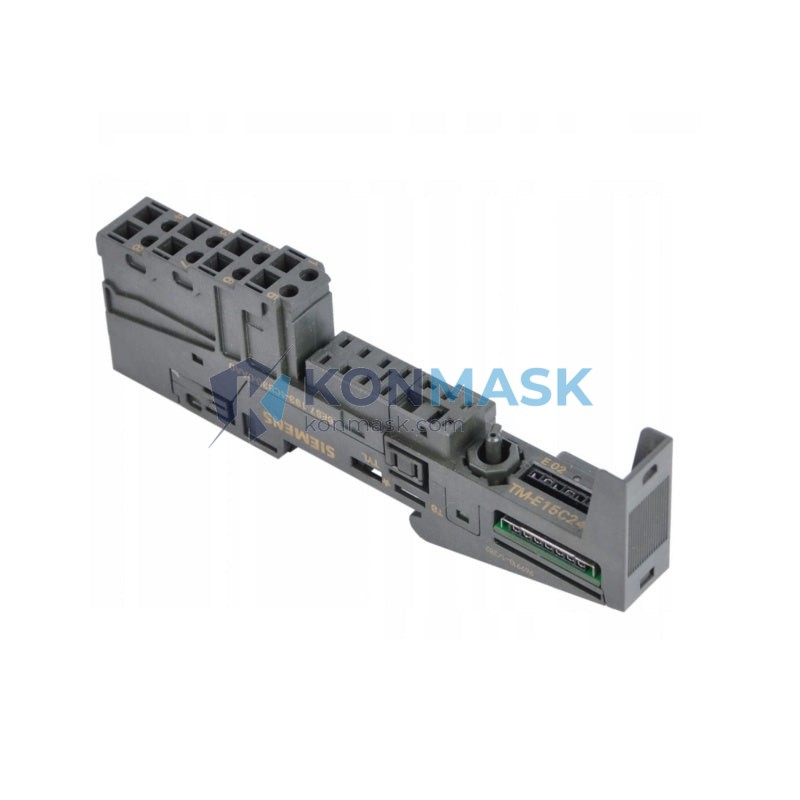

The Siemens 6ES7193-4CB30-0AA0 Terminal Module (TM-E15S24-A1) is a core component of the SIMATIC ET 200S distributed I/O system, widely deployed across demanding industrial environments:
- Automotive manufacturing – body-in-white welding lines, paint shop conveyors, and final assembly stations requiring high-density I/O at the machine level
- Food & beverage processing – hygienic packaging lines and filling machines where compact, rail-mounted I/O reduces cabinet footprint
- Pharmaceutical production – GMP-compliant process skids with strict wiring documentation requirements met by the push-in terminal design
- Material handling & logistics – sorter systems, conveyor drives, and warehouse automation where fast module replacement minimises downtime
- Machine tool & press applications – CNC machining centres and stamping presses integrating ET 200S islands for local sensor/actuator control
- Water & wastewater treatment – remote pump stations and valve manifolds connected via PROFIBUS DP or PROFINET to a central S7-300/400/1500 controller
Technical Specifications
| Attribute | Value |
|---|---|
| Order Number (MLFB) | 6ES7193-4CB30-0AA0 |
| Product Family | SIMATIC ET 200S |
| Module Designation | TM-E15S24-A1 Terminal Module |
| Terminal Type | Screw-type, 15-pin, 24 V DC |
| Rated Supply Voltage | 24 V DC |
| Mounting | DIN rail (35 mm), tool-free module insertion |
| Protection Degree | IP20 |
| Operating Temperature | 0 °C … +60 °C |
| Storage Temperature | −40 °C … +70 °C |
| Dimensions (W × H × D) | 15 mm × 81 mm × 52 mm |
| Weight | approx. 30 g |
| Compatible Electronic Modules | ET 200S 1-/2-/4-channel digital and analog I/O modules |
| Bus Connection | Integrated backplane bus via ET 200S IM 151 interface module |
| Certifications | CE, UL, cULus, ATEX Zone 2 (with appropriate EM) |
Why Engineers Specify This Model
- Hot-swap capability – electronic modules can be replaced under power without removing field wiring, cutting mean-time-to-repair (MTTR) to under 2 minutes
- Colour-coded terminal identification – reduces mis-wiring risk during commissioning and maintenance in multi-axis systems
- Compact 15 mm pitch – maximises I/O density on the DIN rail; a 1-metre rail accommodates up to 63 terminal modules
- Integrated potential distribution – the TM-E15S24-A1 variant supplies 24 V DC directly to the electronic module, eliminating external power taps
- Proven SIMATIC ecosystem – fully compatible with TIA Portal engineering, enabling drag-and-drop hardware configuration and automatic parameter download
- Long product lifecycle – Siemens SIMATIC ET 200S has been in production since 1997; spare parts and replacements remain available for legacy plant upgrades
Complete System Bill of Materials
A typical ET 200S station using the 6ES7193-4CB30-0AA0 requires the following components:
- Interface Module – e.g. 6ES7151-1AA06-0AB0 (IM 151-1 PROFIBUS) or 6ES7151-3BA23-0AB0 (IM 151-3 PROFINET)
- Power Module – e.g. 6ES7138-4CA01-0AA0 (PM-E 24 V DC)
- Terminal Module 6ES7193-4CB30-0AA0 (this item) – one per electronic module slot
- Electronic I/O Modules – e.g. 6ES7131-4BF00-0AA0 (4DI 24 V DC) or 6ES7132-4BF00-0AA0 (4DO 24 V DC / 0.5 A)
- End Cover – 6ES7193-4GA00-0AA0
- DIN Rail – 35 mm × 7.5 mm, length per station design
Compliance & Industry Standards
- CE Marking – compliant with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
- UL / cULus Listed – suitable for North American installations per UL 508 (Industrial Control Equipment)
- ATEX / IECEx – usable in Zone 2 hazardous areas when paired with certified electronic modules
- IEC 61131-2 – programmable controller equipment standard compliance
- RoHS 2011/65/EU – restriction of hazardous substances compliant
Quality Assurance & Sourcing
- All units sourced from authorised Siemens distribution channels or verified surplus with full traceability documentation
- Each module inspected for authentic Siemens holographic labelling, date codes, and factory seal integrity before dispatch
- Stored in ESD-safe, climate-controlled warehousing to preserve electronics and terminal integrity
- Batch and serial number records retained for 12 months post-shipment to support customer audit requirements
- Konmask.com is an independent industrial automation parts supplier — not an official Siemens distributor. All trademarks belong to their respective owners.
How to Source This Part
- Add 6ES7193-4CB30-0AA0 to your cart and select quantity
- Request a formal quotation via support@konmask.com for orders ≥ 10 units (volume pricing available)
- Provide your delivery address and Incoterms preference (EXW, FOB Xiamen, CIF, DDP) at checkout
- Payment accepted via T/T bank transfer, PayPal, or credit card
- Standard lead time: 3–7 business days for in-stock units; 2–4 weeks for factory-order quantities
- Export documentation (commercial invoice, packing list, CO) provided for all international shipments
Application-Specific FAQ
Q: Can I use 6ES7193-4CB30-0AA0 with both PROFIBUS and PROFINET interface modules?
A: Yes. The terminal module is bus-agnostic — it connects to the ET 200S backplane regardless of whether the station uses an IM 151-1 (PROFIBUS) or IM 151-3 (PROFINET) interface module.
Q: Is hot-swapping supported without a safety relay module?
A: Hot-swap of standard digital I/O electronic modules is supported. For motor starter or safety modules, consult the ET 200S system manual (A5E00515771) for specific power-down requirements.
Q: What is the difference between TM-E15S24-A1 and TM-E15C24-A1?
A: The TM-E15S24-A1 (this module, 6ES7193-4CB30-0AA0) uses screw-type terminals; the TM-E15C24-A1 uses cage-clamp (spring) terminals. Both are electrically identical — selection depends on your wiring preference and maintenance policy.
Q: How many terminal modules can one ET 200S station support?
A: Up to 63 electronic modules (and therefore 63 terminal modules) per IM 151 interface module, subject to the station’s total current consumption limits.
Q: Do you provide a certificate of conformity or test report?
A: Yes. A Konmask inspection report and available Siemens factory documentation are provided upon request for orders requiring QA records.
