Distributed I/O Solution – SIEMENS 6ES7195-7HA00-0XA0 | ET 200S Series
Where This Product Is Used

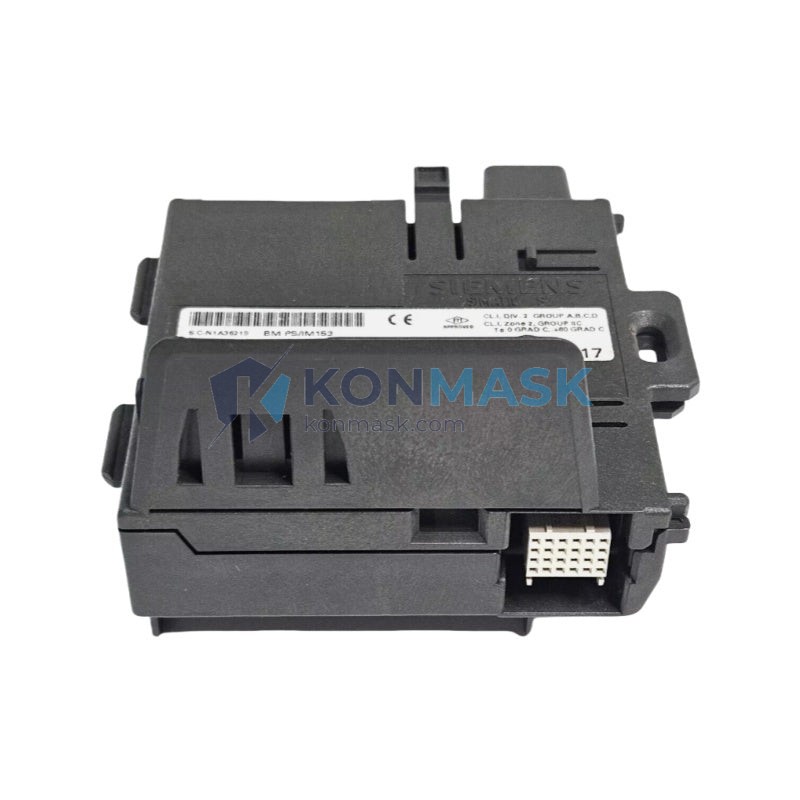

The SIEMENS 6ES7195-7HA00-0XA0 is a PROFINET IO Bus Adapter Module designed for the SIMATIC ET 200S distributed I/O system. It is deployed across a wide range of industrial environments where high-speed, deterministic communication between field devices and the PLC controller is critical:
- Automotive Assembly Lines – Connects distributed I/O stations along conveyor and welding cells to a central SIMATIC S7-300/S7-400/S7-1500 controller via PROFINET.
- Pharmaceutical & Food Processing Plants – Enables modular, hygienic-zone I/O expansion with fast cycle times required by GMP-compliant production lines.
- Machine Tool & CNC Machining Centers – Provides real-time I/O feedback for spindle control, tool changers, and coolant management systems.
- Water & Wastewater Treatment Facilities – Supports remote I/O nodes in distributed pump stations and valve control panels.
- Building Automation & HVAC Systems – Integrates field-level sensors and actuators into PROFINET-based BMS architectures.
- Logistics & Intralogistics – Used in sortation systems, palletizers, and automated storage/retrieval systems (AS/RS).
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (SKU) | 6ES7195-7HA00-0XA0 |
| Product Family | SIMATIC ET 200S |
| Module Type | PROFINET IO Bus Adapter |
| Communication Interface | PROFINET IO (IRT / RT) |
| Compatible Controllers | SIMATIC S7-300, S7-400, S7-1500, WinAC |
| Supply Voltage | 24 V DC |
| Degree of Protection | IP20 |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Mounting | DIN Rail (35 mm) |
| Dimensions (W × H × D) | Refer to Siemens datasheet |
| Weight | Approx. 1000 g (packaged) |
| Certifications | CE, UL, cULus, ATEX (refer to datasheet) |
Why Engineers Specify This Model
- Isochronous Real-Time (IRT) Support – Enables cycle times down to 250 µs for motion-critical applications, eliminating jitter in synchronized multi-axis systems.
- Seamless ET 200S Integration – Plugs directly into the ET 200S terminal module rail, preserving the modular, hot-swap architecture of the station.
- PROFINET Conformance Class B – Ensures interoperability with third-party PROFINET controllers and network infrastructure.
- Reduced Wiring Complexity – Replaces point-to-point wiring with a single PROFINET cable, cutting installation time and panel footprint.
- Integrated Diagnostics – Module-level and channel-level fault reporting via STEP 7 / TIA Portal simplifies troubleshooting and reduces MTTR.
- Proven Siemens Reliability – Backed by Siemens’ global installed base and long-term spare parts availability commitment.
Complete System Bill of Materials
For a fully operational ET 200S PROFINET IO station, the following components are typically required alongside the 6ES7195-7HA00-0XA0:
- IM 151-3 PN Interface Module (e.g., 6ES7151-3BA23-0AB0) – PROFINET IO interface for the ET 200S head station
- ET 200S Power Module (e.g., 6ES7138-4CA01-0AA0) – 24 V DC load power supply for I/O modules
- Digital Input Modules (e.g., 6ES7131-4BF00-0AA0) – 8 × 24 V DC DI
- Digital Output Modules (e.g., 6ES7132-4BF00-0AA0) – 8 × 24 V DC DO
- Analog Input/Output Modules – As required by process signals
- Terminal Modules (e.g., 6ES7193-4CA40-0AA0) – Passive wiring base for each I/O module
- PROFINET Switch / Managed Switch – For network topology (ring, star, line)
- SIMATIC S7-1500 CPU (e.g., 6ES7515-2AM02-0AB0) – As the PROFINET IO Controller
Compliance & Industry Standards
- CE Marking – Compliant with EU Low Voltage Directive and EMC Directive
- UL / cULus Listed – Recognized for use in North American industrial installations
- IEC 61158 / IEC 61784 – PROFINET fieldbus standard compliance
- PROFINET Conformance Class B (CC-B) – Certified by PROFIBUS & PROFINET International (PI)
- RoHS Compliant – Restriction of Hazardous Substances Directive
- ATEX / IECEx – Refer to Siemens product datasheet for hazardous area ratings
Quality Assurance & Sourcing
At Konmask.com, every unit of the SIEMENS 6ES7195-7HA00-0XA0 is:
- Sourced from authorized distributors or verified surplus channels with full traceability
- Inspected for physical integrity, label authenticity, and firmware version prior to dispatch
- Packaged in anti-static ESD-safe materials with original or equivalent protective packaging
- Accompanied by a test report and sourcing documentation upon request
- Covered by our 30-day return policy and 12-month warranty against manufacturing defects
How to Source This Part
- Add to Cart – Click the Buy Now button above to place your order directly.
- Request a Quote – For bulk orders (5+ units) or project BOM sourcing, email support@konmask.com for volume pricing.
- Lead Time – In-stock units ship within 1–3 business days. Out-of-stock lead time is 7–21 business days depending on sourcing channel.
- Export & Customs – We support international shipping with full commercial invoice, packing list, and HS code documentation (HS: 8537.10).
- Technical Pre-Sales Support – Our engineering team can verify compatibility with your existing system architecture before purchase.
Application-Specific FAQ
Q: Is the 6ES7195-7HA00-0XA0 compatible with TIA Portal?
A: Yes. The module is fully supported in TIA Portal V13 SP1 and later via the STEP 7 hardware catalog (HSP if required). GSD/GSDML files are available from the Siemens Industry Online Support portal.
Q: Can this bus adapter support IRT (Isochronous Real-Time) communication?
A: Yes, when paired with an IRT-capable PROFINET IO Controller (e.g., S7-1500 or S7-300 with CP 343-1 Advanced), the 6ES7195-7HA00-0XA0 supports IRT for deterministic, jitter-free communication.
Q: What is the maximum number of ET 200S modules per station?
A: A single ET 200S station supports up to 63 I/O modules (depending on the interface module used). The bus adapter facilitates the backplane communication for all modules in the station.
Q: Can I use this module in a redundant PROFINET ring topology?
A: Media Redundancy Protocol (MRP) support depends on the interface module (IM 151-3 PN HF). Consult the Siemens ET 200S system manual for topology-specific guidance.
Q: Is this part available for export to Southeast Asia, Middle East, or Europe?
A: Yes. Konmask.com ships globally. Contact us for export documentation, customs classification, and freight options.
