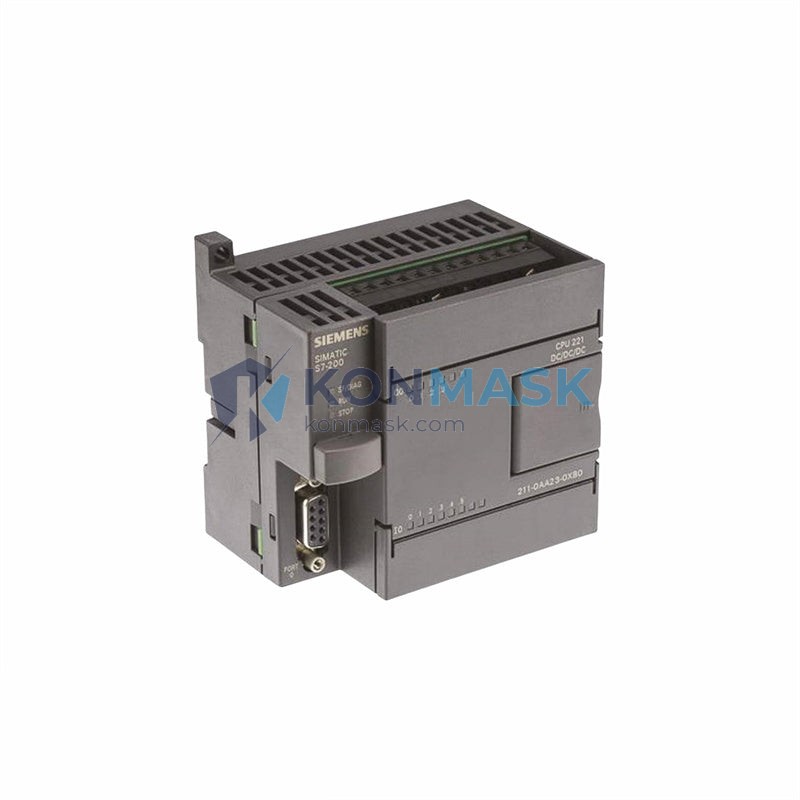

SIEMENS 6ES7211-0AA23-0XB0 CPU 221 S7-200 PLC | Replacement, Equivalent & Selection Guide
The SIEMENS 6ES7211-0AA23-0XB0 is a compact CPU 221 module from the SIMATIC S7-200 series — a proven micro-PLC platform widely deployed in small-scale industrial automation, machine control, and process monitoring applications. This page provides full technical specifications, compatible replacement models, selection guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Part Number: 6ES7211-0AA23-0XB0
- Series: SIMATIC S7-200
- CPU Type: CPU 221
- Power Supply: 24 VDC
- Digital Inputs: 6 × DC inputs
- Digital Outputs: 4 × Transistor (DC) outputs
- Program Memory: 4 KB
- Data Memory: 2 KB
- Communication Port: 1 × RS-485 (PPI/MPI)
- Execution Speed: 0.22 ms / 1K instructions
- Dimensions (W×H×D): 90 × 80 × 62 mm
- Weight: approx. 1,130 g (packaged)
- Operating Temperature: 0 °C to +55 °C
- Protection Rating: IP20
- Certifications: CE, UL, cUL
Compatible Replacement & Equivalent Models
The following models are functionally compatible or serve as direct/near-direct replacements for the 6ES7211-0AA23-0XB0:
- 6ES7211-0BA23-0XB0 — CPU 221, AC/DC/Relay variant (same I/O count, different power supply)
- 6ES7212-1AB23-0XB0 — CPU 222, expanded I/O (8 DI / 6 DO), drop-in upgrade for applications needing more points
- 6ES7212-1BB23-0XB0 — CPU 222 AC/DC/Relay, relay output variant
- 6ES7211-0AA22-0XB0 — Earlier firmware revision of the same CPU 221 (functionally equivalent, check firmware compatibility)
- 6ES7211-0AA21-0XB0 — Legacy revision, compatible for most applications
Note: Always verify firmware version and communication protocol compatibility before substituting modules in existing systems.
Why Choose the Original Model
- Guaranteed compatibility with existing STEP 7 Micro/WIN programming software
- Validated for use in certified machine safety architectures
- Original Siemens quality assurance and traceability
- Full technical support and documentation from Siemens
- Consistent performance across temperature and EMC conditions
Typical Applications
- Conveyor and material handling systems
- Packaging machinery and labeling lines
- Pump and motor control panels
- HVAC and building automation
- Small-scale process monitoring and interlocking
- OEM machine builders requiring compact, cost-effective PLC solutions
System Compatibility
- Programming Software: STEP 7 Micro/WIN V4.0 SP9 or later
- Communication: PPI, MPI, Freeport (RS-485)
- Expansion Modules: Compatible with S7-200 EM series (EM221, EM222, EM223, EM231, EM232, EM235)
- HMI: Compatible with SIMATIC TD 200, TD 400C, and third-party RS-485 HMI panels
- PC Interface: PC/PPI cable or USB-PPI adapter required
Selection Guide
Use the table below to select the right S7-200 CPU for your application:
- 6ES7211-0AA23-0XB0 (CPU 221 DC/DC/DC): 6 DI / 4 DO transistor — best for compact DC-powered machines with low I/O count
- 6ES7211-0BA23-0XB0 (CPU 221 AC/DC/Relay): 6 DI / 4 DO relay — choose when AC power supply or relay outputs are required
- 6ES7212-1AB23-0XB0 (CPU 222 DC/DC/DC): 8 DI / 6 DO — upgrade path when additional I/O points are needed without expansion modules
- 6ES7214-1AD23-0XB0 (CPU 224 DC/DC/DC): 14 DI / 10 DO — for mid-range applications requiring analog expansion or higher memory
Tip: If your application requires analog I/O, Modbus RTU, or Ethernet connectivity, consider upgrading to the S7-1200 series (e.g., 6ES7211-1AE40-0XB0 CPU 1211C).
Quality Assurance & Sourcing
- All units sourced through authorized or verified industrial distribution channels
- Pre-shipment inspection: visual, label verification, and functional power-on test
- Original manufacturer packaging preserved where available
- Traceability documentation available upon request
- Warranty: 12 months from date of shipment
How to Order
- Add the 6ES7211-0AA23-0XB0 to your cart directly from this page
- For bulk orders (>5 units) or urgent requirements, contact us at support@konmask.com
- Lead time: typically 3–7 business days; expedited options available
- Payment: T/T, PayPal, credit card, and trade terms for verified accounts
- Shipping: DHL, FedEx, UPS worldwide; sea freight available for large orders
Replacement & Compatibility FAQ
Q: Can I replace 6ES7211-0AA23-0XB0 with 6ES7211-0AA22-0XB0?
A: Yes, in most cases. The -0XB0 suffix denotes the same hardware revision family. Verify firmware version compatibility in STEP 7 Micro/WIN before deployment.
Q: Is the CPU 221 compatible with S7-200 SMART modules?
A: No. The S7-200 and S7-200 SMART are separate product lines with different expansion buses and programming environments. They are not interchangeable.
Q: Can I use a CPU 222 as a drop-in replacement?
A: Electrically and mechanically yes, but the CPU 222 has more I/O points and slightly different memory. Update your program accordingly and verify I/O addressing.
Q: What cable do I need to program the 6ES7211-0AA23-0XB0?
A: A PC/PPI cable (6ES7901-3CB30-0XA0) or USB-PPI adapter is required to connect to a PC running STEP 7 Micro/WIN.
Q: Does Konmask.com provide a warranty?
A: Yes — all units carry a 12-month warranty. Contact support@konmask.com for claims or technical assistance.
