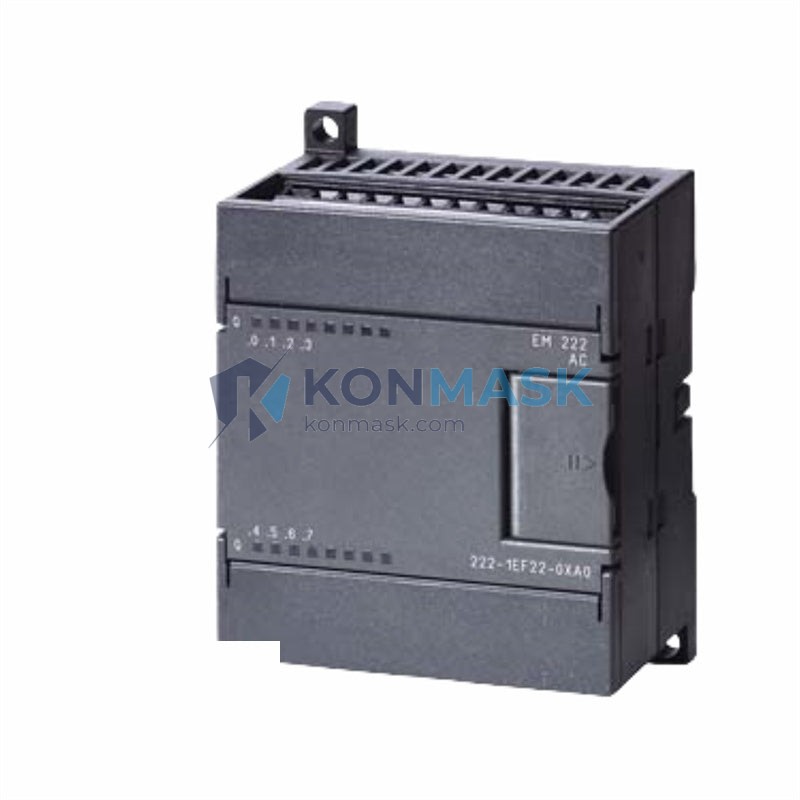

SIEMENS 6ES7222-1BF22-0XA0 – 8-Point 24VDC Digital Output Module | S7-200 EM222 Platform
Engineering Background
The SIEMENS 6ES7222-1BF22-0XA0 is a compact digital output expansion module designed for the SIMATIC S7-200 Micro PLC platform. Engineered in Germany to IEC 61131-2 standards, this EM222 series module extends the I/O capacity of S7-200 CPUs with 8 individually isolated 24 VDC transistor outputs — delivering deterministic switching performance in space-constrained control panels.
Product Positioning
Targeted at OEM machine builders, system integrators, and MRO procurement engineers who require a proven, drop-in replacement or new-build component for SIMATIC S7-200 automation architectures. The 6ES7222-1BF22-0XA0 is the definitive choice where reliable digital actuation of solenoids, relays, indicators, and drives is required at 24 VDC logic levels.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | 6ES7222-1BF22-0XA0 |
| Product Family | SIMATIC S7-200 EM222 |
| Module Type | Digital Output Expansion Module |
| Number of Outputs | 8 × Digital Output (DO) |
| Output Voltage | 24 VDC |
| Output Type | Transistor (Sourcing / PNP) |
| Max Output Current per Point | 0.75 A |
| Max Total Output Current | 6 A (all outputs simultaneously) |
| Isolation | Optocoupler isolation, 500 VAC |
| Response Time (OFF→ON) | ≤ 0.2 ms |
| Response Time (ON→OFF) | ≤ 0.2 ms |
| Supply Voltage (Logic) | 24 VDC (from CPU bus) |
| Load Supply Voltage | 20.4 – 28.8 VDC |
| Power Consumption | ≤ 2 W (logic) + load |
| Backplane Bus Current Draw | ≤ 40 mA at 5 VDC |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 5% – 95% (non-condensing) |
| Protection Rating | IP20 |
| Dimensions (W × H × D) | 46 × 80 × 62 mm |
| Weight | Approx. 180 g |
| Mounting | DIN rail (EN 60715) or panel mount |
| Wiring | Removable screw terminal block |
| Certifications | CE, UL, cUL, FM, ATEX (Zone 2) |
| Country of Origin | Germany |
| MLFB / Order Number | 6ES7 222-1BF22-0XA0 |
Proven Application Environments
- Machine Tool Control: Spindle enable/disable, coolant pump actuation, axis brake control via 24 VDC solenoid valves.
- Conveyor & Material Handling: Belt drive start/stop, diverter gate control, indicator stack light sequencing.
- Packaging Machinery: Pneumatic cylinder actuation, reject gate control, label applicator triggering.
- HVAC & Building Automation: Fan relay switching, damper actuator control, alarm annunciator outputs.
- Water & Wastewater Treatment: Pump station control, valve actuation, level alarm outputs.
- OEM Panel Builders: Compact I/O expansion where S7-200 CPU I/O count is insufficient for the application.
Engineering Advantages
- Plug-and-Play Expansion: Connects directly to S7-200 CPU via integrated expansion bus connector — no additional wiring harness required.
- Optocoupler Isolation: 500 VAC galvanic isolation between field-side outputs and logic bus protects CPU from field-side transients.
- Transistor Output Durability: Solid-state switching eliminates contact wear, enabling >10 million switching cycles at rated load.
- Compact Form Factor: 46 mm wide module minimizes panel real estate — critical in space-constrained enclosures.
- Removable Terminal Block: Field wiring remains intact during module replacement, reducing maintenance downtime.
- Wide Ambient Temperature Range: 0–55 °C operation supports installation in non-air-conditioned industrial environments.
- Multi-Certification: CE, UL, cUL, FM, and ATEX Zone 2 approvals satisfy global project compliance requirements.
System Architecture & Signal Flow
The 6ES7222-1BF22-0XA0 interfaces with the S7-200 CPU via the right-side expansion bus. The CPU writes output image data to the module over the internal bus at each scan cycle. Each of the 8 output channels passes through an optocoupler stage before driving a power transistor that switches the 24 VDC load supply to the field device. Short-circuit and overload protection is provided per output group. The module draws its logic power (5 VDC) from the CPU bus and requires a separate 24 VDC field supply for the output load circuit.
Compatible CPUs: S7-200 CPU 221, CPU 222, CPU 224, CPU 224XP, CPU 226 — all firmware versions.
Max Expansion Chain: Up to 7 expansion modules per CPU (subject to CPU bus current budget).
Sourcing & Quality Verification
- Authenticity: All units sourced through verified industrial distribution channels. Original SIEMENS packaging, holographic labels, and factory date codes intact.
- Incoming Inspection: Each module undergoes visual inspection, label verification, and functional power-on test prior to dispatch.
- Condition: New (factory-sealed) and refurbished (tested, warranted) stock available — specify at time of inquiry.
- Traceability: Batch records and factory date codes available on request for critical infrastructure projects.
- Warranty: 12-month warranty against manufacturing defects. DOA replacement within 7 business days.
Procurement Process
- Confirm Quantity & Condition: Contact us with required quantity and preferred condition (new / refurbished).
- Stock Verification: We confirm real-time availability and lead time within 24 hours.
- Quotation: Formal quotation issued with unit price, shipping cost, and estimated delivery.
- Order Placement: Purchase order or online checkout accepted. Proforma invoice available for bank transfer.
- Dispatch & Tracking: Ships within 1–3 business days. Full tracking number provided upon dispatch.
- After-Sales Support: Technical support and warranty claims handled by our engineering team.
Technical FAQ
Q: Is the 6ES7222-1BF22-0XA0 compatible with S7-200 SMART CPUs?
A: No. The EM222 expansion bus is specific to the classic S7-200 platform. For S7-200 SMART, the equivalent module is the EM DR08 or EM QT16 series.
Q: Can I mix EM222 output modules with EM221 input modules on the same CPU?
A: Yes. S7-200 supports mixed expansion chains. Ensure total bus current draw does not exceed the CPU’s 5 VDC bus budget.
Q: What is the maximum cable length from the module to field devices?
A: SIEMENS recommends ≤ 500 m for 24 VDC digital output wiring in shielded cable. Longer runs require voltage drop calculation.
Q: Does this module support diagnostics or fault reporting?
A: The EM222 provides basic short-circuit indication via LED. Advanced diagnostics require a higher-tier S7-300/400 platform.
Q: What is the difference between 6ES7222-1BF22-0XA0 and 6ES7222-1BF20-0XA0?
A: The -0XA0 suffix denotes the current production revision with updated EMC filtering. The -0XA0 is the recommended replacement for all earlier revisions.
