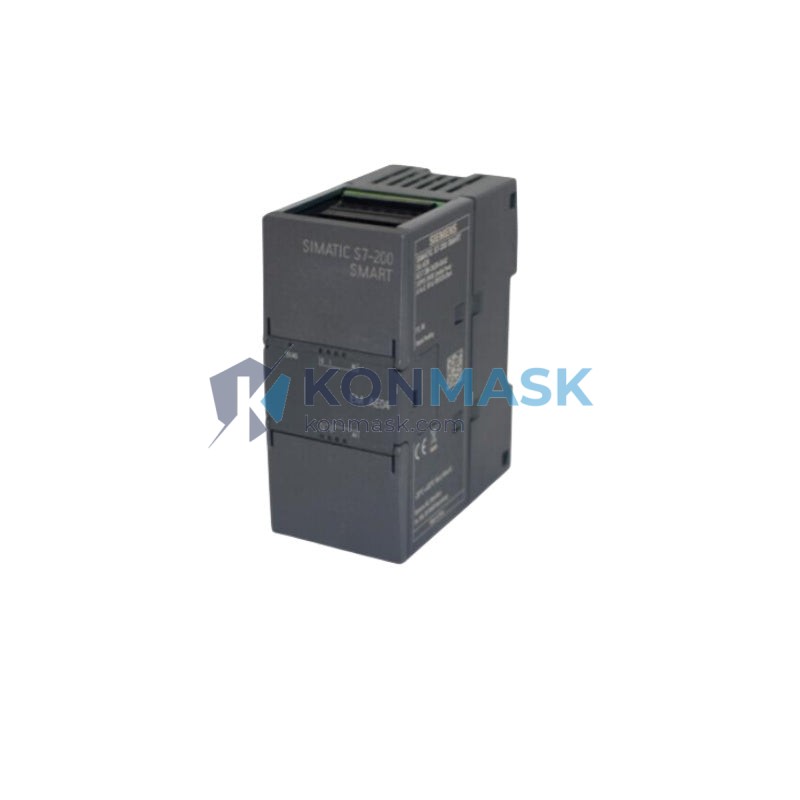

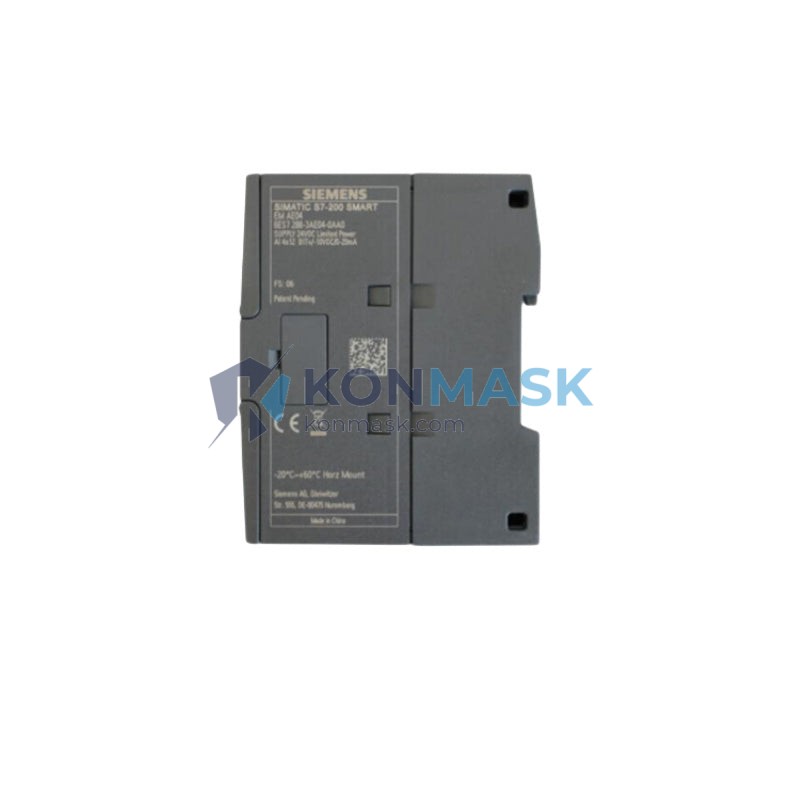

SIEMENS 6ES7288-3AE04-0AA0 Analog Input Module | Replacement, Equivalent & Selection Guide
The SIEMENS 6ES7288-3AE04-0AA0 is a 4-channel analog input expansion module designed for the S7-200 SMART PLC series. It accepts voltage and current signals, enabling precise process variable acquisition in industrial automation systems. This page provides full technical specifications, compatible replacement options, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 6ES7288-3AE04-0AA0 |
| Series | S7-200 SMART EM AE04 |
| Analog Input Channels | 4 × Analog Input |
| Input Signal Types | Voltage: ±10 V, ±5 V, ±2.5 V; Current: 0–20 mA, 4–20 mA |
| Resolution | 12-bit (voltage) / 11-bit (current) |
| Conversion Time | ≤ 625 µs per channel |
| Input Impedance (Voltage) | ≥ 9 MΩ |
| Input Impedance (Current) | 250 Ω |
| Isolation | 500 VAC (field side to logic side) |
| Supply Voltage | 24 VDC (via CPU or expansion bus) |
| Power Consumption | ≤ 2 W |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | −40 °C to +70 °C |
| Dimensions (W × H × D) | 45 mm × 100 mm × 81 mm |
| Weight | Approx. 192 g |
| Protection Rating | IP20 |
| Certifications | CE, UL, cULus |
Compatible Replacement & Equivalent Models
The following modules are functionally equivalent or drop-in replacements for the 6ES7288-3AE04-0AA0. Always verify firmware compatibility and wiring pinout before substitution.
| Model | Brand | Channels | Signal Type | Compatibility Note |
|---|---|---|---|---|
| 6ES7288-3AE04-0AA0 | Siemens (OEM) | 4AI | V / mA | Original — reference model |
| EM AE04 (3rd-party) | Compatible OEM | 4AI | V / mA | Direct pin-compatible clone; verify firmware rev. |
| 6ES7288-3AE08-0AA0 | Siemens | 8AI | V / mA | Expanded channel count; same bus interface |
| 6ES7288-3AR02-0AA0 | Siemens | 2AI RTD | RTD / TC | Temperature-specific; not a direct replacement |
| 6ES7288-3AT04-0AA0 | Siemens | 4AI TC | Thermocouple | Thermocouple variant; different signal conditioning |
Note: Third-party equivalents may differ in EMC performance and long-term reliability. Konmask.com supplies only verified-grade modules with traceability documentation.
Why Choose the Original Model
- Guaranteed S7-200 SMART compatibility — native bus communication, no firmware workarounds required.
- Siemens factory calibration — ±0.1% full-scale accuracy out of the box.
- Long-term support — spare parts and firmware updates available through Siemens TIA ecosystem.
- Certified for hazardous environments — CE, UL, cULus markings for global deployment.
- Proven field reliability — widely deployed in process, manufacturing, and building automation since 2014.
Typical Applications
- Process control: pressure, flow, level, and temperature signal acquisition (4–20 mA transmitters)
- HVAC systems: analog sensor integration for building management controllers
- Water treatment: pH, conductivity, and dissolved oxygen monitoring
- Food & beverage: weight and fill-level measurement via load cells and transducers
- Machine automation: servo drive feedback and position sensor interfacing
- Energy monitoring: current transformer (CT) signal logging
System Compatibility
| Compatible CPU | Max Expansion Modules | Bus Connection |
|---|---|---|
| CPU SR20 / ST20 | Up to 6 EM modules | Expansion bus ribbon cable |
| CPU SR30 / ST30 | Up to 6 EM modules | Expansion bus ribbon cable |
| CPU SR40 / ST40 | Up to 6 EM modules | Expansion bus ribbon cable |
| CPU SR60 / ST60 | Up to 6 EM modules | Expansion bus ribbon cable |
| CPU CR40 / CR60 | Not supported | — |
Programming: Configured via STEP 7-Micro/WIN SMART V2.4 or later. Supports analog I/O wizard for rapid channel setup.
Selection Guide
Use the decision matrix below to select the correct analog input module for your application:
| Requirement | Recommended Model |
|---|---|
| 4 channels, voltage/current (standard) | 6ES7288-3AE04-0AA0 ← This product |
| 8 channels, voltage/current (high density) | 6ES7288-3AE08-0AA0 |
| RTD / PT100 temperature measurement | 6ES7288-3AR02-0AA0 |
| Thermocouple (K, J, T, E, R, S, B types) | 6ES7288-3AT04-0AA0 |
| Mixed analog I/O (2AI + 1AO) | 6ES7288-3AM03-0AA0 |
| Budget-sensitive, non-critical application | Verified 3rd-party EM AE04 equivalent |
Quality Assurance & Sourcing
- Source: Authorized distribution channels and verified surplus stock with full traceability.
- Inspection: Each unit undergoes visual inspection, label verification, and functional power-on test before shipment.
- Documentation: Certificate of conformity, test report, and original packaging available on request.
- Anti-counterfeit: Holographic Siemens labels verified; serial numbers cross-checked against Siemens product database where applicable.
- Warranty: 12-month warranty against manufacturing defects from date of shipment.
How to Order
- Confirm your CPU model and available expansion slot count.
- Verify signal type (voltage vs. current) and channel count required.
- Add 6ES7288-3AE04-0AA0 to cart or contact us for bulk pricing.
- Provide your shipping address and preferred freight method at checkout.
- For urgent orders or large quantities, email support@konmask.com for a dedicated quote within 24 hours.
Lead Time: In-stock orders ship within 1–3 business days. Out-of-stock items: 7–15 business days depending on sourcing region.
Replacement & Compatibility FAQ
Q: Can I use a third-party EM AE04 clone instead of the original 6ES7288-3AE04-0AA0?
A: Yes, in most cases. Pin-compatible clones work with S7-200 SMART CPUs, but accuracy, EMC performance, and long-term reliability may vary. For critical process applications, the original Siemens module is recommended.
Q: Is the 6ES7288-3AE04-0AA0 compatible with the S7-200 (classic) series?
A: No. This module is designed exclusively for the S7-200 SMART series. The classic S7-200 uses a different expansion bus (EM 231 series).
Q: Can I mix AE04 and AE08 modules on the same CPU?
A: Yes, as long as the total number of expansion modules does not exceed 6 and the total analog I/O count stays within CPU limits.
Q: What software is required to configure this module?
A: STEP 7-Micro/WIN SMART V2.4 or later. The analog I/O wizard simplifies channel configuration.
Q: Do you provide a test report or certificate of conformity?
A: Yes. Documentation is available upon request for all orders. Contact support@konmask.com.
