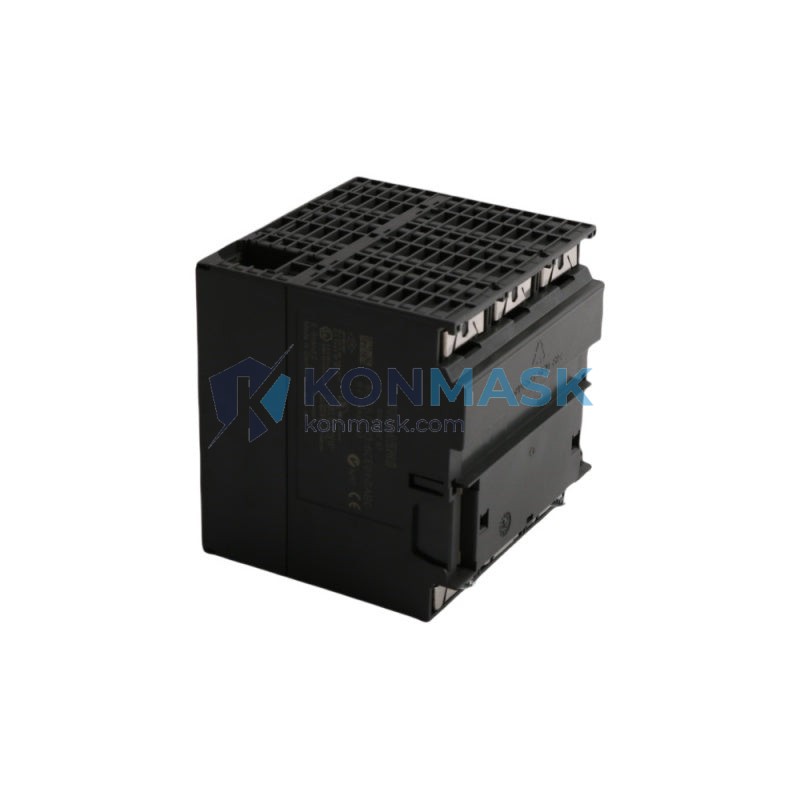

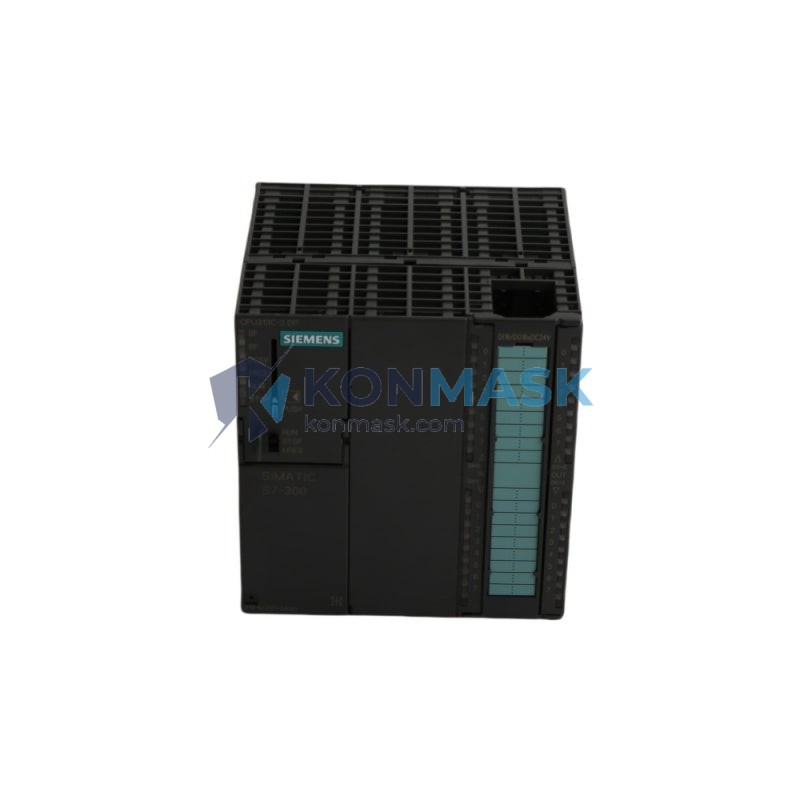

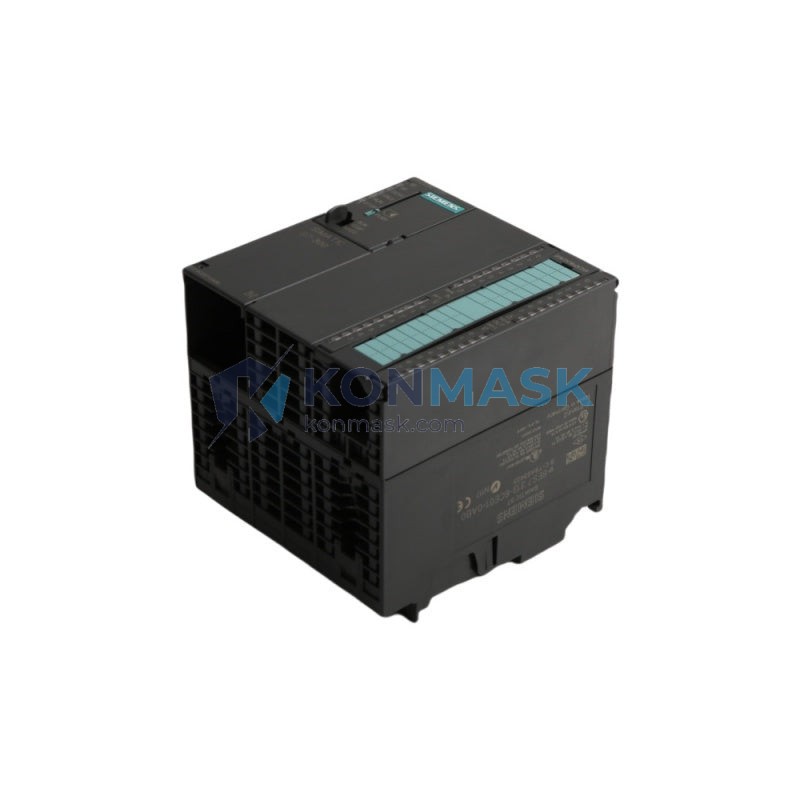

Siemens 6ES7313-6CE00-0AB0 CPU 313C-2 DP Compact CPU with MPI/DP | SIMATIC S7-300

Siemens 6ES7313-6CE00-0AB0 CPU 313C-2 DP Compact CPU with MPI/PROFIBUS-DP – SIMATIC S7-300 Series

When a production line loses its central processing unit, the consequences are immediate and severe: conveyor systems halt, robotic arms freeze mid-cycle, and entire manufacturing cells go dark. Every minute of unplanned downtime translates directly into lost output, missed delivery windows, and escalating maintenance costs. The Siemens 6ES7313-6CE00-0AB0 CPU 313C-2 DP is the critical intelligence at the heart of your SIMATIC S7-300 control system — without it, your automation infrastructure simply cannot function.

Within the SIMATIC S7-300 product family, the CPU 313C-2 DP occupies a well-established mid-range position, offering an integrated PROFIBUS-DP master/slave interface alongside onboard digital and analog I/O — making it a compact yet capable solution for distributed automation architectures. Trusted by engineers across automotive, food & beverage, chemical, and machinery manufacturing sectors worldwide, the 6ES7313-6CE00-0AB0 has been a cornerstone of Siemens’ global industrial automation portfolio for over two decades.

Technical Specifications

• Part Number / SKU: 6ES7313-6CE00-0AB0
• Product Family: SIMATIC S7-300
• CPU Type: Compact CPU with integrated I/O
• Communication Interface: MPI (Multi-Point Interface) + PROFIBUS-DP Master/Slave
• Integrated Digital Inputs: 16 DI (24 V DC)
• Integrated Digital Outputs: 16 DO (24 V DC, 0.5 A)
• Integrated Analog Inputs: 3 AI (12-bit resolution)
• Integrated Analog Outputs: 1 AO (12-bit resolution)
• Work Memory: 32 KB
• Load Memory: Expandable via MMC (Micro Memory Card)
• Processing Speed: 0.1 ms / 1000 binary instructions
• Max. Expandable I/O Modules: Up to 8 modules per rack
• Supply Voltage: 24 V DC
• Operating Temperature: 0 °C to +60 °C
• Protection Class: IP20
• Dimensions (W×H×D): 80 × 125 × 130 mm
• Weight: Approx. 580 g
• Certifications: CE, UL, cULus, ATEX (Zone 2)

Key Features & Benefits

• Integrated PROFIBUS-DP Interface: Eliminates the need for a separate CP module, reducing hardware costs and panel space while enabling direct connection to distributed I/O, drives, and field devices.
• Onboard I/O: 16 DI / 16 DO / 3 AI / 1 AO built-in, ideal for compact machine control without additional I/O expansion in many applications.
• High Processing Speed: 0.1 ms per 1000 binary instructions ensures fast scan cycles for time-critical control tasks.
• Scalable Memory via MMC: Micro Memory Card slot allows program storage and CPU parameter backup without battery dependency.
• Seamless STEP 7 Integration: Fully programmable via Siemens STEP 7 (v5.x) and compatible with TIA Portal migration paths.
• Robust Industrial Design: IP20 rated, DIN rail mountable, designed for 24/7 operation in demanding industrial environments.
• Wide Ecosystem Compatibility: Integrates natively with the full SIMATIC S7-300 I/O module range, HMI panels, and SCADA systems.

Industry & Equipment Applications

• Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, assembly station control
• Food & Beverage: Bottling lines, packaging machines, CIP (Clean-in-Place) systems
• Chemical & Pharmaceutical: Batch process control, reactor management, dosing systems
• Machinery & OEM Equipment: CNC machine tool integration, press control, material handling
• Water & Wastewater Treatment: Pump station control, filtration process automation
• Building Automation: HVAC control, energy management systems

System Integration & Compatible Parts

• Power Supply: 6ES7307-1BA01-0AA0 (PS 307, 5A) / 6ES7307-1EA01-0AA0 (PS 307, 10A)
• Rack: 6ES7390-1AE80-0AA0 (UR1, 18-slot) / 6ES7390-1AF30-0AA0 (UR2, 9-slot)
• Digital I/O Expansion: 6ES7321-1BH02-0AA0 (SM 321, 16 DI) / 6ES7322-1BH01-0AA0 (SM 322, 16 DO)
• Analog I/O Expansion: 6ES7331-7KF02-0AB0 (SM 331, 8 AI) / 6ES7332-5HB01-0AB0 (SM 332, 4 AO)
• Memory Card: 6ES7953-8LF31-0AA0 (MMC 4 MB)
• PROFIBUS Cable: 6XV1830-0EH10 (PROFIBUS bus cable, per meter)
• Programming Cable: 6ES7972-0CB20-0XA0 (PC Adapter USB)

Our Quality Assurance Process

At Konmask.com, every Siemens 6ES7313-6CE00-0AB0 unit we supply undergoes a rigorous multi-stage verification process before shipment:

• Authenticity Verification: Cross-referenced against Siemens factory serial number databases and holographic label inspection.
• Visual & Physical Inspection: Connector integrity, housing condition, label clarity, and firmware version confirmation.
• Functional Pre-check: Where applicable, units are powered up and communication interfaces are tested prior to dispatch.
• Secure Packaging: Anti-static ESD packaging with shock-absorbing foam inserts, ensuring safe transit for sensitive electronics.
• Documentation: Each shipment includes a product inspection report and, where available, original Siemens factory documentation.

How to Order

1. Submit your inquiry via the Contact Us form or email [email protected] with your required quantity and delivery timeline.
2. Our technical team will confirm availability, lead time, and provide a formal quotation within 24 business hours.
3. Upon order confirmation, we arrange secure packaging and dispatch with full tracking.
4. Post-delivery technical support is available for integration and commissioning queries.

Why Choose Konmask.com?

• Specialized Industrial Focus: We exclusively serve the industrial automation sector — PLC, DCS, HMI, drives, and field instrumentation.
• Global Supply Network: Sourcing from authorized distributors and verified surplus channels across Europe, Asia, and North America.
• Fast Response: Quotations within 24 hours, expedited shipping options available for urgent production needs.
• Technical Expertise: Our team includes experienced automation engineers who can advise on compatibility, substitution, and system integration.
• Secure Transactions: T/T, L/C, and other B2B payment terms available. All transactions documented with commercial invoices and packing lists.

Frequently Asked Questions

Q: Is the 6ES7313-6CE00-0AB0 still in production by Siemens?

A: The CPU 313C-2 DP (6ES7313-6CE00-0AB0) has been phased out of active production by Siemens. However, it remains widely available as new-old-stock (NOS) and refurbished units through authorized spare parts distributors. Konmask.com maintains stock from verified supply channels.

Q: What is the difference between 6ES7313-6CE00-0AB0 and 6ES7313-6CF03-0AB0?

A: The -0AB0 suffix denotes an earlier hardware revision, while -0CF03-0AB0 represents a later revision with potential firmware and minor hardware updates. Both are functionally compatible within the S7-300 ecosystem, but always verify your existing system’s firmware version before substitution.

Q: Can this CPU be programmed with TIA Portal?

A: The 6ES7313-6CE00-0AB0 is natively programmed using Siemens STEP 7 v5.x. While TIA Portal does not directly support S7-300 CPUs in the same way as S7-1500, migration tools within TIA Portal can assist in converting existing STEP 7 projects.

Q: What memory card is compatible with this CPU?

A: This CPU uses Siemens Micro Memory Cards (MMC). Compatible options include 6ES7953-8LF31-0AA0 (4 MB) and 6ES7953-8LG31-0AA0 (8 MB). Do not use standard SD cards — only Siemens-branded MMC cards are supported.

Q: Do you provide a warranty on this product?

A: Yes. All units supplied by Konmask.com carry a minimum 90-day warranty against defects in materials and workmanship. Extended warranty options are available upon request.

---
