Discrete Input Control Solution – Siemens 6ES7321-1BH02-0AA0 | SIMATIC S7-300 SM 321

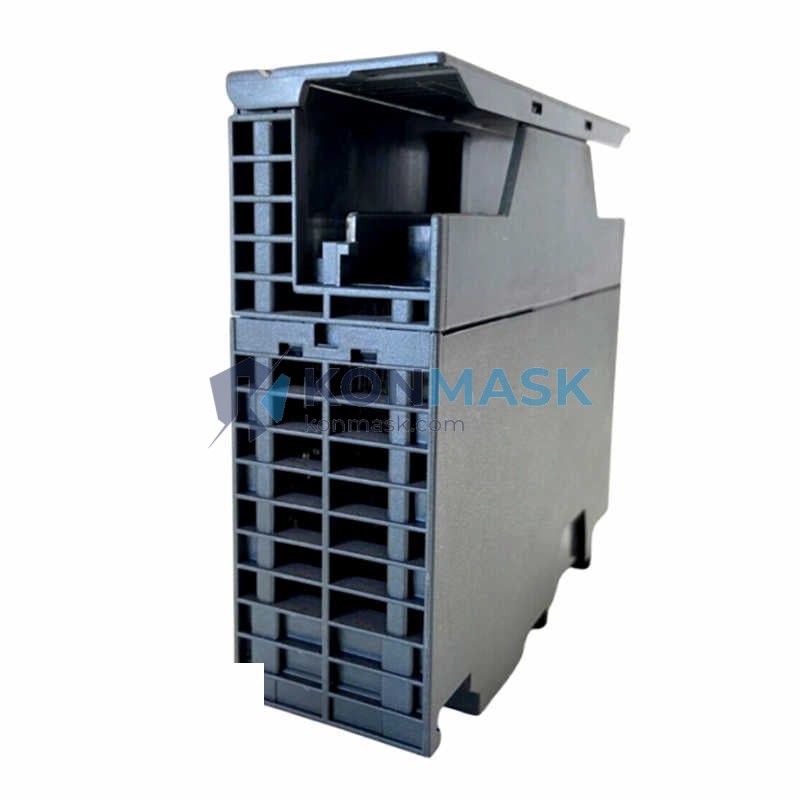

The Siemens 6ES7321-1BH02-0AA0 is a 16-channel, 24 VDC digital input module from the SIMATIC S7-300 SM 321 family — the industry benchmark for reliable field signal acquisition in process and discrete manufacturing automation. Designed for engineers who demand deterministic scan times, robust noise immunity, and seamless integration with the S7-300 backplane, this module is a foundational building block for control architectures across every major industrial vertical.
At Konmask.com, we supply this module to procurement engineers and system integrators worldwide, backed by full traceability, pre-shipment inspection, and technical support from our industrial automation specialists.
Where This Product Is Used
The 6ES7321-1BH02-0AA0 is specified across a broad range of industrial environments where 24 VDC discrete field signals must be acquired reliably and processed at PLC scan speed:
- Automotive Assembly Lines — Proximity sensor and limit switch inputs for body-in-white, welding, and paint shop conveyors; integrates with PROFIBUS-DP networks for distributed I/O architectures.
- Chemical & Petrochemical Plants — Process interlock and permissive logic inputs; paired with S7-300 CPU 315/317 in safety-instrumented system (SIS) support roles.
- Water & Wastewater Treatment — Pump run/fault feedback, valve position confirmation, and level switch inputs in SCADA-integrated PLC panels.
- Food & Beverage Processing — Conveyor jam detection, door interlock monitoring, and CIP cycle status inputs in hygienic production environments.
- Power Generation & Utilities — Breaker status, relay feedback, and alarm annunciation inputs in substation automation and turbine control panels.
- Machine Tool & Packaging OEM — High-density discrete input acquisition for servo-driven axes, safety curtains, and pneumatic actuator feedback.
- Building Automation & HVAC — Fan status, damper position, and fire/smoke detector inputs in BMS-integrated S7-300 controllers.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 6ES7321-1BH02-0AA0 |
| Module Type | SM 321 Digital Input Module |
| Compatible Platform | SIMATIC S7-300 |
| Number of Inputs | 16 channels |
| Input Voltage (Rated) | 24 VDC |
| Input Voltage Range (“1” signal) | 15 – 30 VDC |
| Input Voltage Range (“0” signal) | -3 – +5 VDC |
| Input Current (“1” signal) | Typ. 7 mA at 24 VDC |
| Input Delay (configurable) | 0.1 / 0.5 / 3 / 15 ms (parameterizable) |
| Galvanic Isolation | Yes — in groups of 16 |
| Backplane Bus Interface | S7-300 P-bus (parallel bus) |
| Connector Type | 40-pin front connector (not included) |
| Dimensions (W × H × D) | 40 × 125 × 120 mm |
| Weight | Approx. 250 g |
| Operating Temperature | 0 – 60 °C (horizontal), 0 – 40 °C (vertical) |
| Storage Temperature | -40 – +70 °C |
| Relative Humidity | 10 – 95% (non-condensing) |
| Degree of Protection | IP 20 |
| Power Consumption (backplane bus) | Max. 60 mA at 5 VDC |
| CE / UL / cULus | Yes |
| MTBF | > 1,000,000 hours (per Siemens SIMATIC reliability data) |
Why Engineers Specify This Model
- Parameterizable Input Delay — Four selectable filter times (0.1 ms to 15 ms) allow engineers to suppress contact bounce from mechanical switches without sacrificing response speed for solid-state sensors.
- Full Galvanic Isolation — The 16-channel group isolation protects the CPU and backplane from field-side transients, ground loops, and common-mode noise — critical in electrically noisy industrial environments.
- High Channel Density at Low Cost — 16 inputs in a single 40 mm slot width maximizes panel real estate and minimizes per-point cost versus lower-density alternatives.
- Universal 24 VDC Compatibility — Accepts the full IEC 61131-2 Type 1/3 input range, compatible with virtually all 24 VDC field devices: proximity sensors, limit switches, pushbuttons, and relay contacts.
- Hot-Swap Capable (with CPU support) — Supports module replacement without full system shutdown on compatible S7-300 CPUs, reducing maintenance downtime.
- STEP 7 & TIA Portal Integration — Fully supported in both STEP 7 V5.x and TIA Portal V13+, with hardware catalog entries, diagnostic blocks, and online/offline comparison tools.
- Proven 20+ Year Field Record — Deployed in millions of S7-300 installations globally; extensive third-party documentation, spare parts availability, and engineering community support.
Complete System Bill of Materials
For a complete S7-300 discrete input subsystem using the 6ES7321-1BH02-0AA0, the following components are typically required:
- CPU — e.g., 6ES7315-2AH14-0AB0 (CPU 315-2 DP) or 6ES7317-2EK14-0AB0 (CPU 317-2 PN/DP)
- Power Supply Module — e.g., 6ES7307-1EA01-0AA0 (PS 307, 5A, 24 VDC)
- Rack / Profile Rail — e.g., 6ES7390-1AE80-0AA0 (530 mm) or 6ES7390-1AF30-0AA0 (830 mm)
- Front Connector — 6ES7392-1BM01-0AA0 (40-pin screw-type) or 6ES7392-1BM01-1AB0 (spring-type)
- Digital Output Module (paired) — e.g., 6ES7322-1BH01-0AA0 (SM 322, 16DO, 24VDC/0.5A)
- Bus Connector — 6ES7390-0AA00-0AA0 (required between modules)
- PROFIBUS DP Cable & Connectors — 6XV1830-0EH10 + 6ES7972-0BA52-0XA0 (if DP network required)
- Labeling Strips — 6ES7392-2XX00-0AA0 (for front connector terminal identification)
Contact Konmask.com for complete BOM pricing and availability on all listed components.
Compliance & Industry Standards
- IEC 61131-2 — PLC hardware standard; input characteristics conform to Type 1 and Type 3 digital input specifications.
- CE Marking — Compliant with EU Low Voltage Directive (LVD) and EMC Directive; suitable for CE-marked machine and panel builds.
- UL / cULus Listed — Recognized for use in North American industrial control panels per UL 508A.
- ATEX / IECEx — Standard module is not ATEX-rated; for hazardous area applications, use with certified Ex barriers or specify Ex-rated I/O alternatives.
- RoHS Compliant — Manufactured in compliance with EU RoHS Directive 2011/65/EU (restriction of hazardous substances).
- EMC — Tested per EN 61000-4 series (ESD, EFT, surge, conducted/radiated immunity) and EN 55011 (emissions).
Quality Assurance & Sourcing
Every 6ES7321-1BH02-0AA0 unit supplied by Konmask.com undergoes a structured quality verification process before shipment:
- Visual Inspection — Housing integrity, label authenticity, connector pin condition, and firmware version label verification.
- Functional Pre-Test — Where applicable, modules are bench-tested against known-good S7-300 racks to confirm backplane communication and channel-level I/O response.
- Authenticity Screening — Serial number cross-reference against Siemens product databases; hologram and date-code verification to identify non-genuine parts.
- Packaging Integrity — Anti-static ESD packaging, moisture barrier bags, and shock-absorbing foam inserts for safe international transit.
- Documentation Package — Certificate of conformity, inspection report, and packing list provided with every shipment.
Konmask.com sources from authorized distribution channels, certified industrial surplus, and factory-refurbished stock — all clearly disclosed at point of sale. We do not supply counterfeit or unmarked-origin parts.
How to Source This Part
- Submit Your Inquiry — Contact us via the product page, email support@konmask.com, or WhatsApp/WeChat at +0086 19859288691 with your required quantity and delivery timeline.
- Receive Quotation — Our team will respond within 4 business hours with pricing, lead time, stock status, and available condition grades (new / refurbished / surplus).
- Order Confirmation — Confirm your purchase order with delivery address and preferred Incoterms (EXW, FOB, CIF, DDP available).
- Pre-Shipment Inspection — QA inspection completed and report issued before dispatch.
- Shipment & Tracking — Shipped via DHL / FedEx / UPS Express or sea freight for large orders; tracking number provided same day.
- After-Sales Support — 12-month warranty on new units; technical support available for integration questions.
Application-Specific FAQ
Q: Is the 6ES7321-1BH02-0AA0 compatible with S7-300 CPUs using PROFINET?
A: Yes. The SM 321 module communicates via the S7-300 backplane P-bus and is fully compatible with all S7-300 CPUs regardless of their communication interface (MPI, PROFIBUS DP, or PROFINET). The CPU handles network communication independently of the I/O modules.
Q: Can this module be used in a distributed I/O configuration via ET 200M?
A: Yes. The 6ES7321-1BH02-0AA0 is fully compatible with the ET 200M distributed I/O station (6ES7153-2BA02-0XB0 IM 153-2 interface module), allowing deployment on PROFIBUS DP or PROFINET networks remote from the CPU rack.
Q: What is the difference between 6ES7321-1BH02-0AA0 and 6ES7321-1BH50-0AA0?
A: Both are 16-channel 24 VDC SM 321 modules. The -1BH50 variant supports interrupt capability (process and diagnostic interrupts) and is required for applications where the CPU must respond to input edge events without polling. The -1BH02 is a standard polling-mode module suitable for the majority of discrete input applications.
Q: What front connector is required?
A: The 40-pin front connector 6ES7392-1BM01-0AA0 (screw terminals) or 6ES7392-1BM01-1AB0 (spring-clamp terminals) is required. Front connectors are sold separately and are reusable across module replacements.
Q: Can I mix 6ES7321-1BH02-0AA0 with S7-400 racks?
A: No. SM 321 modules are mechanically and electrically specific to the S7-300 backplane. For S7-400 systems, use the SM 421 family (e.g., 6ES7421-1BL01-0AA0).
Q: What is the maximum number of SM 321 modules per S7-300 rack?
A: Up to 8 signal modules can be installed per S7-300 rack (slots 4–11). With expansion racks (ER), up to 32 signal modules total can be addressed per CPU, depending on the CPU model’s I/O address space.
