SIEMENS 6ES7321-1BP00-0AA0 Digital Input Module | Replacement, Equivalent & Selection Guide

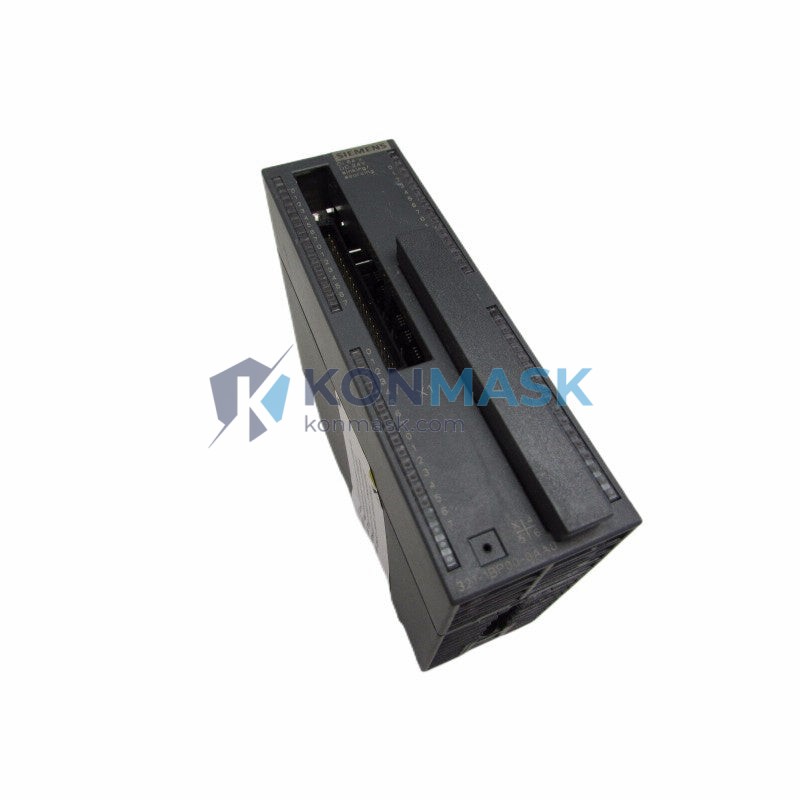

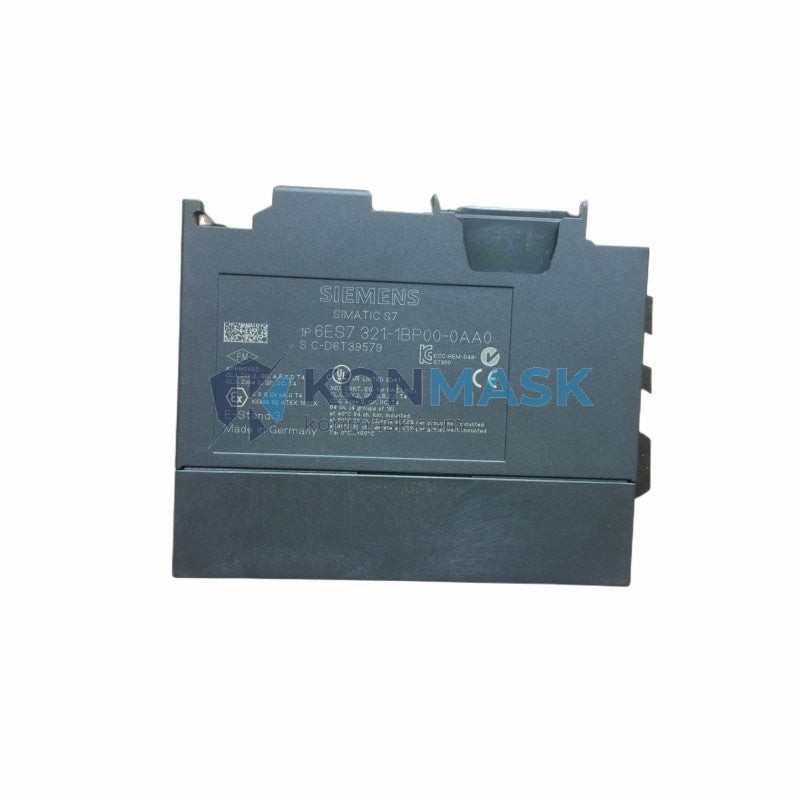

The SIEMENS 6ES7321-1BP00-0AA0 is a 32-channel 24 VDC digital input module designed for the SIMATIC S7-300 programmable logic controller (PLC) platform. This module is widely deployed in industrial automation, process control, and machine safety applications worldwide. Whether you are sourcing an original unit, evaluating a compatible replacement, or selecting the right module for a new project, this guide provides the technical depth and selection criteria you need.
Technical Specifications
- Part Number: 6ES7321-1BP00-0AA0
- Manufacturer: Siemens AG
- Product Family: SIMATIC S7-300
- Module Type: Digital Input (DI)
- Number of Inputs: 32 channels
- Input Voltage: 24 VDC
- Input Current (per channel): Approx. 7 mA at 24 VDC
- Signal Delay: 0.5 ms / 3 ms (configurable)
- Isolation: Optocoupler isolation between field and backplane bus
- Backplane Bus Interface: S7-300 standard backplane
- Connector Type: 40-pin front connector (not included)
- Dimensions (W×H×D): 40 mm × 125 mm × 120 mm
- Weight: Approx. 300 g
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Degree of Protection: IP20
- Certifications: CE, UL, cULus, ATEX (Zone 2)
- MLFB / Order Number: 6ES7321-1BP00-0AA0
Compatible Replacement & Equivalent Models
When the original 6ES7321-1BP00-0AA0 is unavailable or end-of-life, the following models are commonly evaluated as functional replacements. Always verify electrical and firmware compatibility before substitution.
- 6ES7321-1BH02-0AA0 — 16-channel 24 VDC DI; half the channel count, same S7-300 backplane. Suitable when only 16 inputs are required.
- 6ES7321-1BH50-0AA0 — 16-channel 24 VDC DI with diagnostics; adds per-channel wire-break detection.
- 6ES7321-1FF01-0AA0 — 8-channel 120/230 VAC DI; for AC field devices on the same rack.
- 6ES7321-1EL00-0AA0 — 32-channel 24 VDC DI with diagnostics; direct functional upgrade with added fault detection.
- Third-party equivalents: Certain third-party S7-300-compatible I/O modules (e.g., from Wago, Phoenix Contact, or Beckhoff with S7 protocol adapters) may serve as drop-in replacements in non-safety-critical applications. Consult your system integrator for validation.
Why Choose the Original Model
- Guaranteed compatibility with all S7-300 CPUs and STEP 7 / TIA Portal engineering software without additional configuration.
- Proven reliability in harsh industrial environments with Siemens’ full quality assurance and traceability.
- Long-term spare parts availability through authorized distributors and certified secondary-market suppliers like Konmask.com.
- Regulatory compliance: CE, UL, and ATEX certifications are pre-validated — no re-certification required for existing installations.
- Firmware and diagnostics consistency: Original modules maintain full STEP 7 hardware catalog compatibility, avoiding GSD/HSP workarounds.
Typical Applications
- Discrete manufacturing lines: conveyor control, press monitoring, part detection
- Building automation: HVAC status feedback, door/window sensors, occupancy inputs
- Water & wastewater treatment: pump status, valve position feedback, level switches
- Oil & gas: field device status monitoring in Zone 2 hazardous areas (with ATEX approval)
- Automotive assembly: robot cell interlocks, safety gate monitoring (non-SIL)
- Food & beverage: machine state monitoring, CIP cycle control inputs
System Compatibility
- PLC Platform: SIMATIC S7-300 (all CPU variants)
- Engineering Software: STEP 7 V5.x, TIA Portal V13 and above
- Rack: S7-300 standard rail (up to 8 modules per row, max 4 rows)
- Power Supply: PS 307 or equivalent S7-300 power supply module
- Not compatible with: S7-400, S7-1200, S7-1500 racks (different backplane bus)
- ET 200M compatibility: Can be used in ET 200M distributed I/O stations with IM 153-x interface modules
Selection Guide
Use the following criteria to determine whether the 6ES7321-1BP00-0AA0 is the right module for your application:
- Channel count needed: If you require exactly 32 DI channels on a single slot, this is the optimal choice. For 16 channels, consider 6ES7321-1BH02-0AA0.
- Voltage level: This module accepts 24 VDC signals only. For 120/230 VAC inputs, select 6ES7321-1FF01-0AA0.
- Diagnostics requirement: If per-channel wire-break or short-circuit diagnostics are required, upgrade to 6ES7321-1EL00-0AA0.
- Hazardous area: ATEX Zone 2 approved — suitable for gas-group IIC environments with appropriate enclosure.
- Budget vs. new: Certified refurbished units from Konmask.com offer significant cost savings (typically 30–60% vs. new) with full functional testing.
Quality Assurance & Sourcing
- All units sourced by Konmask.com undergo incoming inspection including visual check, firmware version verification, and functional I/O testing.
- Traceability documentation (batch records, test reports) available upon request for regulated industries.
- Units are stored in ESD-safe, climate-controlled warehouses to prevent electrostatic damage and humidity degradation.
- Counterfeit risk mitigation: Konmask.com sources exclusively from verified industrial surplus channels and authorized distributors — no gray-market or unverified sources.
- Warranty: 12-month functional warranty on all tested units.
How to Order
- Online: Add to cart directly on this page. Bulk pricing available for orders of 5+ units — contact us for a quote.
- Email: support@konmask.com — include your part number, required quantity, and delivery timeline.
- Phone/WhatsApp: +0086 19859288691 — available Monday–Friday, 09:00–18:00 CST.
- Lead time: In-stock units ship within 1–3 business days. Out-of-stock items: 5–15 business days depending on sourcing.
- Export: We support international orders with commercial invoice, packing list, and certificate of origin documentation.
Replacement & Compatibility FAQ
Q: Can I replace 6ES7321-1BP00-0AA0 with 6ES7321-1EL00-0AA0 directly?
A: Yes, the 6ES7321-1EL00-0AA0 is a functional superset — it adds diagnostics but is electrically and mechanically compatible. You will need to update the hardware configuration in STEP 7 or TIA Portal.
Q: Is this module compatible with S7-1500?
A: No. The S7-300 backplane bus is not compatible with S7-1500 racks. For S7-1500, use the ET 200MP I/O family (e.g., 6ES7521-1BL00-0AB0).
Q: Can I use this module in an ET 200M station?
A: Yes, with an IM 153-1 or IM 153-2 interface module, the 6ES7321-1BP00-0AA0 can be used in a distributed ET 200M I/O station over PROFIBUS DP.
Q: What front connector do I need?
A: The 40-pin front connector (e.g., 6ES7392-1AM00-0AA0) is required and sold separately. Screw-type or spring-type variants are available.
Q: Do you provide test reports for refurbished units?
A: Yes. Functional test reports are available upon request. Contact support@konmask.com with your order number.
Q: What is the difference between -0AA0 and other suffix variants?
A: The suffix -0AA0 denotes the standard version without special options. Other suffixes may indicate conformal coating, extended temperature, or regional certification variants — always verify the full MLFB when ordering.
