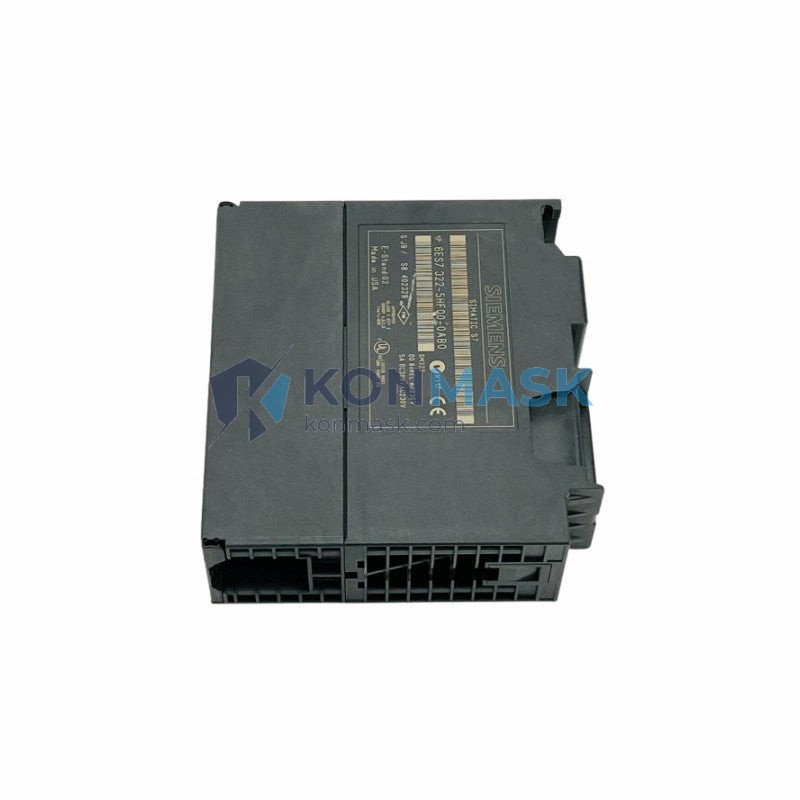

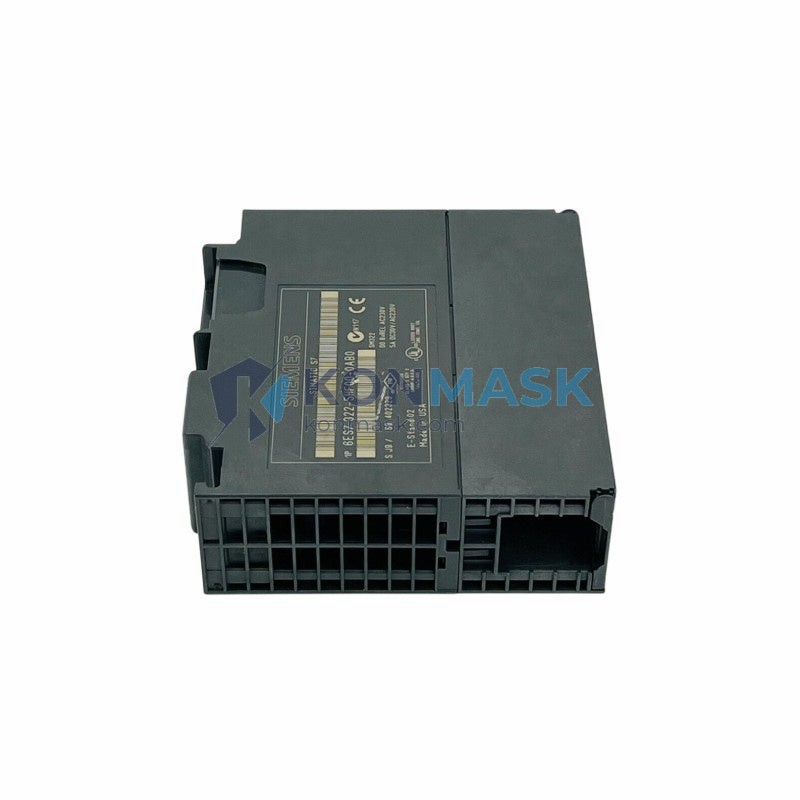

Genuine SIEMENS 6ES7322-5HF00-0AB0 Digital Output Module | S7-300 Series – Verified Source
Konmask.com is a dedicated industrial automation components supplier specializing in genuine SIEMENS SIMATIC S7-300 series hardware. The 6ES7322-5HF00-0AB0 is a 16-channel digital output module designed for demanding industrial control environments. Every unit we ship passes our 4-step verification process before dispatch.
Technical Specifications
- Part Number: 6ES7322-5HF00-0AB0
- Series: SIMATIC S7-300
- Module Type: Digital Output (DO)
- Number of Outputs: 16 channels
- Output Voltage: 24 VDC
- Output Current per Channel: 0.5 A
- Total Current (all channels): 4 A
- Output Type: Transistor (sourcing)
- Isolation: Optocoupler isolation between field and backplane
- Backplane Bus: S7-300 standard backplane
- Dimensions (W×H×D): 40 × 125 × 120 mm
- Weight: Approx. 350 g
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Degree of Protection: IP20
- Standards: CE, UL, cULus
Our 4-Step Quality Verification Process
Every 6ES7322-5HF00-0AB0 unit sold through Konmask.com undergoes the following verification before shipment:
- Step 1 — Source Authentication: Units are procured exclusively from authorized distributors or verified OEM surplus channels. Supplier credentials are documented and on file.
- Step 2 — Physical Inspection: Label integrity, housing condition, connector pins, and firmware version stickers are inspected against SIEMENS factory standards.
- Step 3 — Functional Bench Test: Each module is powered up and output channel continuity is verified using calibrated test equipment prior to packaging.
- Step 4 — Packaging & Documentation Check: Units are repackaged in anti-static ESD bags with a Konmask inspection certificate enclosed. Original documentation is included where available.
Key Features & Benefits
- ✅ Genuine SIEMENS hardware — not counterfeit, not refurbished without disclosure
- ✅ 16 independent transistor outputs for high-density I/O configurations
- ✅ Optocoupler isolation protects the CPU from field-side faults
- ✅ Hot-swap compatible with S7-300 racks (with appropriate CPU configuration)
- ✅ Low heat dissipation — suitable for compact panel installations
- ✅ Plug-and-play with STEP 7 and TIA Portal hardware configuration
- ✅ Diagnostic interrupt capable — supports wire-break and short-circuit detection
Typical Applications
- Solenoid valve control in fluid power systems
- Conveyor belt drive enable/disable signaling
- Indicator lamp and HMI signal output
- Relay coil driving in motor control centers (MCC)
- Actuator control in packaging and filling lines
- Output expansion for existing S7-300 CPU racks
- Replacement module for maintenance and MRO procurement
Compatible System Components
- CPUs: SIMATIC S7-300 series (CPU 312, 313, 314, 315, 316, 317, 319)
- Racks: UR1, UR2, ER1, ER2 expansion racks
- Power Supplies: PS 307 (2A / 5A / 10A)
- Interface Modules: IM 360 / IM 361 (for multi-rack configurations)
- Programming Software: STEP 7 V5.x, TIA Portal V13 and above
- Front Connectors: 6ES7392-1BM01-0AA0 (40-pin)
Global Sourcing & Shipping Capabilities
- Stock Location: Mainland China (Fujian Province) with bonded warehouse access
- Lead Time: In-stock orders ship within 1–3 business days
- Domestic Shipping (China): SF Express, JD Logistics — 1–3 days
- International Shipping: DHL Express, FedEx International Priority, UPS Worldwide — 3–7 business days to most destinations
- Export Documentation: Commercial invoice, packing list, and certificate of origin available upon request
- Customs Support: HS Code 8537.10 — we can assist with customs declaration documentation
- Minimum Order Quantity: 1 unit (bulk pricing available for orders of 5+ units)
Certifications & Compliance Statement
- CE Marking: Compliant with EU Low Voltage Directive and EMC Directive
- UL / cULus Listed: Recognized for use in North American industrial installations
- RoHS Compliant: Meets EU Directive 2011/65/EU on restriction of hazardous substances
- SIEMENS Factory Standards: All units conform to original SIEMENS manufacturing specifications
Konmask.com does not manufacture, modify, or rebrand SIEMENS products. We are an independent reseller of genuine SIEMENS industrial automation components.
How to Order
-
Confirm your part number: Verify
6ES7322-5HF00-0AB0matches your existing hardware or STEP 7 hardware catalog entry. - Select quantity and add to cart. For orders of 5+ units, contact us for volume pricing.
- Checkout: We accept T/T bank transfer, PayPal, and major credit cards. LC available for orders above USD 5,000.
- Receive tracking: A shipping confirmation with tracking number is sent within 24 hours of dispatch.
- Inspect on arrival: If any unit fails to meet expectations, contact us within 7 days for resolution.
Authenticity & Trust FAQ
Q: Are these genuine SIEMENS products?
A: Yes. All units are sourced from authorized distributors or verified OEM surplus channels. We do not sell counterfeit or unauthorized replicas.
Q: Can you provide a certificate of authenticity?
A: We provide a Konmask inspection certificate with every shipment. For large orders, we can arrange third-party inspection (SGS, BV) at buyer’s cost.
Q: What is your return policy?
A: We accept returns within 30 days for DOA (Dead on Arrival) units. Units must be returned in original packaging with the inspection certificate intact.
Q: Do you offer a warranty?
A: Yes — 12 months from date of shipment against manufacturing defects. This does not cover damage from incorrect installation or electrical overstress.
Q: Can I request a sample before placing a bulk order?
A: Yes. Sample orders (1–2 units) are available at standard pricing. Contact us to discuss bulk pricing after sample evaluation.
Q: What if the part number I need is not listed?
A: Contact us at support@konmask.com — we maintain an extensive sourcing network for SIEMENS S7-300, S7-400, S7-1200, S7-1500, and SINAMICS product lines.
