Genuine SIEMENS 6ES7332-5HB01-0AB0 Analog Output Module | S7-300 Series – Verified Source

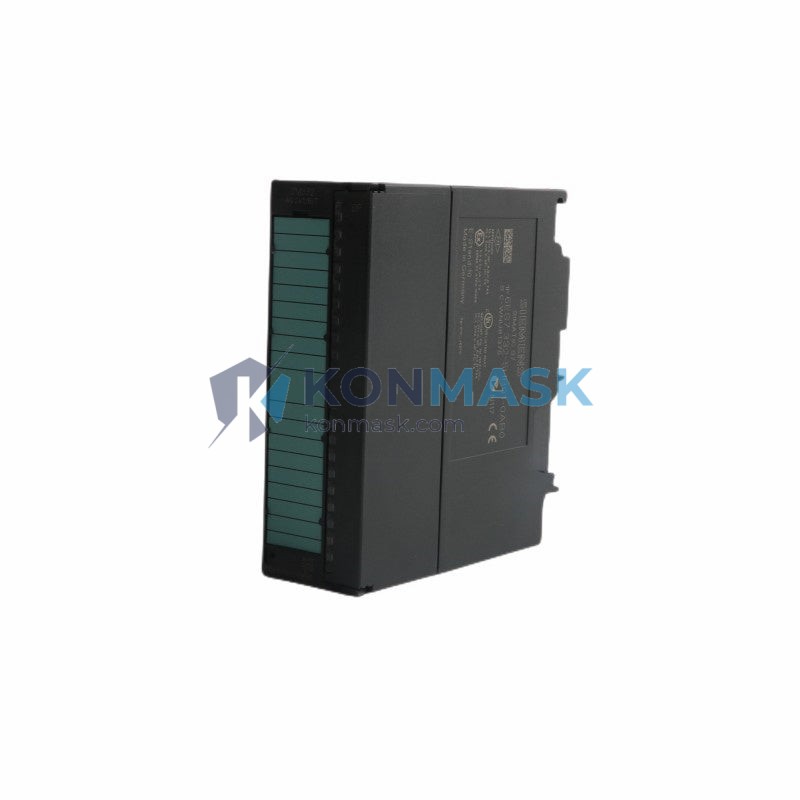

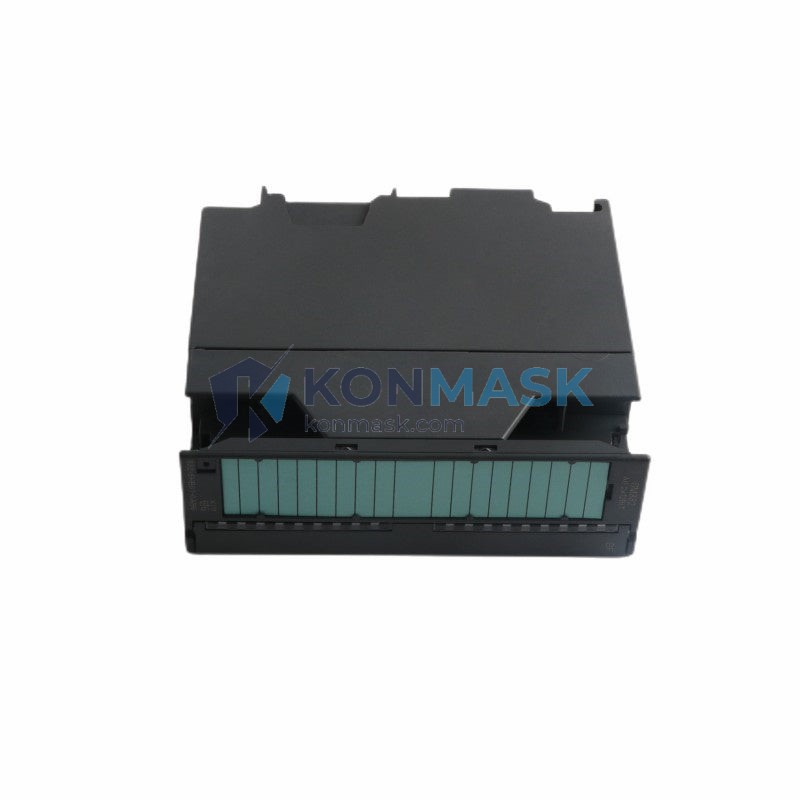

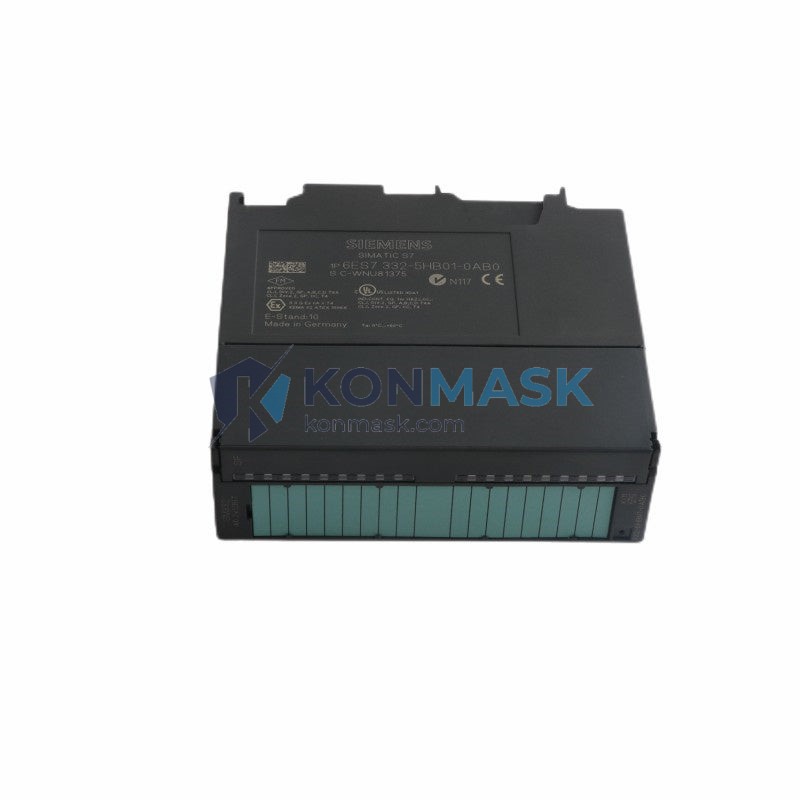

The SIEMENS 6ES7332-5HB01-0AB0 is an 8-channel analog output module designed for the SIMATIC S7-300 programmable logic controller platform. At Konmask.com, every unit we supply is sourced through verified channels and undergoes our rigorous 4-step quality verification process before shipment — giving industrial buyers the confidence they need when sourcing critical automation components.
Technical Specifications
- Part Number: 6ES7332-5HB01-0AB0
- Manufacturer: SIEMENS (SIMATIC S7-300 Series)
- Module Type: Analog Output Module (SM 332)
- Number of Outputs: 8 channels
- Output Signal Types: ±10 V, 1–5 V, 0–20 mA, 4–20 mA (configurable per channel)
- Resolution: 11-bit + sign
- Load Impedance (Voltage): ≥ 1 kΩ
- Load Impedance (Current): ≤ 500 Ω
- Supply Voltage: DC 24 V (via backplane bus)
- Power Consumption: Approx. 4.5 W
- Dimensions (W × H × D): 40 × 125 × 120 mm
- Weight: Approx. 200 g
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Protection Class: IP 20
- Certifications: CE, UL, cULus, ATEX (Zone 2)
Our 4-Step Quality Verification Process
Every 6ES7332-5HB01-0AB0 unit shipped from Konmask.com passes through the following verification stages:
- Step 1 – Source Authentication: We trace each unit back to its original manufacturer batch or authorized distributor record. No grey-market or unverifiable stock is accepted.
- Step 2 – Physical Inspection: Trained technicians inspect housing integrity, label authenticity, connector condition, and firmware version markings against SIEMENS factory standards.
- Step 3 – Functional Bench Test: Each module is powered up and output channels are verified against rated specifications using calibrated test equipment.
- Step 4 – Packaging & Documentation Review: Units are repackaged in anti-static ESD-safe materials with original or equivalent documentation. A Konmask inspection certificate is included with every shipment.
Key Features & Benefits
- 8 independently configurable analog output channels — voltage or current selectable per channel
- High-resolution 11-bit + sign output for precise process control
- Seamless integration with SIMATIC S7-300 CPU and ET 200M distributed I/O
- Parameterizable via STEP 7 or TIA Portal (with legacy support)
- Diagnostic interrupt capability for rapid fault detection
- Compact 40 mm wide housing — space-efficient for dense panel installations
- Proven reliability in continuous 24/7 industrial environments
Typical Applications
- Process control loops (PID) in chemical, pharmaceutical, and food & beverage plants
- Drive speed reference signals for variable frequency drives (VFDs)
- Valve positioner control in oil & gas and water treatment facilities
- Temperature setpoint transmission to PID controllers and heaters
- Pressure and flow regulation in utilities and HVAC systems
- Machine tool and robotics axis control interfaces
Compatible System Components
- CPUs: S7-300 CPU 312 / 314 / 315 / 317 / 319 series
- Racks: SIMATIC S7-300 standard rail (DIN rail mounting)
- Power Supplies: PS 307 (2A / 5A / 10A)
- Interface Modules: IM 360 / IM 361 (for multi-rack expansion)
- Distributed I/O: ET 200M with IM 153-x interface modules
- Programming Software: STEP 7 V5.x, TIA Portal V13 SP1 and above
- Front Connectors: 6ES7392-1BM01-0AA0 (20-pin)
Global Sourcing & Shipping Capabilities
- Stock Availability: In-stock units typically ship within 1–3 business days
- Lead Time (Special Orders): 5–15 business days depending on quantity and origin
- Shipping Regions: Worldwide — Asia-Pacific, Europe, Middle East, Americas, Africa
- Carriers: DHL Express, FedEx International Priority, UPS Worldwide, SF Express
- Export Compliance: All shipments comply with applicable export control regulations (ECCN / HS Code classification available on request)
- Customs Documentation: Commercial invoice, packing list, certificate of origin, and inspection certificate provided as standard
- Minimum Order Quantity: 1 unit (bulk pricing available for orders of 5+ units)
Certifications & Compliance Statement
The SIEMENS 6ES7332-5HB01-0AB0 is manufactured in compliance with the following standards and directives:
- CE Marking: EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- UL / cULus Listed: UL 508 (Industrial Control Equipment)
- ATEX: II 3 G Ex nA IIC T4 Gc (Zone 2 hazardous area use)
- IEC 61131-2: Programmable Controllers — Equipment Requirements and Tests
- RoHS Compliant: Directive 2011/65/EU
Konmask.com does not alter, modify, or re-label any components. All units are supplied as-manufactured by SIEMENS or sourced from verified supply chains maintaining original compliance status.
How to Order
- Online: Add to cart directly on this product page and proceed to checkout
- Email RFQ: Send your part number, quantity, and required delivery date to support@konmask.com
- Phone / WhatsApp: +0086 19859288691 (Monday–Saturday, 09:00–18:00 CST)
- Bulk / Project Orders: Contact us for volume pricing, blanket orders, and project-based supply agreements
- Payment Terms: T/T (Bank Transfer), PayPal, Credit Card via Shopify Payments; Net-30 available for qualified accounts
Authenticity & Trust FAQ
Q: How do I know the module is genuine SIEMENS?
A: Every unit passes our 4-step verification process. We provide a Konmask inspection certificate and can supply traceability documentation upon request.
Q: Do you offer a warranty?
A: Yes. We offer a 12-month warranty against manufacturing defects. DOA (Dead on Arrival) units are replaced or refunded within 30 days of receipt.
Q: Can I return the product if it doesn’t match my application?
A: Unused, unopened units may be returned within 14 days. Please contact support@konmask.com to initiate a return authorization.
Q: Are you an authorized SIEMENS distributor?
A: Konmask.com is an independent specialist supplier of industrial automation components. We source from verified channels and stand behind every unit we sell with our quality guarantee.
Q: Can you provide a datasheet or wiring diagram?
A: Yes. Contact us at support@konmask.com and we will provide the official SIEMENS datasheet and installation guide for the 6ES7332-5HB01-0AB0.
