Siemens 6ES7331-7KB01-0AB0 8-Channel Analog Input Module | Replacement, Equivalent & Selection Guide

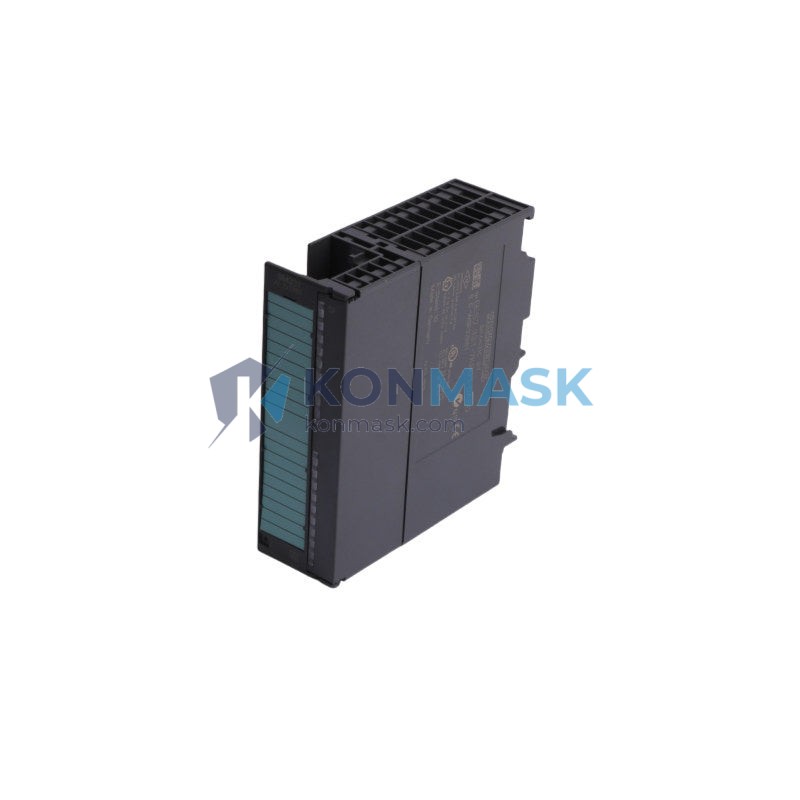

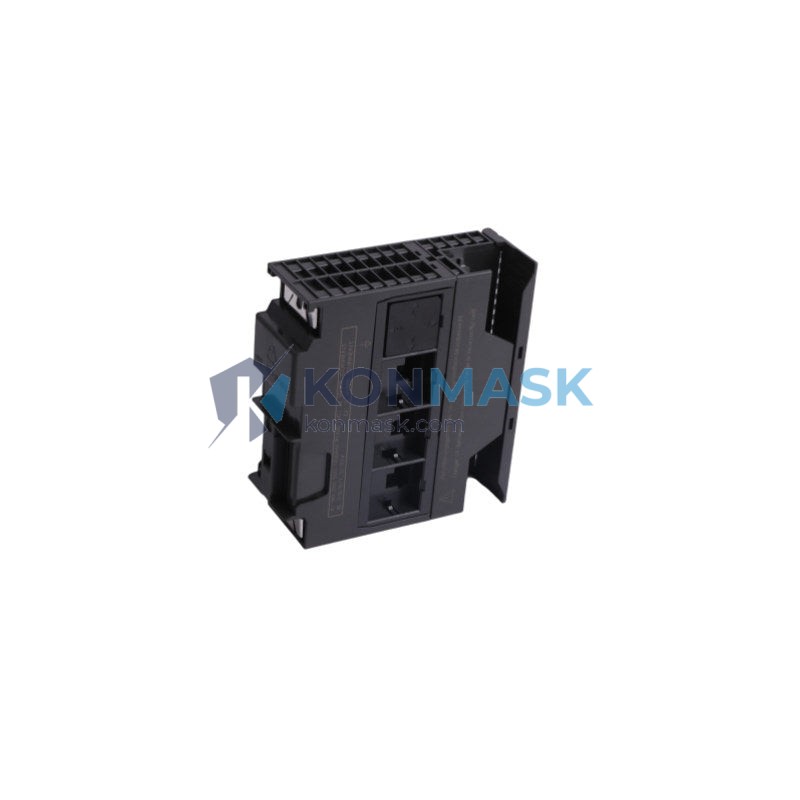

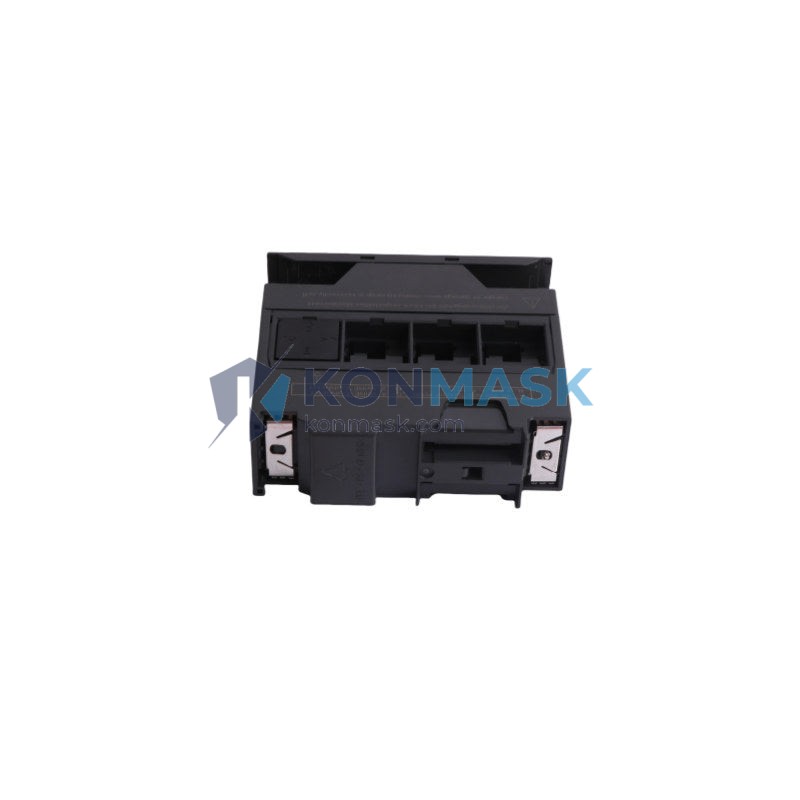

The Siemens 6ES7331-7KB01-0AB0 (SM 331) is an 8-channel analog input module for the SIMATIC S7-300 programmable logic controller family. Designed for high-precision process signal acquisition, it supports a wide range of voltage, current, resistance, and thermocouple inputs — making it a cornerstone component in industrial automation and process control systems.
At Konmask.com, we supply genuine and compatible alternatives for this module, backed by rigorous sourcing standards and technical verification.
Technical Specifications
- Part Number: 6ES7331-7KB01-0AB0
- Series: SIMATIC S7-300 / SM 331
- Manufacturer: Siemens AG
- Module Type: Analog Input Module (AI)
- Number of Channels: 8 (configurable in groups of 2)
- Input Types: Voltage (±10 V, ±5 V, ±2.5 V, 1–5 V), Current (0–20 mA, 4–20 mA, ±20 mA), Resistance (0–600 Ω), Thermocouple (Type B, C, E, J, K, L, N, R, S, T, U)
- Resolution: Up to 15 bits + sign
- Conversion Time: 52 ms per channel (at 50 Hz integration time)
- Isolation: Galvanically isolated between channels and backplane bus
- Supply Voltage: 24 V DC (via backplane bus)
- Dimensions (W×H×D): 40 × 125 × 120 mm
- Weight: Approx. 200 g
- Operating Temperature: 0 °C to +60 °C
- Protection Class: IP 20
- Certifications: CE, UL, cULus, FM, ATEX (Zone 2)
Compatible Replacement & Equivalent Models
If the 6ES7331-7KB01-0AB0 is unavailable or you are evaluating alternatives, the following models offer compatible or equivalent functionality:
- 6ES7331-7KF02-0AB0 — SM 331, 8 AI, higher resolution (16-bit), same S7-300 form factor; direct functional upgrade
- 6ES7331-7NF10-0AB0 — SM 331, 8 AI with HART communication support; suitable for smart field devices
- 6ES7331-7PF11-0AB0 — SM 331, 8 AI, high-speed version with 1 ms conversion time
- 6ES7331-1KF02-0AB0 — SM 331, 8 AI, basic version for cost-sensitive applications
- 6ES7331-7RD00-0AB0 — SM 331, 4 AI, for applications requiring fewer channels
- Third-party equivalents: Certain Phoenix Contact and Wago S7-300 compatible analog input modules may serve as drop-in replacements in non-safety-critical applications — contact us for compatibility verification.
Why Choose the Original 6ES7331-7KB01-0AB0
- ✅ Proven reliability in continuous process environments (chemical, oil & gas, water treatment)
- ✅ Native STEP 7 / TIA Portal integration — zero additional configuration overhead
- ✅ Galvanic isolation protects against ground loops and electrical noise
- ✅ Flexible input parameterization per channel group — voltage, current, TC, and RTD in one module
- ✅ Long-term Siemens spare parts availability through authorized distribution channels
Typical Applications
- Temperature monitoring via thermocouple or RTD inputs in furnace and HVAC systems
- Pressure and flow signal acquisition (4–20 mA transmitters) in process plants
- Level measurement in tanks and silos
- Motor drive feedback and speed control loops
- Batch process control in food, beverage, and pharmaceutical manufacturing
- Building automation and energy management systems
System Compatibility
- PLC Platform: SIMATIC S7-300 (all CPU variants)
- Programming Software: SIMATIC STEP 7 V5.x, TIA Portal V13 and above
- Backplane: S7-300 standard rail (DIN rail mounting)
- Bus Connector: Required (order separately: 6ES7390-0AA00-0AA0)
- Not compatible with: S7-400, S7-1200, S7-1500 (different backplane architecture)
Selection Guide
Use the table below to select the right SM 331 analog input module for your application:
| Requirement | Recommended Model |
|---|---|
| Standard 8-channel AI, multi-signal type | 6ES7331-7KB01-0AB0 ✅ (this product) |
| Higher resolution (16-bit) needed | 6ES7331-7KF02-0AB0 |
| HART-enabled field devices | 6ES7331-7NF10-0AB0 |
| High-speed acquisition (<1 ms) | 6ES7331-7PF11-0AB0 |
| Budget-sensitive, basic signals only | 6ES7331-1KF02-0AB0 |
| Fewer channels (4 AI) | 6ES7331-7RD00-0AB0 |
Quality Assurance & Sourcing
- All modules are sourced from authorized Siemens distributors or verified secondary-market suppliers with full traceability
- Each unit undergoes visual inspection, label verification, and functional pre-check before dispatch
- Counterfeit-prevention measures: hologram label verification, firmware version cross-check
- Packaging: original Siemens anti-static packaging where available; ESD-safe packaging for all units
- Warranty: 12-month replacement warranty on all stocked units
How to Order
- Add 6ES7331-7KB01-0AB0 to cart and proceed to checkout
- For bulk orders (>5 units) or urgent requirements, contact us directly for lead time and pricing
- Provide your project BOM or system configuration for compatibility verification (free service)
- International shipping available — DHL, FedEx, UPS with full customs documentation
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I replace 6ES7331-7KB01-0AB0 with 6ES7331-7KF02-0AB0 directly?
A: Yes. The 7KF02 is a functional upgrade with higher resolution and is backward-compatible in the same slot. No hardware modification required; only minor STEP 7 parameter adjustment needed.
Q: Is this module compatible with TIA Portal?
A: Yes, it is supported in TIA Portal V13 and later via the HSP (Hardware Support Package) for legacy S7-300 modules.
Q: What is the difference between 7KB01 and 7KF02?
A: The 7KB01 offers 15-bit + sign resolution; the 7KF02 offers 16-bit resolution and slightly faster conversion. Both support the same input signal types.
Q: Can this module be used in a fail-safe (F) system?
A: No. For safety-instrumented systems, use the SM 336 series (e.g., 6ES7336-4GE00-0AB0) which is F-rated.
Q: Do you supply new, refurbished, or surplus units?
A: We supply new-in-box (NIB), factory-refurbished, and tested surplus units. Condition is clearly stated on each listing. Contact us if you need a specific condition.
