Siemens 6ES7332-5HF00-0AB0 8-Channel Analog Output Module | Replacement, Equivalent & Selection Guide

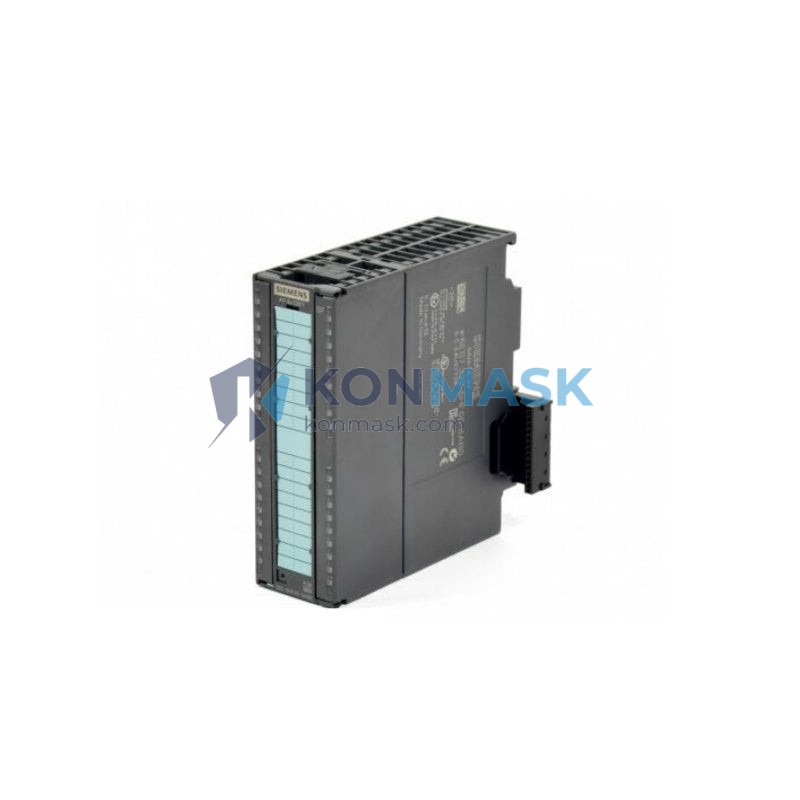

The Siemens 6ES7332-5HF00-0AB0 is an 8-channel analog output module designed for the SIMATIC S7-300 programmable logic controller platform. It delivers high-resolution current and voltage outputs for precise process control in industrial automation systems. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make informed decisions.
Technical Specifications
- Part Number: 6ES7332-5HF00-0AB0
- Series: SIMATIC S7-300
- Module Type: Analog Output (SM 332)
- Number of Outputs: 8 channels
- Output Range (Current): 0–20 mA / 4–20 mA / ±20 mA
- Output Range (Voltage): 0–10 V / ±10 V / 1–5 V
- Resolution: 12 bits
- Supply Voltage: DC 24 V
- Current Consumption (backplane bus): 60 mA
- Current Consumption (24 V DC): Max. 200 mA (no load)
- Isolation: Galvanically isolated between channels and backplane
- Dimensions (W×H×D): 80 × 125 × 120 mm
- Weight: Approx. 600 g
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- HS Code: 8537.10
- Country of Origin: Germany
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or alternatives to the 6ES7332-5HF00-0AB0. Always verify electrical and software compatibility before substitution.
- 6ES7332-5HD01-0AB0 – SM 332, 4-channel analog output; suitable when fewer channels are required
- 6ES7332-5HB01-0AB0 – SM 332, 2-channel analog output; compact alternative for low-channel applications
- 6ES7332-8TF01-0AB0 – SM 332 with HART protocol support; drop-in upgrade for HART-enabled field devices
- 6ES7532-5HF00-0AB0 – ET 200MP equivalent for distributed I/O architectures (S7-1500 compatible)
- Third-party equivalents: Certain compatible modules from Vipa (e.g., 332-5HF00) may be evaluated; confirm firmware and GSD file compatibility with your CPU version
Note: Konmask.com supplies genuine Siemens modules. Third-party equivalents are listed for reference only.
Why Choose the Original Model
- Guaranteed compatibility with all S7-300 CPUs (314, 315, 317, 319 series) without additional configuration
- Siemens STEP 7 & TIA Portal native support — no custom GSD or driver files required
- Galvanic isolation on all 8 channels reduces ground loop interference in sensitive process environments
- Proven reliability in continuous 24/7 industrial operation across chemical, automotive, and energy sectors
- Full Siemens warranty and long-term spare parts availability through authorized channels
Typical Applications
- Valve positioner control (4–20 mA setpoint output)
- Variable frequency drive (VFD) speed reference signals
- Process temperature and pressure setpoint transmission
- Proportional hydraulic and pneumatic valve control
- Batch process control in chemical and pharmaceutical plants
- Conveyor and motion control systems requiring multi-axis analog output
System Compatibility
- PLC Platform: SIMATIC S7-300 (all standard CPUs)
- Programming Software: SIMATIC STEP 7 V5.x, TIA Portal V13 and above (via legacy module support)
- Backplane Bus: S7-300 standard rail, compatible with IM 360/361 expansion
- Power Supply: PS 307 / PS 305 series or equivalent 24 V DC rail
- Not compatible with: S7-200, S7-400, S7-1200, or S7-1500 backplanes (use ET 200MP variant for S7-1500)
Selection Guide
Use the criteria below to confirm the 6ES7332-5HF00-0AB0 is the right module for your application:
- Channel count needed: If ≤4 channels, consider 6ES7332-5HD01-0AB0 to reduce cost; if exactly 8, this model is optimal
- Output type: Requires both current (mA) and voltage (V) output capability? → This module supports both on each channel
- HART requirement: If field devices require HART communication, select 6ES7332-8TF01-0AB0 instead
- Platform: S7-300 rack → 6ES7332-5HF00-0AB0 ✓ | S7-1500 / ET 200MP → use 6ES7532-5HF00-0AB0
- Resolution: 12-bit is standard for most process control; if higher precision is needed, evaluate SM 332 HART variants
Quality Assurance & Sourcing
- All modules supplied by Konmask.com are genuine Siemens products sourced through verified supply chains
- Each unit undergoes visual inspection and functional verification prior to dispatch
- Original factory packaging, labels, and documentation preserved where available
- Traceability records maintained for B2B procurement compliance
- Export documentation (commercial invoice, packing list, COO) provided upon request
How to Order
- Confirm your S7-300 CPU model and available module slots
- Verify required output channel count and signal type (mA / V)
- Add 6ES7332-5HF00-0AB0 to cart or contact us for bulk/project pricing
- Specify required quantity, delivery timeline, and any documentation needs
- Our team will confirm stock availability and issue a proforma invoice within 1 business day
