Industrial Automation Solution — SIEMENS 6ES7322-1HF10-0AA0 | S7-300 Series
Where This Product Is Used

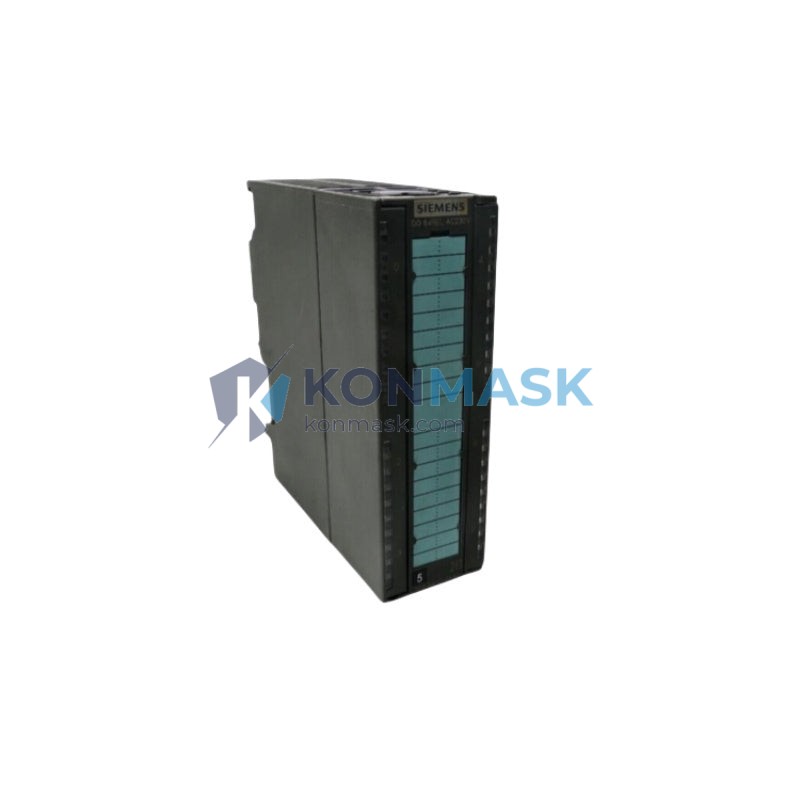

The SIEMENS 6ES7322-1HF10-0AA0 is a 16-channel 24 VDC digital output module engineered for the SIMATIC S7-300 programmable logic controller platform. It is deployed across a wide range of demanding industrial environments where reliable, high-density discrete output control is required:
- Automotive Assembly Lines — Controls solenoid valves, pneumatic actuators, and conveyor drives in body-in-white and powertrain assembly cells.
- Pharmaceutical Manufacturing — Drives dosing pumps, agitator motors, and cleanroom HVAC dampers in GMP-compliant batch processes.
- Water & Wastewater Treatment — Operates pump starters, valve actuators, and UV disinfection systems in municipal and industrial water plants.
- Food & Beverage Processing — Manages filling lines, labeling machines, and CIP (Clean-In-Place) valve manifolds.
- Building Automation & HVAC — Interfaces with fan coil units, chiller enable circuits, and fire-damper actuators in large commercial facilities.
- Machine Tool & Robotics — Provides tool-change signals, spindle enable outputs, and safety relay activation in CNC machining centers.
- Oil & Gas Upstream/Midstream — Controls wellhead solenoids, ESD (Emergency Shutdown) valve pilots, and compressor auxiliary circuits.
Technical Specifications
| Part Number | 6ES7322-1HF10-0AA0 |
| Brand / Manufacturer | SIEMENS (SIMATIC) |
| Module Type | Digital Output (DO) |
| Number of Outputs | 16 channels |
| Output Voltage | 24 VDC |
| Output Current per Channel | 0.5 A |
| Total Current per Module | 4 A |
| Output Type | Transistor (sourcing / PNP) |
| Isolation | Optocoupler isolation between field and backplane |
| Backplane Bus | SIMATIC S7-300 (P-bus) |
| Dimensions (W×H×D) | 40 × 125 × 120 mm |
| Weight | Approx. 200 g |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Degree of Protection | IP20 |
| Mounting | DIN rail via S7-300 rack |
| MLFB / Order Number | 6ES7322-1HF10-0AA0 |
Why Engineers Specify This Model
- High Channel Density — 16 outputs in a single 40 mm-wide slot minimizes rack space and reduces wiring complexity versus discrete relay panels.
- Transistor Switching Speed — Sub-millisecond switching enables precise timing control for high-speed actuators and pulse-width modulation applications.
- Proven S7-300 Ecosystem — Plug-and-play compatibility with all S7-300 CPUs (CPU 312 through CPU 319), IM 360/361 expansion interfaces, and STEP 7 / TIA Portal engineering software.
- Robust Isolation — Optocoupler isolation protects the CPU backplane from field-side voltage transients and ground loops common in industrial environments.
- Diagnostic Capability — Supports channel-level short-circuit and wire-break detection when used with compatible CPUs, reducing mean time to repair (MTTR).
- Long Production Lifecycle — Part of the SIMATIC S7-300 family with decades of installed base, ensuring long-term spare parts availability and engineering familiarity.
Complete System Bill of Materials
A typical S7-300 control cabinet incorporating this module may include:
- SIMATIC S7-300 CPU (e.g., 6ES7315-2AH14-0AB0 CPU 315-2 DP)
- S7-300 Mounting Rail (e.g., 6ES7390-1AE80-0AA0, 530 mm)
- PS 307 Power Supply (e.g., 6ES7307-1EA01-0AA0, 5 A)
- 6ES7322-1HF10-0AA0 — This module (Digital Output, 16×DO 24VDC/0.5A)
- Digital Input Module (e.g., 6ES7321-1BH02-0AA0, 16×DI 24VDC)
- Front Connector 20-pin (e.g., 6ES7392-1AJ00-0AA0) — one per SM module
- PROFIBUS DP Network Cable & Connectors (if distributed I/O is used)
- 24 VDC Field Power Supply for output loads
Compliance & Industry Standards
- CE Marking — Complies with EU Low Voltage Directive and EMC Directive.
- UL / cUL Listed — Recognized for use in North American industrial control panels.
- IEC 61131-2 — Programmable controllers — Equipment requirements and tests.
- ATEX / IECEx — Not rated for Zone 0/1 hazardous areas in standard configuration; consult Siemens for Ex-rated variants.
- RoHS Compliant — Restriction of Hazardous Substances per EU Directive 2011/65/EU.
- ISO 9001 — Manufactured under Siemens’ certified quality management system.
Quality Assurance & Sourcing
At Konmask.com, every unit of the 6ES7322-1HF10-0AA0 is subject to our multi-stage verification process:
- Authorized & Verified Supply Chain — Sourced from authorized Siemens distributors and certified industrial surplus channels with full traceability documentation.
- Visual & Functional Inspection — Each module is inspected for label authenticity, housing integrity, connector condition, and firmware version consistency.
- Anti-Counterfeit Screening — Holographic label verification and serial number cross-check against Siemens product databases.
- Packaging Integrity — Shipped in ESD-safe anti-static bags with foam cushioning to prevent transit damage.
- Warranty — 12-month replacement warranty against manufacturing defects.
How to Source This Part
- Add to Cart — Click the purchase button above to place your order directly on Konmask.com.
- Request a Quote — For bulk orders (5+ units), OEM procurement, or project BOM pricing, email support@konmask.com with your quantity and delivery requirements.
- Lead Time — In-stock units ship within 1–3 business days. Out-of-stock units are sourced within 7–15 business days depending on global availability.
- Export & Cross-Border — We support international shipping with full commercial invoice, packing list, and HS code documentation (HS: 8537.10) for customs clearance.
- Technical Pre-Sales Support — Our engineering team can verify compatibility with your existing S7-300 rack configuration before purchase. Contact us via phone or email.
Application-Specific FAQ
Q: Is the 6ES7322-1HF10-0AA0 compatible with TIA Portal?
A: Yes. The module is fully supported in TIA Portal V13 and later via the SIMATIC S7-300 hardware catalog. It is also configurable in the legacy STEP 7 V5.x environment.
Q: Can this module drive 24 VDC relay coils directly?
A: Yes. Each channel can source up to 0.5 A at 24 VDC, which is sufficient to drive most standard industrial relay coils (typically 50–100 mA). Verify the inrush current of your specific relay before connecting.
Q: What is the difference between 6ES7322-1HF10-0AA0 and 6ES7322-1HH01-0AA0?
A: The -1HF10 variant provides 16 transistor outputs at 0.5 A per channel. The -1HH01 variant provides 16 relay outputs. Choose transistor outputs for high-speed switching; choose relay outputs for AC load switching or galvanic isolation requirements.
Q: Does this module support hot-swapping?
A: Hot-swapping (module replacement without powering down the rack) is supported on S7-300 systems with compatible CPUs and when the system is configured for it in STEP 7 / TIA Portal. Consult your CPU manual for specific requirements.
Q: What front connector is required?
A: The 6ES7322-1HF10-0AA0 uses a 20-pin front connector. The recommended part is 6ES7392-1AJ00-0AA0 (screw terminals) or 6ES7392-1BJ00-0AA0 (spring-cage terminals).
Q: Can Konmask provide a Certificate of Conformance (CoC)?
A: Yes. A CoC is available upon request for all orders. Please specify this requirement when placing your order or in your RFQ email.
