Genuine Siemens 6ES7332-7ND02-0AB0 Analog Output Module SM 332 | SIMATIC S7-300 – Verified Source

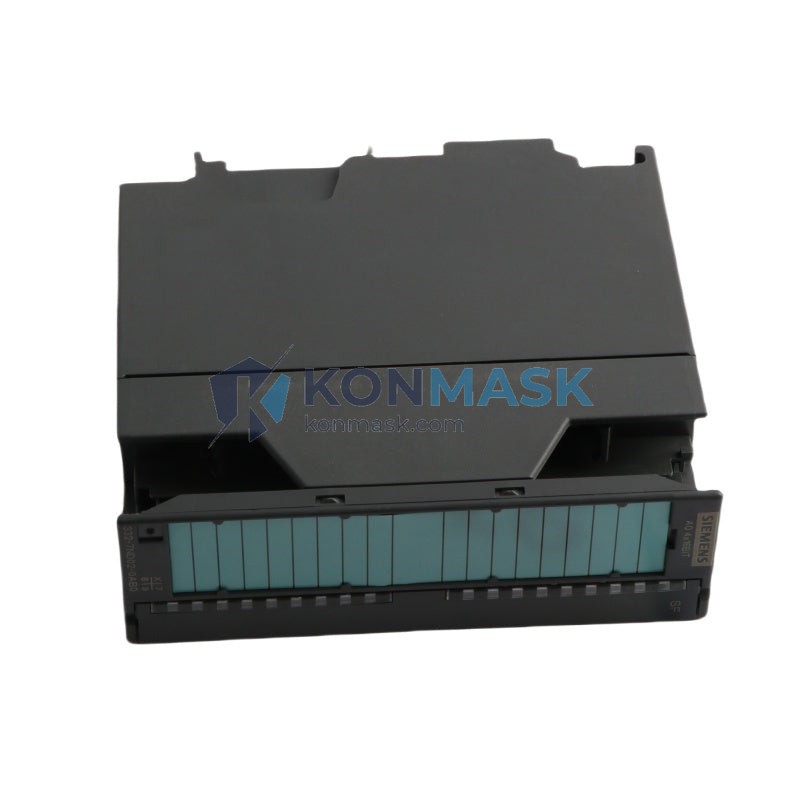

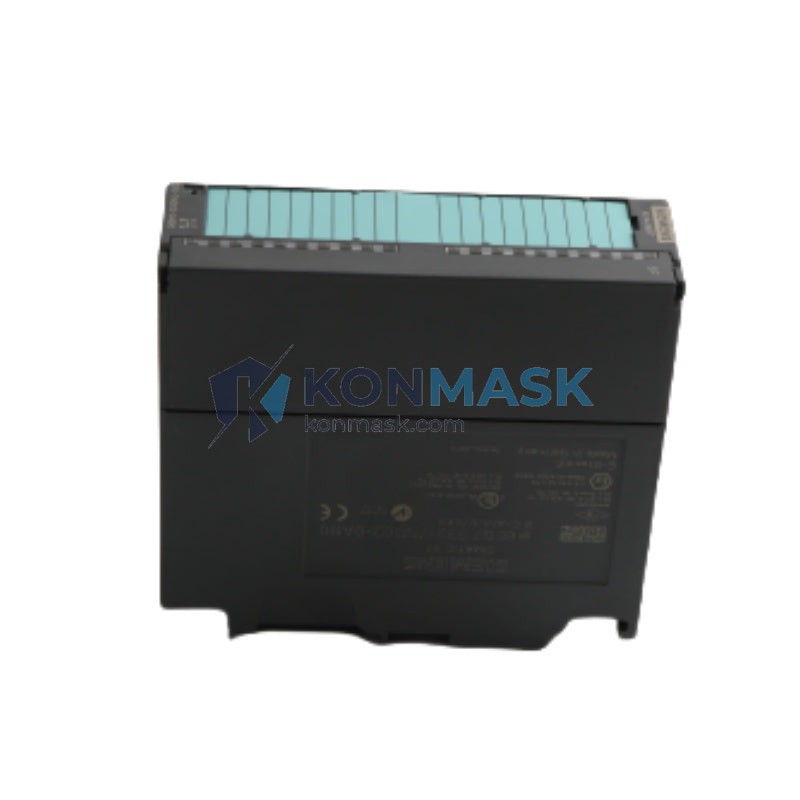

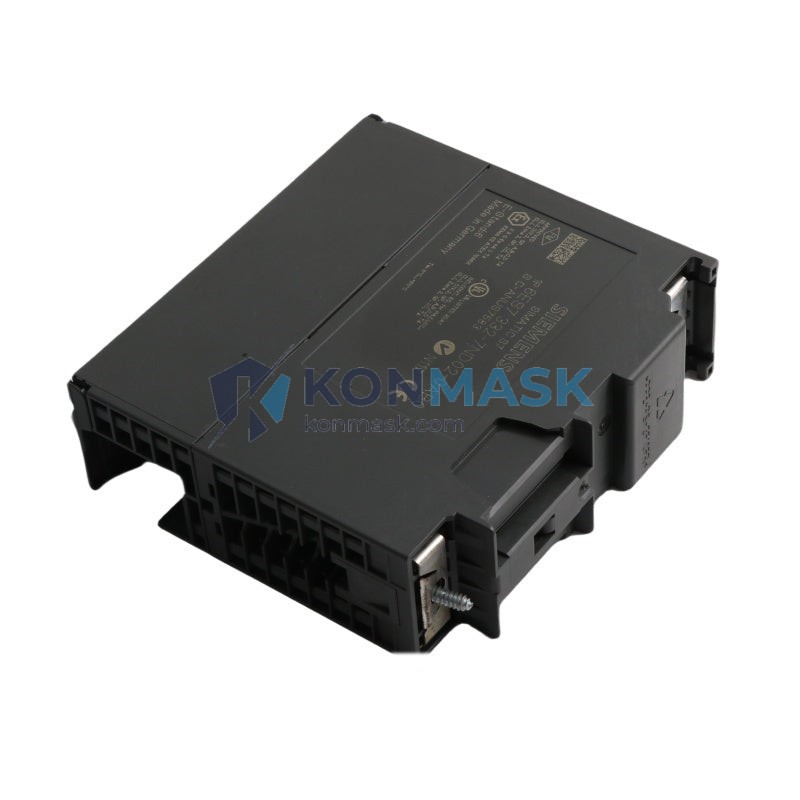

The Siemens 6ES7332-7ND02-0AB0 is a high-precision 4-channel analog output module (SM 332) designed for the SIMATIC S7-300 programmable logic controller platform. Konmask.com supplies this module directly from verified Siemens-authorized channels, ensuring authenticity, traceability, and full warranty compliance for your industrial automation projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (SKU) | 6ES7332-7ND02-0AB0 |
| Module Type | Analog Output Module (SM 332) |
| Series / Platform | SIMATIC S7-300 |
| Number of Output Channels | 4 |
| Output Signal Types | ±10 V, 0–20 mA, 4–20 mA |
| Resolution | 12-bit + sign |
| Supply Voltage | DC 24 V |
| Current Consumption (backplane bus) | Max. 60 mA |
| Current Consumption (L+) | Max. 200 mA |
| Power Dissipation | Max. 5 W |
| Dimensions (W × H × D) | 40 × 125 × 120 mm |
| Weight | Approx. 260 g |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Protection Class | IP 20 |
| Standards | CE, UL, cULus, ATEX (Zone 2) |
Our 4-Step Quality Verification Process
Every 6ES7332-7ND02-0AB0 unit shipped from Konmask.com passes through a rigorous 4-step verification protocol before dispatch:
- Source Authentication – Units are procured exclusively from Siemens-authorized distributors or directly from Siemens AG. Each batch is accompanied by original packing slips and certificates of origin.
- Physical Inspection – Our technical team inspects housing integrity, label printing quality, holographic seals, and connector pin condition against Siemens OEM standards.
- Functional Bench Test – Where applicable, modules are powered up and output channels are verified against rated specifications using calibrated test equipment.
- Traceability Documentation – Each unit is assigned a shipment record with lot number, inspection date, and inspector ID, available upon request.
Key Features & Benefits
- ✅ 4 independent analog output channels — voltage and current output selectable per channel
- ✅ High resolution (12-bit + sign) — precise process control for demanding applications
- ✅ Plug-and-play S7-300 compatibility — no additional interface hardware required
- ✅ Diagnostic interrupt capability — real-time fault detection reduces unplanned downtime
- ✅ Galvanic isolation — protects PLC backplane from field-side voltage transients
- ✅ Wide operating temperature range — suitable for harsh industrial environments
- ✅ Compact 40 mm width — space-efficient for dense control cabinet installations
Typical Applications
- Process control: flow rate, pressure, and temperature setpoint transmission
- Drive control: speed reference signals to variable frequency drives (VFDs) and servo amplifiers
- Valve positioner control in oil & gas, chemical, and water treatment plants
- Conveyor and material handling automation
- Building management systems (BMS) — HVAC actuator control
- Pharmaceutical and food & beverage batch processing
Compatible System Components
| Component Type | Compatible Part Numbers (Examples) |
|---|---|
| CPU Modules | 6ES7314-1AG14-0AB0, 6ES7315-2EH14-0AB0, 6ES7317-2EK14-0AB0 |
| Power Supply | 6ES7307-1BA01-0AA0, 6ES7307-1EA01-0AA0 |
| Rack / Bus | 6ES7390-1AE80-0AA0 (UR1), 6ES7390-1AF30-0AA0 (UR2) |
| Front Connector | 6ES7392-1BM01-0AA0 (40-pin screw type) |
| Analog Input Companion | 6ES7331-7NF10-0AB0 (SM 331, 8-channel AI) |
Global Sourcing & Shipping Capabilities
Konmask.com operates as a global industrial automation parts supplier headquartered in China, with established logistics partnerships covering:
- Asia-Pacific: 3–7 business days (DHL Express / SF International)
- Europe: 5–10 business days (DHL / FedEx / TNT)
- North America: 5–10 business days (FedEx International Priority)
- Middle East & Africa: 7–14 business days
All shipments include commercial invoice, packing list, and certificate of origin. Export documentation for customs clearance is provided upon request. Minimum order quantity: 1 unit. Volume pricing available for orders of 5+ units.
Certifications & Compliance Statement
The Siemens 6ES7332-7ND02-0AB0 carries the following certifications as issued by Siemens AG:
- CE Marking — compliant with EU Low Voltage Directive and EMC Directive
- UL / cULus Listed — recognized for use in North American industrial installations
- ATEX Zone 2 — approved for use in potentially explosive atmospheres (gas group IIC)
- RoHS Compliant — meets EU Directive 2011/65/EU on restriction of hazardous substances
Konmask.com does not modify, relabel, or repackage any Siemens products. All certifications are original and intact as issued by the manufacturer.
How to Order
- Add to Cart — select quantity and click “Add to Cart” on this page.
- Request a Quote — for bulk orders (5+ units) or urgent requirements, email support@konmask.com with your required quantity and delivery timeline.
- Provide Project Details — share your application details for compatibility confirmation if needed.
- Payment & Dispatch — we accept T/T bank transfer, PayPal, and major credit cards. Orders confirmed before 14:00 CST are dispatched same business day.
Authenticity & Trust FAQ
Q: Are these modules genuine Siemens products?
A: Yes. All units are sourced from Siemens-authorized channels. We provide original packaging, labels, and traceability documentation upon request.
Q: Do you offer a warranty?
A: Yes. We offer a 12-month warranty against manufacturing defects. Warranty claims are processed within 5 business days.
Q: Can I verify the part number before shipment?
A: Yes. We can provide pre-shipment photos of the actual unit, including the label and serial number, upon request.
Q: What if the module is damaged in transit?
A: All shipments are insured. In the event of transit damage, we will arrange a replacement or full refund within 7 business days of receiving the damage report.
Q: Do you support OEM/ODM or system integration projects?
A: Yes. Contact our technical team at support@konmask.com to discuss project-specific requirements.
