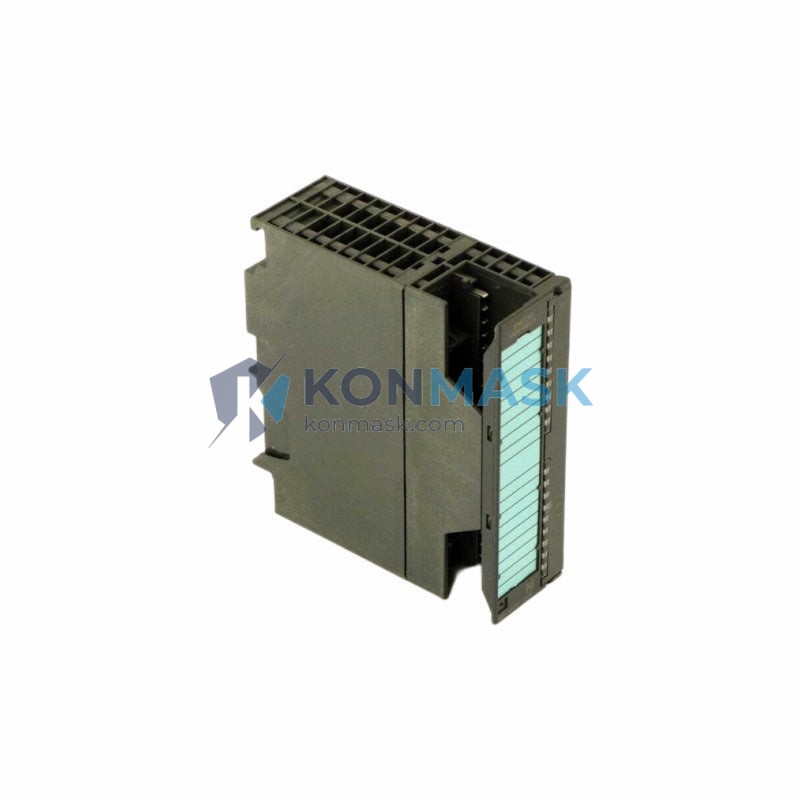

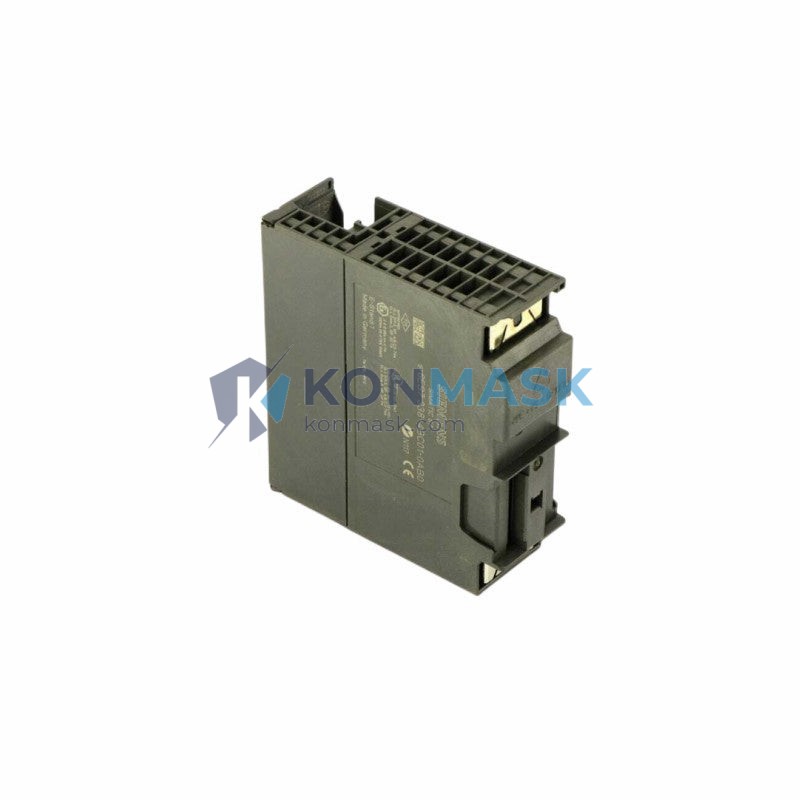

SIEMENS 6ES7338-4BC01-0AB0 – Signal Module for Positioning Sensors | SIMATIC S7-300 Platform
Engineering Background
The SIMATIC S7-300 series remains one of the most widely deployed modular PLC platforms in global industrial automation. Designed for mid-range applications demanding high reliability and deterministic control, the S7-300 ecosystem supports a broad range of I/O and specialty modules. The 6ES7338-4BC01-0AB0 is a dedicated signal module engineered to interface directly with positioning sensors—encoders, resolvers, and SSI-compatible transducers—enabling precise position feedback within closed-loop motion and process control architectures.
Product Positioning
This module is the preferred choice for procurement engineers specifying S7-300-based motion control upgrades, machine retrofits, or greenfield installations where encoder/SSI position data must be integrated into the PLC backplane without external signal conditioning hardware. It eliminates the need for third-party interface converters, reduces panel footprint, and ensures native STEP 7 / TIA Portal diagnostics compatibility.
Complete Technical Specifications
| Part Number | 6ES7338-4BC01-0AB0 |
| Manufacturer | Siemens AG |
| Product Family | SIMATIC S7-300 |
| Module Type | Signal Module – Positioning / Encoder Interface |
| Sensor Interface | SSI (Synchronous Serial Interface), Incremental Encoder |
| Supply Voltage | DC 24 V (via S7-300 backplane) |
| Encoder Supply Output | DC 5 V / DC 24 V (selectable) |
| Max. Input Frequency | 500 kHz (incremental) |
| SSI Data Width | Up to 25 bits |
| SSI Clock Rate | Up to 500 kHz |
| Counting Range | ±2,147,483,648 (32-bit) |
| Isolation | Electrically isolated between encoder and backplane |
| Diagnostics | Wire-break detection, short-circuit monitoring, LED status indicators |
| Configuration | Via STEP 7 / TIA Portal (HW Config) |
| Dimensions (W×H×D) | 40 × 125 × 120 mm |
| Weight | Approx. 200 g |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Protection Class | IP20 |
| Certifications | CE, UL, cULus, ATEX (refer to datasheet) |
| MLFB / Order Number | 6ES7338-4BC01-0AB0 |
Proven Application Environments
- CNC & Machine Tool Retrofits – Direct SSI encoder feedback for spindle and axis positioning without external converters
- Conveyor & Material Handling – Incremental encoder integration for speed and position tracking on S7-300 controlled lines
- Packaging Machinery – High-frequency encoder inputs for registration mark detection and servo synchronization
- Crane & Hoist Systems – Absolute position monitoring via SSI for safe load positioning
- Printing & Paper Industry – Precision web tension and register control with encoder feedback
- Automotive Assembly Lines – Multi-axis position acquisition within S7-300 distributed I/O architectures
Engineering Advantages
- Native Backplane Integration – No external power supply or signal conditioner required; draws power directly from S7-300 rail
- Dual Encoder Interface – Supports both SSI absolute encoders and incremental (A/B/Z) encoders on the same module
- Selectable Encoder Voltage – 5 V or 24 V encoder supply selectable via parameter assignment, accommodating a wide range of sensor types
- Integrated Diagnostics – Wire-break and short-circuit detection with STEP 7 / TIA Portal alarm integration reduces commissioning time
- High-Speed Counting – 500 kHz input frequency supports high-resolution encoders in fast-moving applications
- Compact Form Factor – Single-slot S7-300 module minimizes panel space consumption
- Long-Term Availability – Established S7-300 platform with broad spare-parts ecosystem; Konmask maintains verified OEM stock
System Architecture & Signal Flow
The 6ES7338-4BC01-0AB0 occupies a standard S7-300 module slot on the DIN rail-mounted backplane. Position data from the connected encoder is acquired via the front connector (40-pin), processed by the module’s onboard ASIC, and transferred to the CPU via the S7-300 P-bus. In SSI mode, the module generates the clock signal and receives serial position data from the absolute encoder. In incremental mode, A, B, and Z pulse trains are decoded into a 32-bit counter value accessible as a process image input in the user program. Parameterization (encoder type, voltage, measuring range, gate function) is performed entirely within STEP 7 HW Config or TIA Portal device configuration—no DIP switches required.
Sourcing & Quality Verification
- OEM Origin – All units sourced from authorized Siemens distribution channels or verified surplus with full traceability documentation
- Incoming Inspection – Each module undergoes visual inspection, label verification (MLFB, date code, firmware revision), and functional power-on test prior to dispatch
- Packaging – Shipped in original or equivalent ESD-safe packaging with desiccant; double-boxed for international freight
- Documentation – Siemens product datasheet, EU Declaration of Conformity, and test report available upon request
- Warranty – 12-month Konmask operational warranty covering manufacturing defects; RMA process initiated within 24 hours of confirmed fault
Procurement Process
- Inquiry – Submit your BOM or part number via email to support@konmask.com or via the product page inquiry form
- Quote – Receive a formal quotation with unit price, lead time, and shipping options within 1 business day
- Order Confirmation – Purchase order accepted via email; proforma invoice issued for prepayment or net terms (qualified accounts)
- Dispatch – In-stock units ship within 1–2 business days via DHL Express, FedEx International, or customer-nominated forwarder
- After-Sales – Technical support and commissioning guidance available from Konmask engineering team post-delivery
Technical FAQ
Q: Is the 6ES7338-4BC01-0AB0 compatible with TIA Portal?
A: Yes. The module is fully supported in TIA Portal via the HSP (Hardware Support Package) for S7-300. Parameterization is identical to STEP 7 V5.x.
Q: Can this module interface with a Heidenhain EnDat encoder?
A: No. The 6ES7338-4BC01-0AB0 supports SSI and incremental interfaces only. For EnDat 2.1/2.2, refer to the FM 350-2 or third-party gateway solutions.
Q: What is the maximum cable length for the encoder connection?
A: Siemens specifies up to 100 m for SSI at standard clock rates; incremental encoder cable length depends on frequency and cable capacitance. Shielded twisted-pair cable is mandatory.
Q: Is a front connector included?
A: The 40-pin front connector (6ES7392-1AM00-0AA0) is sold separately. Please add it to your order if not already in stock.
Q: Can Konmask provide a certificate of conformity?
A: Yes. CoC, test report, and Siemens original datasheet are available upon request at no additional charge.
