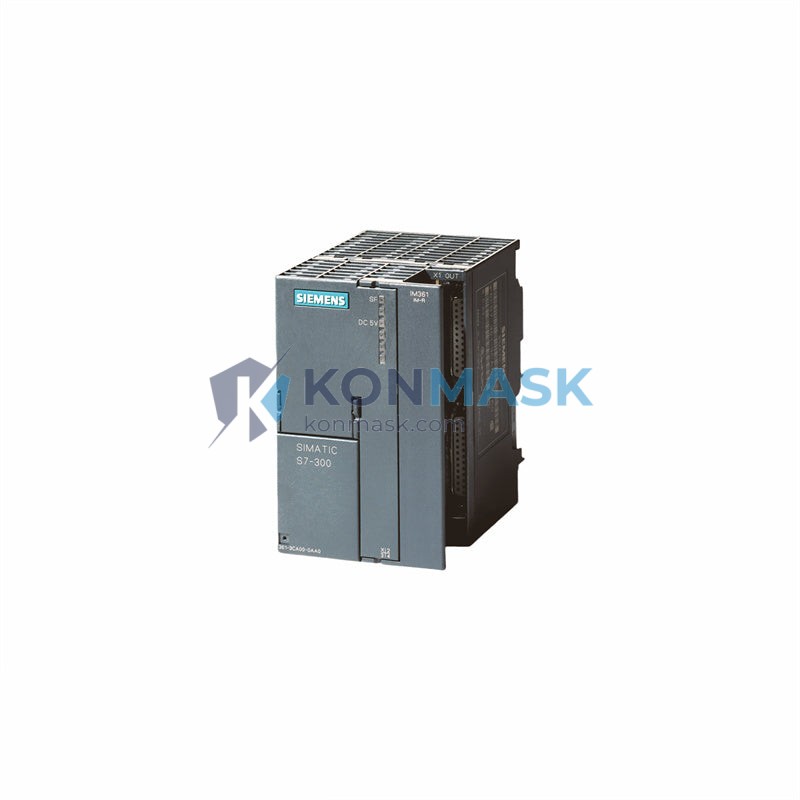

Siemens 6ES7365-0BA01-0AA0 – IM 365 Interface Module | SIMATIC S7-300 Expansion Platform
Engineering Background
The SIMATIC S7-300 series has been the backbone of industrial automation for decades, deployed across automotive assembly lines, chemical processing plants, and discrete manufacturing cells worldwide. The IM 365 interface module (6ES7365-0BA01-0AA0) is the dedicated expansion interconnect that allows a central rack (CR) to communicate with one expansion rack (ER), extending the I/O capacity of an S7-300 station without additional CPUs or communication overhead.
Product Positioning
Designed for procurement engineers who need a proven, drop-in expansion solution for existing S7-300 installations, the 6ES7365-0BA01-0AA0 delivers deterministic rack-to-rack communication at 2.5 W power consumption. It is the OEM-specified module for single-tier expansion in space-constrained control cabinets where a second CPU is neither practical nor cost-effective.
Complete Technical Specifications
| Order Number (MLFB) | 6ES7365-0BA01-0AA0 |
| Module Type | IM 365 Interface Module (Send/Receive pair) |
| Compatible Platform | SIMATIC S7-300 |
| Rack Connection | Central Rack (CR) ↔ 1 × Expansion Rack (ER) |
| Max Expansion Racks | 1 (IM 365 is a fixed CR+ER pair) |
| Interconnect Cable | Included ribbon cable, max 1 m |
| Power Supply (CR module) | 2.5 W from S7-300 backplane bus |
| Power Supply (ER module) | Powered via interconnect cable from CR |
| Backplane Bus Cycle | ≤ 1 ms additional scan contribution |
| Operating Temperature | 0 °C … +60 °C (horizontal mounting) |
| Storage Temperature | −40 °C … +70 °C |
| Relative Humidity | 10 % … 95 %, non-condensing |
| Degree of Protection | IP 20 |
| Dimensions (W × H × D) | 40 × 125 × 120 mm |
| Weight | approx. 230 g (per module) |
| Mounting | DIN rail (S7-300 standard profile rail) |
| Certifications | CE, UL, cULus, ATEX (Zone 2), FM, C-Tick |
| SIMATIC Product Family | S7-300 — IM 300 Series |
Proven Application Environments
- Automotive Body-in-White: Expanding I/O for welding cell controllers without adding a second CPU rack
- Pharmaceutical Batch Processing: Segregating I/O racks for clean-room and utility areas on a single S7-300 CPU
- Water & Wastewater Treatment: Extending pump and valve I/O in distributed pump stations
- Food & Beverage Packaging Lines: Adding sensor/actuator I/O to existing S7-315/S7-317 controllers
- Machine Tool & CNC Integration: Separating safety I/O rack from standard I/O rack within one station
- Building Automation (HVAC): Expanding analog I/O for multi-zone climate control systems
Engineering Advantages
- Zero-Configuration Expansion: Plug-and-play pair — no STEP 7 hardware configuration changes required beyond adding the ER in HW Config
- Deterministic Latency: ≤ 1 ms additional bus cycle ensures real-time I/O response is maintained across racks
- Low Power Budget: 2.5 W draw preserves PS 307 power supply headroom for additional I/O modules
- Compact Form Factor: 40 mm wide — occupies only one slot on the S7-300 profile rail
- Included Interconnect Cable: Ships as a matched CR+ER pair with 1 m ribbon cable — no separate cable order required
- Wide Certification Coverage: CE, UL, ATEX Zone 2 — suitable for light hazardous area applications
System Architecture & Signal Flow
The 6ES7365-0BA01-0AA0 ships as a matched pair: one IM 365 sender module installed in Slot 3 of the Central Rack, and one IM 365 receiver module installed in Slot 3 of the Expansion Rack. The included 1 m ribbon cable connects the two modules via their front-panel connectors.
The S7-300 CPU addresses all I/O modules in both racks through the unified backplane bus. The IM 365 transparently bridges the physical gap between racks, presenting the ER’s I/O modules to the CPU as if they were local. No special OB or SFC calls are required — standard I/O addressing applies.
Slot Assignment: CR Slot 3 (IM 365 send) → 1 m ribbon cable → ER Slot 3 (IM 365 receive) → ER Slots 4–11 (up to 8 I/O modules)
Sourcing & Quality Verification
- All units sourced from authorized Siemens distribution channels or verified surplus with full traceability documentation
- Each module inspected for authentic Siemens holographic labeling, correct MLFB stamping, and firmware revision markings
- Functional burn-in test performed prior to shipment — results available on request
- Original packaging preserved where available; repackaged units include inspection report
- Counterfeit risk mitigation: serial number cross-referenced against Siemens product authenticity database
Procurement Process
- Confirm compatibility: Verify your CPU model (S7-315, S7-317, etc.) supports IM 365 expansion (single ER only)
- Check cable length: IM 365 includes a 1 m cable — if racks are > 1 m apart, consider IM 360/361 instead
- Place order: Add to cart and complete checkout — HKD pricing, international shipping available
- Lead time: In-stock units ship within 1–3 business days; ETA confirmation provided at order
- Documentation: Datasheet, EU Declaration of Conformity, and test report provided with shipment
- Technical support: Pre-sale and post-sale engineering support via support@konmask.com
Technical FAQ
Q: Can the IM 365 connect more than one expansion rack?
A: No. The IM 365 supports exactly one CR-to-ER connection. For multi-rack expansion (up to 3 ERs), use the IM 360 (CR) + IM 361 (ER) pair.
Q: Is the IM 365 compatible with S7-400?
A: No. The 6ES7365-0BA01-0AA0 is exclusively for the S7-300 platform. S7-400 uses a different interface module family.
Q: Does the IM 365 require a separate power supply in the expansion rack?
A: Yes. The ER requires its own PS 307 power supply module to power the I/O modules in that rack. The IM 365 interconnect cable only carries bus signals, not 24 VDC load power.
Q: What is the maximum cable length between CR and ER?
A: The included ribbon cable is 1 m. No extension is supported — if greater distance is required, use IM 360/361 with a standard cable up to 10 m.
Q: Can I use the IM 365 with a CPU 312 or CPU 313?
A: No. CPUs below S7-314 do not support expansion racks. The IM 365 requires a CPU 314 or higher.
