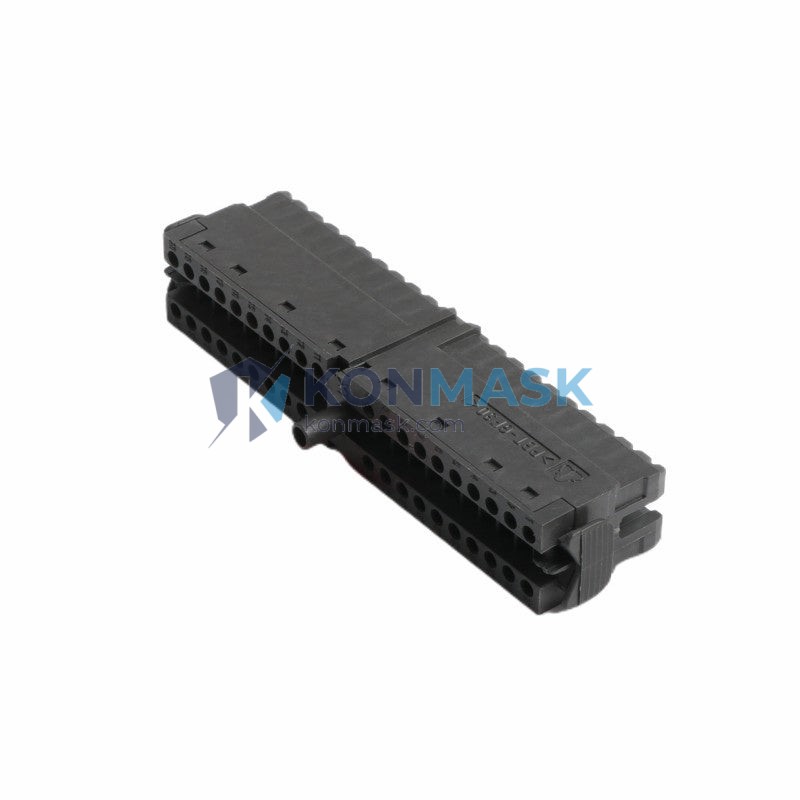

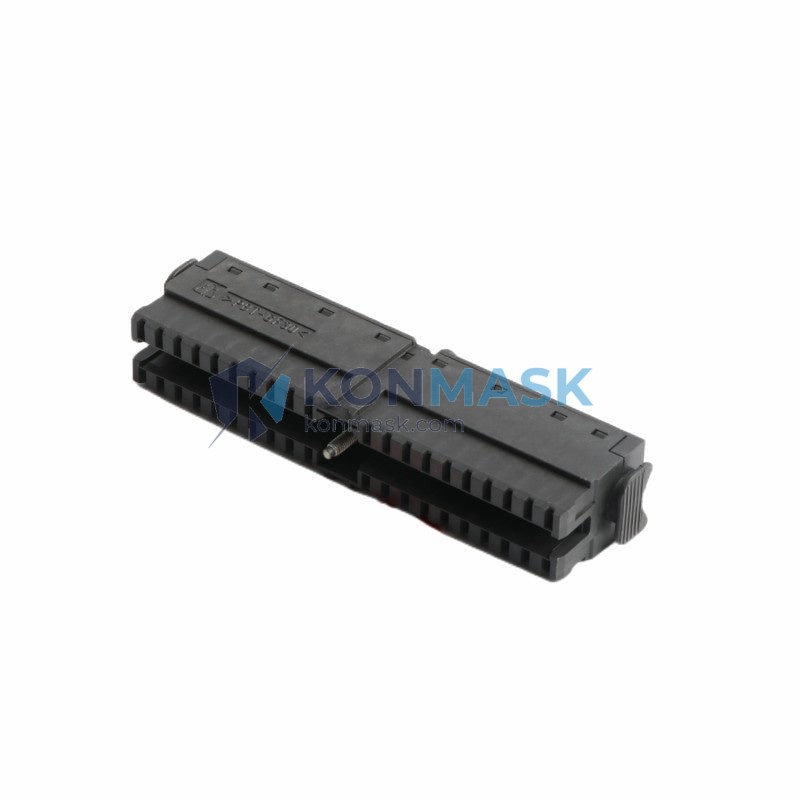

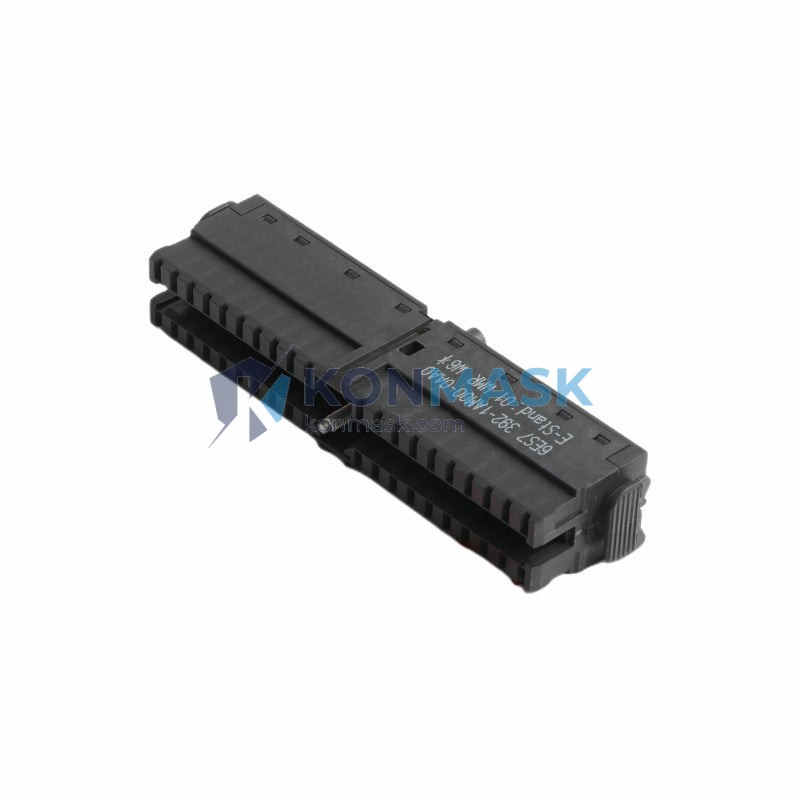

SIEMENS 6ES7392-1AM00-0AA0 Front Connector | Replacement, Equivalent & Selection Guide
The SIEMENS 6ES7392-1AM00-0AA0 is a 20-pin screw-type front connector designed for SIMATIC S7-300 signal modules. It provides a reliable, field-wiring interface between field devices and S7-300 I/O modules, supporting both digital and analog signal modules. This page serves as a comprehensive selection, replacement, and compatibility reference for industrial automation engineers and procurement specialists.
Technical Specifications
- Part Number: 6ES7392-1AM00-0AA0
- Brand: SIEMENS (SIMATIC)
- Type: Front Connector, Screw-Type
- Pin Count: 20-pin
- Compatible Module Width: 40 mm (standard S7-300 SM width)
- Wiring Method: Screw terminals
- Conductor Cross-Section: 0.25 – 1.5 mm² (solid or stranded)
- Rated Voltage: Up to 250 V AC/DC
- Rated Current per Contact: 10 A
- Degree of Protection: IP20 (when installed)
- Operating Temperature: 0 °C to +60 °C
- Weight: Approx. 120 g
- Dimensions (W×H×D): 40 × 125 × 50 mm (approx.)
- Color Coding: Red label strip (field-wiring side)
- MLFB / Order Number: 6ES7392-1AM00-0AA0
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or drop-in replacements for the 6ES7392-1AM00-0AA0. Always verify pin count and wiring method before substitution:
- 6ES7392-1AM00-0AA0 – Original SIEMENS OEM part (this product)
- 6ES7392-1BM01-0AA0 – 20-pin spring-type front connector (same pin count, different wiring method; suitable if spring-clamp preferred)
- 6ES7392-1AJ00-0AA0 – 40-pin screw-type connector (for wider 80 mm modules; NOT a direct replacement)
- 6ES7392-1BJ00-0AA0 – 40-pin spring-type connector (for 80 mm modules)
- Third-party equivalents: Compatible 20-pin S7-300 front connectors from certified automation suppliers may be used in non-safety-critical applications. Verify IEC 60947-1 compliance and terminal torque ratings before installation.
Note: Spring-type (BM) and screw-type (AM) connectors are mechanically interchangeable on the same module but differ in wiring tool requirements.
Why Choose the Original Model
- OEM Guarantee: Manufactured to SIEMENS SIMATIC quality standards with full traceability.
- Plug-and-Play Compatibility: Designed and tested specifically for S7-300 signal modules — no adaptation required.
- Long-Term Availability: Supported under SIEMENS spare parts program for installed base maintenance.
- Safety Compliance: Meets CE, UL, and IEC standards required for industrial control panel certification.
- Reduced Commissioning Risk: Eliminates compatibility uncertainty in critical production environments.
Typical Applications
- Field wiring termination for SIMATIC S7-300 digital input/output modules (SM 321, SM 322, SM 323)
- Field wiring termination for analog input/output modules (SM 331, SM 332, SM 334) — verify pin count
- Machine tool control panels and CNC integration
- Process automation in chemical, pharmaceutical, and food & beverage plants
- Building automation and HVAC control systems
- Conveyor and material handling systems
- Replacement/maintenance of existing S7-300 installations
System Compatibility
- Compatible PLC Family: SIMATIC S7-300
- Compatible Module Types: All 40 mm-wide S7-300 signal modules (SM 3xx series)
- NOT Compatible With: S7-400, S7-1200, S7-1500, ET 200 distributed I/O (different connector systems)
- Backplane Bus: Not applicable — front connector is field-wiring side only
- Cable Entry: Bottom entry; supports standard DIN rail cabinet wiring practices
Selection Guide
Use the table below to select the correct front connector for your S7-300 module:
- 20-pin + Screw terminals + 40 mm module → 6ES7392-1AM00-0AA0 ✓ (this product)
- 20-pin + Spring-clamp + 40 mm module → 6ES7392-1BM01-0AA0
- 40-pin + Screw terminals + 80 mm module → 6ES7392-1AJ00-0AA0
- 40-pin + Spring-clamp + 80 mm module → 6ES7392-1BJ00-0AA0
Key selection criteria: (1) Count the pins on your S7-300 module face. (2) Confirm module width (40 mm or 80 mm). (3) Choose screw-type for standard screwdriver wiring or spring-type for tool-free insertion.
Quality Assurance & Sourcing
- All units sourced from authorized SIEMENS distribution channels or verified surplus with full documentation.
- Each unit inspected for physical integrity, terminal condition, and label legibility prior to dispatch.
- Batch traceability records available upon request for MRO and OEM customers.
- Packaging: Original SIEMENS retail box or anti-static protective packaging for surplus stock.
- Export compliance: HS Code 8538.90 — suitable for international shipment with proper documentation.
How to Order
- Online: Add to cart directly on this page at Konmask.com
- Email RFQ: support@konmask.com — include part number, quantity, and required delivery date
- Phone/WhatsApp: +0086 19859288691
- Bulk / OEM Orders: Volume pricing available for orders of 10+ units — contact us for a formal quotation
- Lead Time: In-stock items ship within 1–3 business days; special orders 7–15 business days
Replacement & Compatibility FAQ
Q: Can I use a spring-type connector (6ES7392-1BM01-0AA0) instead of this screw-type?
A: Yes. Both 20-pin variants are mechanically interchangeable on the same 40 mm S7-300 module. The difference is wiring method only.
Q: Is this connector compatible with S7-1500 modules?
A: No. S7-1500 uses a different front connector system. Do not substitute.
Q: Can field wiring be transferred from an old connector to a new one without rewiring?
A: Yes — the S7-300 front connector is designed for wiring transfer. Remove the connector from the module, swap to the new connector body, and reinsert. Terminal positions are identical.
Q: What is the maximum wire gauge supported?
A: 0.25 – 1.5 mm² (AWG 24–16) for solid or stranded conductors with or without ferrules.
Q: Do you provide a certificate of conformity?
A: Yes, available upon request for OEM and MRO procurement. Contact us with your order number.
