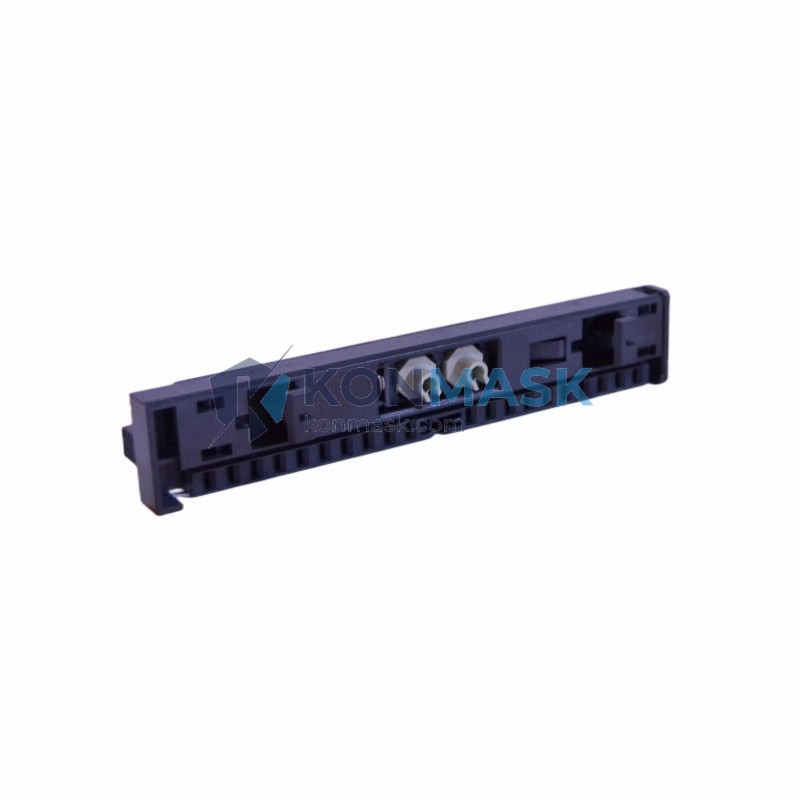

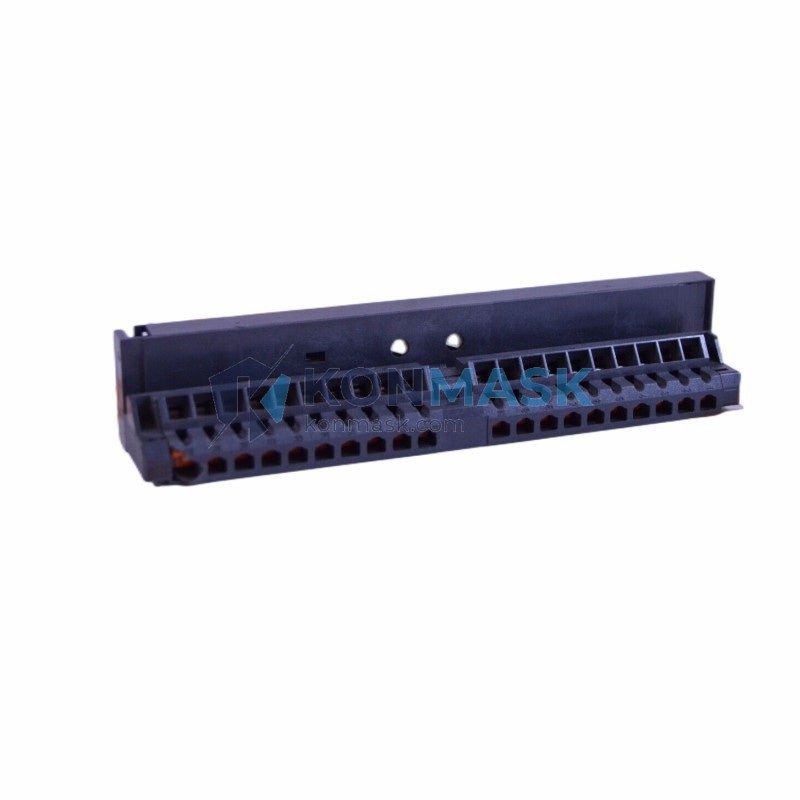

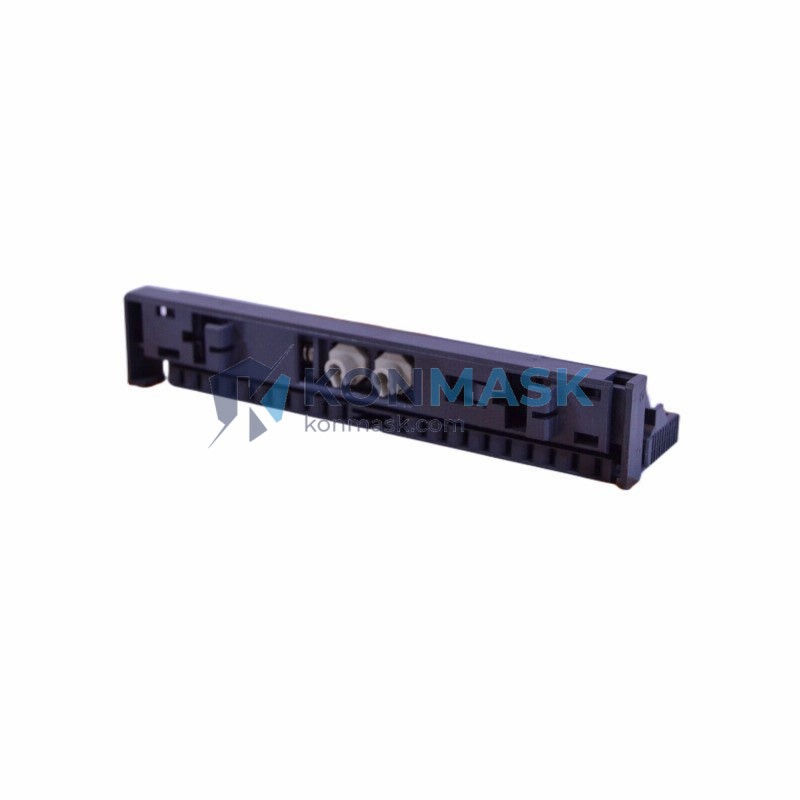

SIEMENS 6ES7392-1BJ00-0AA0 – 20-Pin Spring-Type Front Connector | SIMATIC S7-300 Platform
Engineering Background
The SIMATIC S7-300 series has been the backbone of discrete and process automation worldwide for over three decades. Field wiring to S7-300 signal modules (SM) is accomplished exclusively through front connectors — removable terminal blocks that allow module replacement without rewiring. The 6ES7392-1BJ00-0AA0 is the spring-clamp variant for 20-pin modules, offering tool-free, vibration-resistant termination preferred in high-cycle and harsh-environment installations.
Product Positioning
This connector is the OEM-specified interface for all 20-pin S7-300 digital and analog signal modules. It is not a generic terminal block — it is a precision-keyed, module-coded component that physically locks to the SM faceplate and carries the module’s wiring identity (address label) across module swaps. Procurement engineers specify this part number directly; no substitution is field-acceptable without re-validation.
Complete Technical Specifications
| Part Number | 6ES7392-1BJ00-0AA0 |
| MLFB | 6ES7 392-1BJ00-0AA0 |
| Manufacturer | Siemens AG, Factory Automation |
| Product Family | SIMATIC S7-300 Accessories |
| Connector Type | Front Connector, Spring-Clamp (Screw-free) |
| Pin Count | 20-pin (2 × 10 rows) |
| Compatible Modules | All S7-300 20-pin Signal Modules (SM 321, SM 322, SM 331, SM 332, SM 334, SM 338) |
| Conductor Cross-Section | 0.25 – 1.5 mm² (AWG 24–16), fine-stranded or solid |
| Stripping Length | 8 mm |
| Rated Voltage | AC/DC 250 V |
| Rated Current per Contact | 10 A |
| Degree of Protection | IP20 (when mated) |
| Ambient Temperature (Operation) | 0 °C to +60 °C |
| Ambient Temperature (Storage) | −40 °C to +70 °C |
| Relative Humidity | 10 – 95 % (non-condensing) |
| Vibration Resistance | Per IEC 60068-2-6: 10–58 Hz, 0.075 mm; 58–500 Hz, 1 g |
| Shock Resistance | Per IEC 60068-2-27: 15 g, 11 ms |
| Dimensions (W × H × D) | Approx. 40 × 119 × 53 mm |
| Weight | Approx. 130 g |
| Color | Orange (Siemens standard) |
| Coding | Mechanical module-type coding (prevents wrong-module insertion) |
| Label Carrier | Integrated, accepts standard S7-300 labeling strips |
| Certifications | CE, UL, cUL, FM, ATEX (zone 2), IECEx |
| Country of Origin | Germany |
Proven Application Environments
- Automotive Body Shop & Paint Lines — High-vibration conveyor systems where spring-clamp termination eliminates screw-loosening over time
- Chemical & Pharmaceutical Plants — ATEX Zone 2 rated; suitable for areas with occasional explosive atmosphere risk
- Water & Wastewater Treatment — Humidity-resistant construction; IP20 protection when mated to SM module
- Food & Beverage Processing — Rapid module swap during scheduled maintenance windows without rewiring downtime
- Power Generation & Utilities — Rated to 250 V AC/DC; compatible with high-voltage I/O field wiring
- Machine Tool & Robotics — Compact DIN-rail footprint; integrates into tight control cabinet layouts
- Building Automation & HVAC — Long-term installation reliability; spring clamp maintains contact force over thermal cycling
Engineering Advantages
- Tool-Free Termination — Spring-clamp mechanism requires only a standard screwdriver to open the clamp; no torque specification needed, eliminating under/over-tightening errors
- Wiring Identity Retention — Front connector stores module address coding; replacing a faulty SM module requires zero rewiring — pull connector, swap module, reinsert
- Vibration-Proof Contact — Spring force maintains constant contact pressure regardless of mechanical shock or thermal expansion cycles
- Mechanical Keying — Physical coding pins prevent insertion into incompatible module types, eliminating field wiring errors
- Integrated Cable Management — Built-in cable tie anchor and strain relief bracket reduce wiring harness stress at the terminal
- Labeling System — Accepts Siemens standard labeling strips (6ES7392-8BF00-0AA0 or equivalent) for IEC 60204-compliant terminal identification
- Long Service Life — Rated for ≥ 50 mating cycles; spring contacts maintain specification over full product lifecycle
System Architecture & Signal Flow
In a standard S7-300 rack, the CPU communicates with signal modules via the backplane bus. Field signals enter the system exclusively through the front connector:
Field Device → Cable → Front Connector (6ES7392-1BJ00-0AA0)
→ Signal Module (SM 321/322/331/332 etc.)
→ S7-300 Backplane Bus
→ CPU 31x
→ PROFIBUS / MPI / Industrial Ethernet
→ SCADA / DCS / HMI
The front connector is the only field-replaceable wiring interface in this chain. Its correct specification is therefore critical to system commissioning, maintenance planning, and spare-parts inventory management.
Sourcing & Quality Verification
- OEM Origin — All units sourced from Siemens AG authorized distribution channels or verified OEM surplus with full traceability
- Inspection Protocol — Each unit inspected for: correct MLFB label, mechanical coding integrity, spring contact continuity, and housing condition prior to dispatch
- Packaging — Ships in original Siemens retail packaging or anti-static protective packaging with part number verification label
- Documentation Available — Siemens product datasheet, EU Declaration of Conformity, and test certificate available upon request
- Counterfeit Risk Mitigation — Konmask.com does not source from unverified gray-market channels; all stock carries verifiable batch traceability
Procurement Process
- Step 1 — Verify Compatibility: Confirm your S7-300 signal module is a 20-pin type (check module faceplate or Siemens catalog). 40-pin modules require 6ES7392-1AM00-0AA0 (screw) or 6ES7392-1AN00-0AA0 (spring).
- Step 2 — Quantity & Lead Time: Contact us for volume pricing (5+ units) or expedited availability confirmation for MRO/shutdown requirements.
- Step 3 — Order Placement: Add to cart and proceed to checkout, or submit a purchase order to support@konmask.com for NET-30 / corporate account processing.
- Step 4 — Shipping: Standard dispatch within 1–3 business days. Express DHL/FedEx available. Export documentation (commercial invoice, packing list, HS code 8538.90) provided for customs clearance.
- Step 5 — After-Sales: 12-month warranty against manufacturing defects. Technical support available via email or WhatsApp: +0086 19859288691.
Technical FAQ
Q: Can I use this connector with S7-400 or S7-1500 modules?
A: No. The 6ES7392-1BJ00-0AA0 is mechanically and electrically specific to S7-300 20-pin signal modules. S7-400 and S7-1500 use entirely different connector systems.
Q: What is the difference between spring-type (BJ00) and screw-type (AJ00) front connectors?
A: The 6ES7392-1BJ00-0AA0 (spring) uses tool-free spring-clamp termination — faster to wire, vibration-proof, and preferred for harsh environments. The 6ES7392-1AJ00-0AA0 (screw) uses traditional screw terminals — preferred where local regulations or maintenance procedures require torque-verified connections.
Q: Can the front connector be reused after module replacement?
A: Yes. The front connector is designed to be removed and reinserted ≥ 50 times. It retains all field wiring and module coding across module swaps — this is the primary maintenance advantage of the S7-300 front connector system.
Q: What conductor types are compatible?
A: Fine-stranded (with or without ferrule) and solid conductors, 0.25–1.5 mm² (AWG 24–16). Ferrules are recommended for fine-stranded wire in high-vibration applications.
Q: Is this part available with ATEX certification for Zone 1?
A: The standard 6ES7392-1BJ00-0AA0 is rated for Zone 2. Zone 1 applications require Siemens Ex-certified I/O modules with intrinsically safe barriers — contact us for system-level consultation.
Q: Do you provide a certificate of conformity?
A: Yes. EU Declaration of Conformity and Siemens product certificates are available upon request for all units. Contact support@konmask.com.
