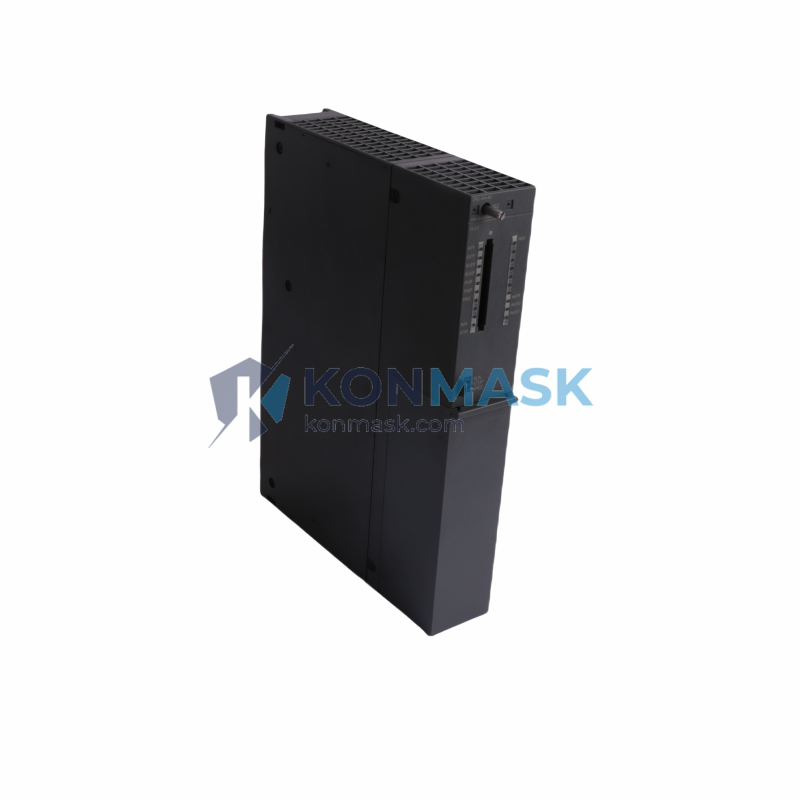

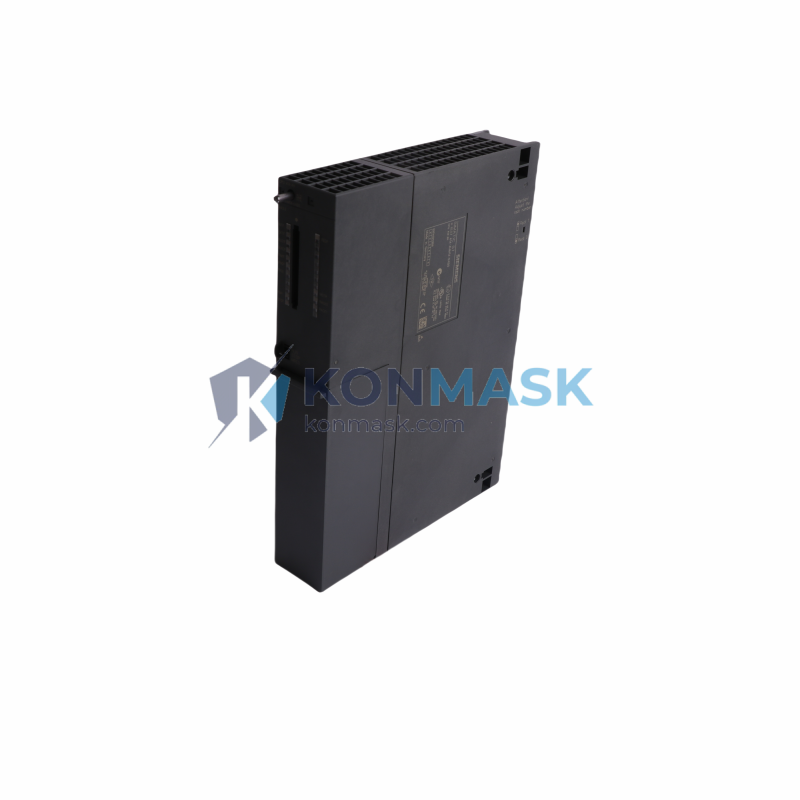

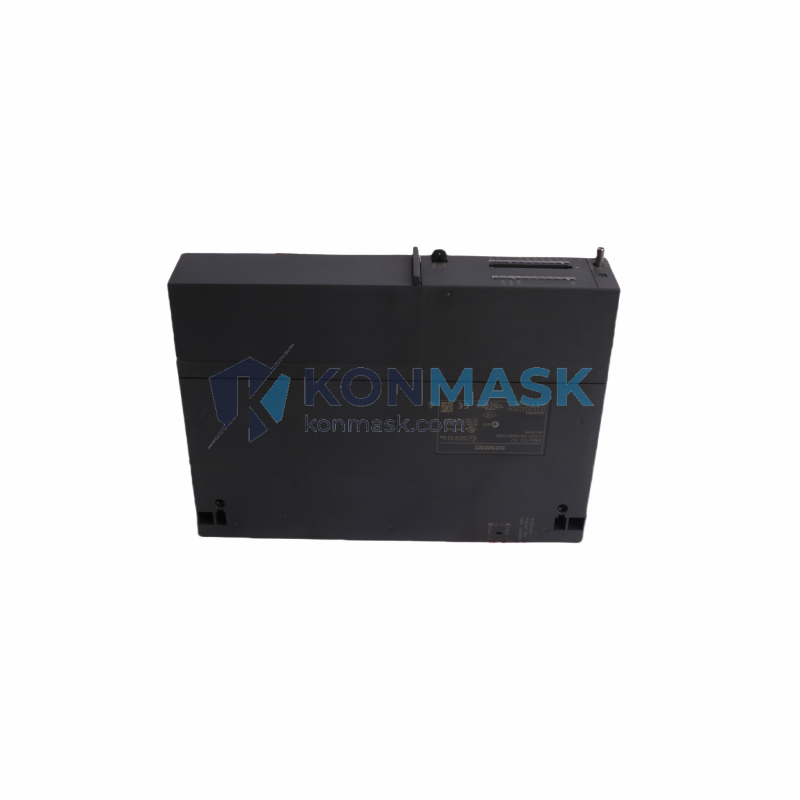

SIEMENS 6ES7414-4HM14-0AB0 CPU 414-4H | Replacement, Equivalent & Selection Guide
The SIEMENS 6ES7414-4HM14-0AB0 is a high-availability redundant CPU module from the SIMATIC S7-400 H-System series, engineered for mission-critical process automation where zero unplanned downtime is non-negotiable. At Konmask.com, we help engineers and procurement teams identify the right CPU, verify cross-compatibility, and source genuine or equivalent units with full traceability.
Technical Specifications
- Part Number: 6ES7414-4HM14-0AB0
- Series: SIMATIC S7-400 / CPU 414-4H
- Type: Redundant (H-System) PLC CPU Module
- Work Memory (RAM): 4 MB (expandable)
- Load Memory: Integrated 1 MB Flash + MMC slot
- Processing Speed: 0.1 ms / 1000 binary instructions
- Communication Interfaces: MPI/DP (integrated), 4× PROFIBUS DP master/slave
- Sync Interface: 2× fiber-optic sync links for H-redundancy
- Max I/O Modules: 131,072 digital / 8,192 analog channels
- Operating Voltage: DC 5 V (via backplane bus)
- Operating Temperature: 0 °C to +60 °C
- Dimensions (W×H×D): 50 × 290 × 219 mm
- Weight: approx. 980 g
- Certifications: CE, UL, cULus, ATEX (Zone 2)
- Firmware: V6.0 and above
Compatible Replacement & Equivalent Models
The table below lists verified compatible and replacement options for the 6ES7414-4HM14-0AB0. Always confirm firmware version and H-system sync compatibility before substitution.
- 6ES7414-4HM08-0AB0 — Earlier firmware revision (V5.x); functionally equivalent, lower firmware baseline; direct drop-in for most H-system configurations
- 6ES7414-4HJ00-0AB0 — Predecessor model; same CPU 414-4H family; verify sync cable compatibility
- 6ES7414-4HJ04-0AB0 — Mid-generation variant; compatible with same racks and power supplies
- 6ES7416-3XR05-0AB0 (CPU 416-3 PN/DP) — Higher-performance alternative if redundancy is not required; not H-system
- 6ES7414-3EM05-0AB0 (CPU 414-3 PN/DP) — Non-redundant downgrade option for cost-sensitive retrofits
⚠ Note: H-system redundancy requires both CPUs to share identical firmware versions and sync module types. Always consult Konmask technical support before substitution in live systems.
Why Choose the Original Model
- True Hot-Standby Redundancy: Dual-CPU synchronization via fiber-optic links ensures bumpless switchover in <100 ms
- Proven in Critical Industries: Widely deployed in chemical plants, oil & gas, water treatment, and power generation
- Maximum I/O Scalability: Supports the full S7-400 rack ecosystem — up to 21 racks per station
- Long-Term Availability: Siemens extended lifecycle support; spare parts and firmware updates available
- Seamless TIA Portal Integration: Fully programmable via STEP 7 V5.x and TIA Portal V13+
Typical Applications
- Oil & gas pipeline SCADA and emergency shutdown systems (ESD)
- Chemical and petrochemical batch process control
- Power plant DCS integration and turbine control
- Water and wastewater treatment plant automation
- Pharmaceutical manufacturing (FDA 21 CFR Part 11 environments)
- Steel mill and heavy industry continuous process lines
System Compatibility
- Racks: UR1 (6ES7400-1JA01-0AA0), UR2 (6ES7400-2JA00-0AA0), UR2-H
- Power Supplies: PS 405 / PS 407 series (4A / 10A / 20A variants)
- Sync Modules: 6ES7960-1AA04-0XA0 (fiber-optic sync)
- Communication Modules: CP 443-1, CP 443-5 Extended
- Programming Software: STEP 7 V5.5 SP4+, TIA Portal V13 SP1+
- HMI: WinCC V7.x, SIMATIC Panels via PROFIBUS/MPI
Selection Guide
Use the criteria below to determine whether the 6ES7414-4HM14-0AB0 is the right CPU for your project:
- Need redundancy? → Yes: 6ES7414-4HM14-0AB0 (H-system). No: consider CPU 414-3 PN/DP
- Memory requirement > 4 MB? → Upgrade to CPU 416-4H (6ES7416-4HB08-0AB0)
- PROFINET required? → Add CP 443-1 EX40 or select CPU 416-5H for integrated PN
- Budget-constrained retrofit? → Evaluate 6ES7414-4HM08-0AB0 (earlier revision, lower cost)
- New project vs. replacement? → New projects: consider SIMATIC S7-1500 for future-proofing; replacement: stay within S7-400 H ecosystem for compatibility
Quality Assurance & Sourcing
- ✅ All units inspected against Siemens original datasheet specifications
- ✅ Firmware version verified and documented prior to shipment
- ✅ Serial number and date code recorded for full traceability
- ✅ Anti-static packaging with humidity indicator cards
- ✅ 12-month warranty on all supplied units
- ✅ Global sourcing network: EU, US, and Asia-Pacific authorized channels
How to Order
- Confirm your current CPU part number and firmware version (check label on module face)
- Identify whether you need an exact replacement or a compatible equivalent
- Contact Konmask with your quantity, required lead time, and destination country
- Receive quotation with availability, unit price, and shipping options within 24 hours
- Place order — payment via T/T, PayPal, or credit card accepted
- Shipment with tracking number and packing list provided
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace 6ES7414-4HM08-0AB0 directly with 6ES7414-4HM14-0AB0?
A: Yes, in most cases. Both are CPU 414-4H variants. Ensure both CPUs in the H-pair are updated to the same firmware version after replacement.
Q: Is the 6ES7414-4HM14-0AB0 compatible with S7-400 non-H racks?
A: Yes, it can operate in standard mode without the sync module, but H-redundancy features will be inactive.
Q: What is the difference between -0AB0 and -0XB0 order suffixes?
A: -0AB0 is the standard commercial version. -0XB0 typically denotes a repair/exchange unit. Functionally identical.
Q: Do you supply the fiber-optic sync cables as well?
A: Yes. We supply the complete H-system kit including sync modules (6ES7960-1AA04-0XA0) and fiber cables on request.
Q: Can this CPU be programmed with TIA Portal?
A: Yes, from TIA Portal V13 SP1 onwards with the S7-400 support package installed.
