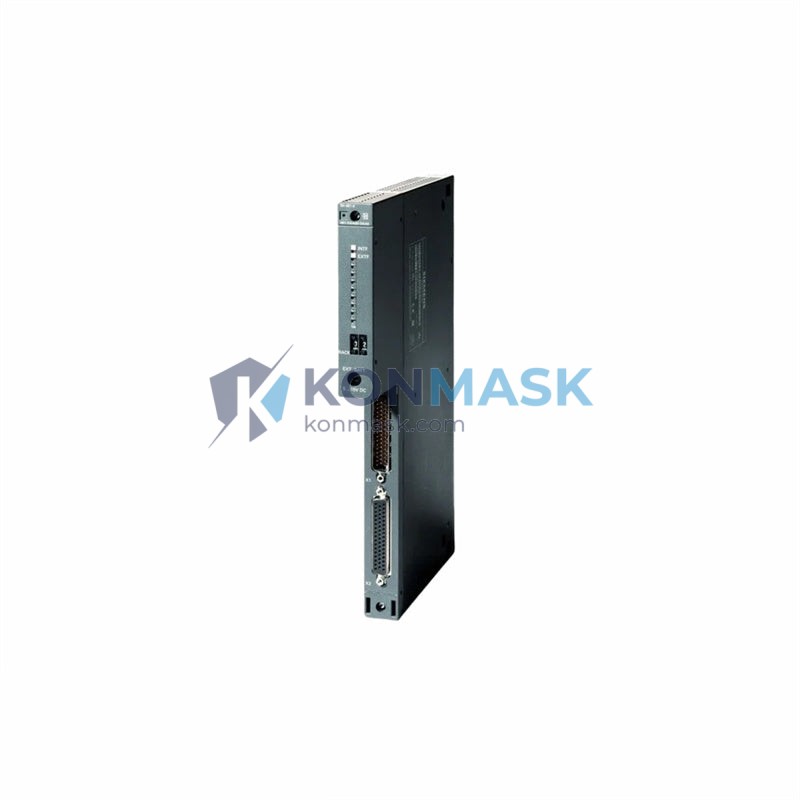

Siemens 6ES7461-1BA01-0AA0 – IM461-1 Send Interface Module | SIMATIC S7-400 Platform
Engineering Background
The SIMATIC S7-400 is Siemens’ flagship high-performance PLC platform, engineered for demanding process automation, manufacturing execution, and safety-critical applications. Its modular rack architecture allows engineers to distribute I/O across multiple expansion racks, enabling scalable system design without compromising deterministic cycle times.
Product Positioning
The 6ES7461-1BA01-0AA0 (IM461-1) is the send-side interface module installed in the central rack (CR) of an S7-400 system. It establishes a high-speed backplane link to one expansion rack (ER) via the dedicated expansion bus, offloading I/O distribution from the CPU and maintaining system integrity across physical rack boundaries. This module is essential for any S7-400 installation requiring more than the central rack’s native slot capacity.
Complete Technical Specifications
| Order Number (MLFB) | 6ES7461-1BA01-0AA0 |
| Module Designation | IM461-1 |
| Function | Send interface module (central rack → expansion rack) |
| Compatible Platform | SIMATIC S7-400 |
| Rack Position | Central Rack (CR) – any standard slot |
| Expansion Racks Supported | 1 ER per IM461-1 |
| Matching Receive Module | 6ES7460-1BA01-0AA0 (IM460-1) |
| Max. Cable Length | 1.5 m (direct rack-to-rack connection) |
| Bus Type | SIMATIC S7-400 expansion bus (parallel backplane) |
| Supply Voltage | 5 VDC (via backplane bus) |
| Current Consumption (5 V) | Approx. 0.5 A |
| Power Dissipation | Approx. 2.5 W |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +70 °C |
| Relative Humidity | 10 % to 95 % (non-condensing) |
| Degree of Protection | IP20 |
| Dimensions (W × H × D) | 25 mm × 290 mm × 210 mm |
| Weight | Approx. 1,130 g |
| Certifications | CE, UL, cUL, FM |
| SIMATIC Product Family | S7-400 |
| Country of Origin | Germany |
Proven Application Environments
- Process Industries: Oil & gas, chemical, pharmaceutical – where distributed I/O across multiple racks is required for large-scale DCS-style architectures built on S7-400.
- Automotive Manufacturing: Body-in-white lines, press shops, and paint shops requiring high I/O density with deterministic scan times.
- Power Generation & Utilities: Turbine control, substation automation, and water treatment plants leveraging S7-400’s redundancy capabilities.
- Material Handling & Logistics: Conveyor systems and sortation equipment with geographically distributed I/O panels.
- Machine Tool & Heavy Machinery: CNC integration and multi-axis motion control systems requiring centralized CPU with remote I/O expansion.
Engineering Advantages
- Transparent Rack Extension: The IM461-1/IM460-1 pair makes the expansion rack fully transparent to the CPU – no additional programming or address mapping required.
- High-Speed Parallel Bus: Dedicated expansion bus ensures minimal latency between CR and ER, preserving cycle time integrity.
- Plug-and-Play Integration: Hot-swappable in powered systems (with appropriate precautions); no tools required for module insertion/removal.
- Compact Form Factor: Single-slot width (25 mm) minimizes rack space consumption in the central rack.
- Proven Reliability: MTBF rated for continuous industrial operation; field-proven in thousands of global installations since S7-400 platform launch.
- Full Siemens Ecosystem Compatibility: Works with all S7-400 CPUs (41x series), power supply modules, and standard/failsafe I/O modules.
System Architecture & Signal Flow
In a standard S7-400 multi-rack configuration:
- Central Rack (CR) houses the CPU, PS, and the 6ES7461-1BA01-0AA0 (IM461-1) send module.
- A shielded expansion cable (max. 1.5 m) connects the IM461-1 to the IM460-1 (6ES7460-1BA01-0AA0) receive module installed in the Expansion Rack (ER).
- The ER hosts additional SM (signal modules), FM (function modules), or CP (communication processors) as required by the application.
- The CPU addresses all modules across CR and ER within a unified address space – no gateway or protocol conversion required.
Note: Each IM461-1 supports exactly one ER. For multi-rack systems requiring more than one ER, additional IM461-1 modules are installed in the CR (subject to available slots and bus load).
Sourcing & Quality Verification
- Origin: Genuine Siemens OEM hardware sourced through authorized industrial distribution channels.
- Inspection: Each unit undergoes visual inspection, label verification (MLFB, date code, firmware revision), and functional pre-shipment checks.
- Condition: New (factory-sealed) and refurbished (tested, cleaned, re-labeled) stock available – condition specified at time of quotation.
- Documentation: EU Declaration of Conformity and product datasheet available upon request.
- Traceability: Batch and serial number records maintained for all shipped units.
Procurement Process
-
Confirm Part Number: Verify MLFB
6ES7461-1BA01-0AA0against your project BOM or Siemens TIA Portal hardware catalog. - Request Quote: Contact us via the form below or email [email protected] with quantity and required delivery date.
- Order Confirmation: Purchase order accepted; lead time and shipping method confirmed within 24 business hours.
- Shipment: Packed in anti-static ESD packaging with foam cushioning; shipped via DHL Express, FedEx, or UPS with full tracking.
- After-Sales: 12-month warranty on new units; 90-day warranty on refurbished units. Technical support available via email and phone.
Technical FAQ
Q: Can the 6ES7461-1BA01-0AA0 be used with S7-300 or S7-1500?
A: No. This module is exclusively designed for the SIMATIC S7-400 rack architecture. It is not compatible with S7-300, S7-1200, or S7-1500 platforms.
Q: What is the maximum number of expansion racks in an S7-400 system?
A: Up to 21 expansion racks can be connected to a single S7-400 central rack, depending on the CPU model and total bus load. Each ER requires one IM461-1 in the CR and one IM460-1 in the ER.
Q: Is the IM461-1 compatible with S7-400H (redundant) systems?
A: Yes, the 6ES7461-1BA01-0AA0 is compatible with S7-400H redundant CPU configurations. Consult the S7-400H system manual for rack topology constraints.
Q: What cable is required between IM461-1 and IM460-1?
A: Siemens recommends the dedicated expansion cable (e.g., 6ES7468-1BB50-0AA0 or equivalent) with a maximum length of 1.5 m for this module pair.
Q: Can I hot-swap the IM461-1 during system operation?
A: Hot-swapping is physically possible but will interrupt communication to the connected expansion rack and all its I/O modules. Always follow your plant’s safety procedures and consult the S7-400 system manual before performing live module changes.
